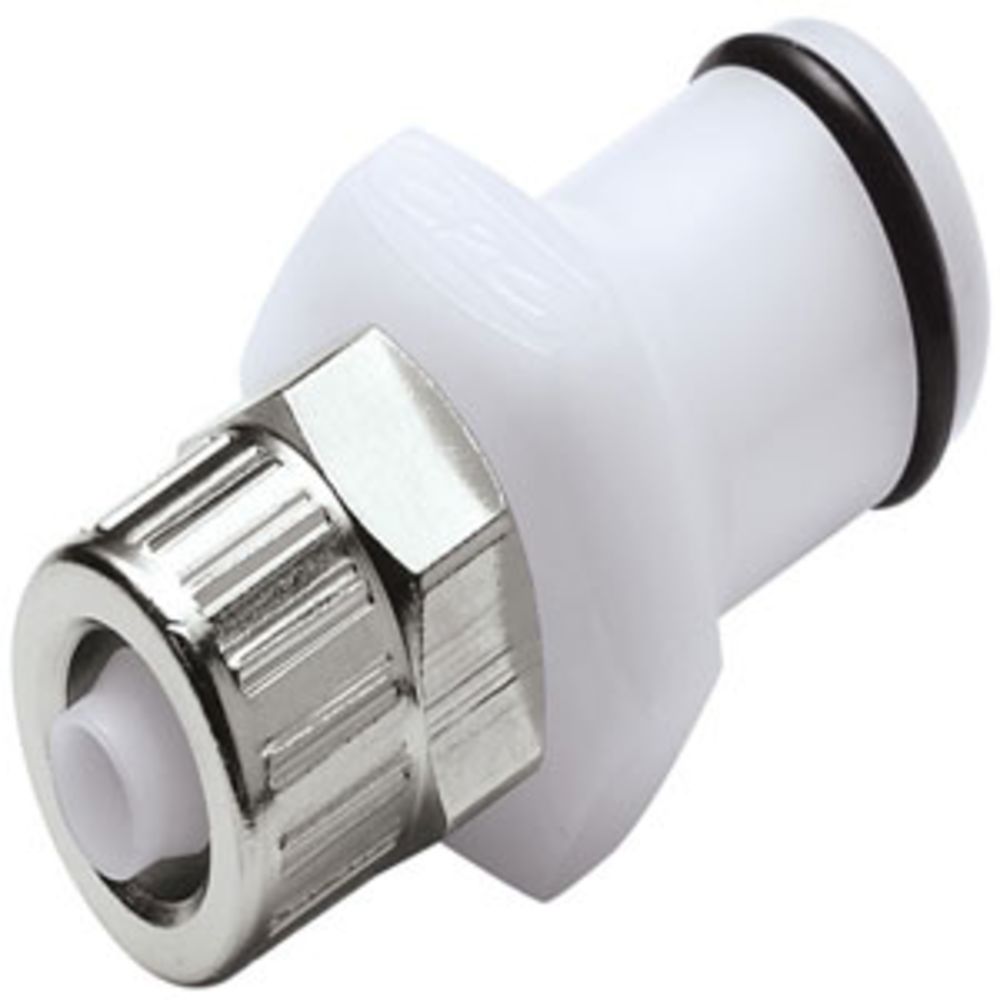

Colder PLC Series Couplings are injection molded from acetal thermoplastic. This makes them resistant to most mild chemicals and durable enough to give many years of trouble free service. The PLC Series offers the largest selection of sizes and configurations and has been proven worldwide in thousands of applications.
Specifications:
Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Valve Option: Non-Valved
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Seal Options: BUNA-N
Details
Series | PLC |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 120 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Push-In Size | 1/4" OD |
Application | Water |
Bag Quantity | 25 |
Body Material | Acetal Copolymer |
Color / Finish | White, Natural |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Size | 1/4" |
Valve Type | Non-Valved |
Inlet/Outlet Connection | 1/4" FPT |
Warranty & Certifications
Certifications | NSF 169 |
Colder PLC Series Couplings are injection molded from acetal thermoplastic. This makes them resistant to most mild chemicals and durable enough to give many years of trouble free service. The PLC Series offers the largest selection of sizes and configurations and has been proven worldwide in thousands of applications.
Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Valve Option: Non-Valved
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Seal Options: BUNA-N
Details
Series | PLC |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 120 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Push-In Size | 1/4" OD |
Application | Water |
Bag Quantity | 25 |
Body Material | Acetal Copolymer |
Color / Finish | White, Natural |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Size | 1/4" |
Valve Type | Non-Valved |
Inlet/Outlet Connection | 1/4" FPT |
Warranty & Certifications
Certifications | NSF 169 |
