Pentek

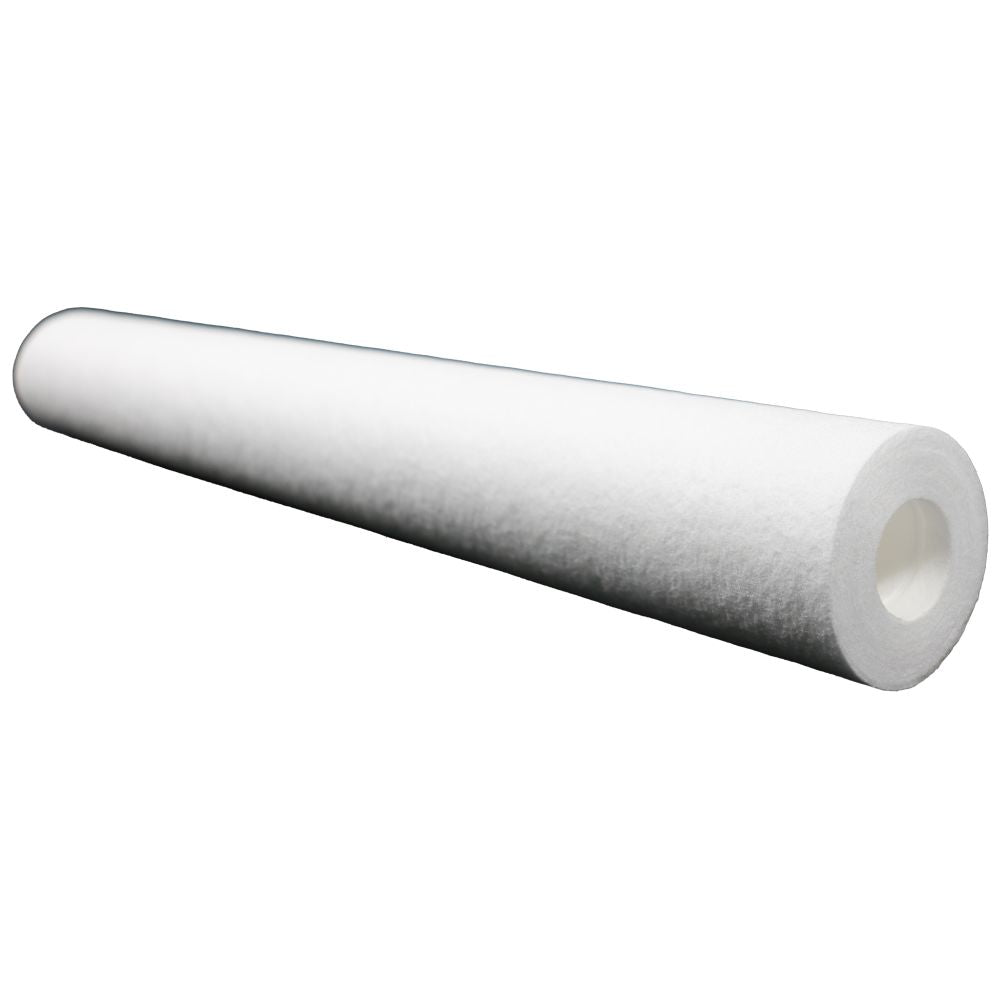

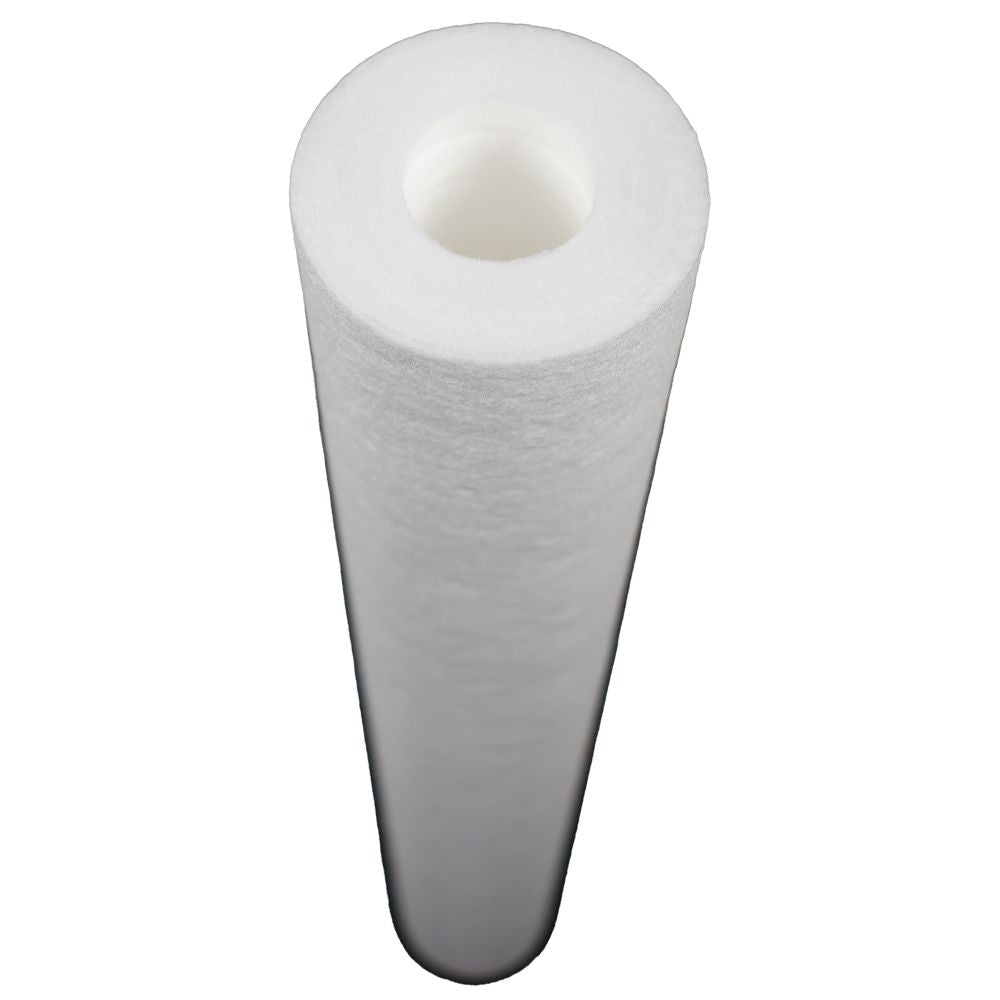

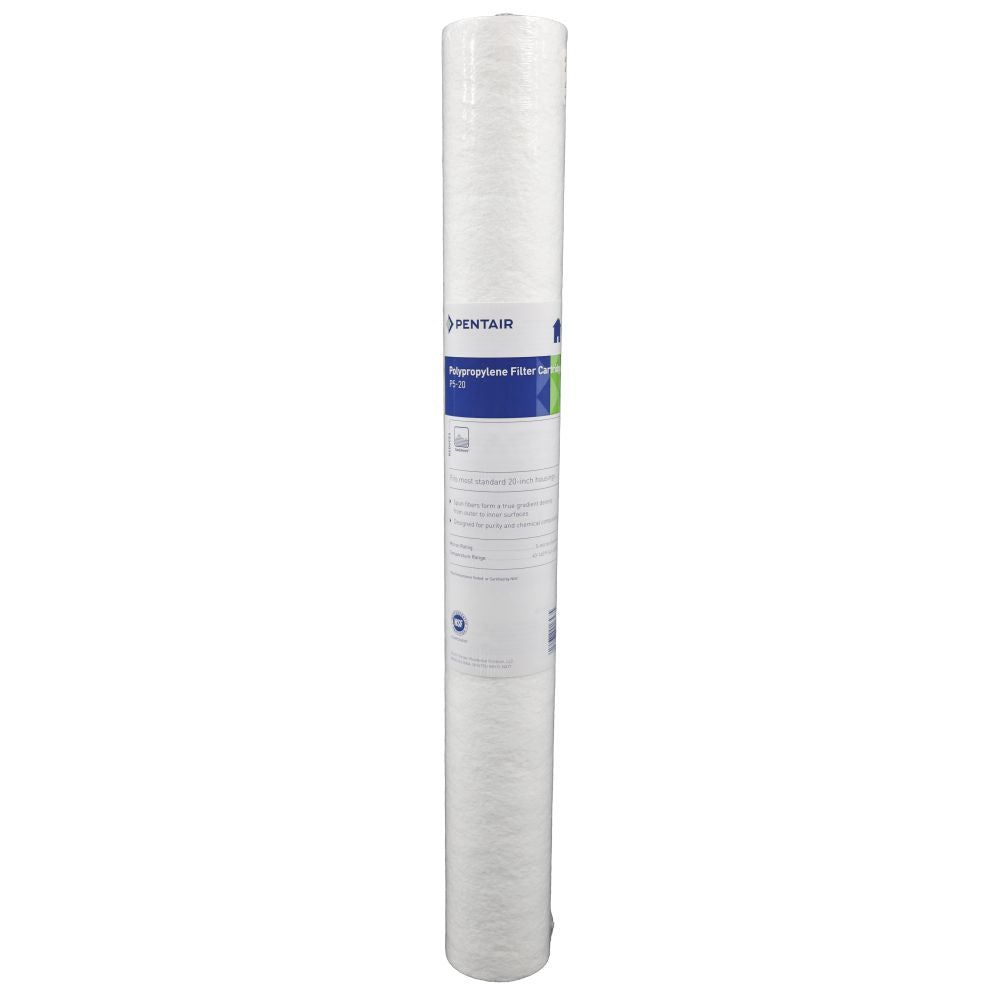

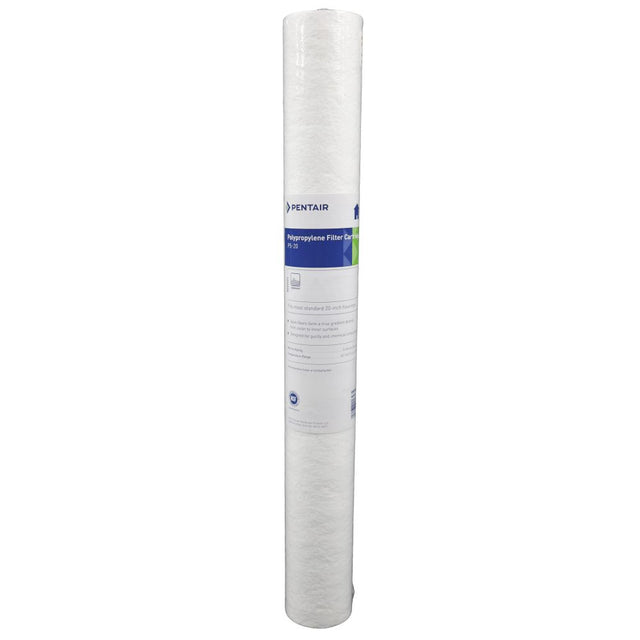

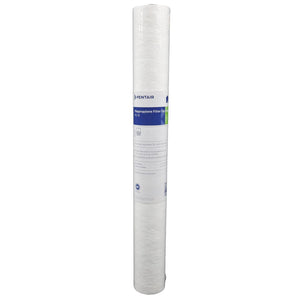

Pentek P5-20 20" Spun Bonded Polypropylene Sediment Filter 5 Mic

Part Number: 155016-43

Alt. Part Number: P5-20

In Stock

out of stock

In Stock

$17.25

The Pentek P5-20 20" depth filter is an exceptional value for general applications where long life, high purity and low change-out frequency are required. Produced through a patented melt blown microfiber technology, 20" depth filter is a 100% pure polypropylene depth filter with exceptional dirt-holding capacity. 20" depth filter true-graded density filter matrix captures particles throughout the entire filter depth. This translates to longer life and fewer change-outs than existing string-wound or resin-bonded filters. The filter incinerates to trace ash for easy disposal.

Features:
  • Lower density at the surface of the filter with progressively higher density towards the center
  • Contains no wetting agents, solvents, antistatic agents or binders
  • Meets the requirement of the FDA for food and beverage contact
  • Long filter life
  • Superior dirt holding capacity
  • Potable water filtration
  • Chemical filtration - wide chemical compatibility
  • Plating baths
  • Amine filtration




Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Box Quantity

20

Cube Measurement

1.61488888888889

Height (inches)

20.8

Length (inches)

12.9

Weight (lbs)

10.5

Width (inches)

10.4

Details

Capacity

6 Months

Initial Pressure Drop

0.6 PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

5 µm

Min Temp (°F)

40

Psid@Flow Rate

0.6 psid @ 10 GPM

Recommended Flow Rate

10 GPM

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

6 Months

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Flow Rate

10 GPM

Media Type

Polypropylene

Micron Rating

5 µm

Product Length

20"

Warranty & Certifications

Certifications

NSF/ANSI 42


Pentek
