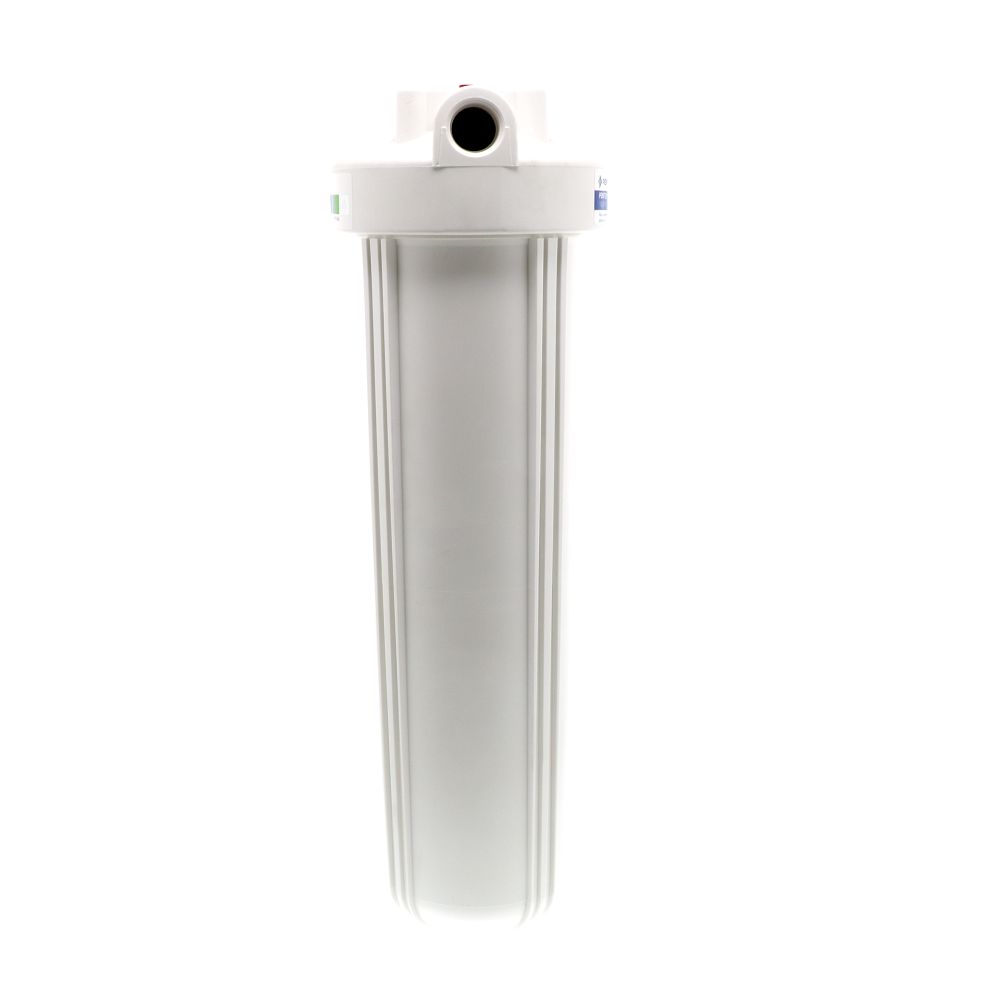

Pentek 20" Big White Water Filter Housing With Pressure Relief

Part Number: 166142

In Stock

out of stock

In Stock

$51.99


Pentek 20" Big White Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Big Blue filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Big White Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:
  • Polypropylene cap and sump
  • 151254 Buna-N Square Cut O-ring
  • Max Temperature: 100°F
  • Max Pressure: 90 psi (6.2 bar)


Weight & Dimensions

Approx Length (Inches)

20 Inches

Details

Cap Color

White

Cap Material

Polypropylene

Color / Finish

White

Housing Material

Polypropylene

Inlet/Outlet Size

1"; 1-1/2"

Material Of Construction

Polypropylene

Max Operating Pressure

90 psi (6.2 bar) PSI

Max Operating Temperature

100 Degrees Fahrenheit

O Rings

Buna-N

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

1 psi @ 15 gpm

Warranty & Certifications

Certifications

NSF/ANSI 42


Pentek





Pentek 20" Big White Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Big Blue filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Big White Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:
  • Polypropylene cap and sump
  • 151254 Buna-N Square Cut O-ring
  • Max Temperature: 100°F
  • Max Pressure: 90 psi (6.2 bar)

Weight & Dimensions

Approx Length (Inches)

20 Inches

Details

Cap Color

White

Cap Material

Polypropylene

Color / Finish

White

Housing Material

Polypropylene

Inlet/Outlet Size

1"; 1-1/2"

Material Of Construction

Polypropylene

Max Operating Pressure

90 psi (6.2 bar) PSI

Max Operating Temperature

100 Degrees Fahrenheit

O Rings

Buna-N

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

1 psi @ 15 gpm

Warranty & Certifications

Certifications

NSF/ANSI 42
