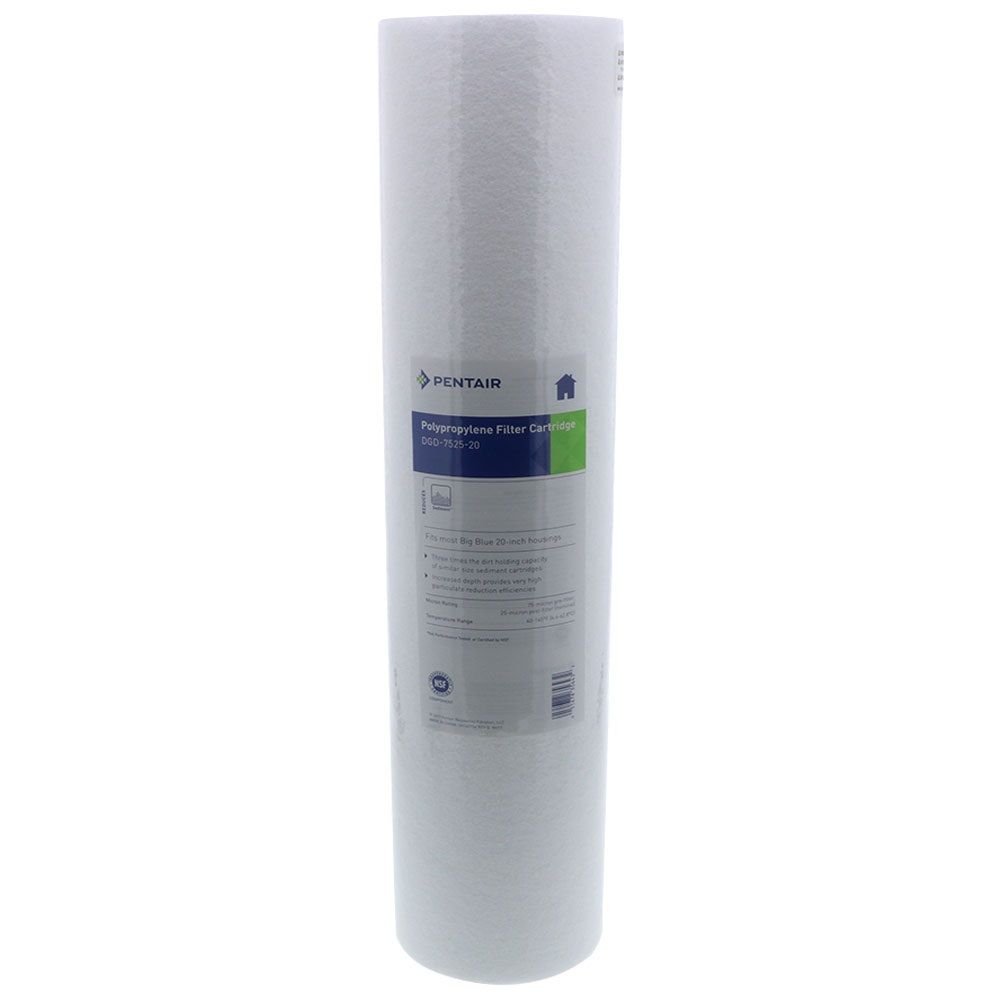

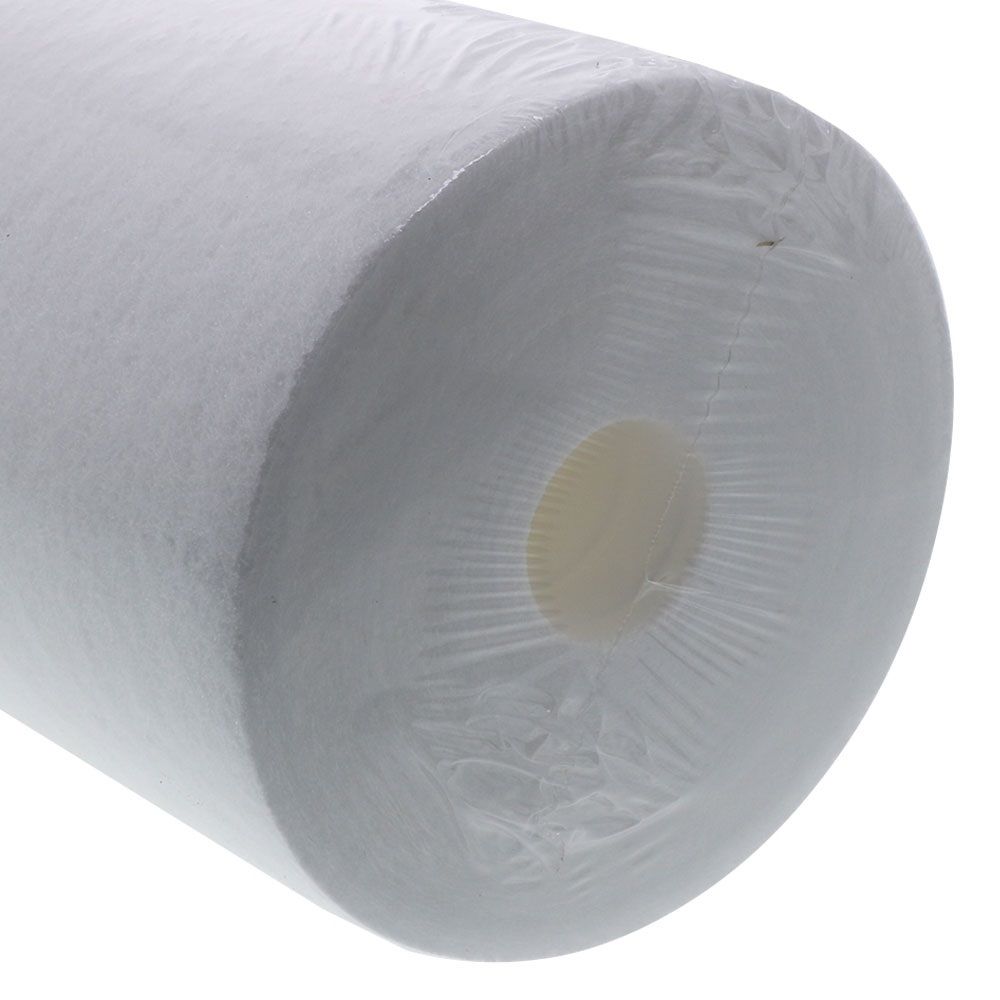

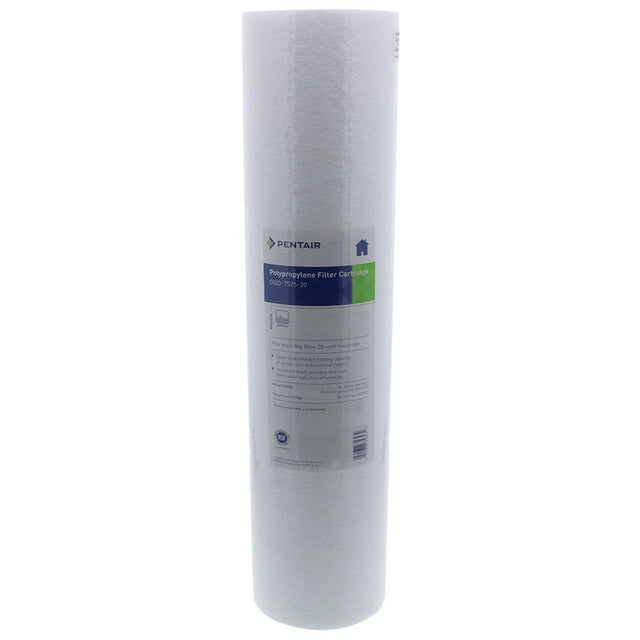

Pentair 20" BB Graded Density Polypropylene Sediment Filter 75/25 mic

Part Number: 155356-43

Alt. Part Number: DGD-7525-20, SGD-45-2025, MB-45200-25

In Stock

out of stock

In Stock

$15.99


The Pentair DGD Series Cartridges are designed for use in the Pentair/Pentek Big Blue Filter Housings. These 100% pure polypropylene filters provide superior chemical resistance and stop bacterial attacks. Pentair Dual Gradient Density (DGD) filters will not add taste, odor, or color to the liquid being filtered. These filters can be used in either a pre or post filtration application since they achieve up to 3 times the dirt holding capacity of similar sediment filters. The 155356-43 features a larger diameter, which reduces the particle load allowing it to operate at higher velocities. The increased depth of the DGD Series provides very high particulate reduction efficiencies and added loading capacity.
Ideal For a Variety of Applications. The design and performance characteristics of the DGD Series Cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.

All in One Design. The Pentair DGD Series Cartridges are a Dual Gradient Density Filter work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home.

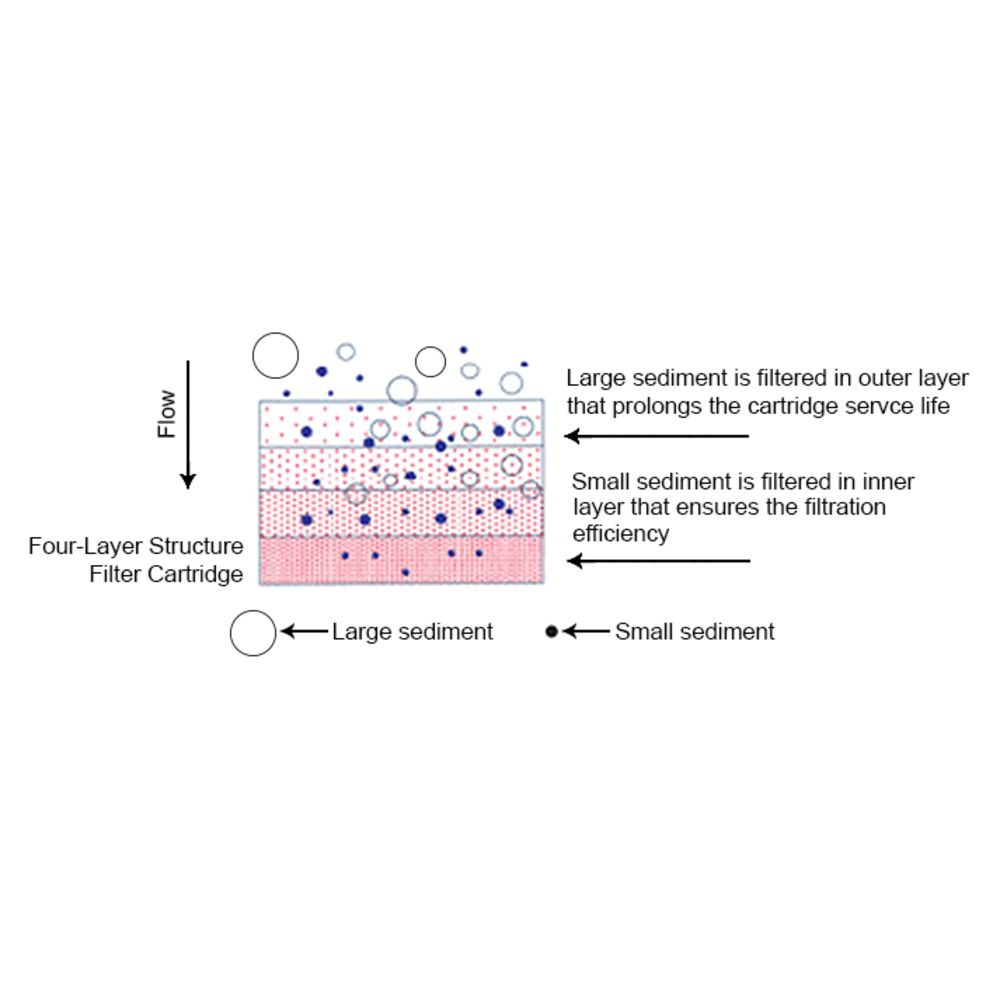

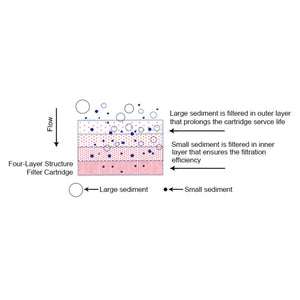

Ensures Your Water is Pure and Clean. The outer layer is a 75 micron pre-filter that takes out larger sediment, thus reducing the load on the 25 micron inner-layer post filter allowing it to operate more efficiently and consistently.

Additional Specifications:
  • Length: 20"
  • Diameter: 4-1/2"
  • Micron Rating: Pre 75 μm / Post 25 μm
  • NSF 42 Certified
NOTE: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 20" Big Blue Housings.


Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

6

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) PSI Differential

Media Type

Spun Bonded Polypropylene

Operating Temperature Range

40 - 145 Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)

Warranty & Certifications

Certifications

NSF 42
