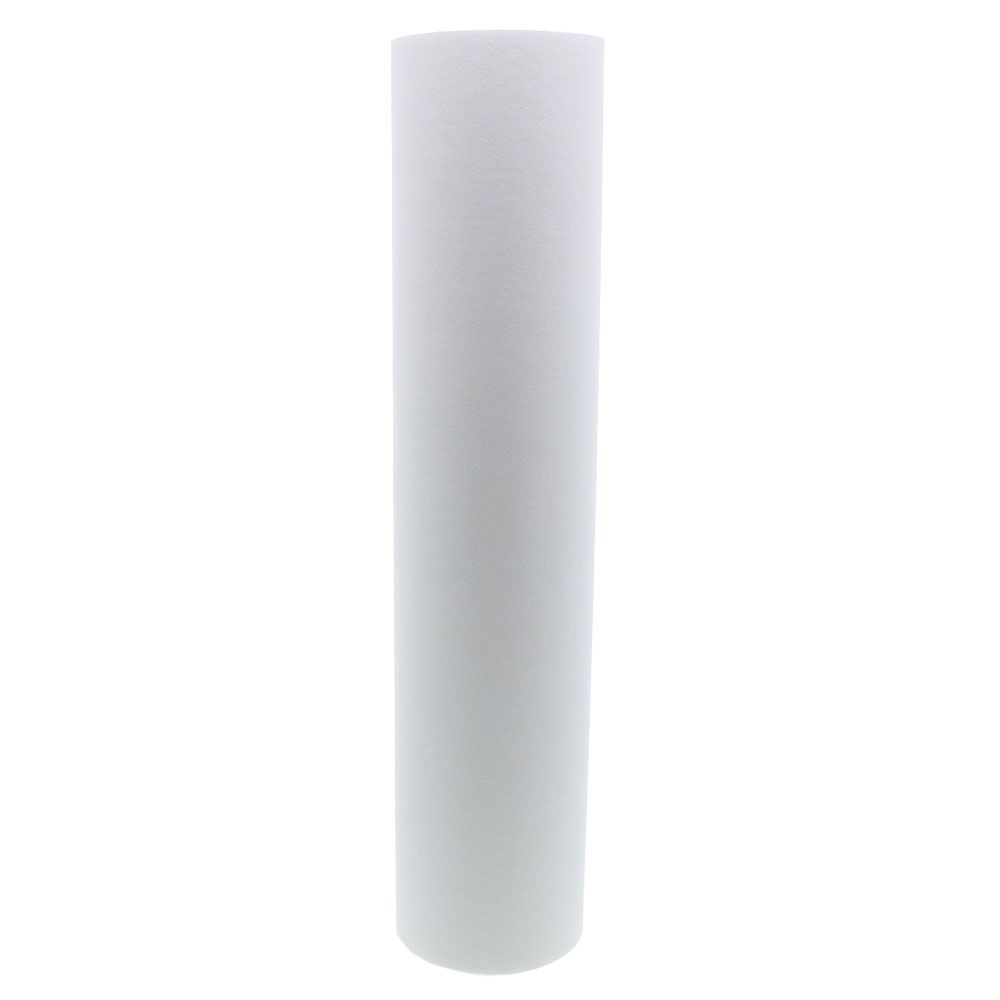

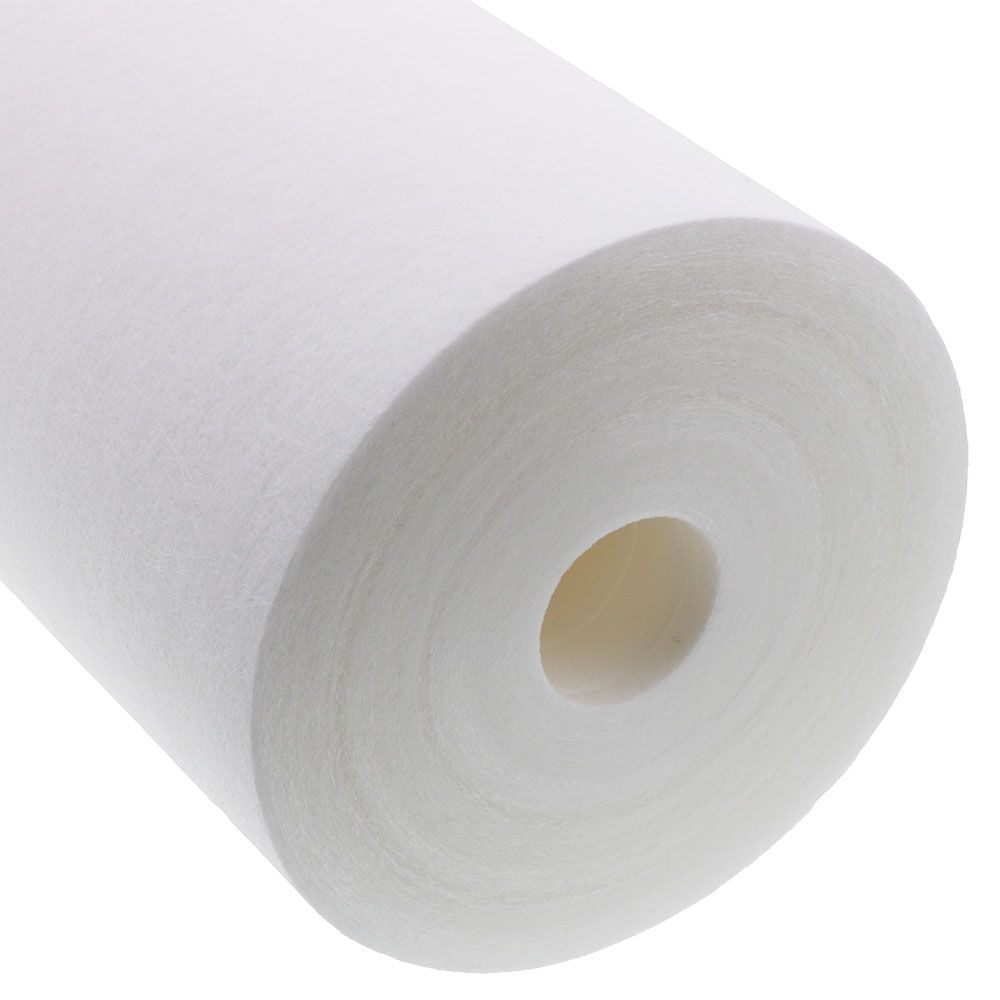

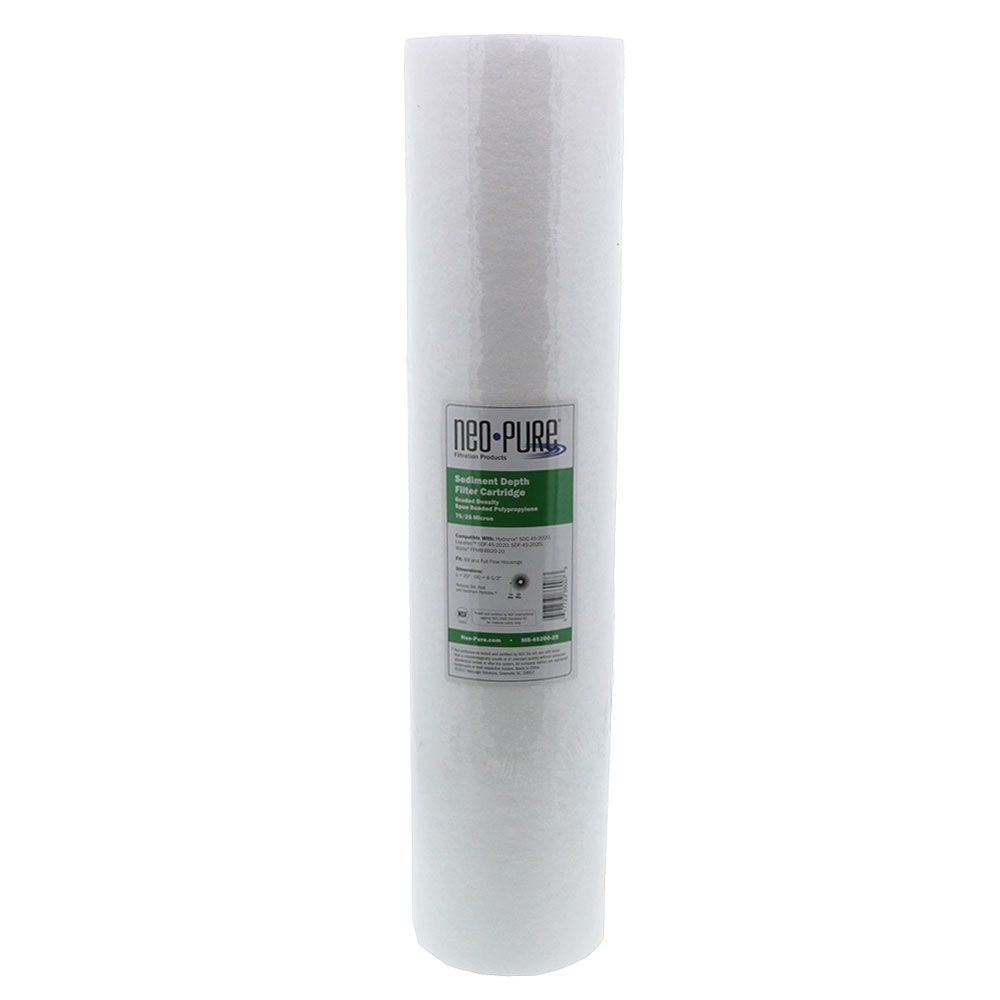

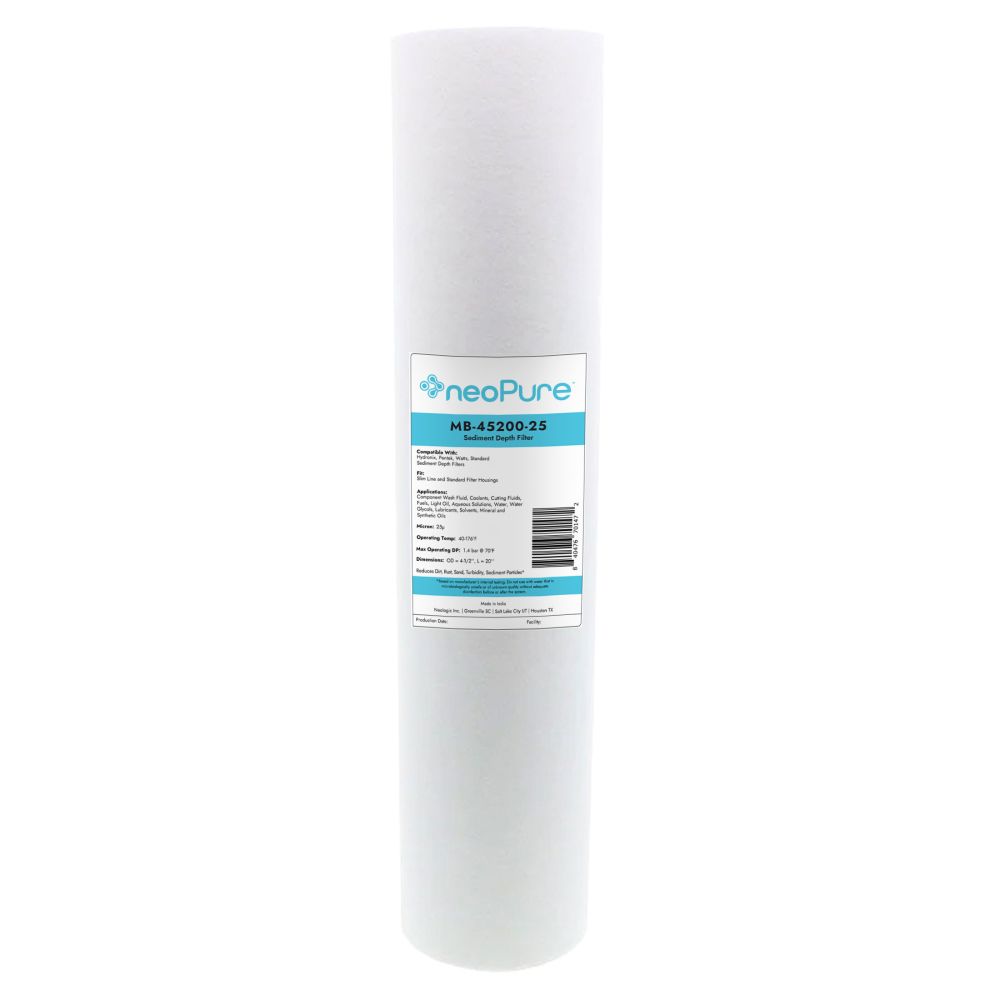

Neo-Pure 20" BB Graded Density Polypropylene Sediment Filter 75/25 mic
Part Number: MB-45200-25
Alt. Part Number: FPMB-BB20-20, MB-45200-20
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- NSF CertifiedManufactured for the Neo-Pure line by NeoLogic, The Neo-Pure MB-45200-25 Polypropylene Sediment Filter has been certified to NSF/ANSI Standard 42 requirements.
- Contaminant ReductionThe filter reduces extra-fine dirt, sand, sediment, silt, rust particles, and scale particles. It has three times the dirt-holding capacity of similar sized sediment water filter cartridges.
- Typical ApplicationsThe MB-45200-25 Filter is ideal for all residential, rural, commercial, industrial, and municipal applications.
- Compatible ReplacementCompatible with American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 20" Big Blue Housings.
Compatible with:
Hydronix | SDC-45-2020, SDC-45-2025 |
Liquatec | SDF-45-2020, SDF-45-2025 |
Valuetrex | 1227872-V-BB |
Watts | FPMB-BB20-20 |
SDG-45-2050 |
Product Details | |
---|---|
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 75/25 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 75 µm 25 µm |
Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
Shipping Dimensions | |
Shipping Length | 20 in. |
Shipping Width | 4.5 in. |
Shipping Height | 4.5 in. |
Product Weight & Dimensions | |
Freight_Out_Pallet_Dims | 48x40x90 |
Freight_Out_Pallet_Qty | 720 |
Freight_Out_Pallet_Weight | 513 |
Product Height | 4.5 |
Product Length | 20 |
Product Width | 4.5 |
Product Weight (lbs) | 1.808 |
Product Details | |
---|---|
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 75/25 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 75 µm 25 µm |
Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
Shipping Dimensions | |
Shipping Length | 21 in. |
Shipping Width | 21 in. |
Shipping Height | 21 in. |
Product Weight & Dimensions | |
Product Length | 20" |
Product Weight (lbs) | 11.8 |
Features:
- NSF CertifiedManufactured for the Neo-Pure line by NeoLogic, The Neo-Pure MB-45200-25 Polypropylene Sediment Filter has been certified to NSF/ANSI Standard 42 requirements.
- Contaminant ReductionThe filter reduces extra-fine dirt, sand, sediment, silt, rust particles, and scale particles. It has three times the dirt-holding capacity of similar sized sediment water filter cartridges.
- Typical ApplicationsThe MB-45200-25 Filter is ideal for all residential, rural, commercial, industrial, and municipal applications.
- Compatible ReplacementCompatible with American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 20" Big Blue Housings.
Compatible with:
Hydronix | SDC-45-2020, SDC-45-2025 |
Liquatec | SDF-45-2020, SDF-45-2025 |
Valuetrex | 1227872-V-BB |
Watts | FPMB-BB20-20 |
SDG-45-2050 |
Product Details | |
---|---|
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 75/25 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 75 µm 25 µm |
Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
Shipping Dimensions | |
Shipping Length | 20 in. |
Shipping Width | 4.5 in. |
Shipping Height | 4.5 in. |
Product Weight & Dimensions | |
Freight_Out_Pallet_Dims | 48x40x90 |
Freight_Out_Pallet_Qty | 720 |
Freight_Out_Pallet_Weight | 513 |
Product Height | 4.5 |
Product Length | 20 |
Product Width | 4.5 |
Product Weight (lbs) | 1.808 |
Product Details | |
---|---|
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 75/25 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 75 µm 25 µm |
Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
Shipping Dimensions | |
Shipping Length | 21 in. |
Shipping Width | 21 in. |
Shipping Height | 21 in. |
Product Weight & Dimensions | |
Product Length | 20" |
Product Weight (lbs) | 11.8 |
