Pentair 20" BB Graded Density Polypropylene Sediment Filter 25/01 mic

Part Number: 155360-43

Alt. Part Number: MB-45200-01

In Stock

out of stock

In Stock

$25.31

The Pentair DGD Series Cartridges are designed for use in the Pentair/Pentek Big Blue Filter Housings. These 100% pure polypropylene filters provide superior chemical resistance and stop bacterial attacks. Pentair Dual Gradient Density (DGD) filters will not add taste, odor, or color to the liquid being filtered. These filters can be used in either a pre or post filtration application since they achieve up to 3 times the dirt holding capacity of similar sediment filters. The 155360-43 features a larger diameter, which reduces the particle load allowing it to operate at higher velocities. The increased depth of the DGD Series provides very high particulate reduction efficiencies and added loading capacity.

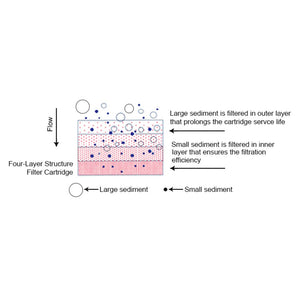

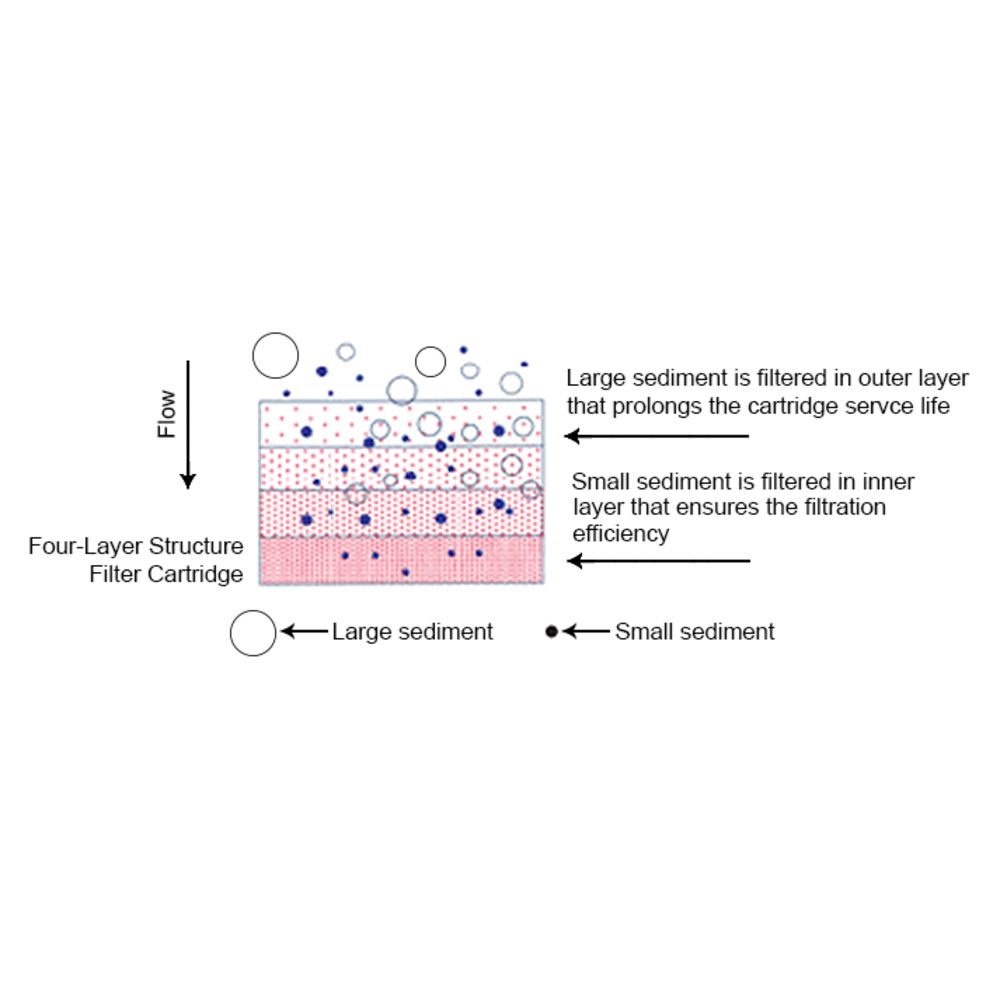

Ideal For a Variety of Applications. The design and performance characteristics of the DGD Series Cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.All in One Design. The Pentair DGD Series Cartridges are a Dual Gradient Density Filter work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home.Ensures Your Water is Pure and Clean. The outer layer is a 25 micron pre-filter that takes out larger sediment, thus reducing the load on the 1 micron inner-layer post filter allowing it to operate more efficiently and consistently.

Additional Specifications:
  • Length: 20"
  • Diameter: 4-1/2"
  • Micron Rating: Pre 25 μm / Post 1 μm
  • NSF 42 Certified
NOTE: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 20" Big Blue Housings.



Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

6

Weight (lbs)

1.05

Details

Initial Pressure Drop

<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) psid PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Psid@Flow Rate

< 1 psid @ 20 GPM

Recommended Flow Rate

10 GPM

Cap Material

Polypropylene

Cartridge Style

Drop-in

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Flow Rate

10 GPM

Media Type

Polypropylene

Micron Rating

1 µm

Product Length

20"

Warranty & Certifications

Certifications

NSF/ANSI 42


Pentair

Pentair




The Pentair DGD Series Cartridges are designed for use in the Pentair/Pentek Big Blue Filter Housings. These 100% pure polypropylene filters provide superior chemical resistance and stop bacterial attacks. Pentair Dual Gradient Density (DGD) filters will not add taste, odor, or color to the liquid being filtered. These filters can be used in either a pre or post filtration application since they achieve up to 3 times the dirt holding capacity of similar sediment filters. The 155360-43 features a larger diameter, which reduces the particle load allowing it to operate at higher velocities. The increased depth of the DGD Series provides very high particulate reduction efficiencies and added loading capacity.

Ideal For a Variety of Applications. The design and performance characteristics of the DGD Series Cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.All in One Design. The Pentair DGD Series Cartridges are a Dual Gradient Density Filter work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home.Ensures Your Water is Pure and Clean. The outer layer is a 25 micron pre-filter that takes out larger sediment, thus reducing the load on the 1 micron inner-layer post filter allowing it to operate more efficiently and consistently.

Additional Specifications:
  • Length: 20"
  • Diameter: 4-1/2"
  • Micron Rating: Pre 25 μm / Post 1 μm
  • NSF 42 Certified
NOTE: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 20" Big Blue Housings.


Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

6

Weight (lbs)

1.05

Details

Initial Pressure Drop

<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) psid PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Psid@Flow Rate

< 1 psid @ 20 GPM

Recommended Flow Rate

10 GPM

Cap Material

Polypropylene

Cartridge Style

Drop-in

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Flow Rate

10 GPM

Media Type

Polypropylene

Micron Rating

1 µm

Product Length

20"

Warranty & Certifications

Certifications

NSF/ANSI 42
