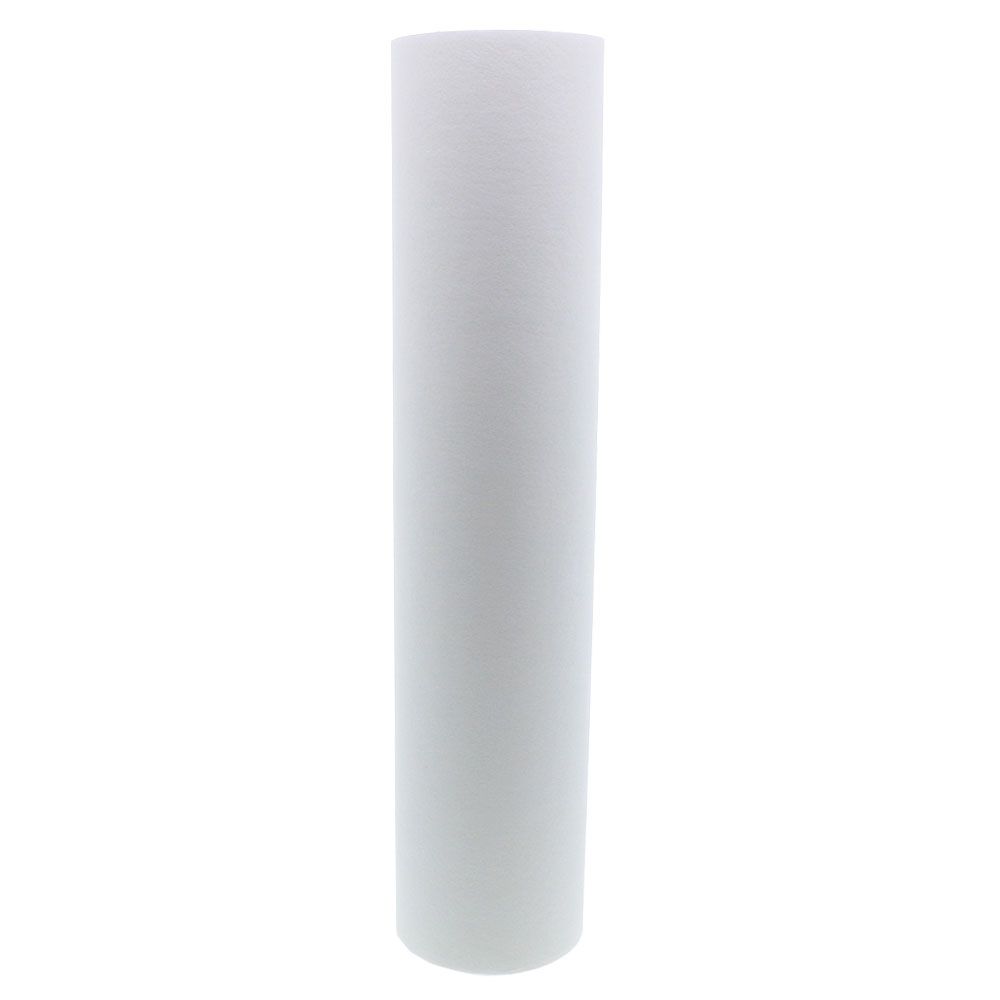

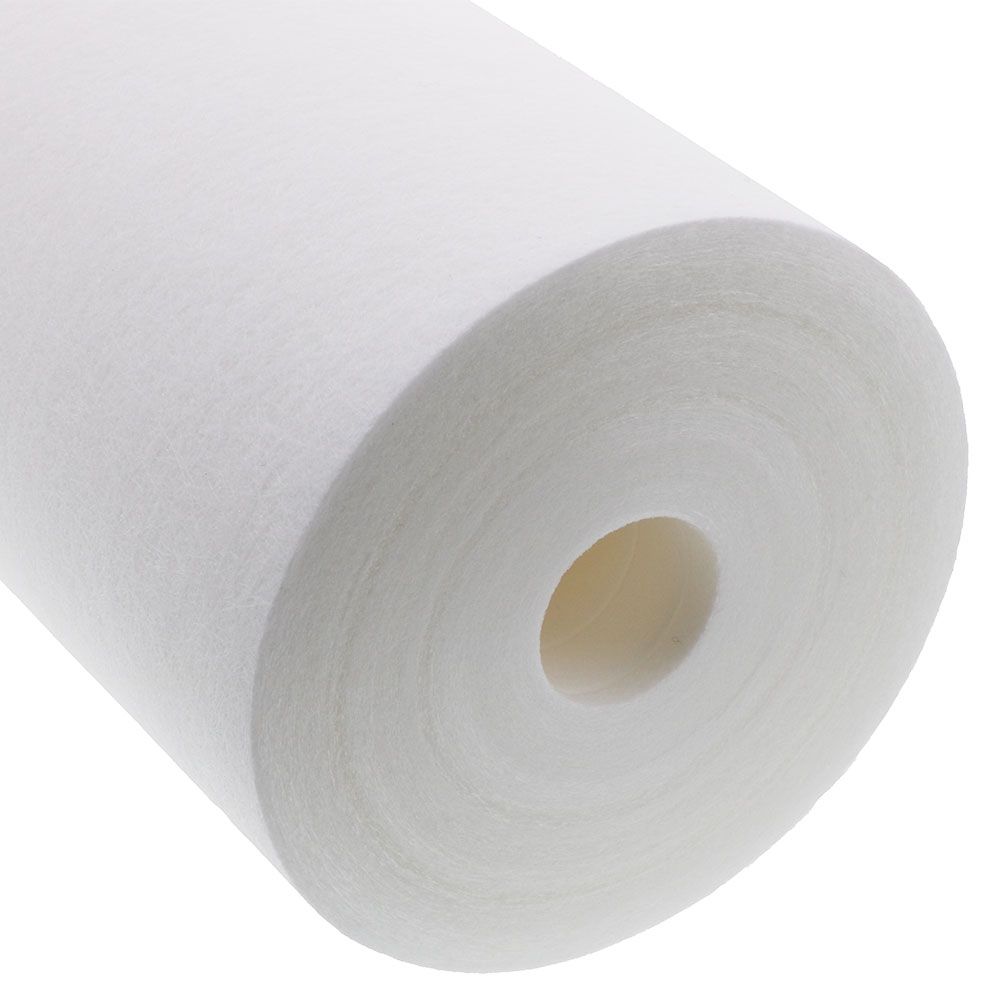

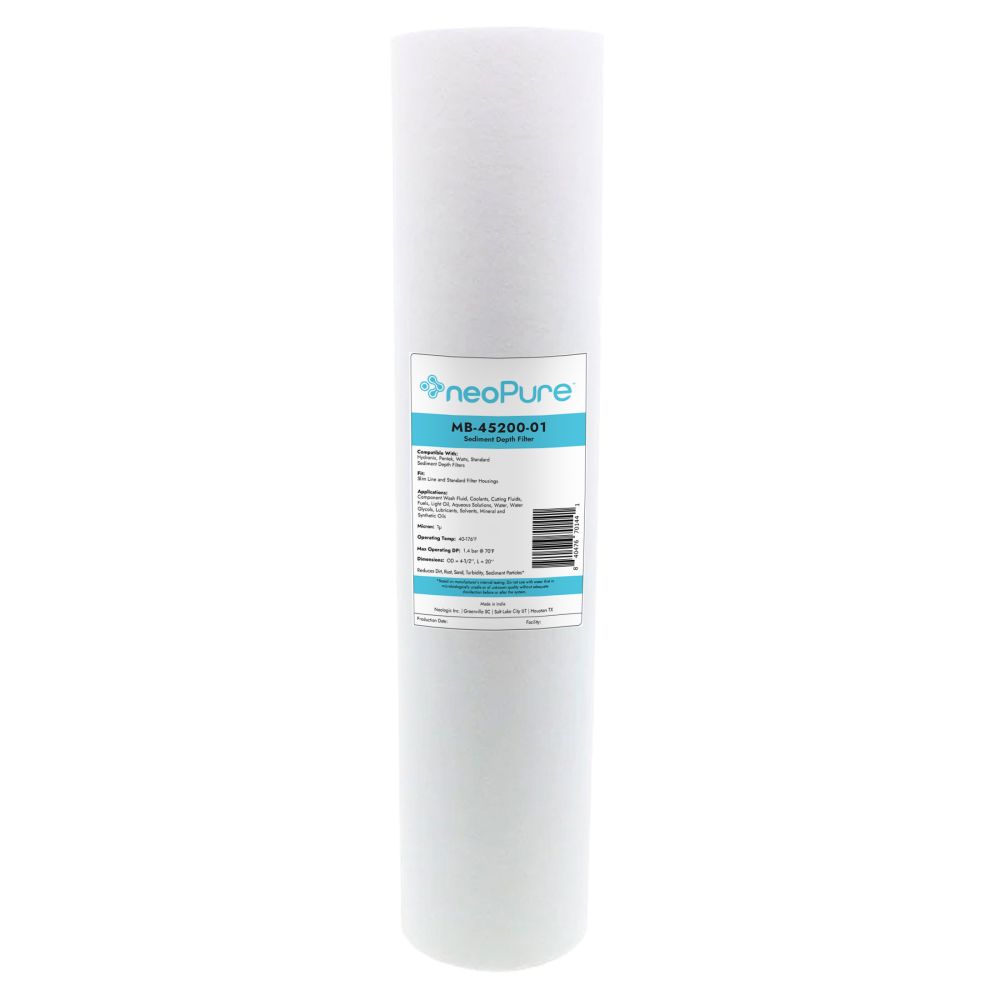

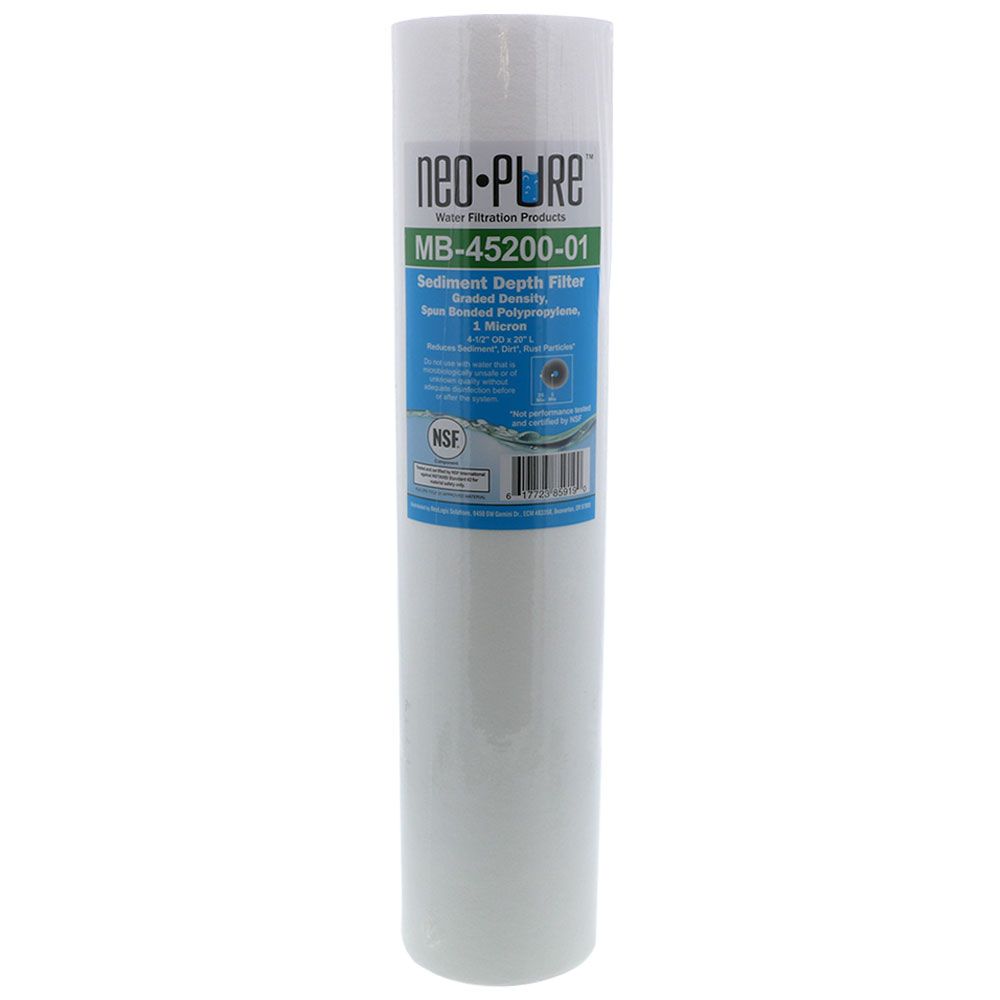

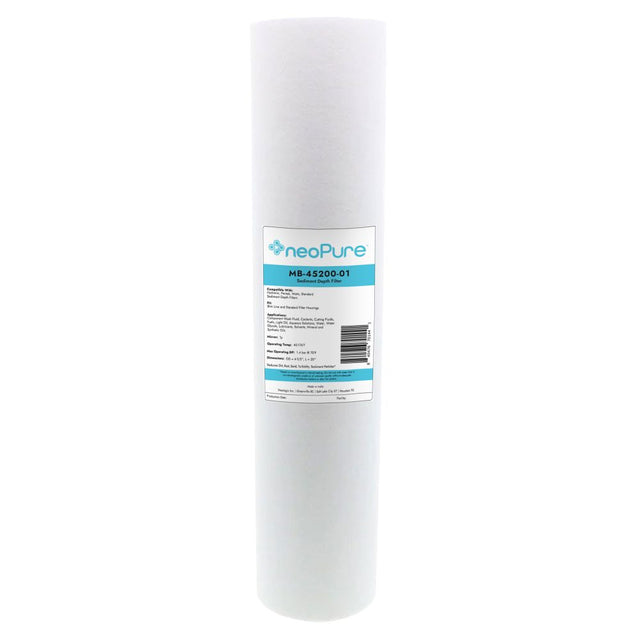

Neo-Pure 20" BB Graded Density Polypropylene Sediment Filter 25/1 mic

Home / Filters & Cartridges / Sediment Filters / Neo-Pure 20" BB Graded Density Polypropylene Sediment Filter 25/1 mic

Neo-Pure

Neo-Pure 20" BB Graded Density Polypropylene Sediment Filter 25/1 mic

Part Number: MB-45200-01

Alt. Part Number: SGD-45-2001, CMMF0120-45W1

Neo-Pure

Neo-Pure 20" BB Graded Density Polypropylene Sediment Filter 25/1 mic

Part Number: MB-45200-01

Alt. Part Number: SGD-45-2001, CMMF0120-45W1

Your price:

Choose

Single

Case of 6

Pallet of 252

Quantity

similar items

The Neo-Pure MB-45200-01 is a High Efficiency 25/1"" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 25/1"" sediment depth filter, like FCRO cartridges, offers a greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-45200-01 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Also known as DGD-5001-20 and the SDF-45-2001, the pure polypropylene construction makes it resistant to chemicals and corrosion.

Features:

NSF Certified.This filter has been independently tested and certified against NSF/ANSI Standard 42.
Neo-Pure MB-45200-01 Reduces: Extra-fine Dirt, Sand, Sediment, Silt, Rust, Scale
Quality Filtration. Will not add taste, odor, or color to the liquid being filtered.
Has three times the dirt-holding capacity of similar sized sediment water filter cartridges.
Quality Design. Manufactured for purity, bacteria resistance, and chemical resistance.
Ideal for all residential, rural, commercial, industrial, and municipal water applications.

Note: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 20"" Big Blue Housings.

Compatible with:

AXEON Membranes	203649
Filter Specialist	CMMF0120-45W1
Flexeon	203649
Hydronix	SDC-45-2001
Ice House America®	IHA - H05123
Liquatec	SDF-45-2001
Pentek	DGD-2501-20, 155360-43
Valuetrex	1227866-V-BB, VX01-20BB
Watts	FPMB-BB1-20

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Efficiency	0.8
Initial Pressure Drop	<1 psi typical PSI Differential
Max Temp (°F)	150
Micron Rating (Nominal)	Post 1 µm
Min Temp (°F)	40
Psid@Flow Rate	< 1 psi typical
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Media Type	Polypropylene
Micron Rating	1 µm 25 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42, FDA CFR-21
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Freight_Out_Pallet_Dims	48x40x90
Freight_Out_Pallet_Qty	720
Freight_Out_Pallet_Weight	513
Product Height	4.5 in.
Product Length	20"
Product Width	4.5 in.
Product Weight (lbs)	2.2
