Parker

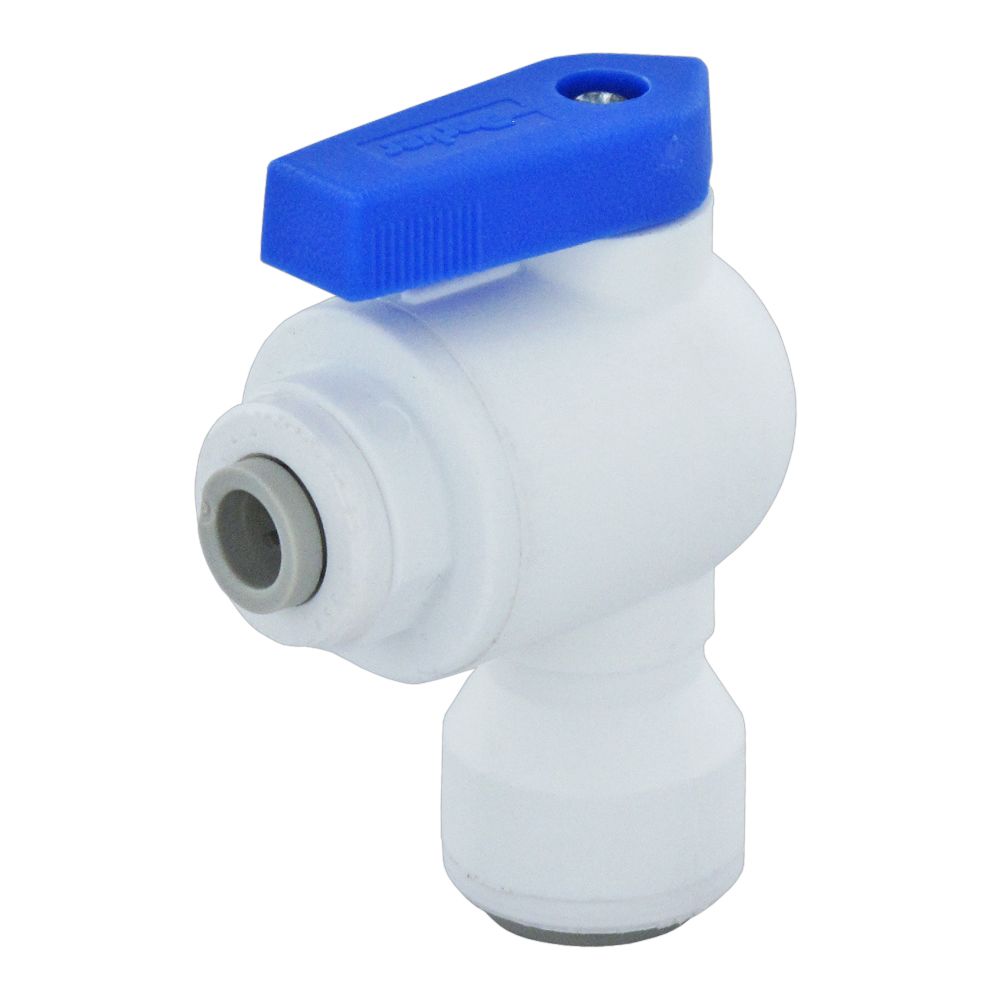

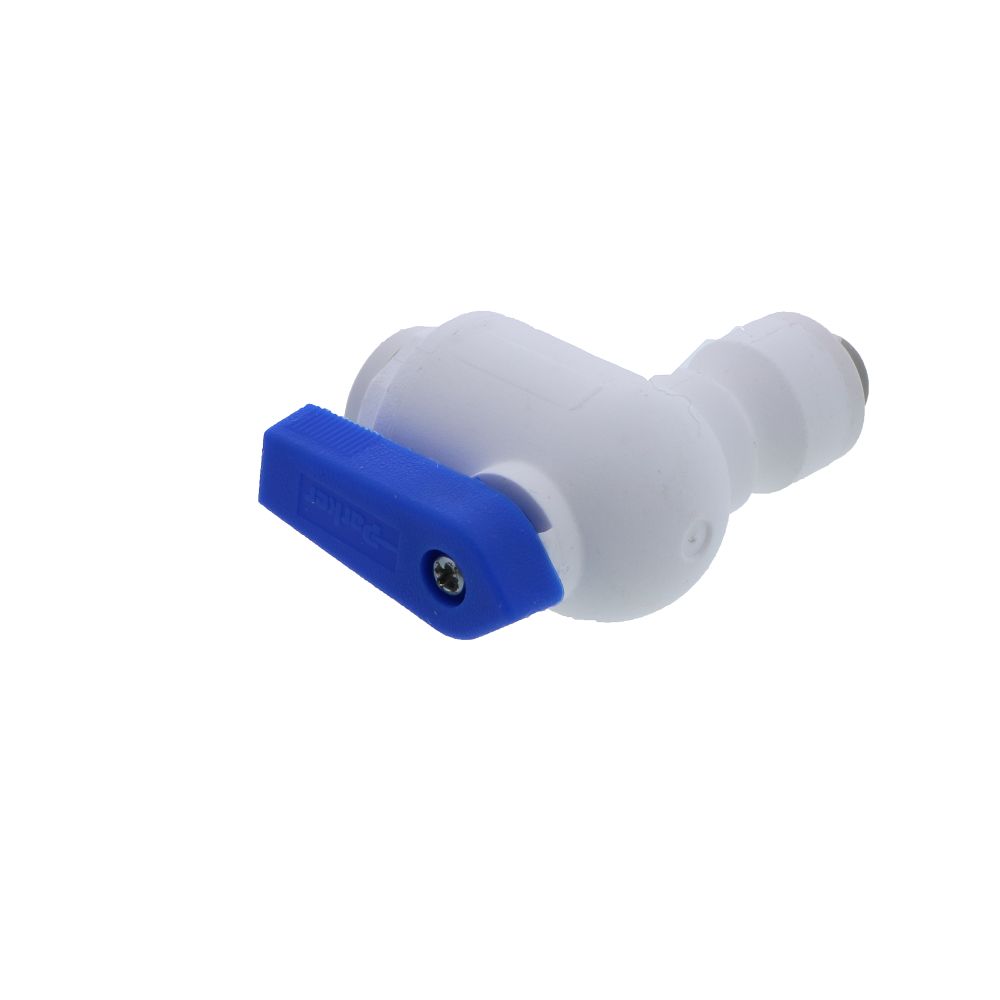

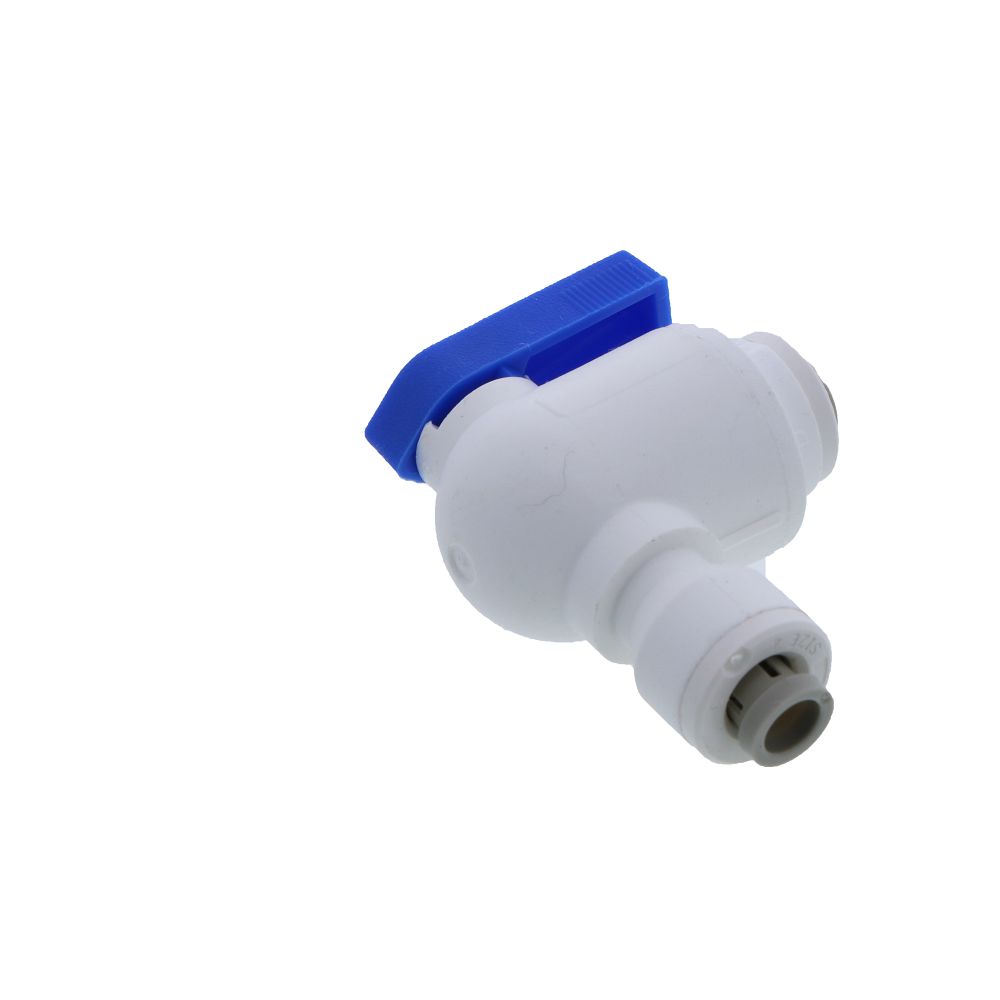

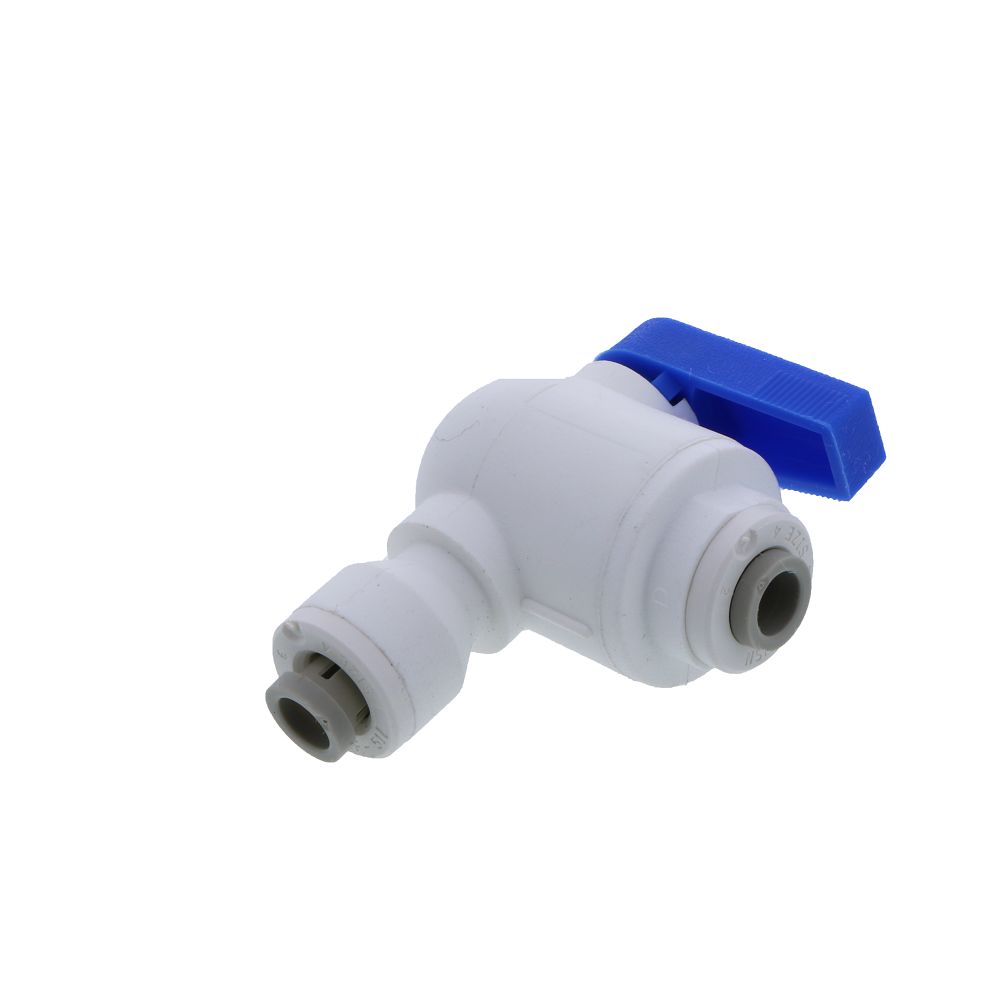

Parker PP4VEU4-MG Valve Elbow Union - 1/4 QC x 1/4 QC

Part Number: PP4VEU4-MG

In Stock

out of stock

In Stock

$6.79

For proven leak-free performance, specify Polypropylene Ball Valves. Their precision molded, all-plastic design is corrosion-resistant, making them ideal for water filtration units, coffee and beverage machines and a wide variety of other fluid applications. Polypropylene material offers a wider chemical acceptance range, as well as a wide temperature range, and meets all FDA and NSF-51 requirements for food contact.

Specifications:
  • Bi-directional flow maximizes productivity
  • Full flow design reduces pressure drop across the valve
  • Special o-ring seal ensures a reliable leak-tight connection
  • Built-in TrueSeal™ connection eliminates the need for a secondary fitting and reduces potential leaks.
  • Low-profile design allows for easy assembly and access where space is at a premium
  • NSF-51 Listed
  • Temperature Range: 0° - 225° F




Weight & Dimensions

Weight (lbs)

0.04

Details

Application

Water, Food, Beverage

Body Material

Polypropylene

Max Pressure (Psi)

150

Max Temp (°F)

225

Min Pressure (Psi)

0

Min Temp (°F)

0

Push-In Size

1/4" OD

Seal Material

EPDM

Series

TrueSeal

Color / Finish

White

Warranty & Certifications

Certifications

NSF 51; FDA Approved
