Specifications:
- Assembles without the use of tools
- Connections: 1/4" compression x 3/8" MNPT
- Body Construction: Black Polypropylene
- O-ring Construction: Nitrile
- Temperature Range: 0°F - 212°F
- Bag Quantity: 25
Weight & Dimensions
Length (inches) | 1.56 |
Height (inches) | 1.38 |
Width (inches) | 1.06 |
Weight (lbs) | 0.000625 |
Details
Application | Water; Food; Beverage |
Body Material | Polypropylene |
Color / Finish | Black |
Inlet/Outlet Connection | 3/8" MPT; 1/4" Compression |
Max Pressure (Psi) | 300 |
Max Temp (°F) | 212 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 0 |
Mounting Options | Thread |
Origin | USA |
Push-In Size | 1/4" OD |
Seal Material | Buna-N |
Series | Fast & Tite |
Size | 3/8" |
Warranty & Certifications
Certifications | NSF 51; FDA Approved |

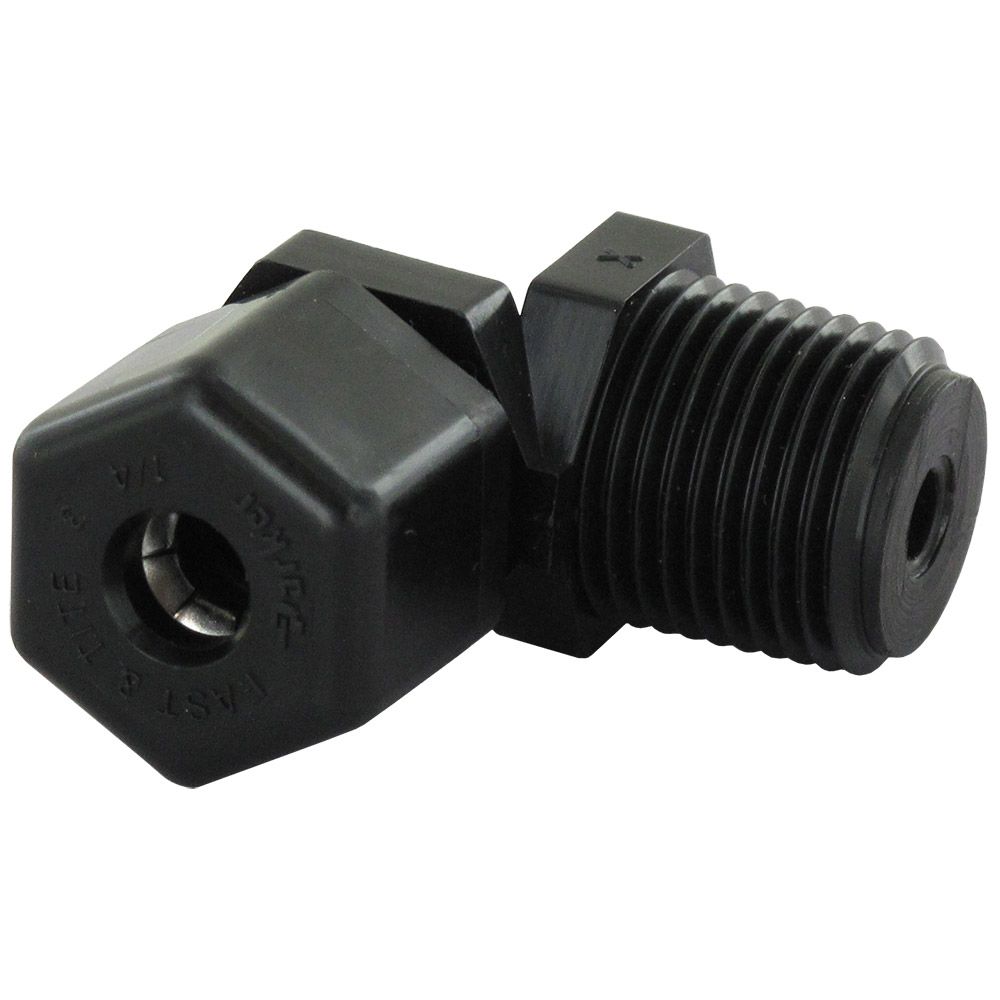

Parker Fast & Tite fittings install in seconds without tools and provide a tight, leak proof seal without clamps or adjustments. A unique 302 stainless steel grab ring for tube retention, coupled with a nitrile o-ring for positive seal, assures a good tube connection with only hand tight assembly. Fast & Tite fittings meet FDA and NSF-51 requirements for food contact
