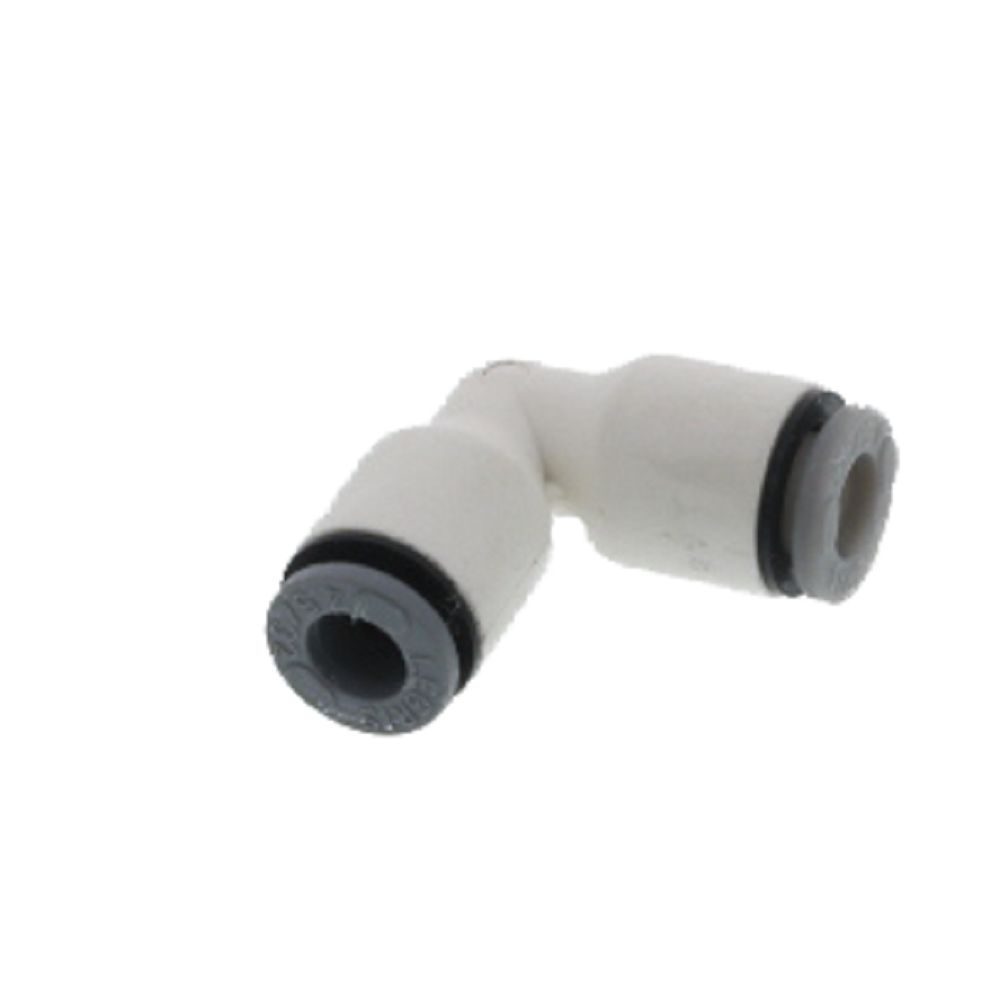

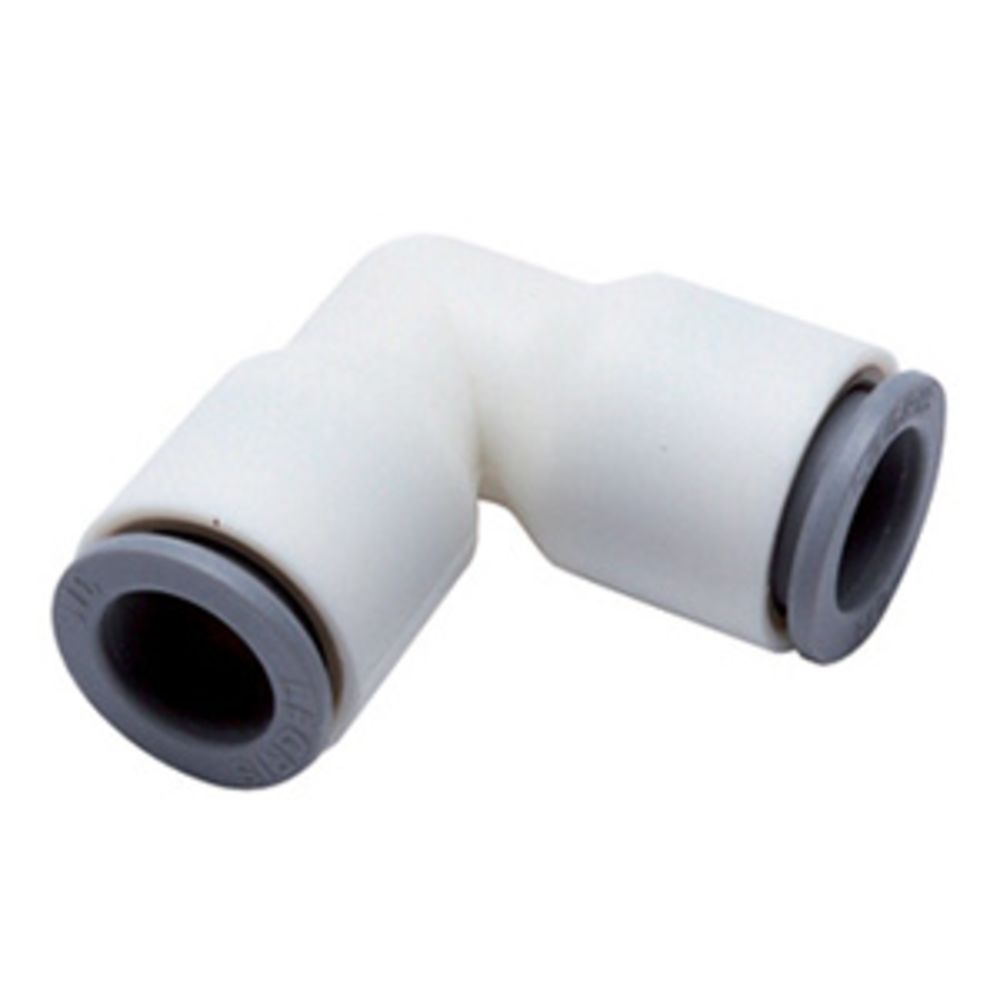

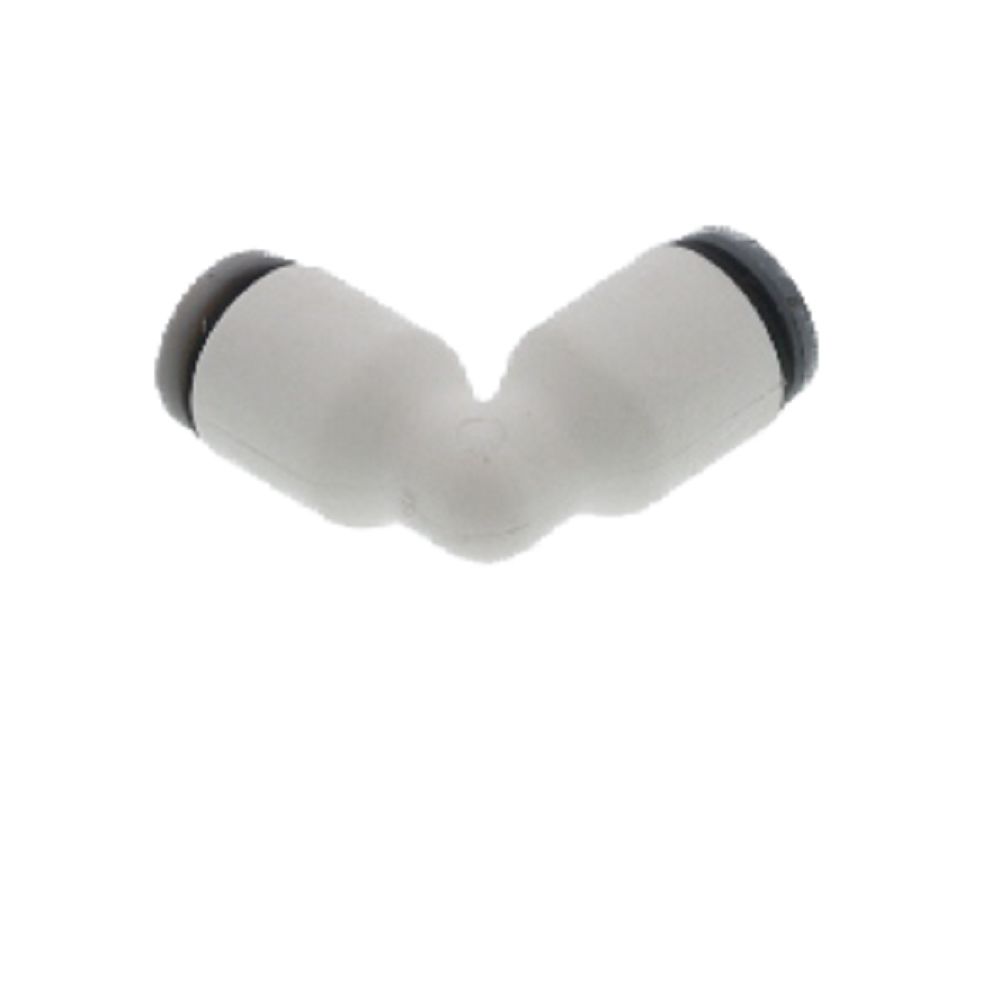

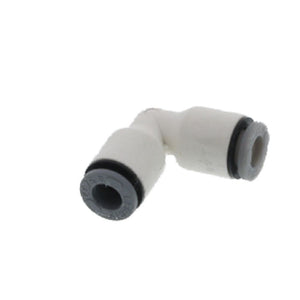

Parker LIQUIfit Union Elbow - 5/32

The Parker LIQUIfit 6302-04-00WP2 is a union elbow that features nylon construction with 5/32" quick connect connections. The 63002-04-OOWP2 is highly resistant to many chemicals and is NSF Certified to Standards 51 & 61. This fitting is suitable for potable liquids and other food applications.

Features:

Engineered Hi-Performance Nylon
High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage Air Carbonation
Body Material	Nylon
Max Pressure (Psi)	230
Max Temp (°F)	200
Min Pressure (Psi)	Vacuum
Min Temp (°F)	35
Mounting Options	Free Floating
Push-In Size	5/32" OD
Seal Material	EPDM
Series	LIQUIFit
Shape	90
Color / Finish	White
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
