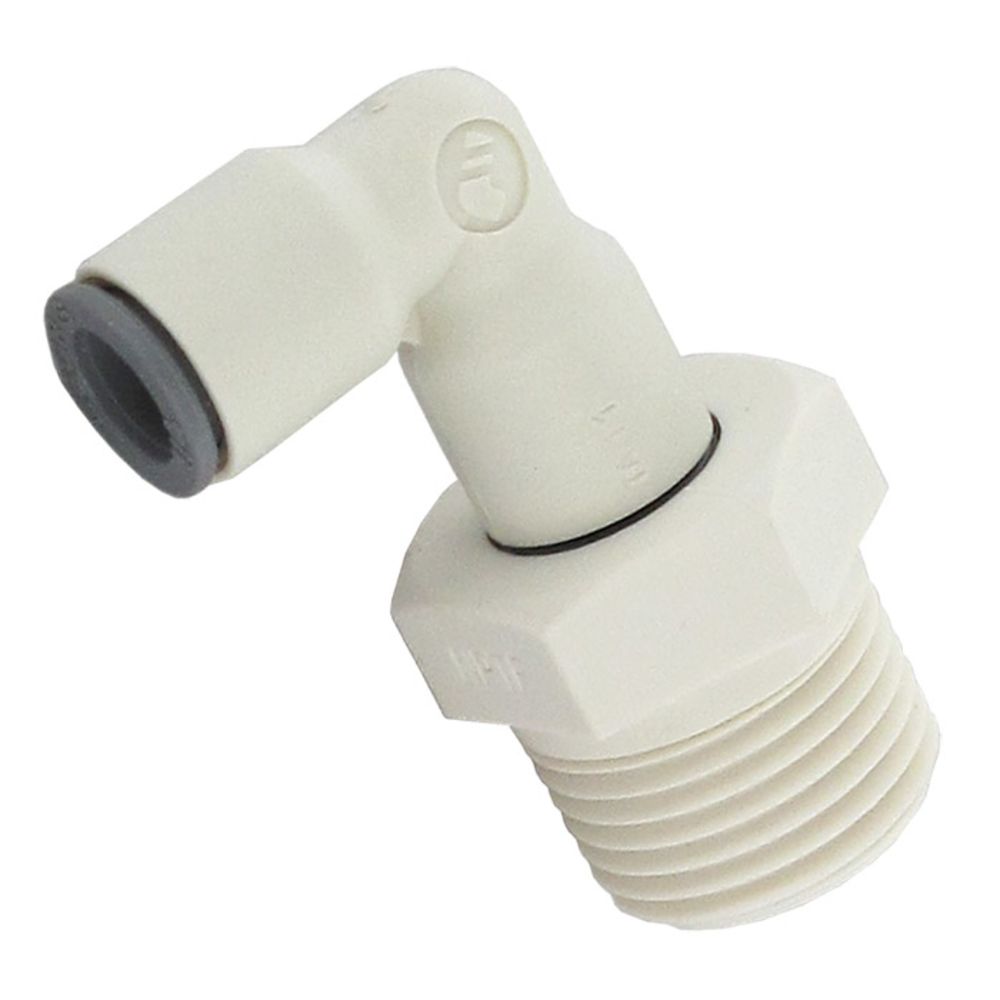

Parker LIQUIfit Swivel Elbow - 8mm x 1/4 BSPT

Home / Fittings / Quick-Connect Fittings / Parker LIQUIfit Swivel Elbow - 8mm x 1/4 BSPT

Parker

Parker LIQUIfit Swivel Elbow - 8mm x 1/4 BSPT

Part Number: 6509-08-13WP2

The Parker LIQUIfit Swivel Elbow is a fitting made from hi-performance nylon that provides a leak-free connection for potable liquids and food applications.

Specifications:

High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage Air Carbonation
Body Material	Nylon
Inlet Connection	1/4" BSP
Max Pressure (Psi)	230
Max Temp (°F)	200
Min Pressure (Psi)	Vacuum
Min Temp (°F)	35
Mounting Options	Thread
Outlet Connection	1/4" BSP
Push-In Size	8mm OD
Seal Material	EPDM
Series	LIQUIFit
Shape	90
Size	1/4"
Stem Size	8mm OD
Color / Finish	White
Connection Type	BSP
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51

The Parker LIQUIfit Swivel Elbow is a fitting made from hi-performance nylon that provides a leak-free connection for potable liquids and food applications.

Specifications:

High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
