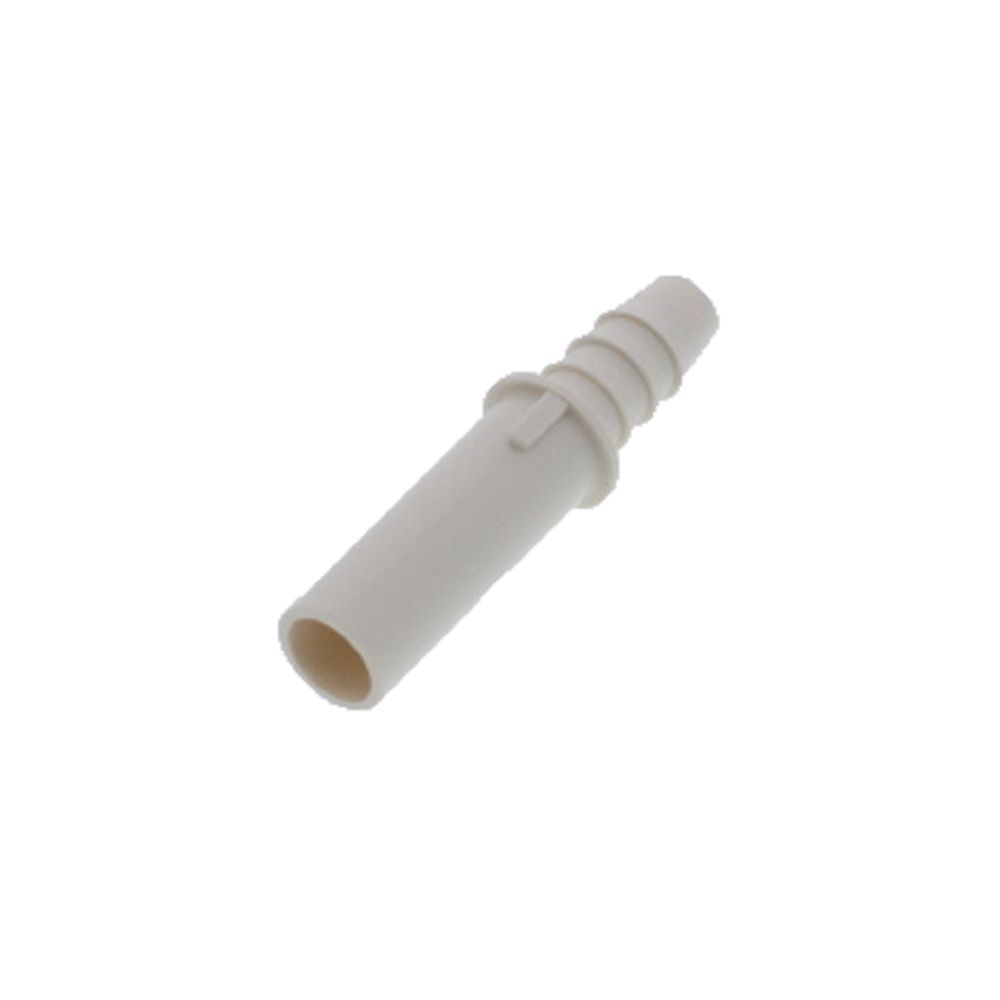

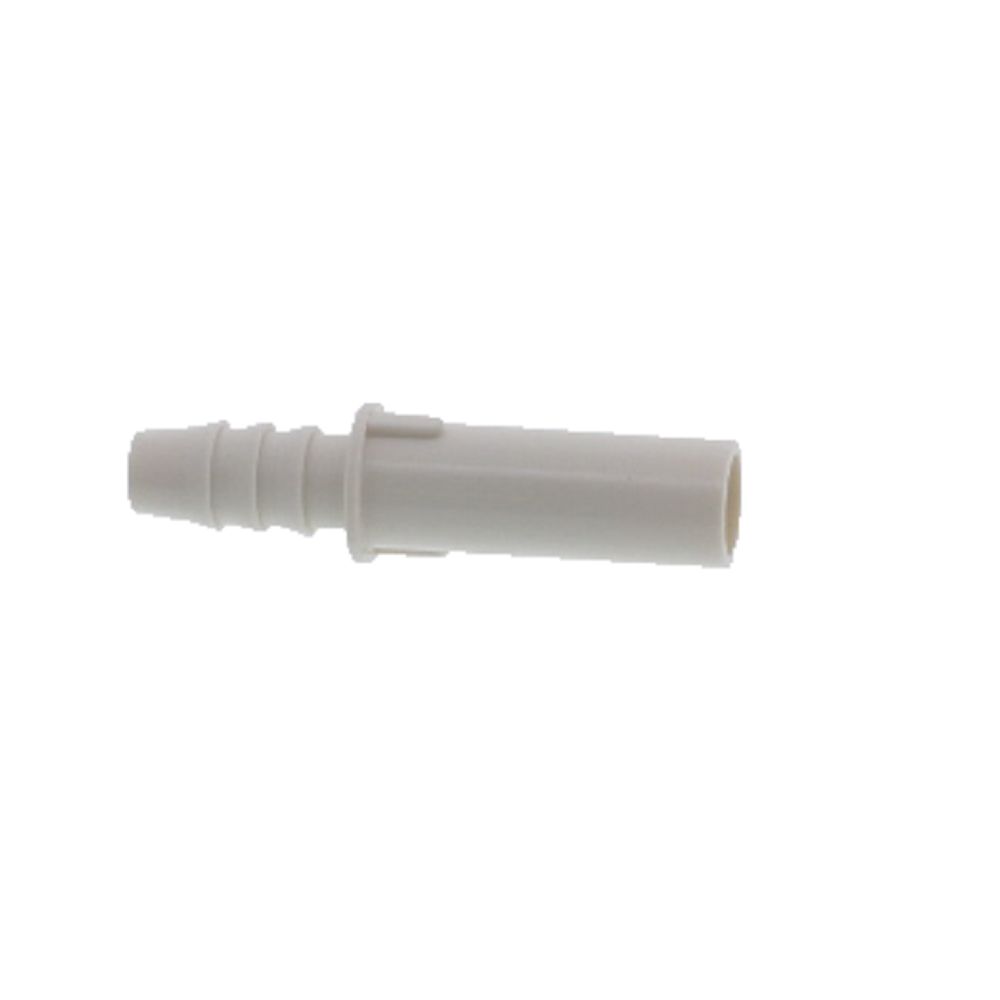

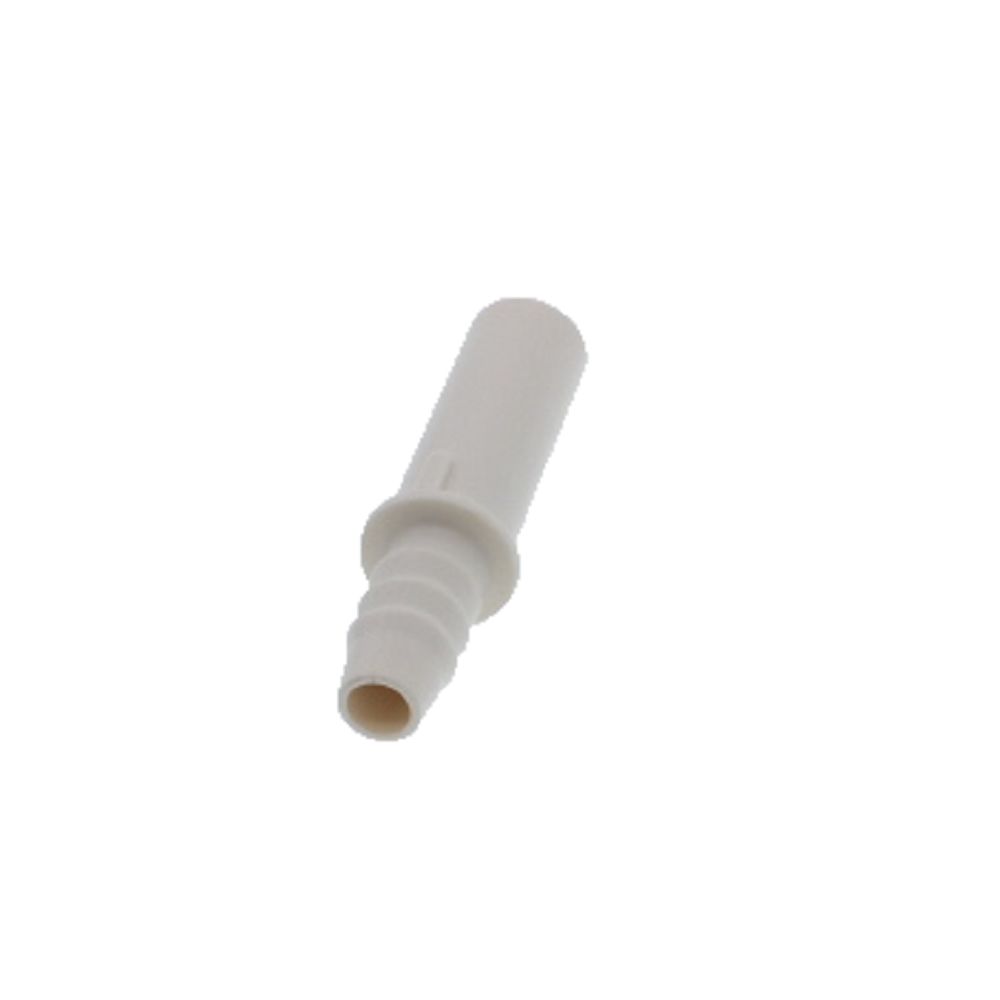

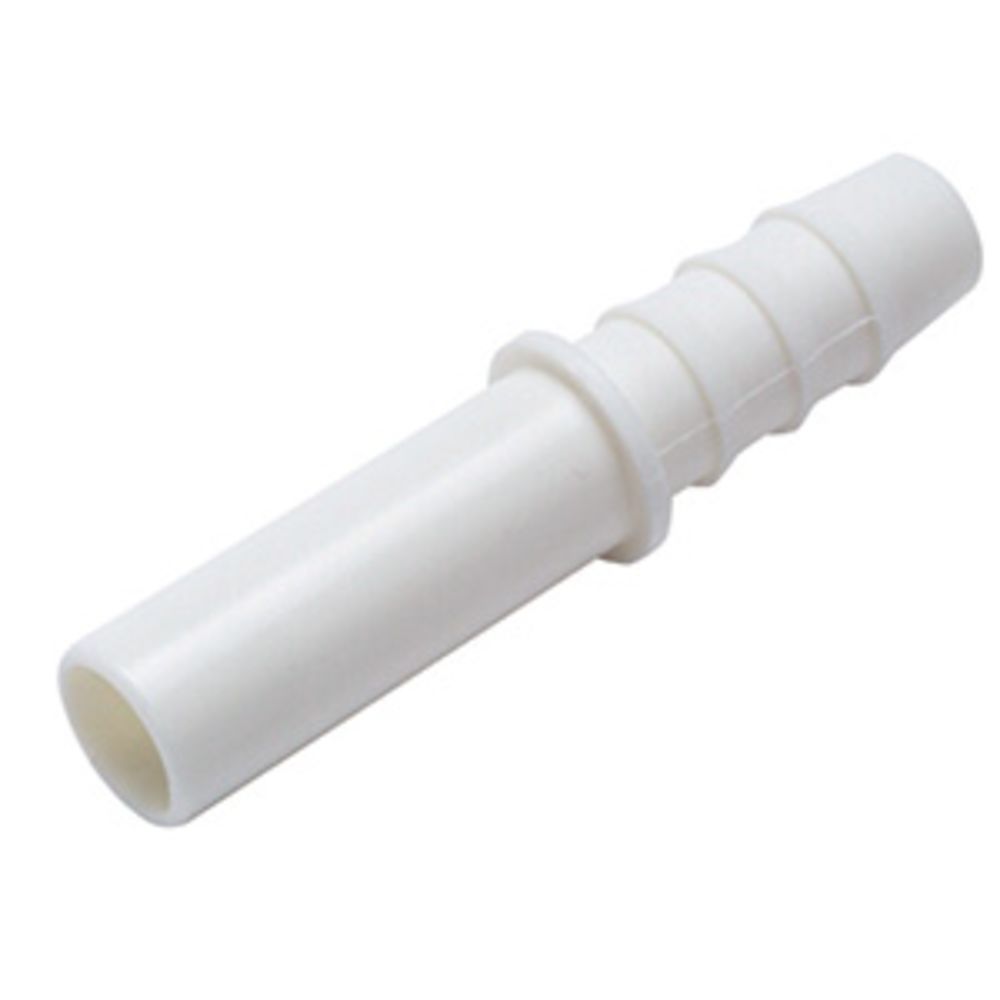

Parker LIQUIfit Stem To Hose Barb - 3/8 x 1/4 Barb

Part Number: 6322-60-56WP2

1 4

Parker

Parker LIQUIfit Stem To Hose Barb - 3/8 x 1/4 Barb

Part Number: 6322-60-56WP2

MSRP: $4.58

$1.40

Quantity

Unit Price

Price

Savings

$1.40

—

100

$1.36

$136.89

1000

$1.33

$1,333.80

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed.

Specifications:

Engineered Hi-Performance Nylon
High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F
Suitable for potable liquids and food applications

Specifications

Product Details
Barb Size	1/4"
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Series	LIQUIFit
Shape	Straight
Stem Size	3/8" OD
Color / Finish	White
Sub-Type	Stem to Barb Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.75 in.
Shipping Width	0.375 in.
Shipping Height	0.375 in.
Product Weight & Dimensions
Product Height	0.375 in.
Product Length	1.75 in.
Product Width	0.375 in.
Product Weight (lbs)	0.1

Product Details
Barb Size	1/4"
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Series	LIQUIFit
Shape	Straight
Stem Size	3/8" OD
Color / Finish	White
Sub-Type	Stem to Barb Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.15

Product Details
Barb Size	1/4"
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Series	LIQUIFit
Shape	Straight
Stem Size	3/8" OD
Color / Finish	White
Sub-Type	Stem to Barb Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	11 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	7

Downloads

Parker LIQUIfit Stem To Hose Barb - 3/8 x 1/4 Barb Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

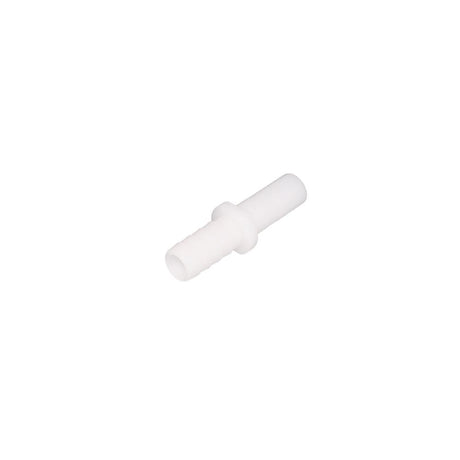

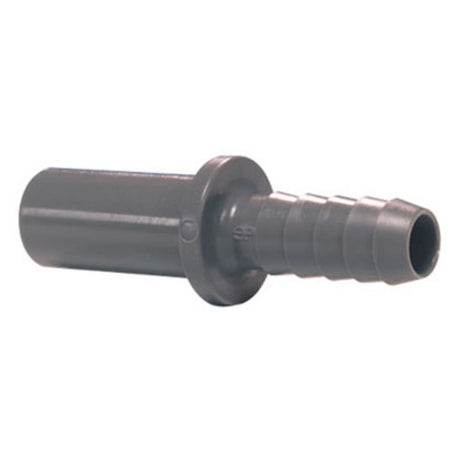

Facet	Parker Parker LIQUIfit Stem To Hose Barb - 3/8 x 1/4 Barb Regular price From $1.40 Part #: 6322-60-56WP2 Save up to 5% with bulk pricing Current Product	John Guest John Guest Stem Barb Connector - 3/8 OD Stem x 1/4 ID Barb 5.0 Regular price From $1.66 Part #: PI251208S Save up to 13% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Stem Barb Connector 3/8"stem x 1/4"barb Regular price From $1.32 Part #: ATBC64-W Save up to 8% with bulk pricing View details
