Parker

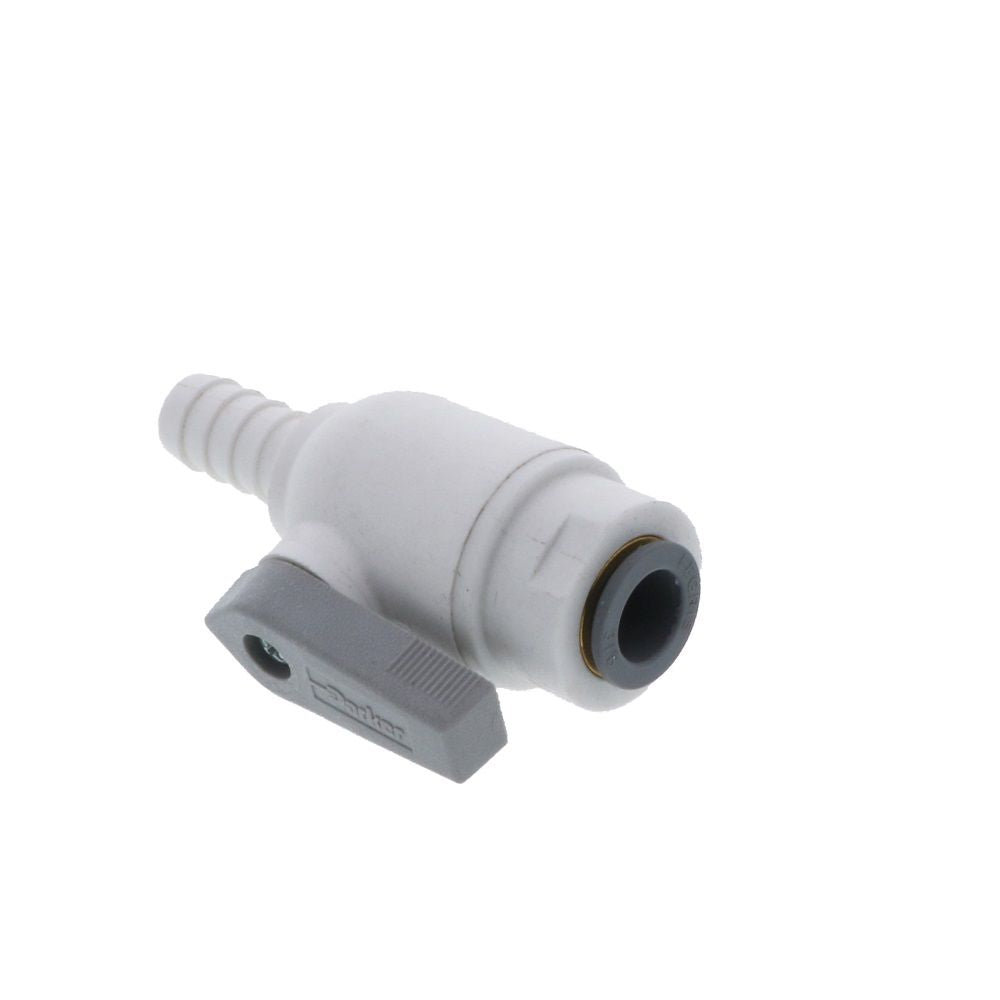

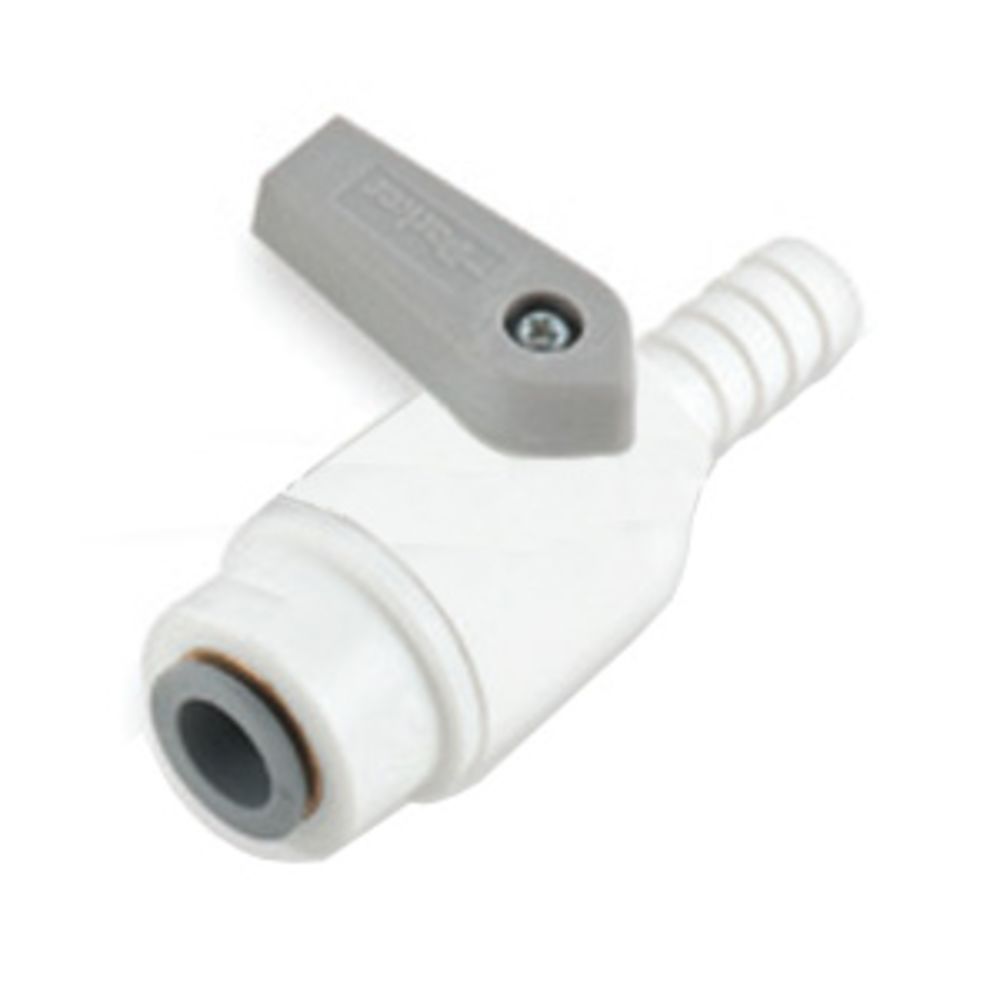

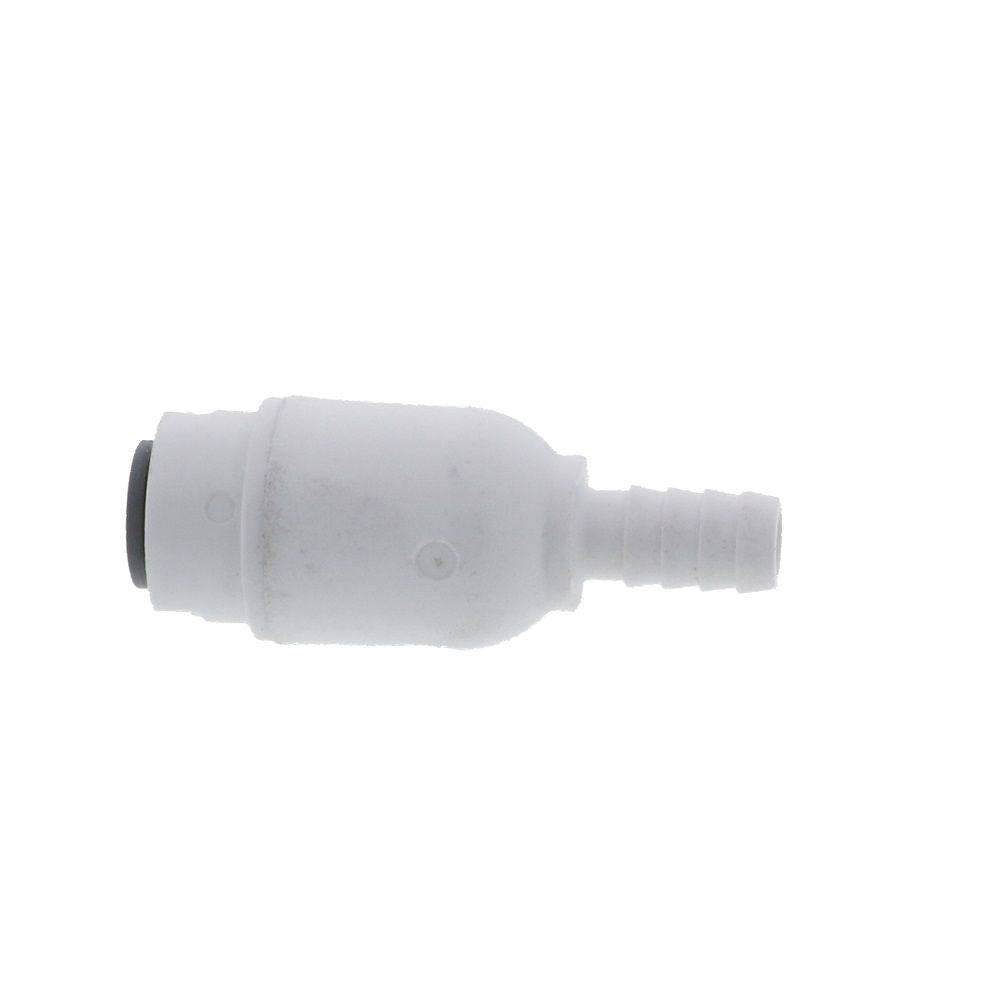

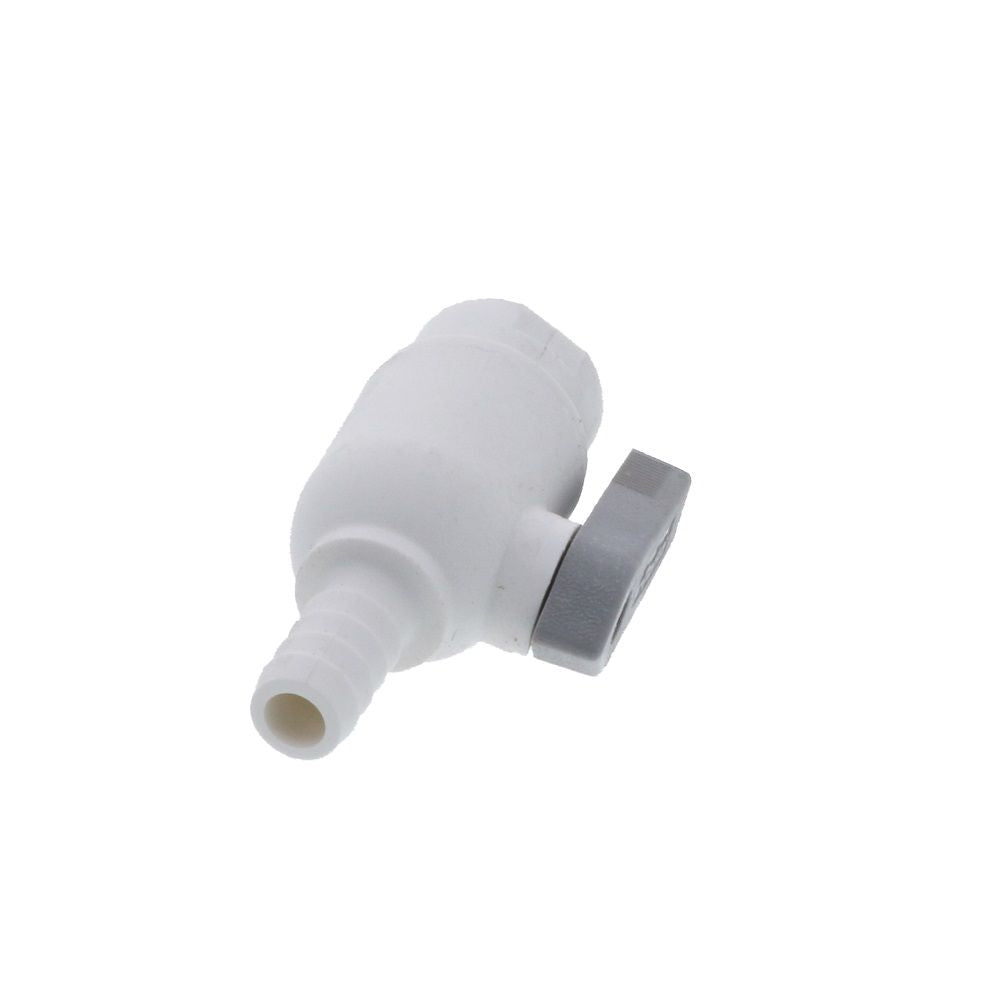

Parker Liquifit Par-Barb Valve Union Connector - 3/8 ID Barb x 3/8 QC

Part Number: LFPP6VUCPB6

In Stock

out of stock

In Stock

$8.99

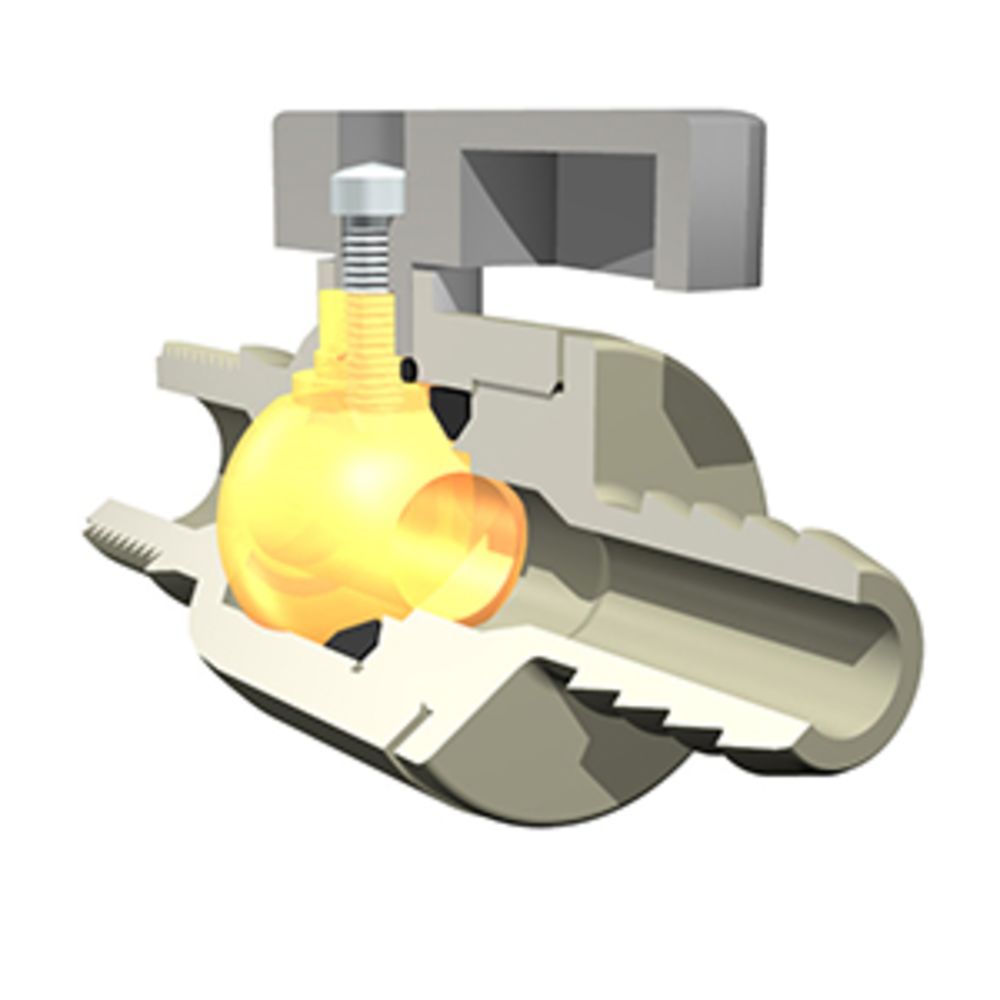

For proven leak-free performance, specify Parker Liquifit Par-Barb Polypropylene Ball Valves. Their precision molded, all-plastic design is corrosion-resistant, making them ideal for water filtration units, coffee and beverage machines and a wide variety of other fluid applications. Polypropylene material offers a wider chemical acceptance range, as well as a wide temperature range, and meets all FDA and NSF-51 requirements for food contact.

Features:
  • Connections: 3/8" ID barb x 3/8" quick connect
  • Bi-directional flow maximizes productivity
  • Full flow design reduces pressure drop across the valve
  • Self-cleaning ball limits scale build up inside valve
  • Corrosion-resistant, lead-free, all-plastic design
  • Low-profile design allows for easy assembly and access where space is at a premium
  • NSF 51 listed




Weight & Dimensions

Length (inches)

2.56

Height (inches)

0.88

Width (inches)

2.56

Weight (lbs)

0.003125

Details

Series

Par-Barb

Max Temp (°F)

200

Max Pressure (Psi)

150

Min Temp (°F)

35

Min Pressure (Psi)

0

Push-In Size

3/8" OD

Barb Size

3/8" ID

Application

Water, Food, Beverage

Body Material

Polypropylene

Color / Finish

White

Seal Material

EPDM

Warranty & Certifications

Certifications

NSF 51, FDA Approved




For proven leak-free performance, specify Parker Liquifit Par-Barb Polypropylene Ball Valves. Their precision molded, all-plastic design is corrosion-resistant, making them ideal for water filtration units, coffee and beverage machines and a wide variety of other fluid applications. Polypropylene material offers a wider chemical acceptance range, as well as a wide temperature range, and meets all FDA and NSF-51 requirements for food contact.

Features:
  • Connections: 3/8" ID barb x 3/8" quick connect
  • Bi-directional flow maximizes productivity
  • Full flow design reduces pressure drop across the valve
  • Self-cleaning ball limits scale build up inside valve
  • Corrosion-resistant, lead-free, all-plastic design
  • Low-profile design allows for easy assembly and access where space is at a premium
  • NSF 51 listed



Weight & Dimensions

Length (inches)

2.56

Height (inches)

0.88

Width (inches)

2.56

Weight (lbs)

0.003125

Details

Series

Par-Barb

Max Temp (°F)

200

Max Pressure (Psi)

150

Min Temp (°F)

35

Min Pressure (Psi)

0

Push-In Size

3/8" OD

Barb Size

3/8" ID

Application

Water, Food, Beverage

Body Material

Polypropylene

Color / Finish

White

Seal Material

EPDM

Warranty & Certifications

Certifications

NSF 51, FDA Approved
