Parker

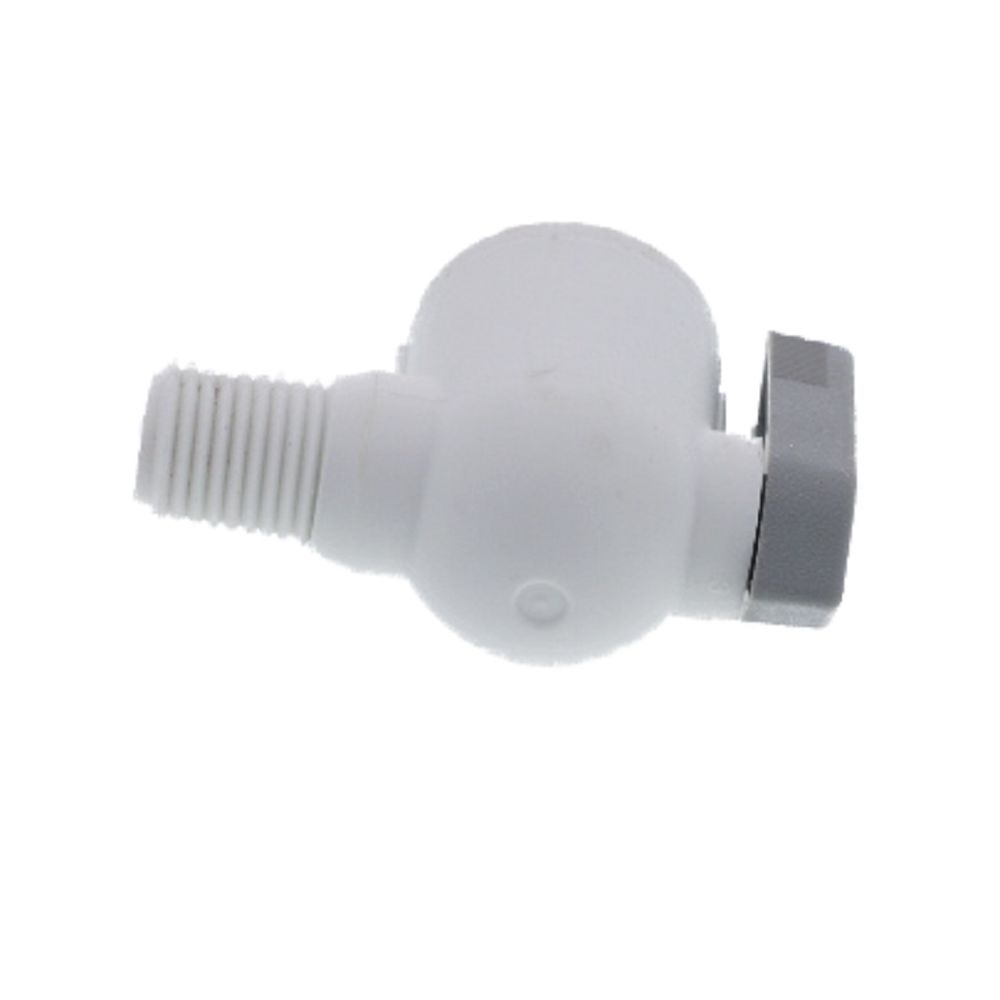

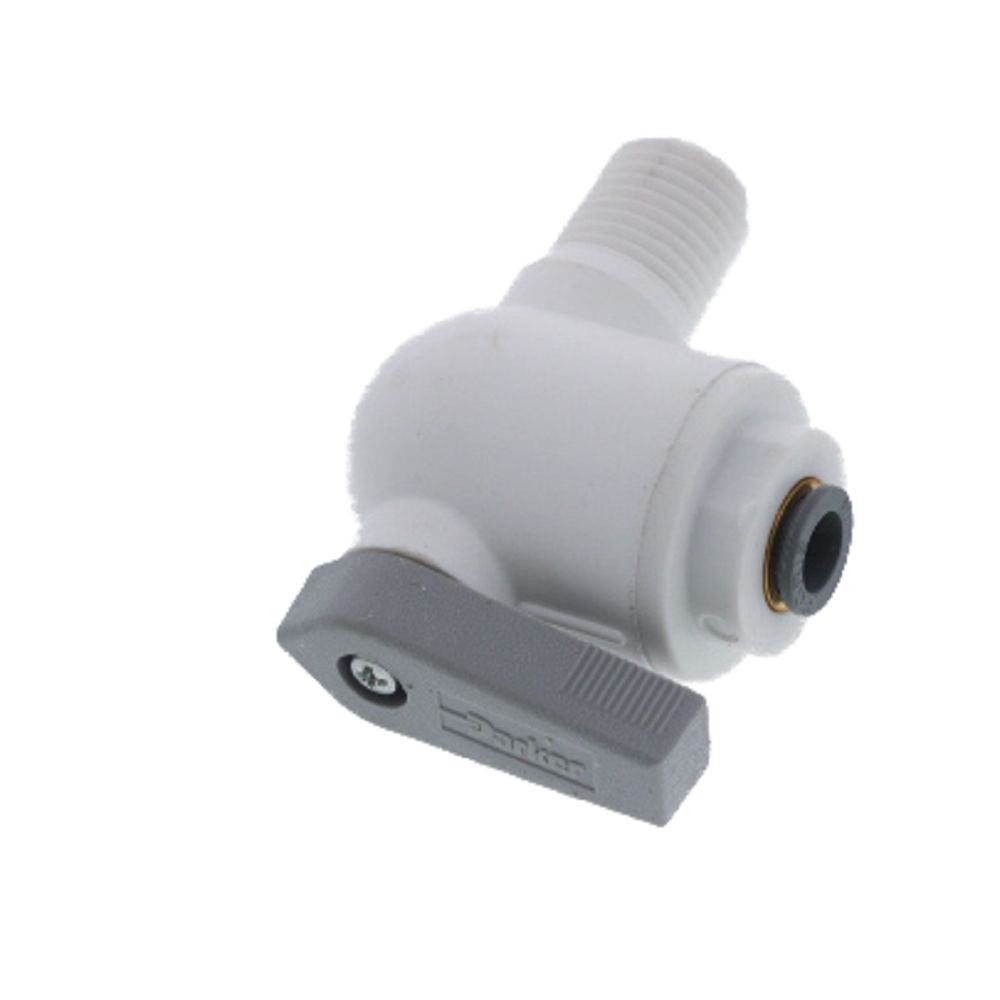

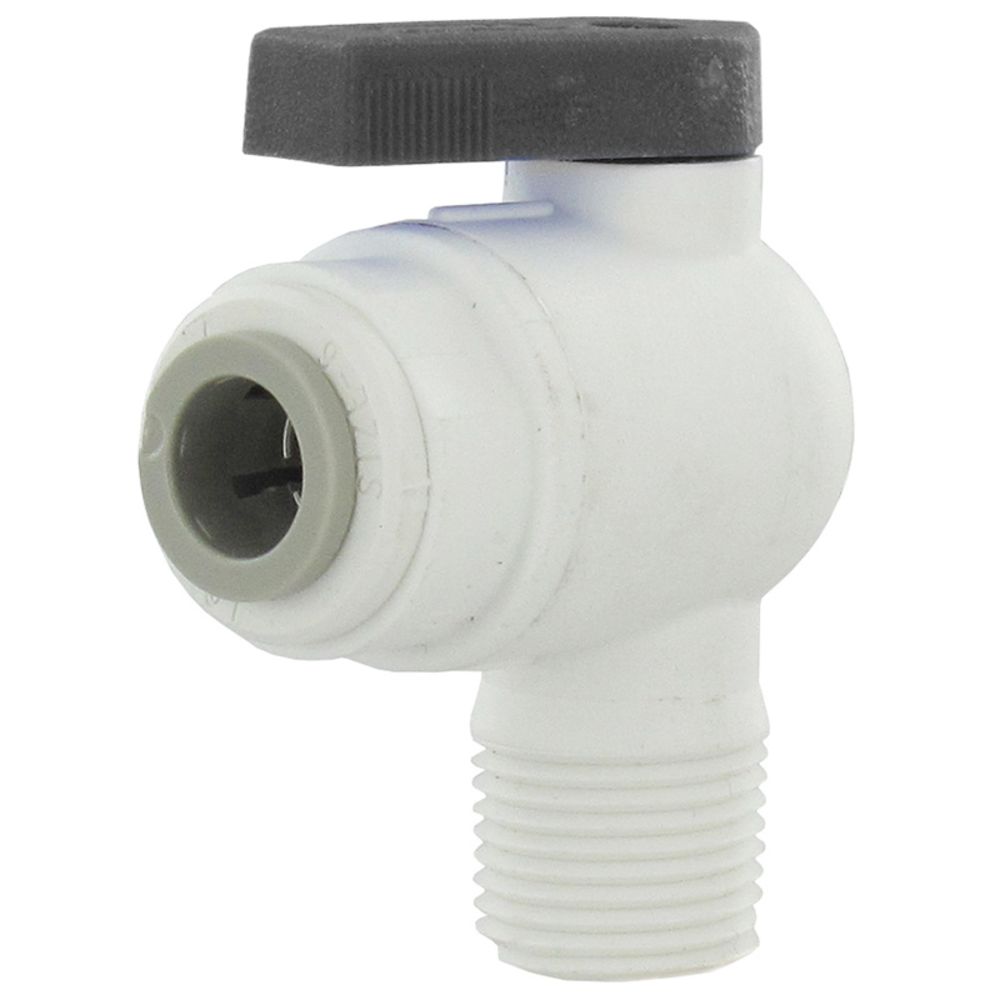

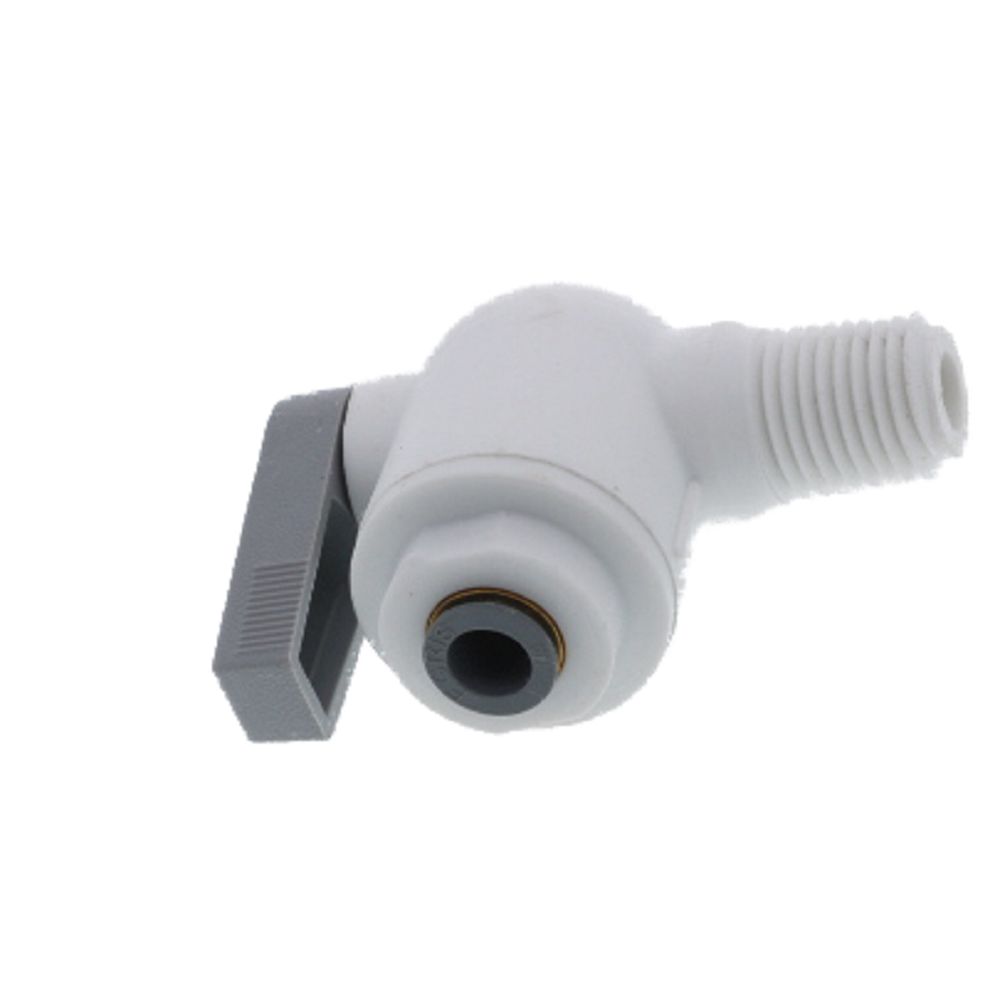

Parker LIQUIfit Male Elbow Valve - 1/4 QC x 1/4 MPT

Part Number: LFPP4VME4

In Stock

out of stock

In Stock

$5.83


The Parker LFPP4VME4 LIQUIfit male elbow valve is designed with both quick connect and MPT connections, which eliminates the need for a secondary fitting. The Parker LIQUIfit technology provides reliability and superior performance over traditional valves. The LFPP4VME4 full flow valve reduces pressure drop across the valve while the bi-directional flow maximizes productivity.

Specifications:
  • FDA & NSF-51 Listed
  • WQA to NSF/ANSI Standard 61 and 372
  • Ball Valve Construction: Nylon
  • Seat Material: Nitrile
  • Ball Material: Polysulfone
  • Max Pressure: 150 psi
  • Temp Range: 35° to 200° F
  • Valve body rotates for easy tube routing
  • Connections: 1/4 QC x 1/4 MPT

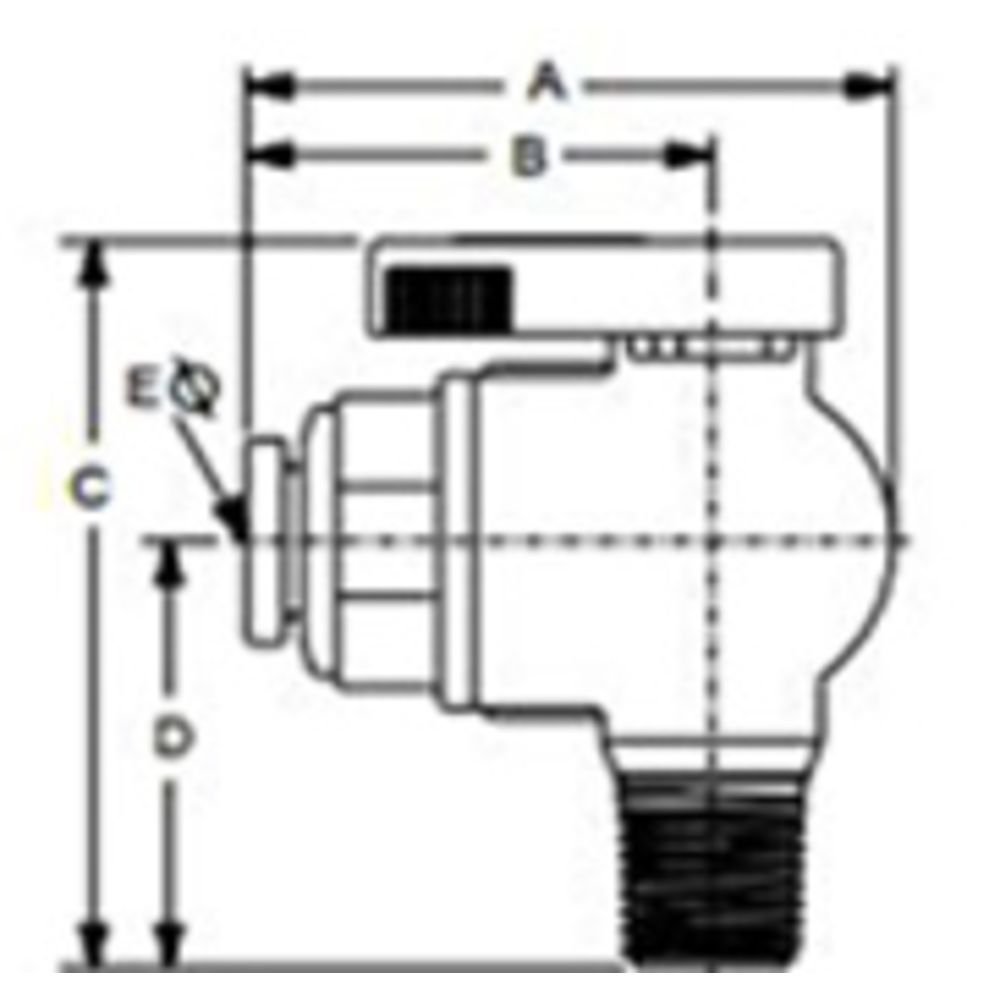

Part Number Tube Size Tube Size A B C D
LFPP4VME4 1/4 QC 1/4 MPT 1.74 1.21 2.18 1.28


Weight & Dimensions

Weight (lbs)

0.045

Details

Series

LIQUIfit

Max Temp (°F)

200

Max Pressure (Psi)

150

Min Temp (°F)

35

Min Pressure (Psi)

0

Push-In Size

1/4" OD

Application

Water, Food, Beverage

Body Material

Polypropylene

Color / Finish

White

Seal Material

EPDM

Size

1/4"

Inlet/Outlet Connection

1/4" MPT

Warranty & Certifications

Certifications

NSF 51, FDA Approved


Parker





The Parker LFPP4VME4 LIQUIfit male elbow valve is designed with both quick connect and MPT connections, which eliminates the need for a secondary fitting. The Parker LIQUIfit technology provides reliability and superior performance over traditional valves. The LFPP4VME4 full flow valve reduces pressure drop across the valve while the bi-directional flow maximizes productivity.

Specifications:
  • FDA & NSF-51 Listed
  • WQA to NSF/ANSI Standard 61 and 372
  • Ball Valve Construction: Nylon
  • Seat Material: Nitrile
  • Ball Material: Polysulfone
  • Max Pressure: 150 psi
  • Temp Range: 35° to 200° F
  • Valve body rotates for easy tube routing
  • Connections: 1/4 QC x 1/4 MPT


Part Number Tube Size Tube Size A B C D
LFPP4VME4 1/4 QC 1/4 MPT 1.74 1.21 2.18 1.28

Weight & Dimensions

Weight (lbs)

0.045

Details

Series

LIQUIfit

Max Temp (°F)

200

Max Pressure (Psi)

150

Min Temp (°F)

35

Min Pressure (Psi)

0

Push-In Size

1/4" OD

Application

Water, Food, Beverage

Body Material

Polypropylene

Color / Finish

White

Seal Material

EPDM

Size

1/4"

Inlet/Outlet Connection

1/4" MPT

Warranty & Certifications

Certifications

NSF 51, FDA Approved
