Parker

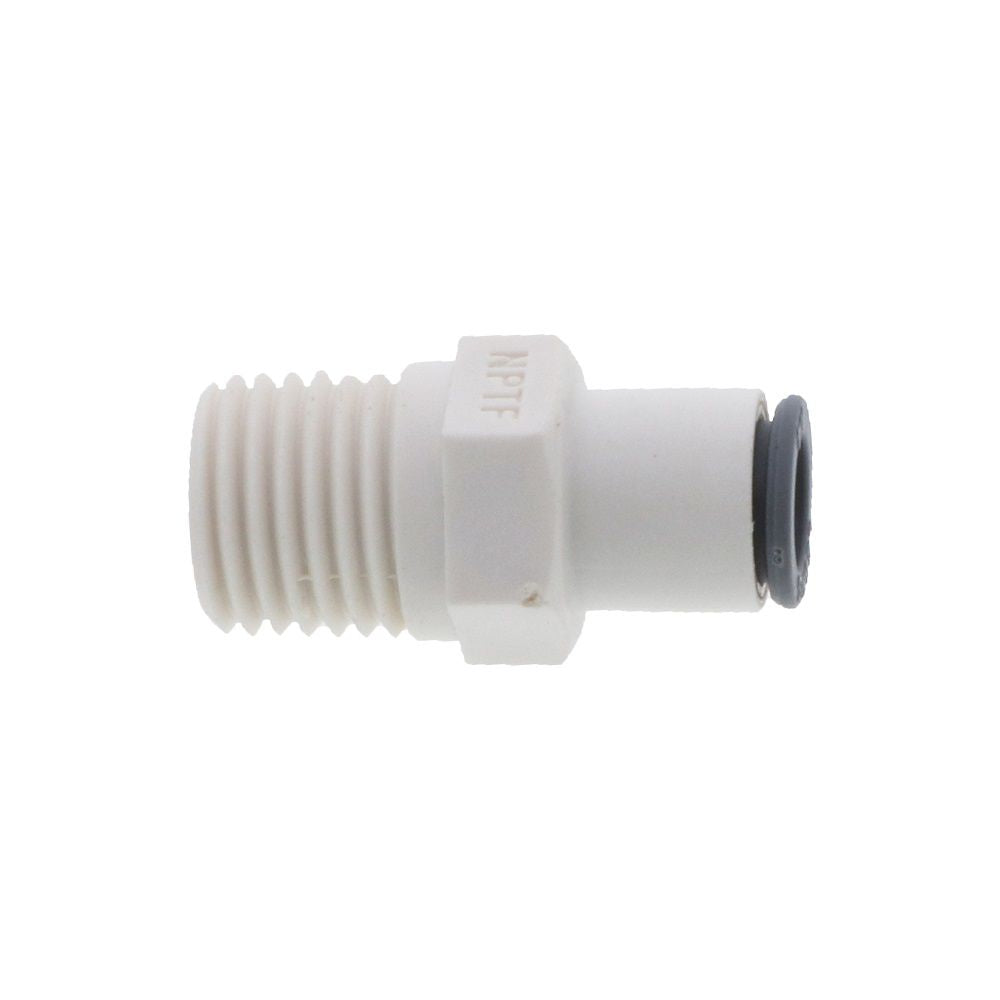

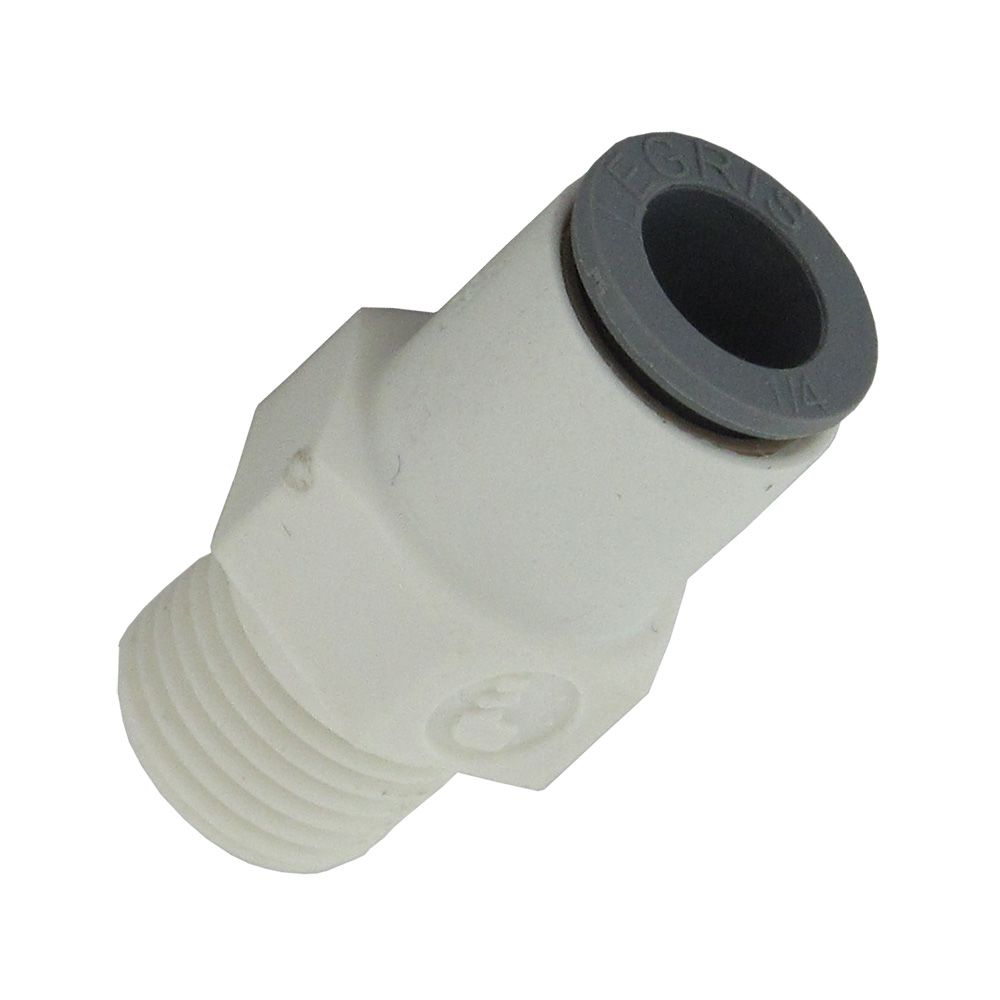

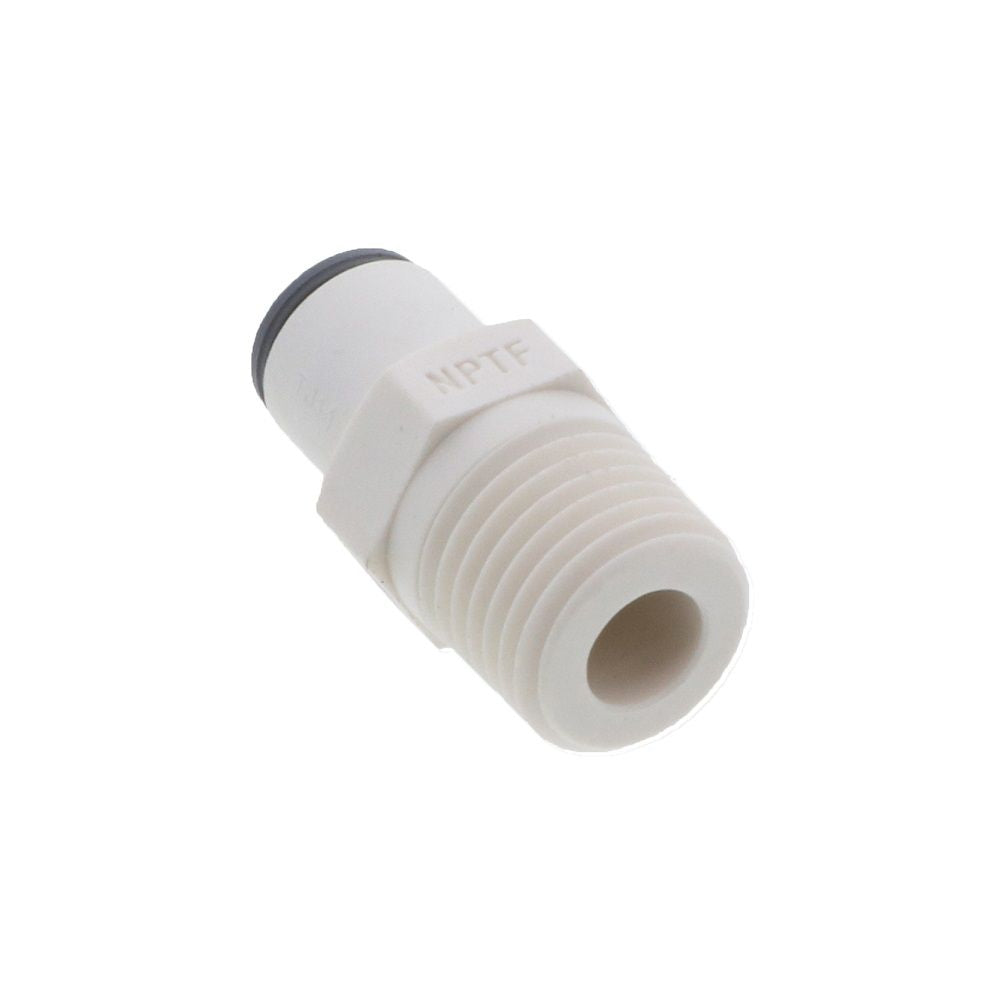

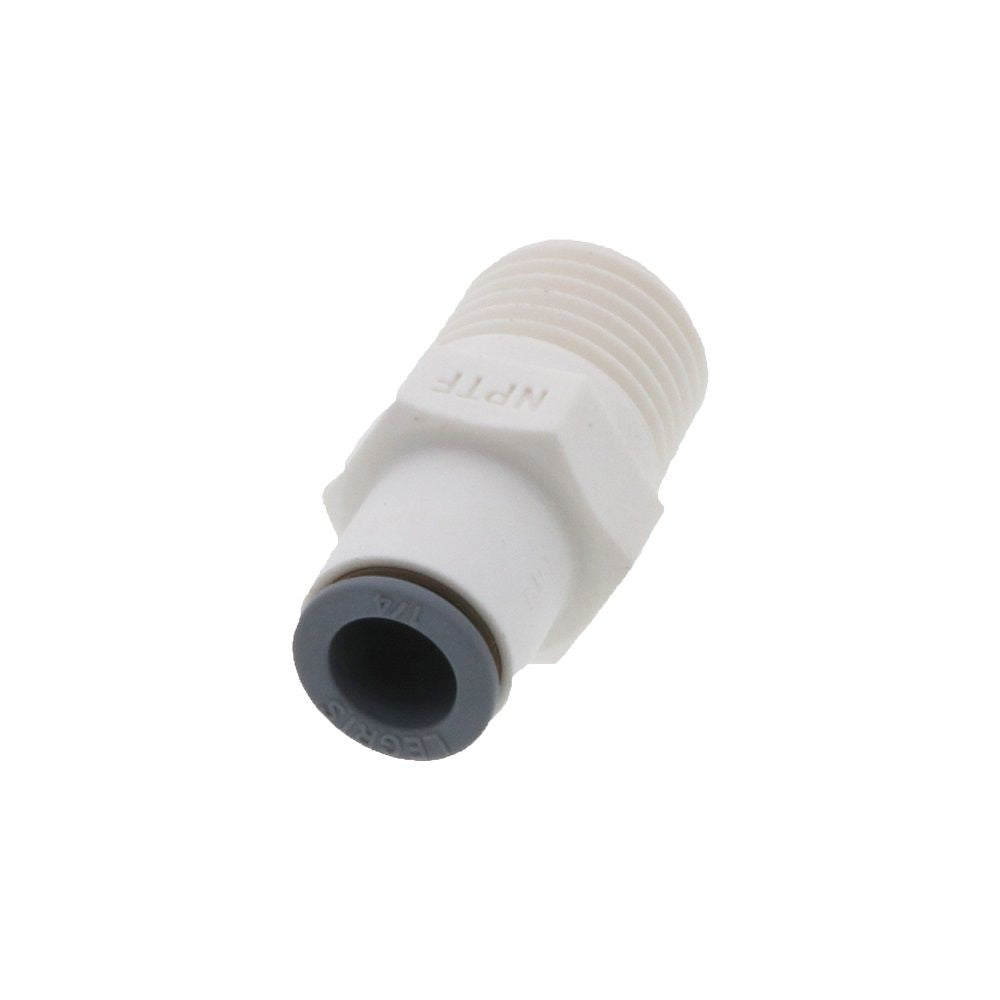

Parker LIQUIfit Male Connector - 1/4 x 1/4 NPTF

Part Number: 6505-56-14WP2

In Stock

out of stock

In Stock

$1.50

Features:
  • Engineered Hi-Performance Nylon
  • High chemical resistance
  • EPDM O-ring
  • FDA Approved material
  • NSF Standard 51 & 61 Certified
  • Temperature rated up to 200º F
  • Suitable for potable liquids and food applications




Weight & Dimensions

Length (inches)

1.13

Height (inches)

0.5

Width (inches)

0.56

Weight (lbs)

0.000625

Details

Series

LIQUIFit

Max Temp (°F)

200

Max Pressure (Psi)

230

Min Temp (°F)

35

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water, Food, Beverage, Air, Carbonation

Bag Quantity

10

Body Material

Nylon

Box Quantity

100

Color / Finish

White

Mounting Options

Thread

Origin

Mexico

Seal Material

EPDM

Size

1/4"

Inlet/Outlet Connection

1/4" MPT

Warranty & Certifications

Certifications

NSF 61, NSF 51, FDA Approved


Parker




Features:
  • Engineered Hi-Performance Nylon
  • High chemical resistance
  • EPDM O-ring
  • FDA Approved material
  • NSF Standard 51 & 61 Certified
  • Temperature rated up to 200º F
  • Suitable for potable liquids and food applications



Weight & Dimensions

Length (inches)

1.13

Height (inches)

0.5

Width (inches)

0.56

Weight (lbs)

0.000625

Details

Series

LIQUIFit

Max Temp (°F)

200

Max Pressure (Psi)

230

Min Temp (°F)

35

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water, Food, Beverage, Air, Carbonation

Bag Quantity

10

Body Material

Nylon

Box Quantity

100

Color / Finish

White

Mounting Options

Thread

Origin

Mexico

Seal Material

EPDM

Size

1/4"

Inlet/Outlet Connection

1/4" MPT

Warranty & Certifications

Certifications

NSF 61, NSF 51, FDA Approved
