Parker

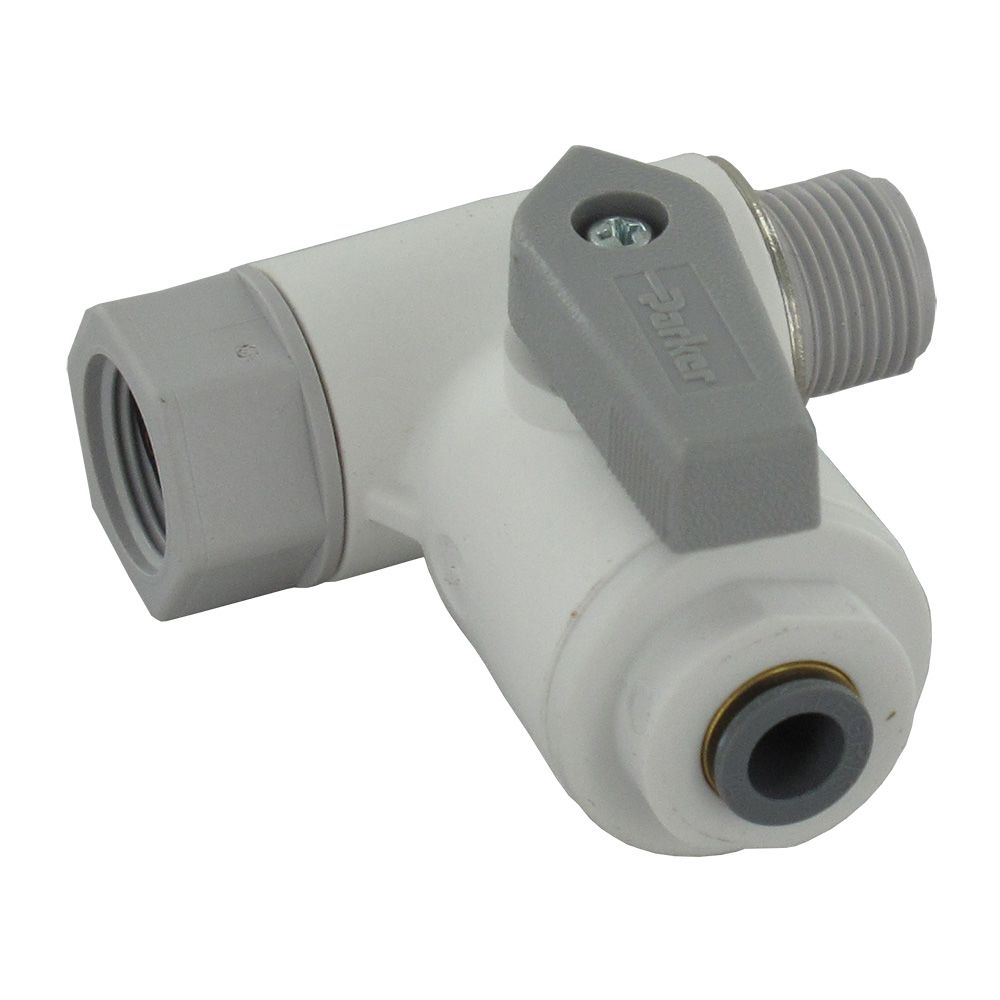

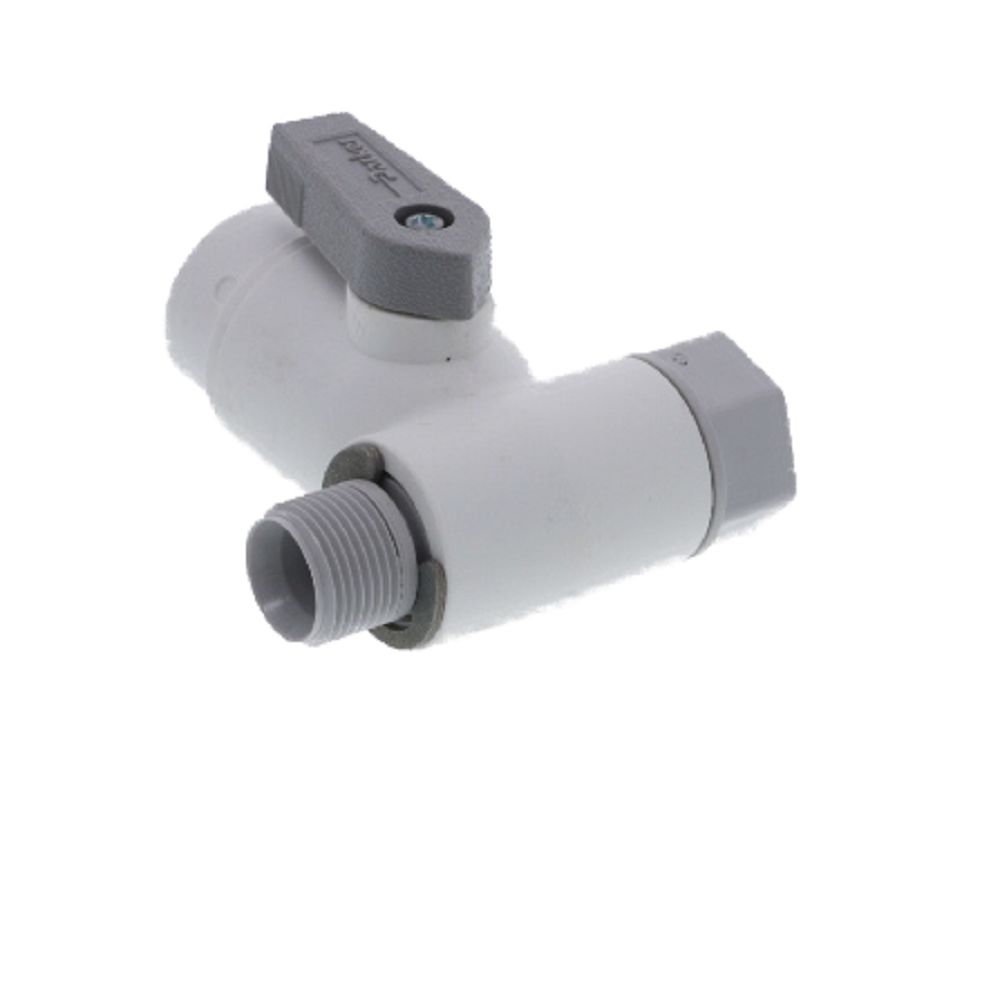

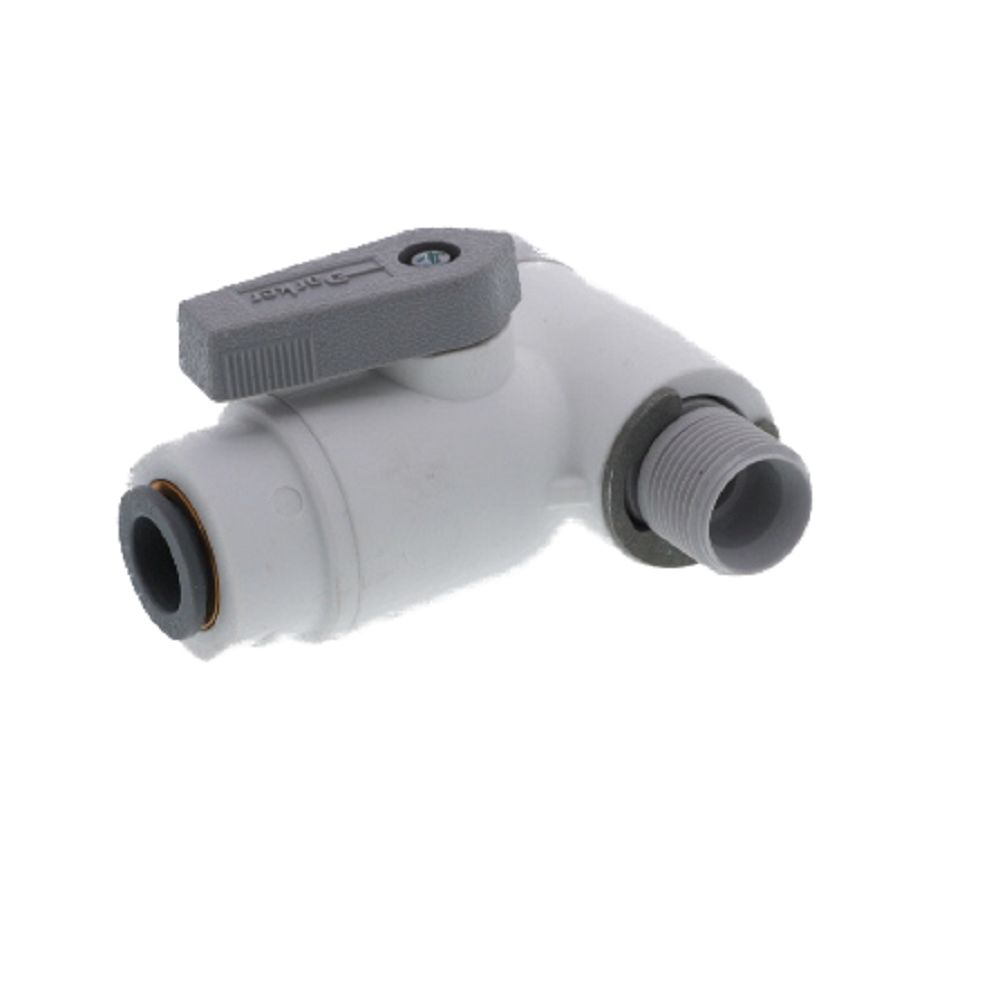

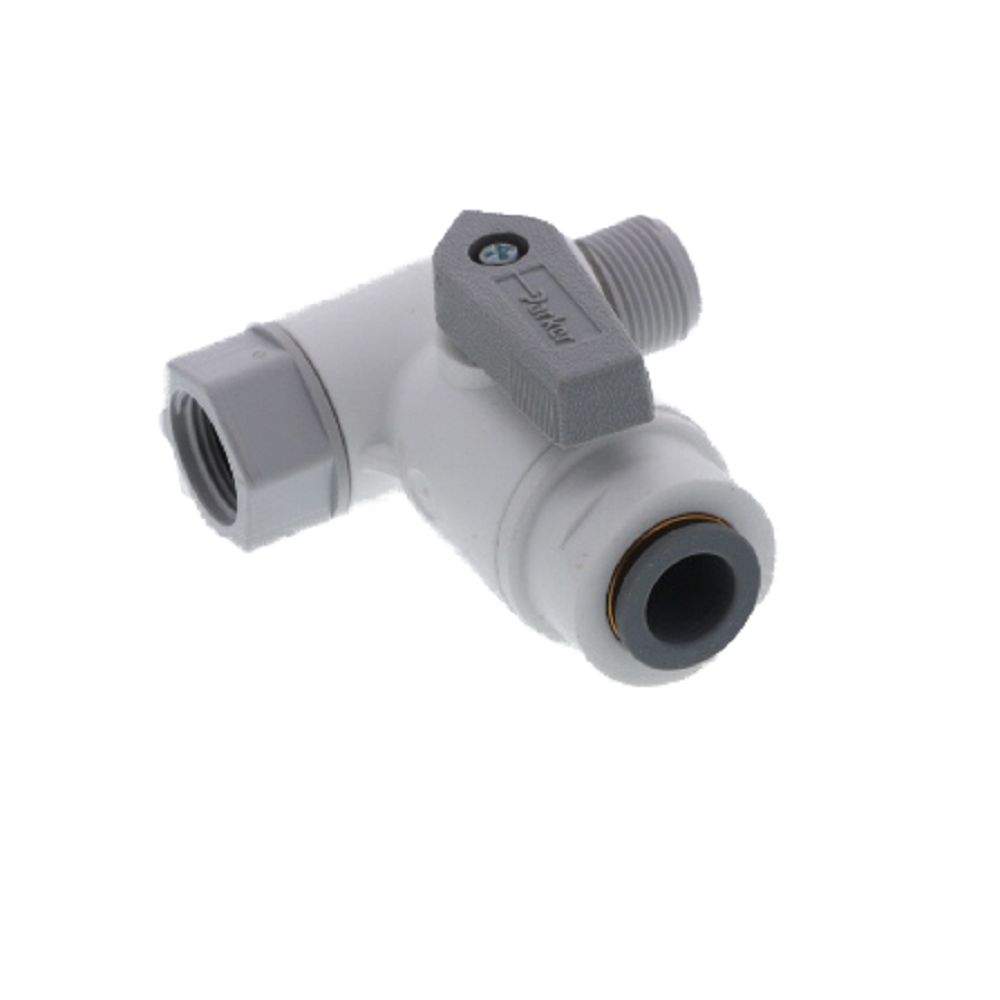

Parker LIQUIfit LFPP6VAS6 Angle Stop Adapter Valve 3/8 x 3/8 x 3/8

Part Number: LFPP6VAS6

In Stock

out of stock

In Stock

$8.83

Intended Use:

The Parker LIQUIfit angle stop adapter valve is designed to allow the quick addition of connections for a filtration, reverse osmosis, coffee or ice maker system between your existing water supply valve and supply line. By combining Parker's LIQUIfit connection technology with proven TrueSeal ball valve construction, the LFPP6VAS6 is designed for superior performance and reliability.

Features:
  • Full flow design reduces pressure drop across the valve
  • Valve body rotates for easy tube routing
  • Removable clip for changing the handle orientation
  • 3/8" male compression x 3/8" female compression thread
  • 3/8" OD quick connect






Weight & Dimensions

Weight (lbs)

0.045

Details

Series

LIQUIFit

Max Temp (°F)

225

Max Pressure (Psi)

150

Min Temp (°F)

0

Min Pressure (Psi)

0

Push-In Size

3/8" OD

Application

Water Supply, Fluids, Food/Beverage

Body Material

Polypropylene

Color / Finish

White

O-Rings

EPDM

Size

3/8"

Inlet/Outlet Connection

3/8" FPT, 3/8" MPT

Warranty & Certifications

Certifications

NSF 51; FDA


Parker




Intended Use:

The Parker LIQUIfit angle stop adapter valve is designed to allow the quick addition of connections for a filtration, reverse osmosis, coffee or ice maker system between your existing water supply valve and supply line. By combining Parker's LIQUIfit connection technology with proven TrueSeal ball valve construction, the LFPP6VAS6 is designed for superior performance and reliability.

Features:
  • Full flow design reduces pressure drop across the valve
  • Valve body rotates for easy tube routing
  • Removable clip for changing the handle orientation
  • 3/8" male compression x 3/8" female compression thread
  • 3/8" OD quick connect





Weight & Dimensions

Weight (lbs)

0.045

Details

Series

LIQUIFit

Max Temp (°F)

225

Max Pressure (Psi)

150

Min Temp (°F)

0

Min Pressure (Psi)

0

Push-In Size

3/8" OD

Application

Water Supply, Fluids, Food/Beverage

Body Material

Polypropylene

Color / Finish

White

O-Rings

EPDM

Size

3/8"

Inlet/Outlet Connection

3/8" FPT, 3/8" MPT

Warranty & Certifications

Certifications

NSF 51; FDA
