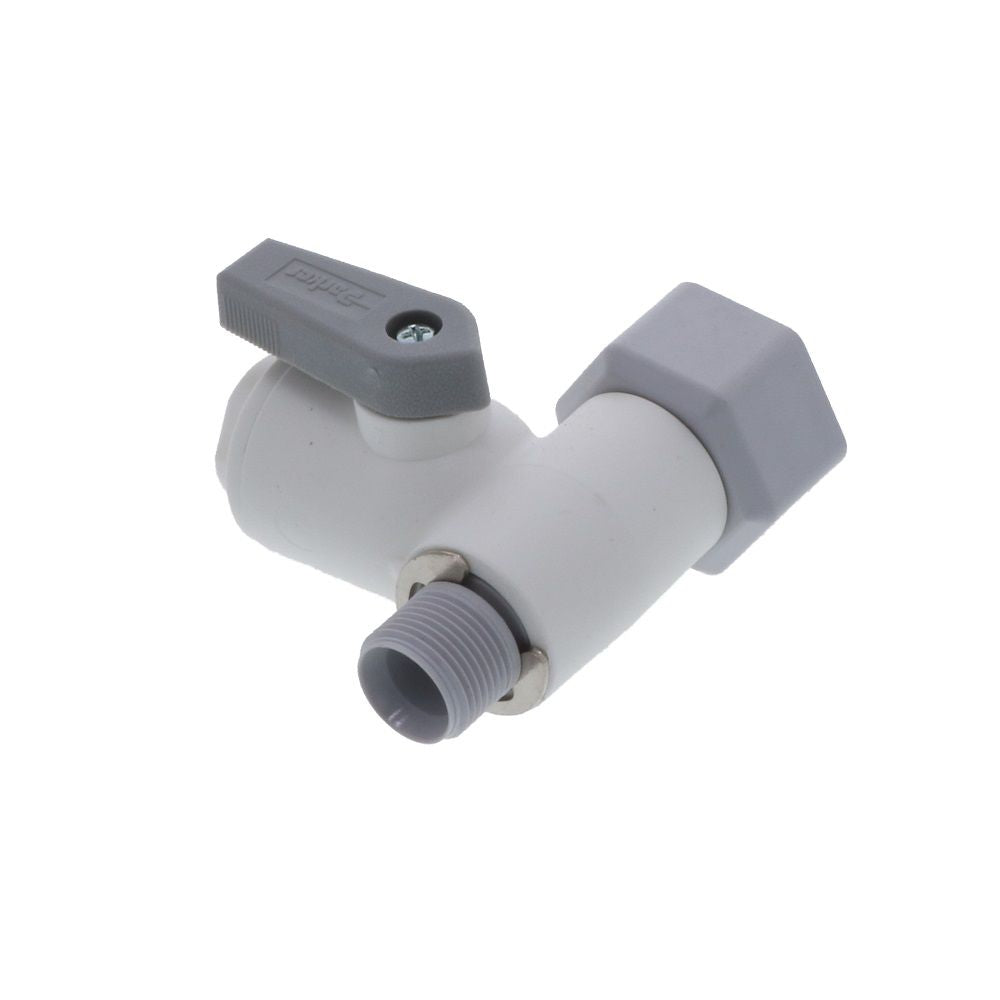

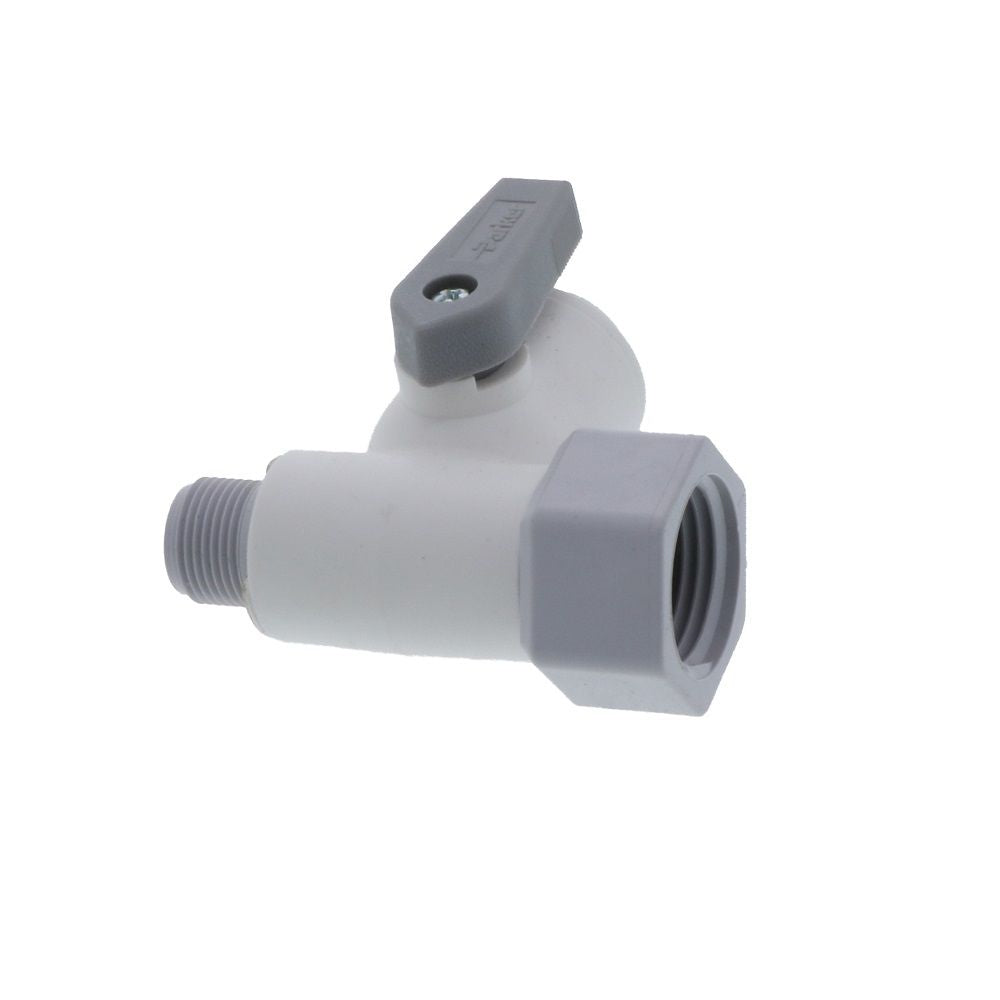

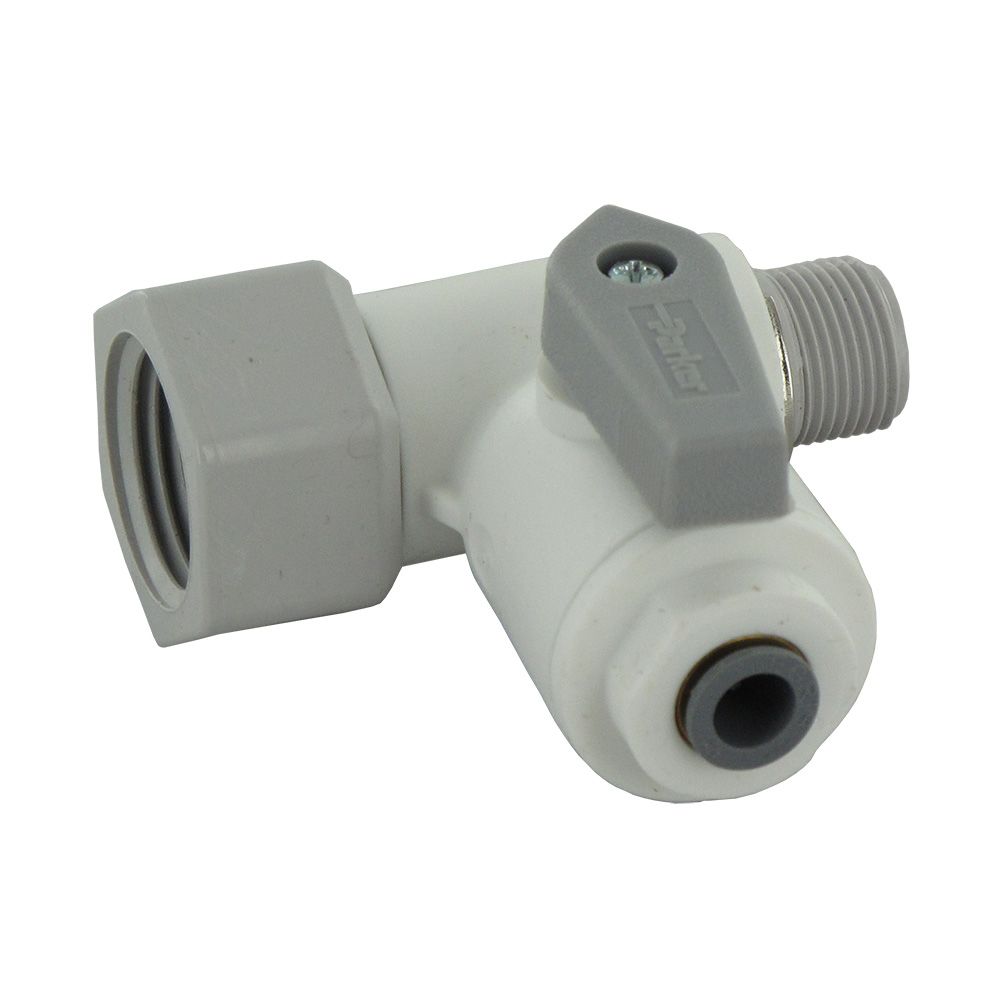

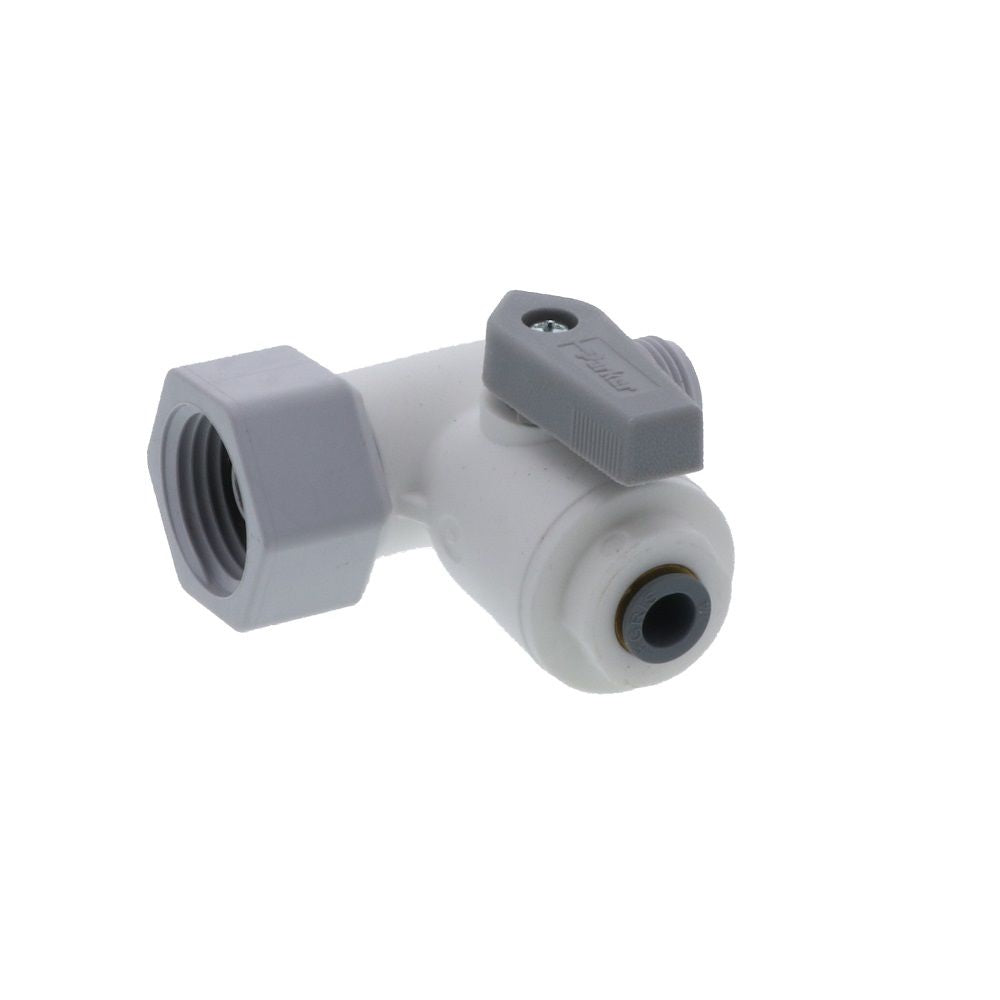

Parker LIQUIfit LFPP4VAS8 Angle Stop Adapter Valve 3/8 x 1/2 x 1/4

Part Number: LFPP4VAS8

1 8

Parker

Parker LIQUIfit LFPP4VAS8 Angle Stop Adapter Valve 3/8 x 1/2 x 1/4

Part Number: LFPP4VAS8

MSRP: $38.26

$10.77

Quantity

Unit Price

Price

Savings

$10.77

—

$10.23

$491.25

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Parker LIQUIfit angle stop adapter valve is designed to allow the quick addition of connections for a filtration, reverse osmosis, coffee or ice maker system between your existing water supply valve and supply line. By combining Parker's LIQUIfit connection technology with proven TrueSeal ball valve construction, the LFPP4VAS8 is designed for superior performance and reliability.

Specifications:

Full flow design reduces pressure drop across the valve
Valve body rotates for easy tube routing
Removable clip for changing the handle orientation
3/8" male compression x 1/2-14 NPSM female thread
1/4" OD quick connect

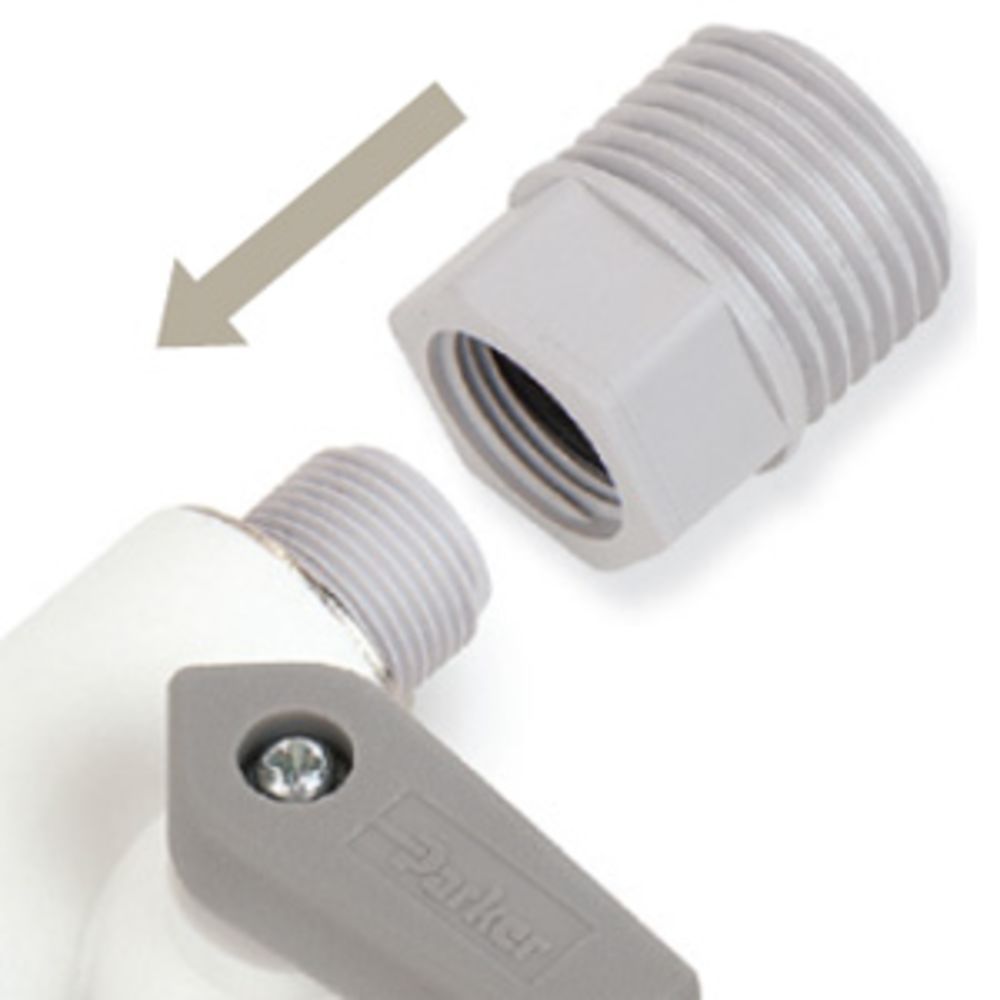

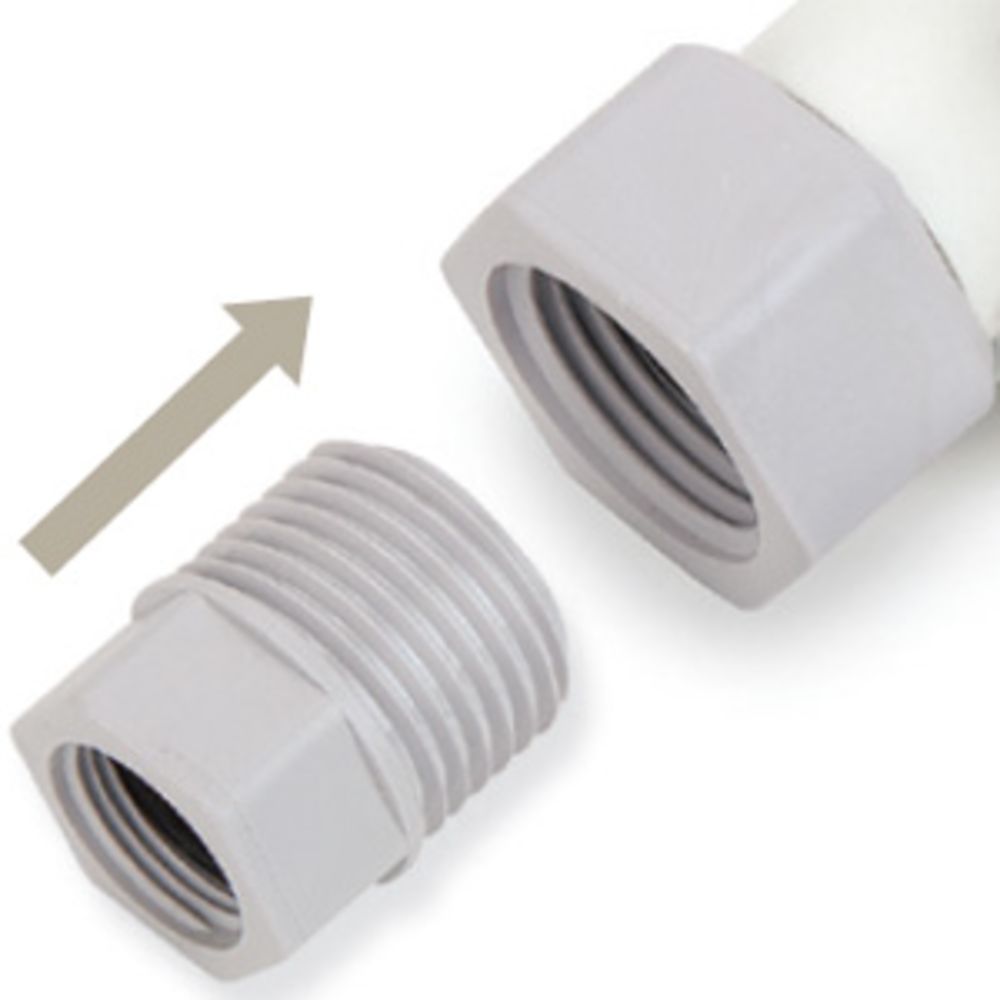

Includes Banjo Bolt Adapter (part # U8TVA6)
Adapter is 1/2-14 NPSM male x 3/8 female compression thread
Banjo Bolt Adapter can be used on either threaded side
Good choice if you are unsure which size angle stop you have.

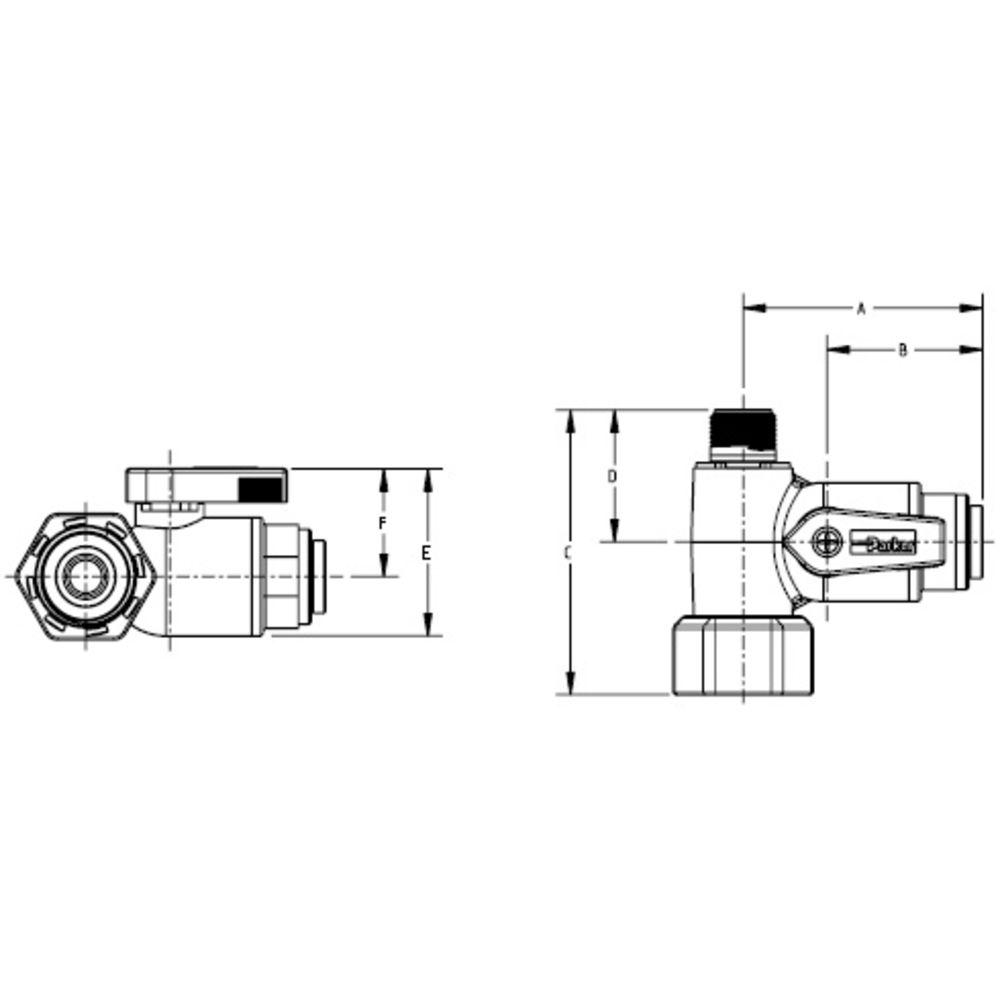

Part Number	A	B	C	D	E	F
LFPP4VAS8	1.79"	1.07"	2.40"	1.11"	1.41"	.91"

Specifications

Product Details
Application	Food & Beverage
Inlet Connection	1/2" FPT 3/8" MPT
Max Pressure (Psi)	150
Max Temp (°F)	225°F
Min Temp (°F)	0°F
Outlet Connection	1/2" FPT,3/8" MPT
Push-In Size	1/4" OD
Series	LIQUIFit
Size	3/8" 1/2"
Valve Type	Angle Stop Valve
Color / Finish	White
Connection Type	Female (FPT) Male (MPT)
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	2.358 in.
Shipping Width	1.673 in.
Shipping Height	2.161 in.
Product Weight & Dimensions
Product Weight (lbs)	0.0765

Product Details
Application	Water Supply Fluids
Inlet Connection	1/2" FPT 3/8" MPT
Max Pressure (Psi)	150
Max Temp (°F)	225°F
Min Temp (°F)	0°F
Outlet Connection	1/2" FPT,3/8" MPT
Push-In Size	1/4" OD
Series	LIQUIFit
Size	3/8" 1/2"
Valve Type	Angle Stop Valve
Color / Finish	White
Connection Type	Female (FPT) Male (MPT)
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	7 in.
Product Weight & Dimensions
Product Weight (lbs)	4.15

Downloads

Parker LIQUIfit LFPP4VAS8 Angle Stop Adapter Valve 3/8 x 1/2 x 1/4 Manual
