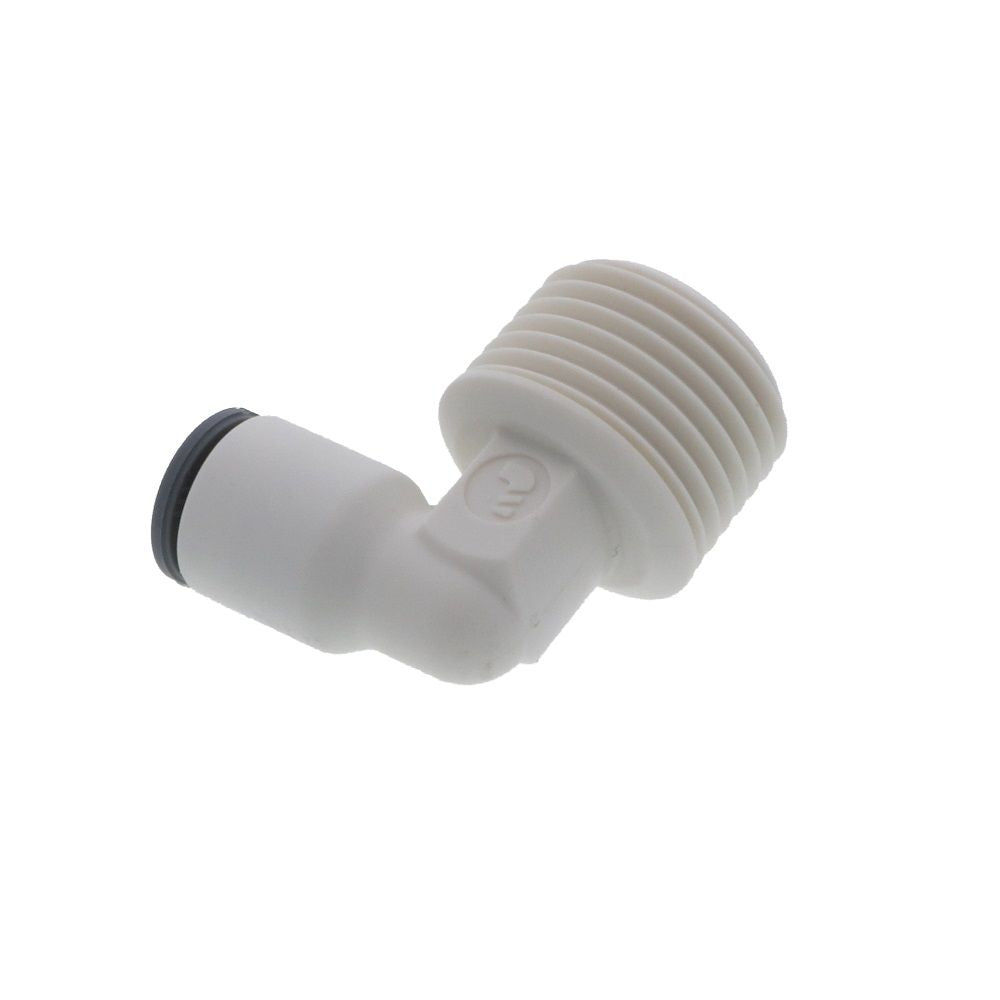

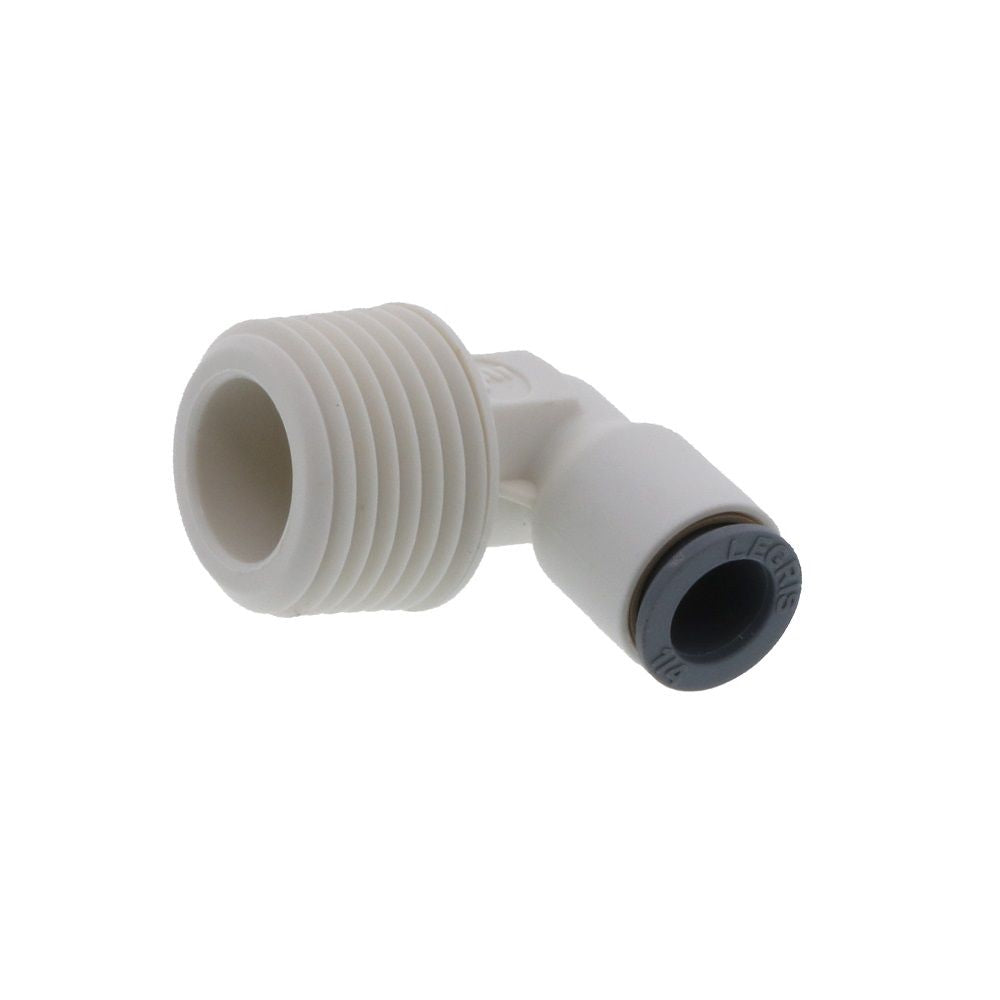

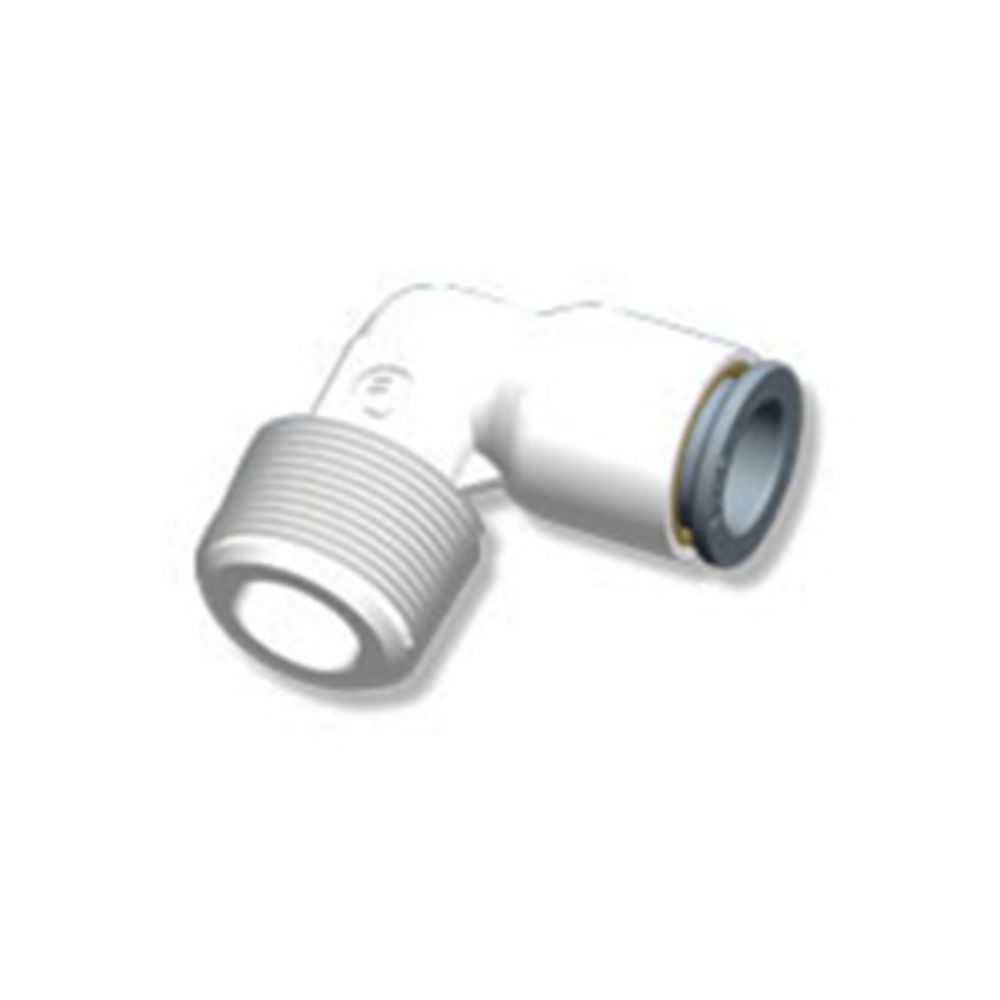

Parker LIQUIfit Fixed Elbow - 1/4 x 3/8 NPTF

Part Number: 6579-56-18WP2

1 3

Parker

Parker LIQUIfit Fixed Elbow - 1/4 x 3/8 NPTF

Part Number: 6579-56-18WP2

MSRP: $6.59

$2.18

Quantity

Unit Price

Price

Savings

$2.18

—

100

$2.06

$206.91

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed

Specifications:

Engineered Hi-Performance Nylon
High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F
Suitable for potable liquids and food applications

Specifications

Product Details
Inlet Connection	3/8" MPT
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Outlet Connection	3/8" MPT
Push-In Size	1/4" OD
Series	LIQUIFit
Shape	Elbow
Size	3/8"
Color / Finish	White
Connection Type	Male (MPT)
Origin	Mexico
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	1 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.1

Product Details
Inlet Connection	3/8" MPT
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Outlet Connection	3/8" MPT
Push-In Size	1/4" OD
Series	LIQUIFit
Shape	Elbow
Size	3/8"
Color / Finish	White
Connection Type	Male (MPT)
Origin	Mexico
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.15

Downloads

Parker LIQUIfit Fixed Elbow - 1/4 x 3/8 NPTF Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products
Facet	Parker Parker LIQUIfit Fixed Elbow - 1/4 x 3/8 NPTF Regular price From $2.18 Part #: 6579-56-18WP2 Save up to 5% with bulk pricing Current Product	John Guest John Guest Fixed Elbow NPTF - 1/4 x 3/8 NPTF 5.0 Regular price From $2.42 Part #: PI480823S Save up to 12% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Male Elbow- 1/4"tube OD x 3/8"NPTF Regular price From $1.95 Part #: AME4-N3-W Save up to 9% with bulk pricing View details
Price
Price	Regular price From $2.18	Regular price From $2.42	Regular price From $1.95
Part #
Part #	6579-56-18WP2	PI480823S	AME4-N3-W
Description
Description	Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs...	The John Guest fixed elbow makes connecting OD tubing sizes to female NPT threads quick and easy. Manufactured in gray acetal with food grade nitrile...	The NeoFit male elbows are used to connect OD tubing sizes to female NPTF threads. Manufactured in acetal with food grade EPDM O-ring, these fittings...
