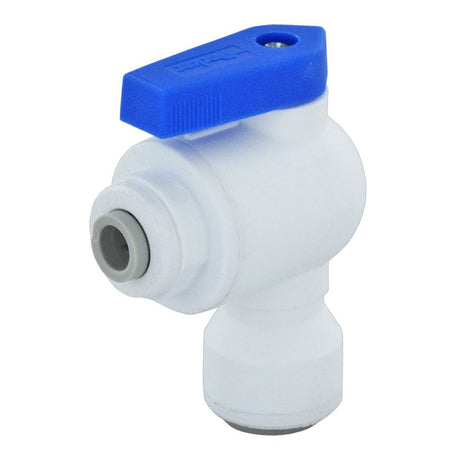

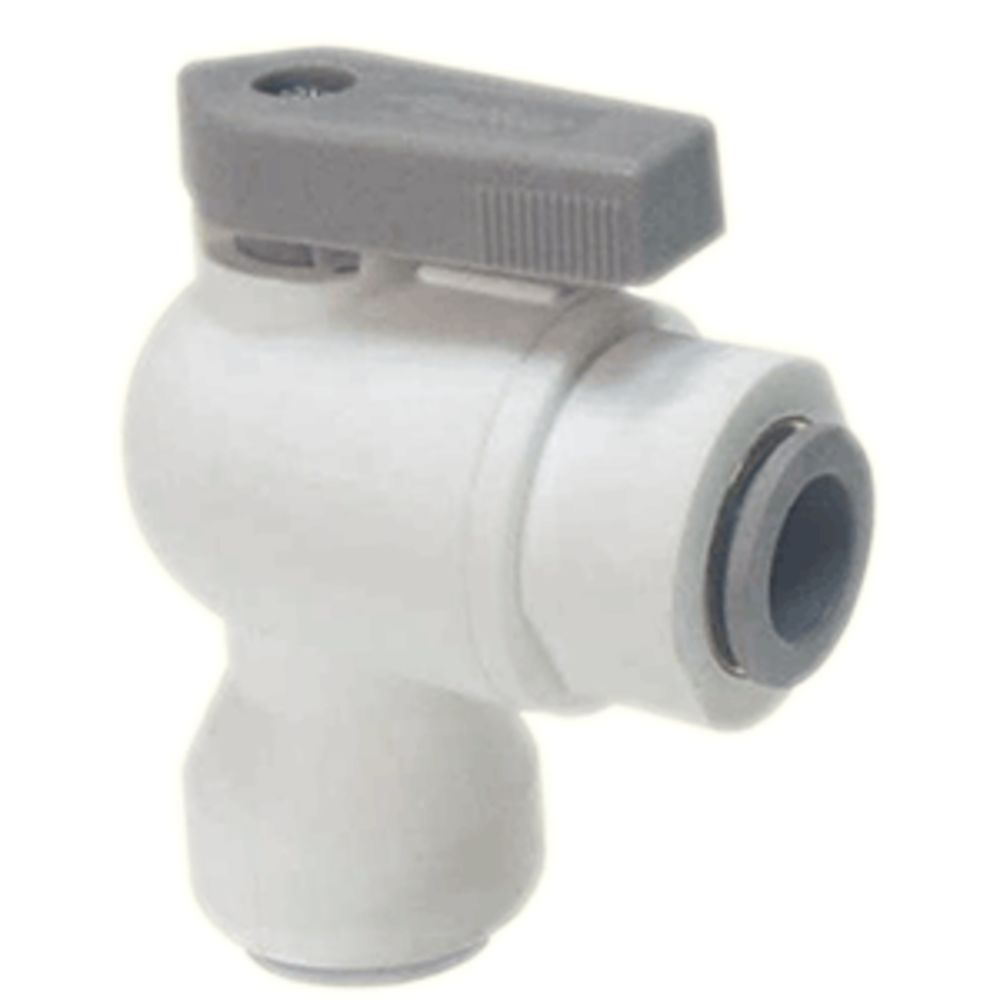

The Parker LFPP6VEU6 LIQUIfit elbow union ball valve is designed with dual quick connections, which eliminates the need for a secondary fitting. The Parker LIQUIfit technology provides reliability and superior performance over traditional valves. The LFPP6VMC6 full flow valve reduces pressure drop across the valve while the bi-directional flow maximizes productivity.
Specifications:
Specifications:
- NSF-51 Listed
- Ball Valve Construction: Nylon
- Seat Material: Nitrile
- Ball Material: Polysulfone
- Max Pressure: 150 psi
- Temp Range: 35° to 200° F
- WQA to NSF/ANSI Standard 61 and 372
- Valve body rotates for easy tube routing
- 3/8" Quick Connect Connections
 | ||||||

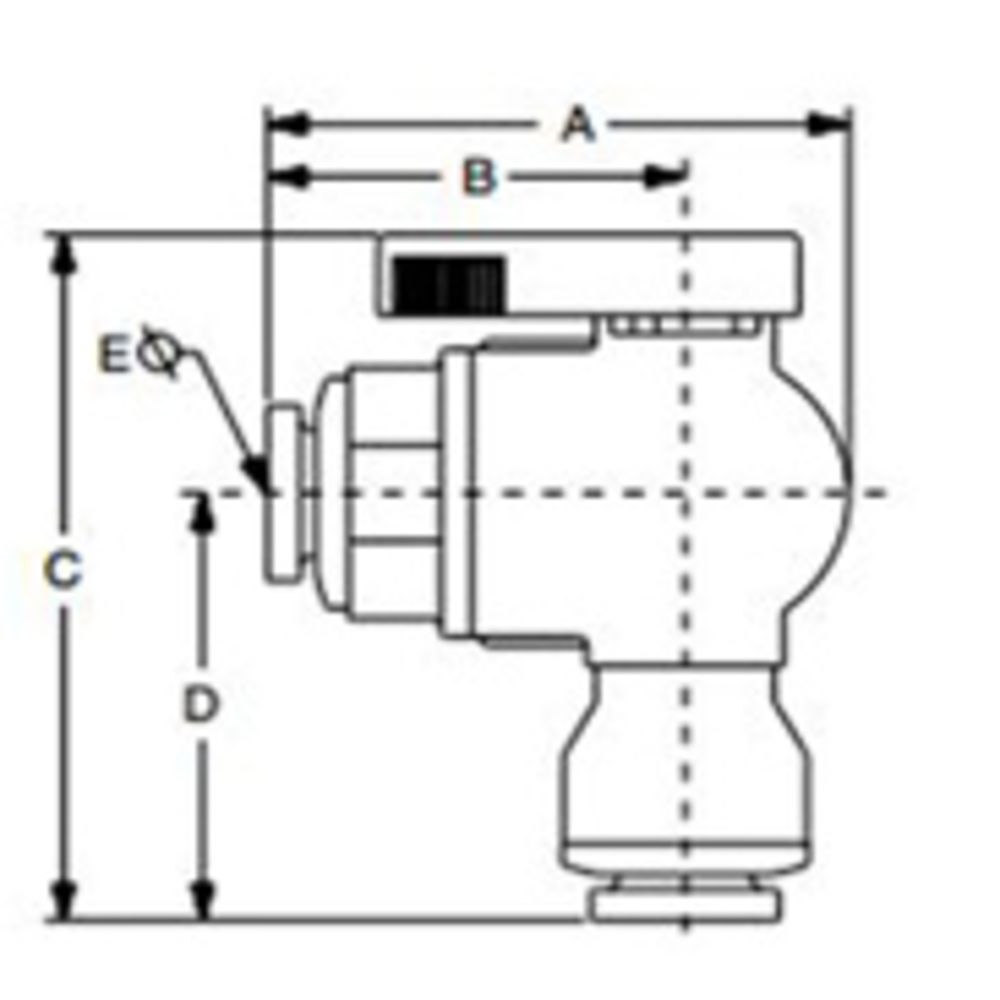

| Part Number | Tube Size | Tube Size | A | B | C | D |
| LFPP6VEU6 | 3/8" QC | 3/8" QC | 1.85" | 1.32" | 2.34" | 1.44" |
Weight & Dimensions
Weight (lbs) | 0.045 |
Details
Application | Water, Food, Beverage |
Body Material | Polypropylene |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 35 |
Push-In Size | 3/8" OD |
Seal Material | EPDM |
Series | LIQUIfit |
Color / Finish | White |
Warranty & Certifications
Certifications | NSF 51; FDA Approved |
The Parker LFPP6VEU6 LIQUIfit elbow union ball valve is designed with dual quick connections, which eliminates the need for a secondary fitting. The Parker LIQUIfit technology provides reliability and superior performance over traditional valves. The LFPP6VMC6 full flow valve reduces pressure drop across the valve while the bi-directional flow maximizes productivity.
Specifications:
- NSF-51 Listed
- Ball Valve Construction: Nylon
- Seat Material: Nitrile
- Ball Material: Polysulfone
- Max Pressure: 150 psi
- Temp Range: 35° to 200° F
- WQA to NSF/ANSI Standard 61 and 372
- Valve body rotates for easy tube routing
- 3/8" Quick Connect Connections
| ||||||
| Part Number | Tube Size | Tube Size | A | B | C | D |
| LFPP6VEU6 | 3/8" QC | 3/8" QC | 1.85" | 1.32" | 2.34" | 1.44" |
Weight & Dimensions
Weight (lbs) | 0.045 |
Details
Application | Water, Food, Beverage |
Body Material | Polypropylene |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 35 |
Push-In Size | 3/8" OD |
Seal Material | EPDM |
Series | LIQUIfit |
Color / Finish | White |
Warranty & Certifications
Certifications | NSF 51; FDA Approved |
