Parker

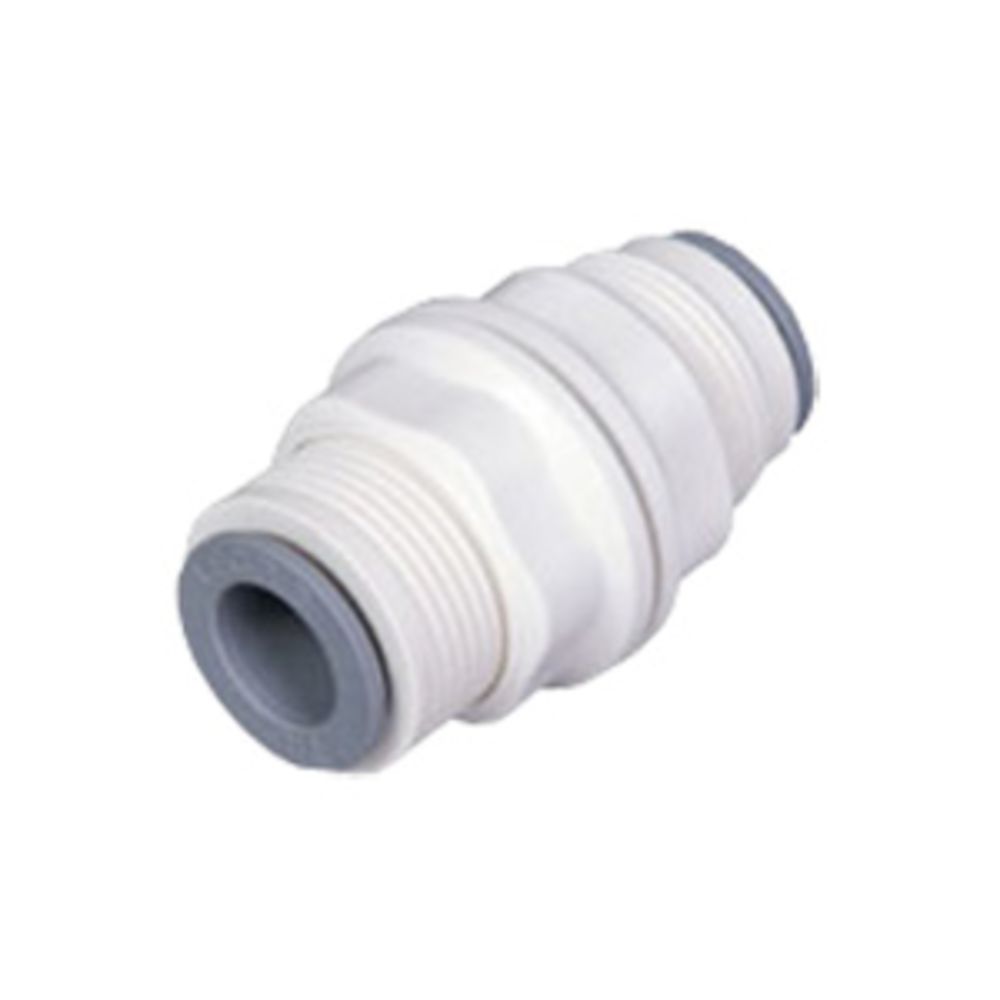

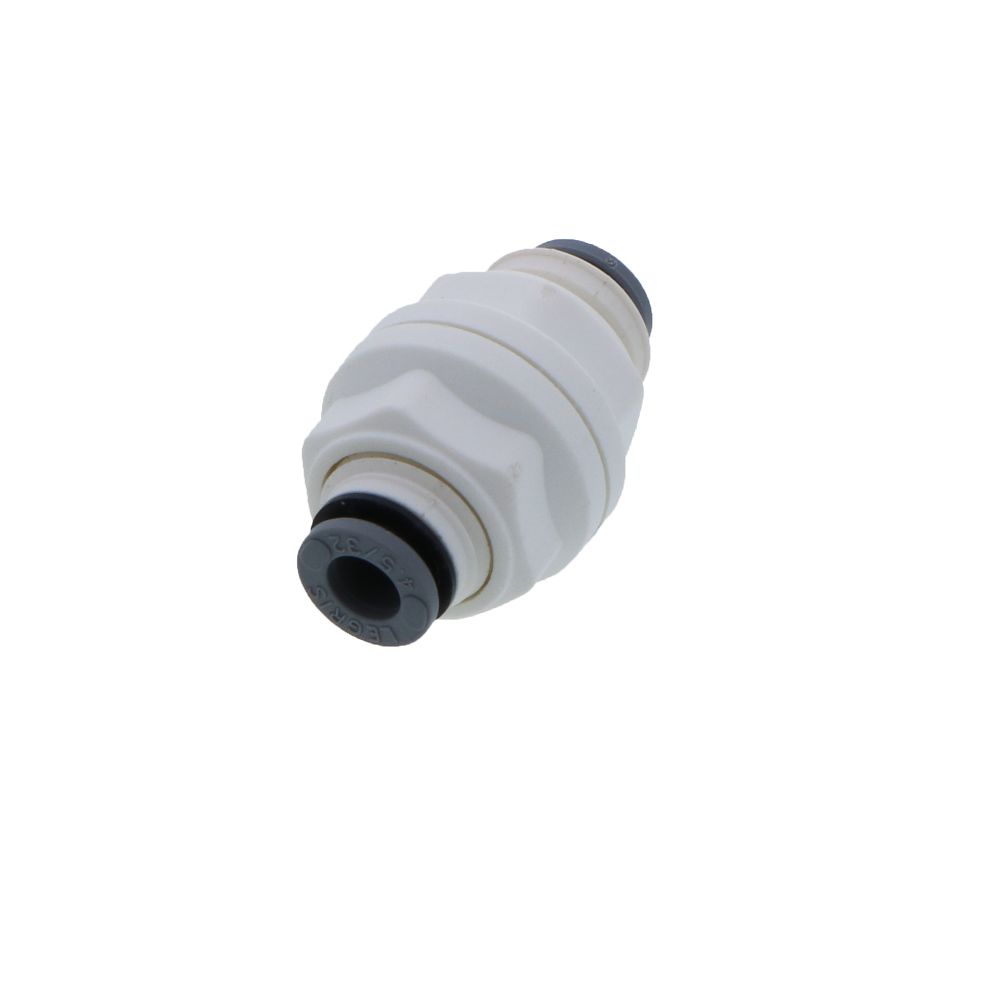

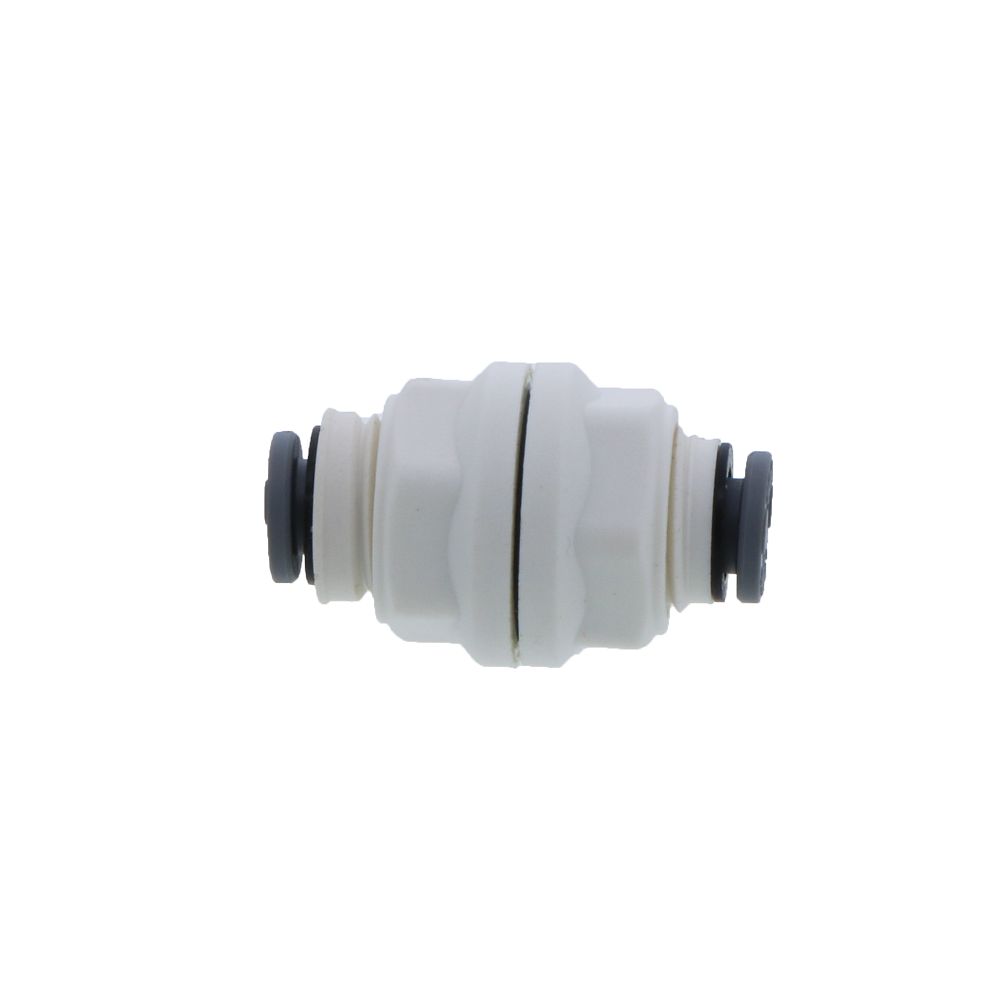

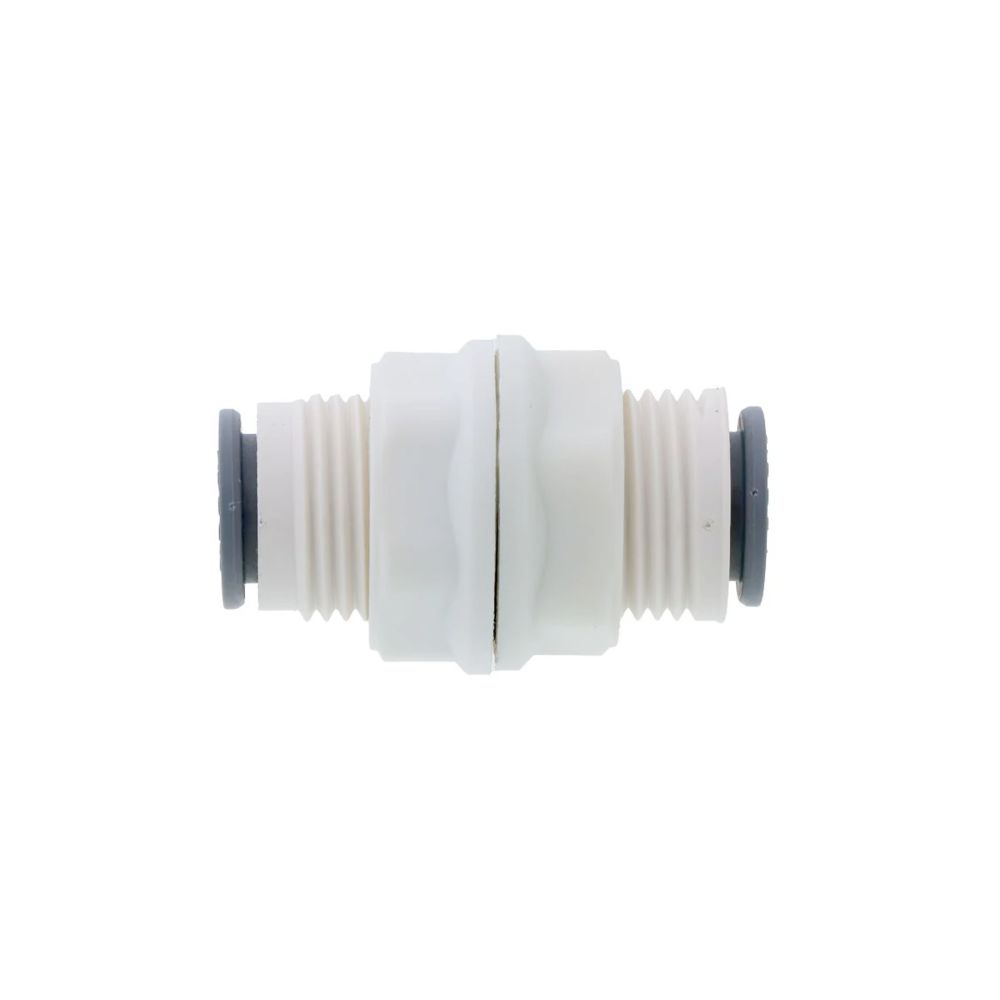

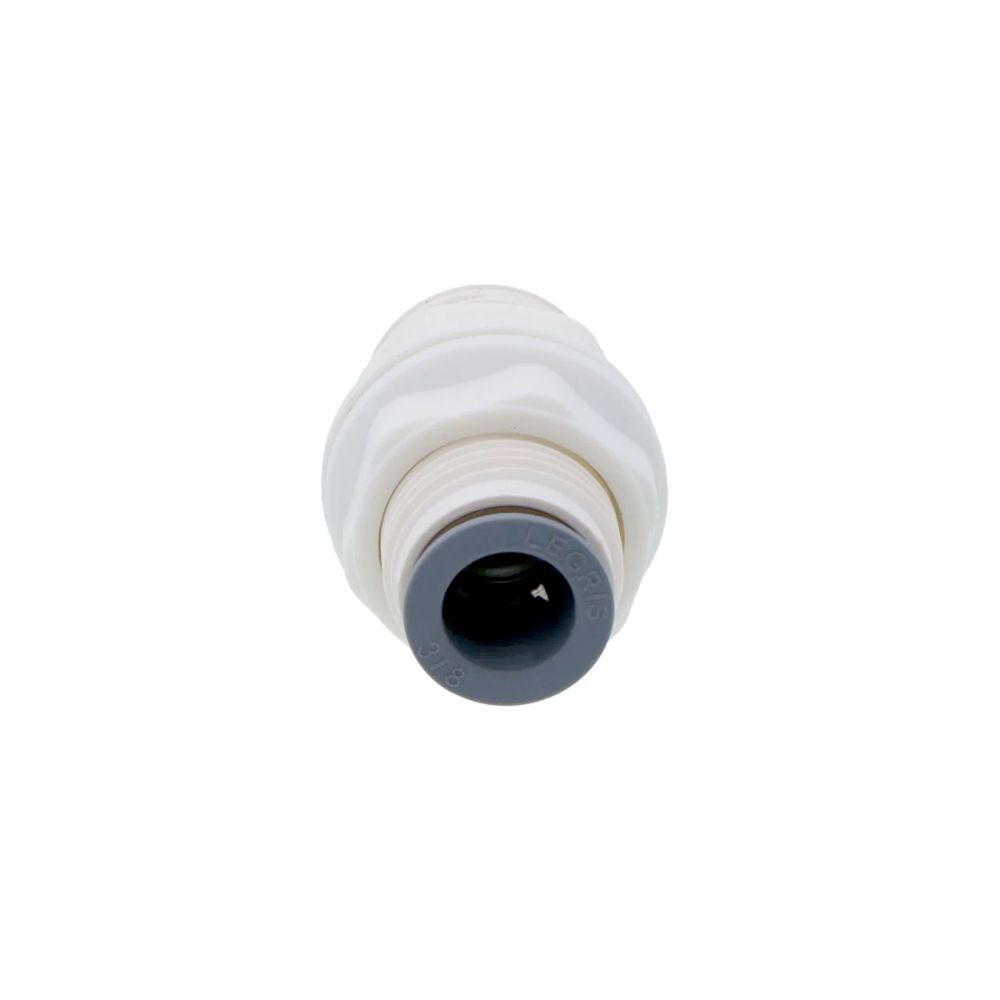

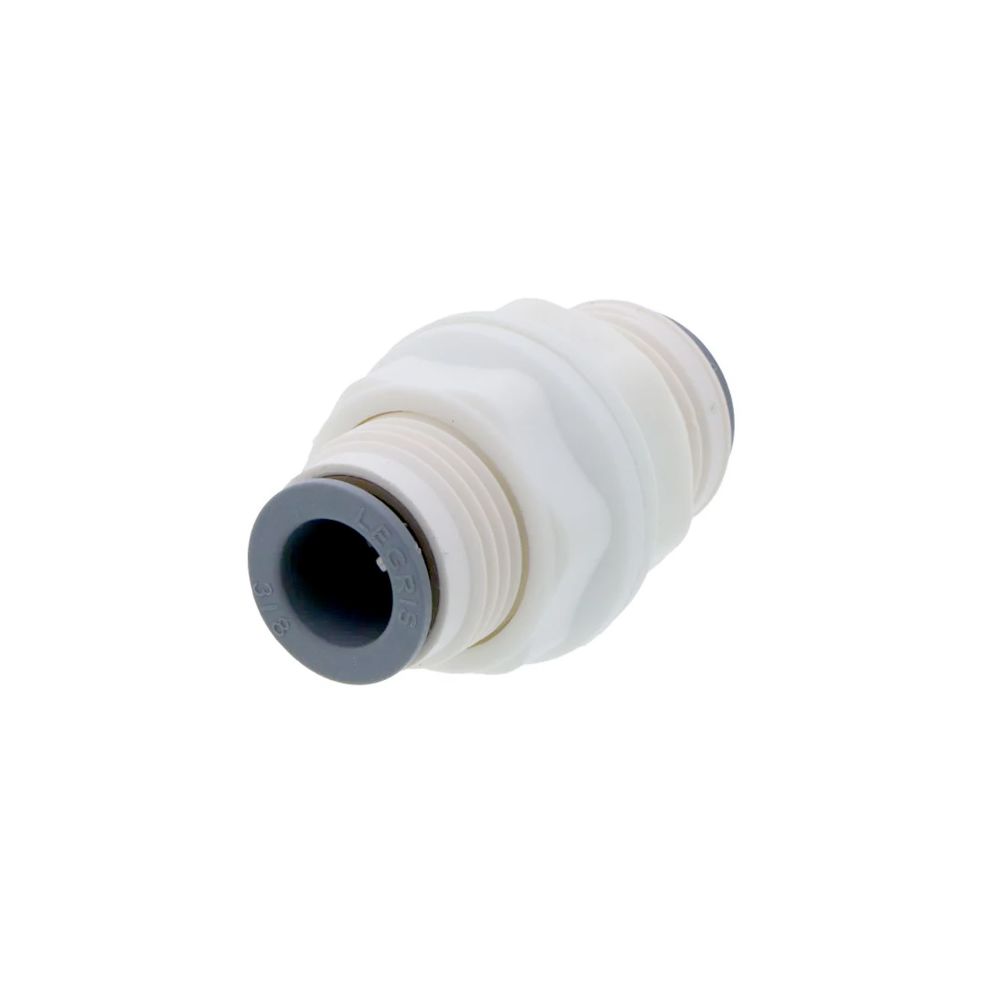

Parker LIQUIfit Bulkhead Union - 5/32 x 5/32

Part Number: 6316-04-00WP2

In Stock

out of stock

In Stock

$3.85

Features:
  • Engineered Hi-Performance Nylon
  • High chemical resistance
  • EPDM O-ring
  • FDA Approved material
  • NSF Standard 51 & 61 Certified
  • Temperature rated up to 200º F
  • Suitable for potable liquids and food applications
  • Both ends unscrew
  • Gaskets (to create seal): YES
  • Minimum hole size: .41"




Details

Application

Water, Food, Beverage, Air, Carbonation

Body Material

Nylon

Max Pressure (Psi)

230

Max Temp (°F)

200

Min Pressure (Psi)

Vacuum

Min Temp (°F)

35

Mounting Options

Panel Mount

Push-In Size

5/32" OD, 4mm OD

Seal Material

EPDM

Series

LIQUIFit

Color / Finish

White

Sub-Type

Union Bulkhead

Type

Bulkhead

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved
