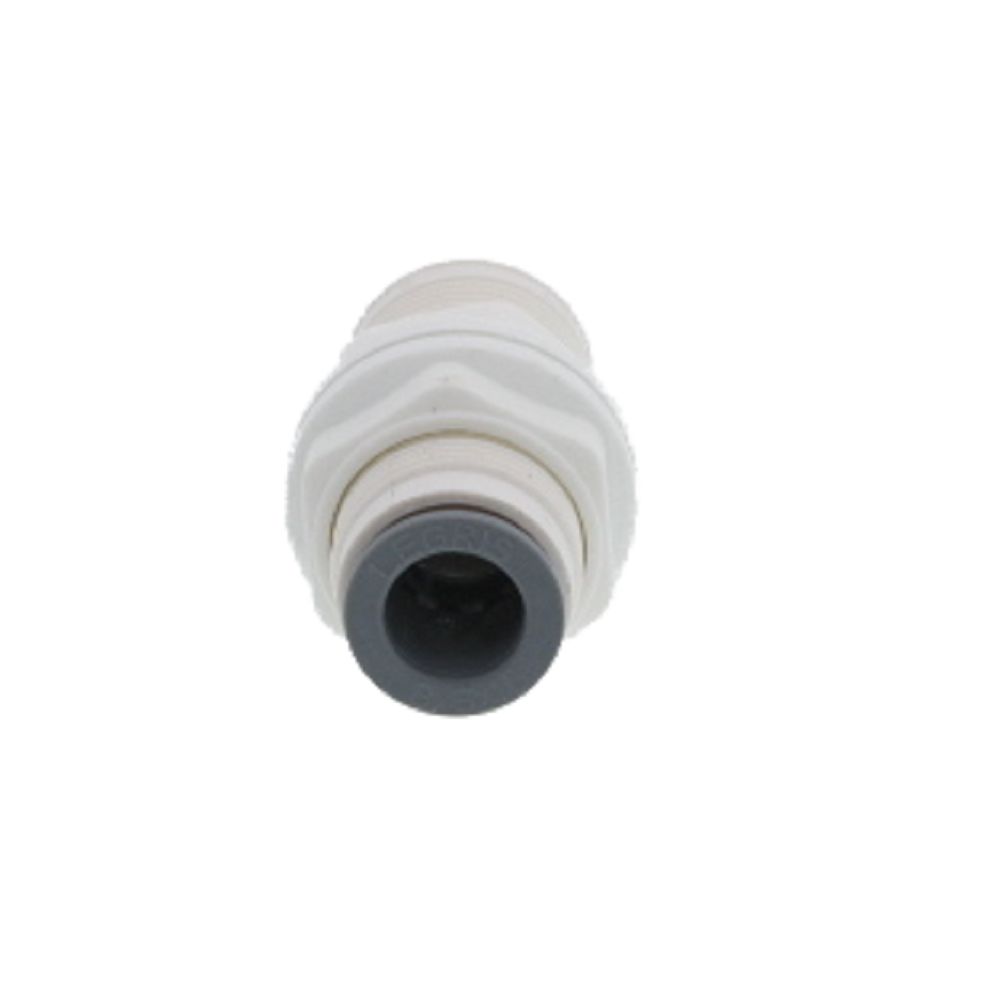

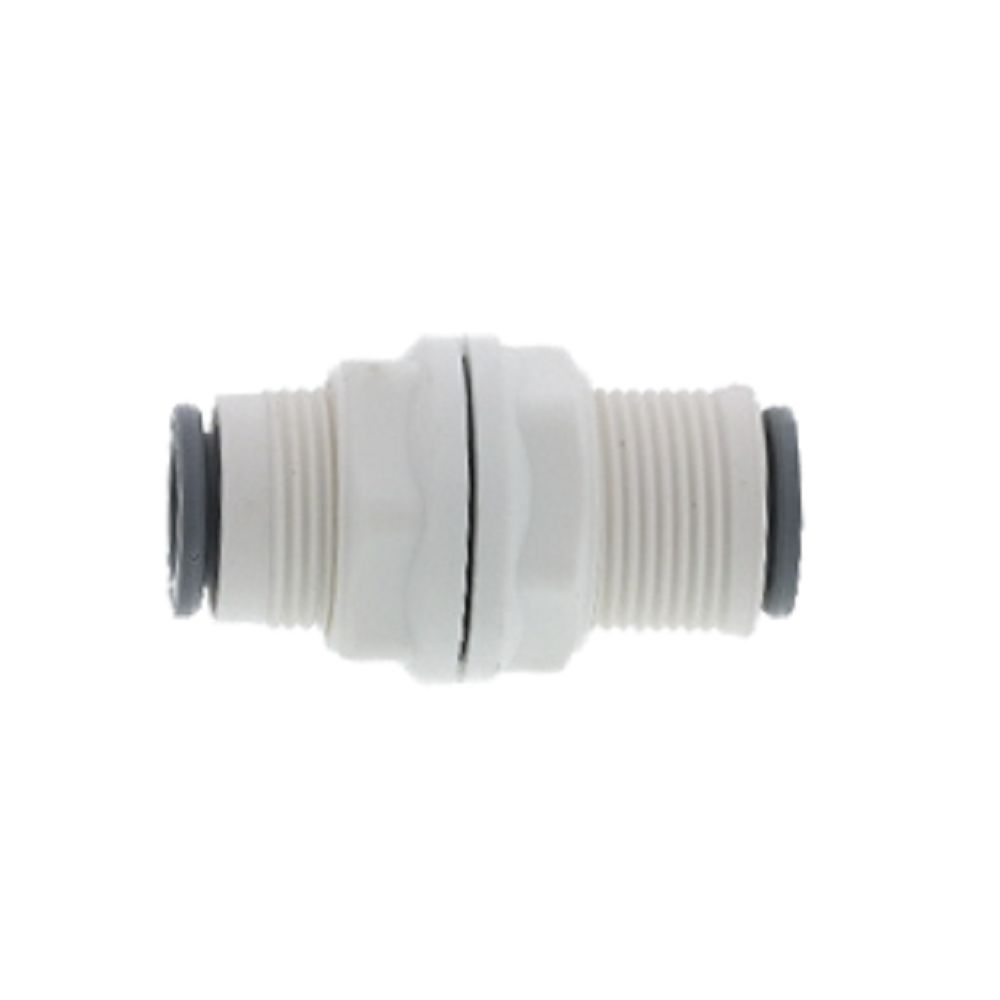

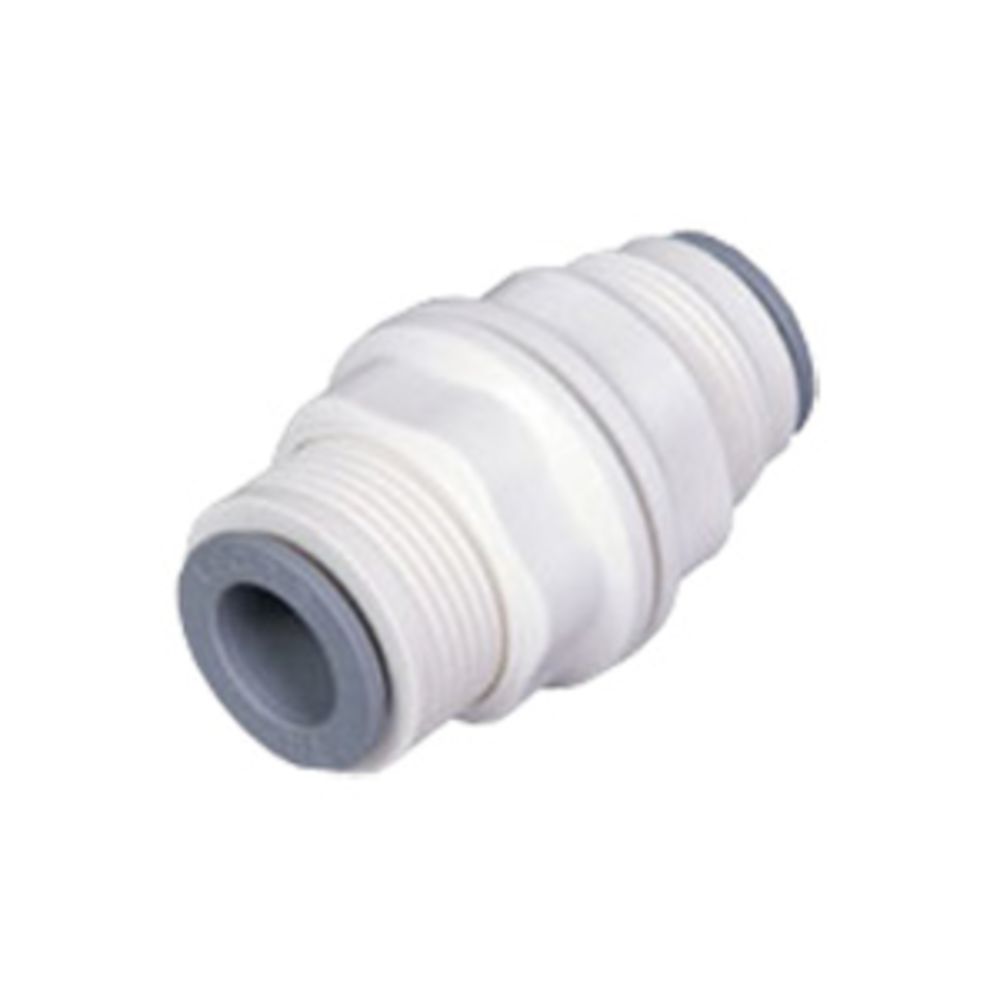

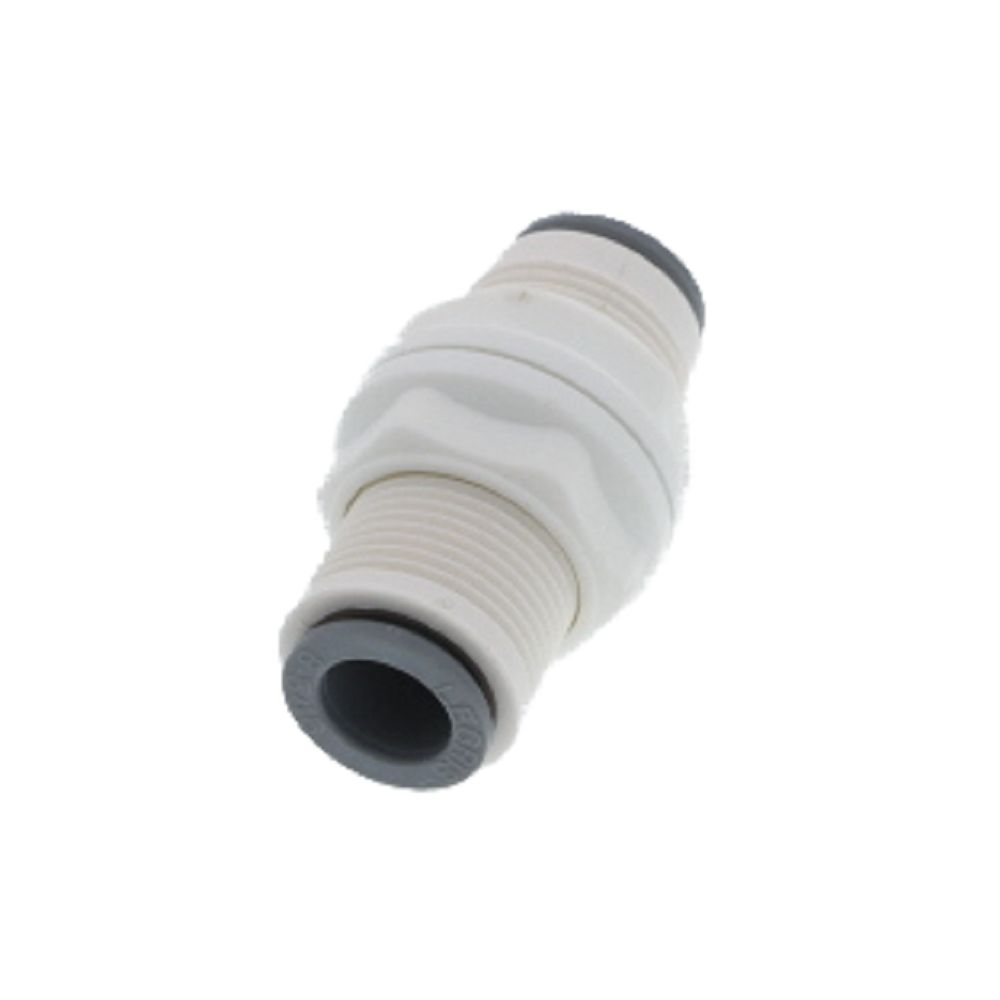

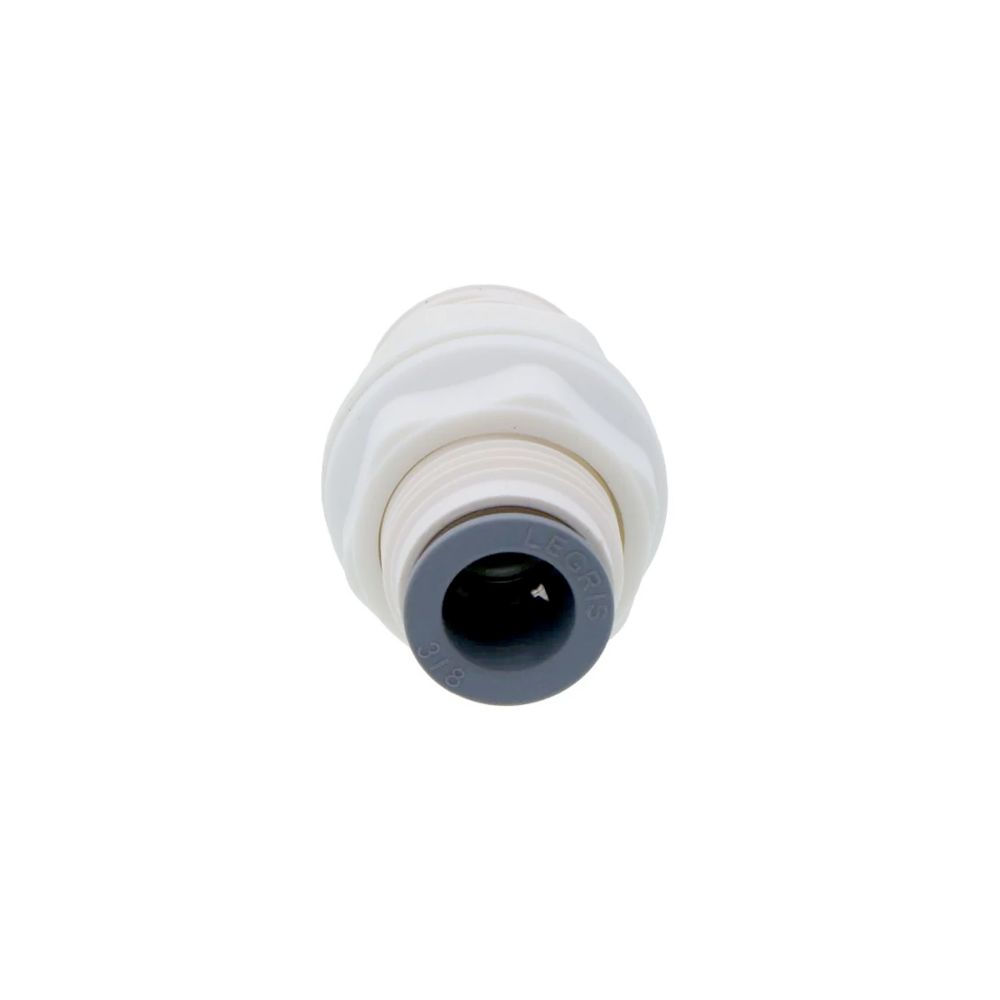

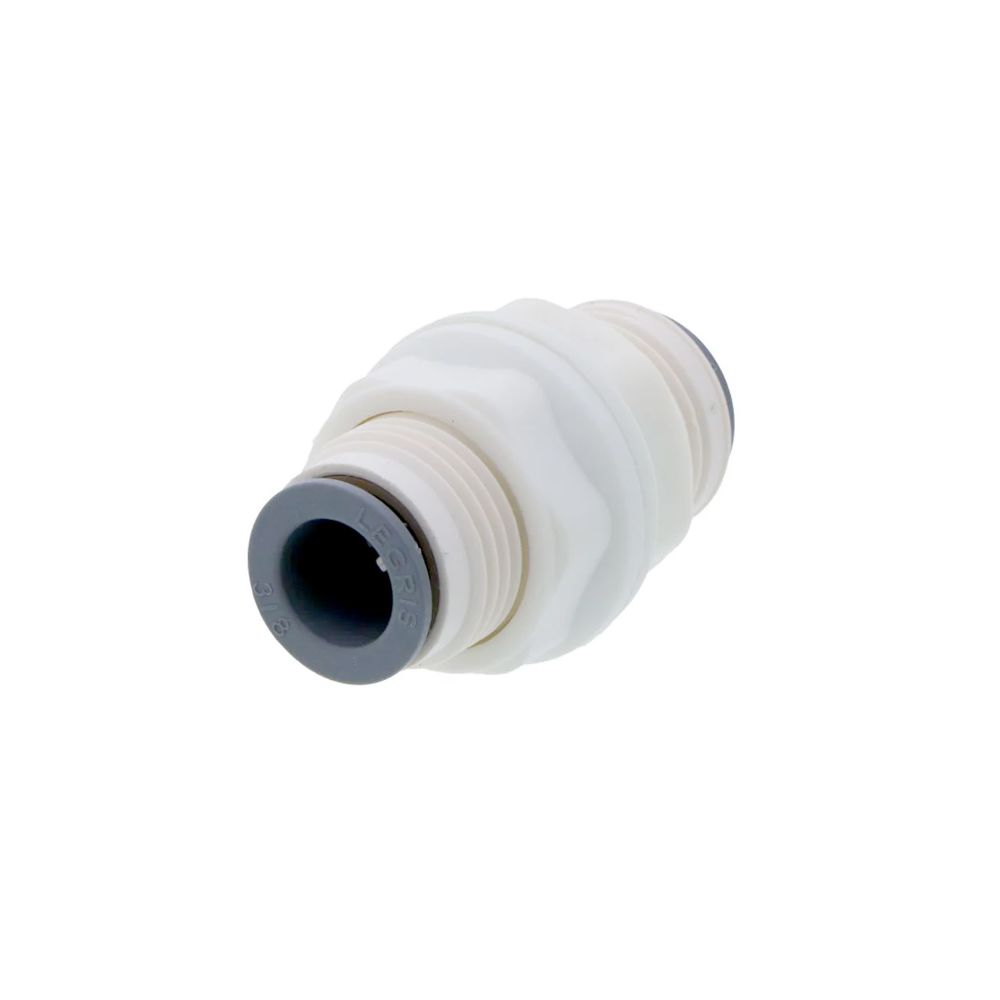

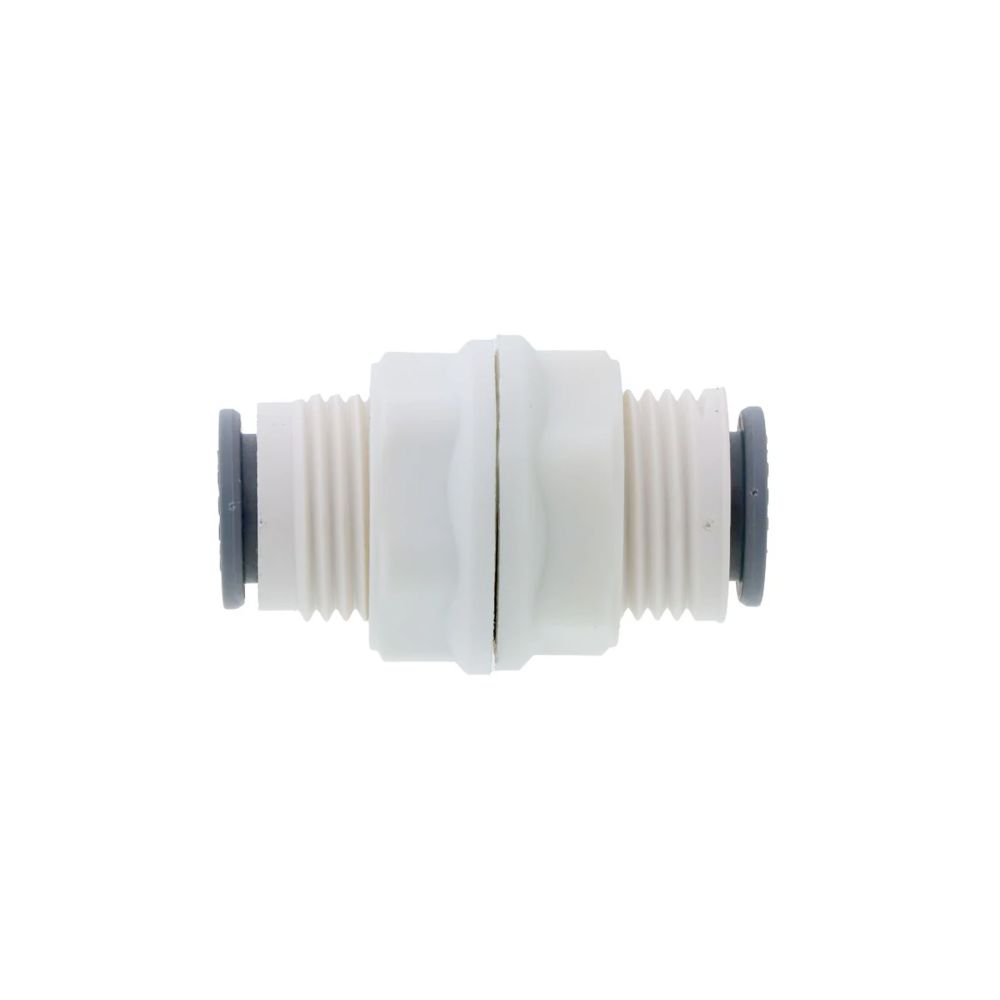

The Parker LIQUIfit 6316-08-00WP2 is a Bulkhead Union. The connection of this fitting is 5/16" x 5/16" quick connect. This union features high-performance nylon which is chemically resistant and it uses FDA approved materials. The 6316-08-00WP2 is NSF standard 51 & 61 certified and is suitable for potable liquids and food applications.
Features:
Features:
- Engineered Hi-Performance Nylon
- High chemical resistance
- EPDM O-ring
- FDA Approved material
- NSF Standard 51 & 61 Certified
- Temperature rated up to 200º F
- Suitable for potable liquids and food applications
- Both ends unscrew
- Minimum hole size: .61"
Details
Application | Water, Food, Beverage, Air, Carbonation |
Body Material | Nylon |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 35 |
Mounting Options | Panel Mount |
Push-In Size | 5/16" OD, 8mm OD |
Seal Material | EPDM |
Series | LIQUIFit |
Color / Finish | White |
Sub-Type | Union Bulkhead |
Type | Bulkhead |
Warranty & Certifications
Certifications | NSF 61; NSF 51; FDA Approved |
