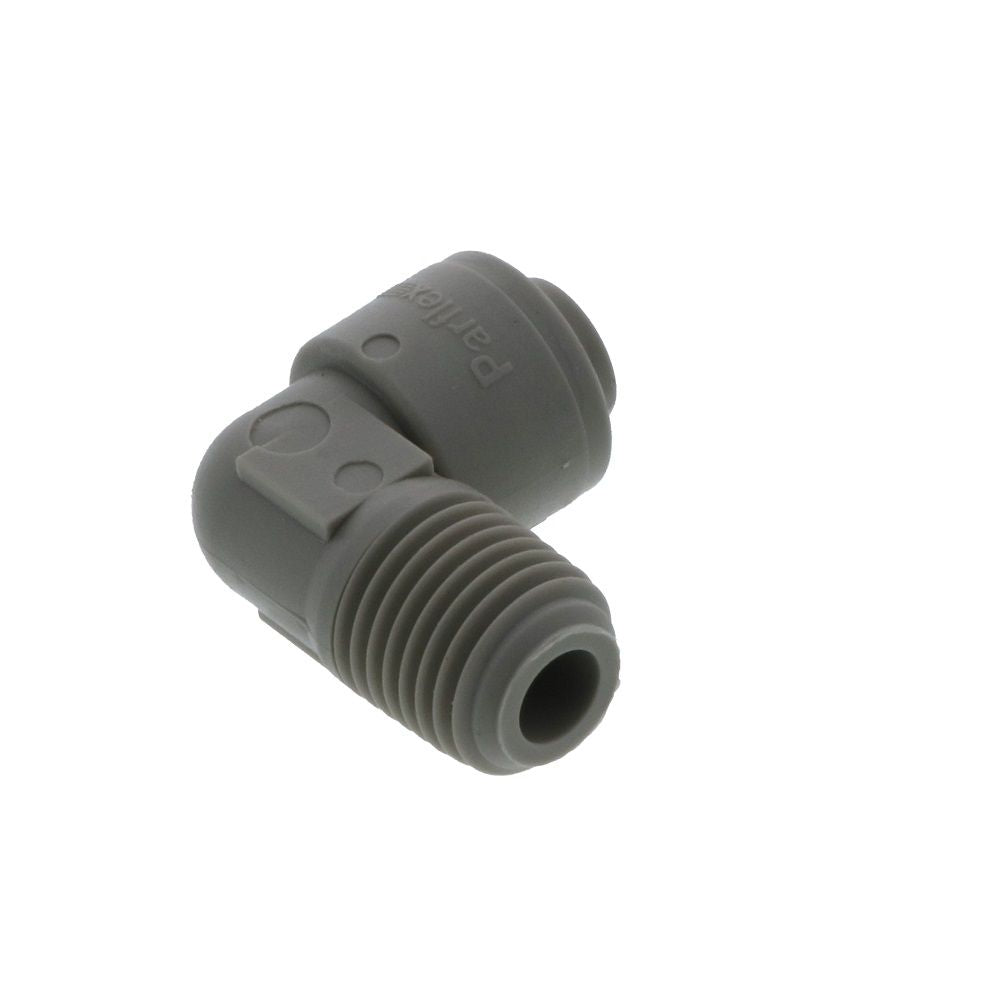

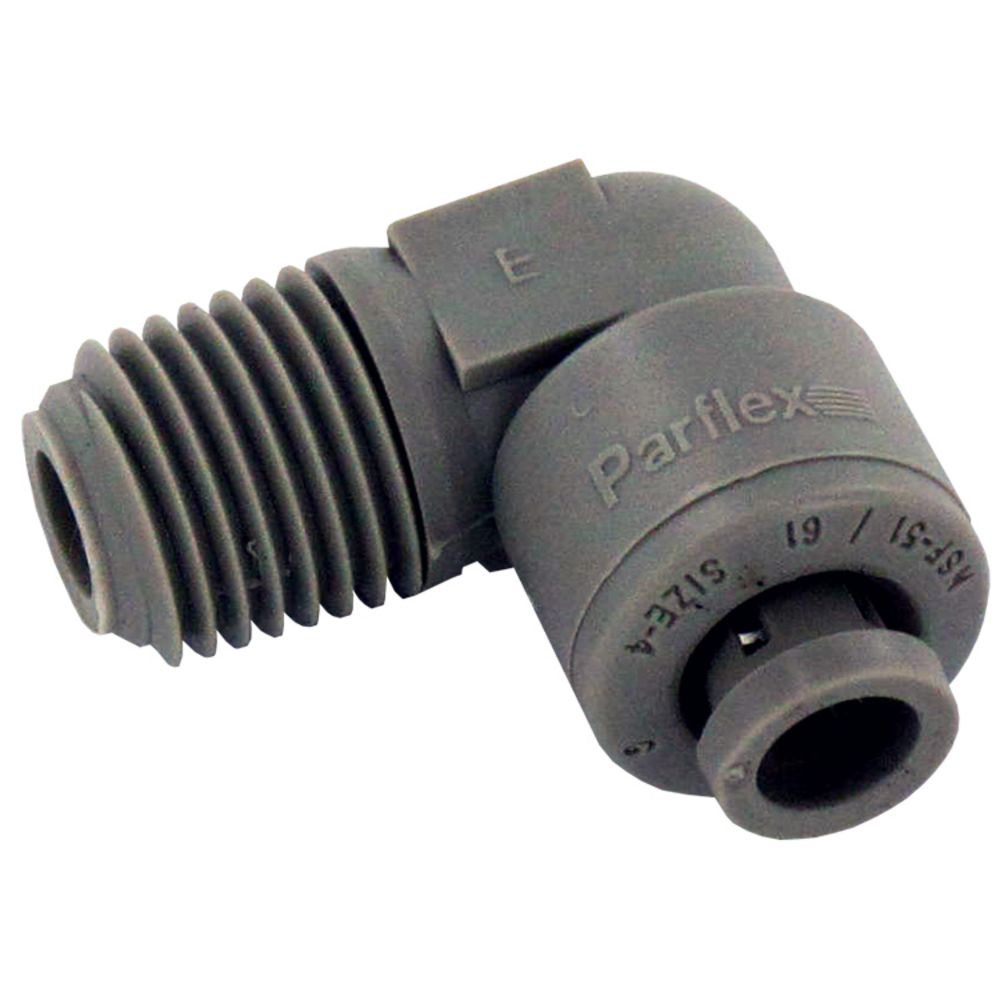

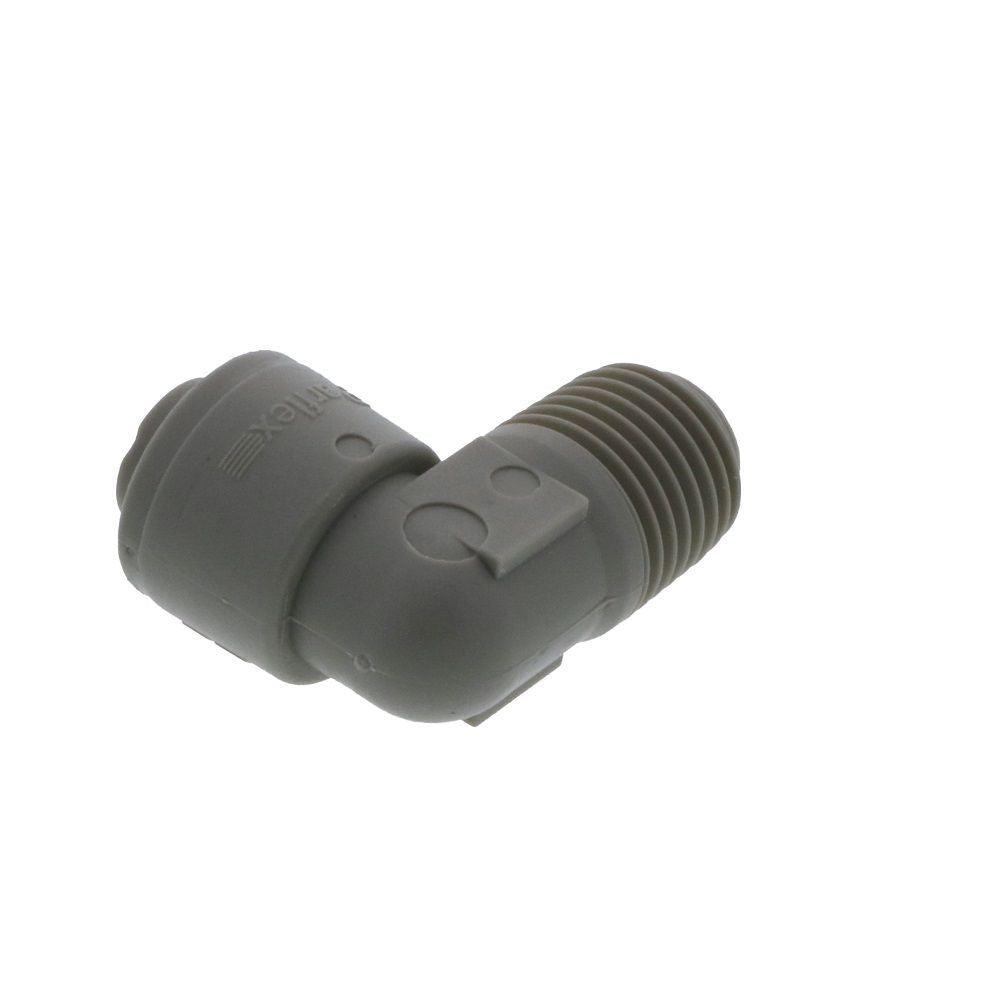

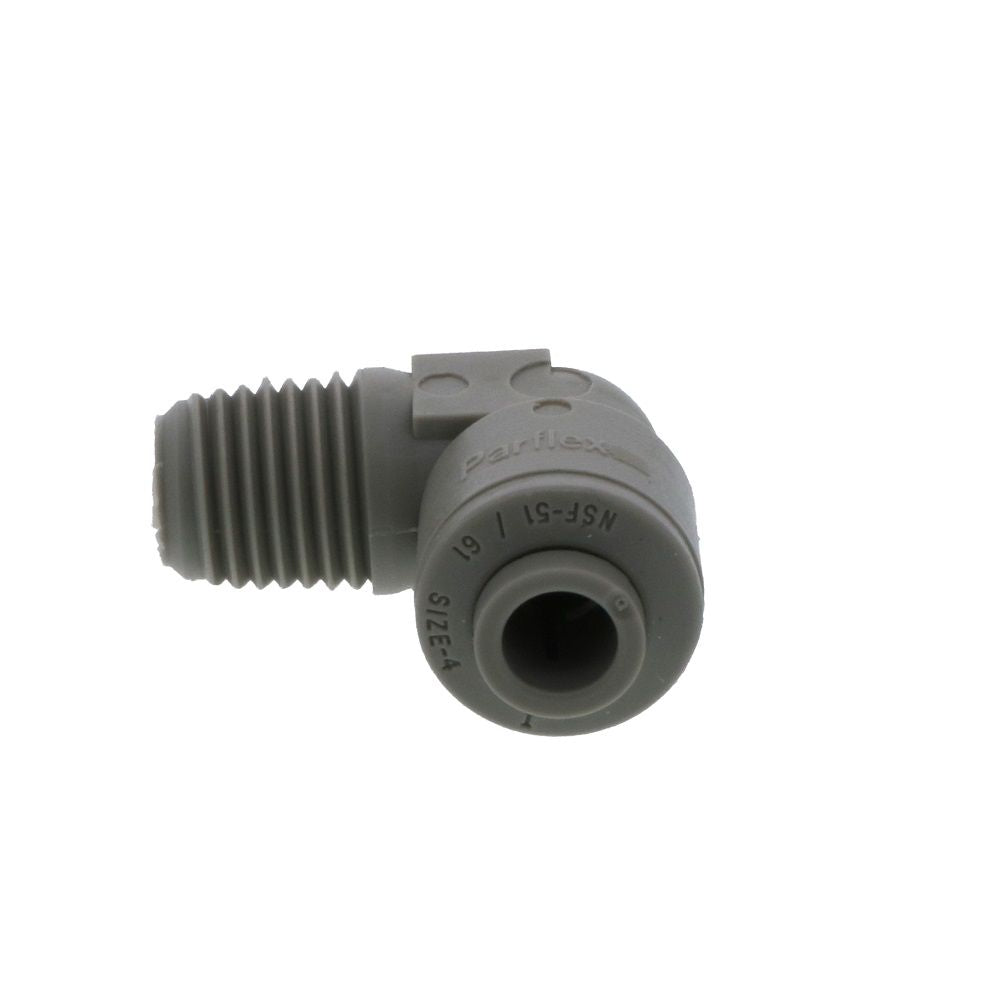

Parker A4ME4-MG TrueSeal Acetal Male Elbow 1/4" QC x 1/4" NPT

Part Number: A4ME4-MG

1 4

Parker

Parker A4ME4-MG TrueSeal Acetal Male Elbow 1/4" QC x 1/4" NPT

Part Number: A4ME4-MG

MSRP: $5.56

$1.68

Quantity

Unit Price

Price

Savings

$1.68

—

$1.63

$40.95

800

$1.59

$1,276.79

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Parker TrueSeal thermoplastic tube fittings are lightweight, reusable, and connect to plastic tubing without the use of tools. The TrueSeal tube fitting is a patented push-to-connect design with an all-plastic body to eliminate rust, corrosion, and system contamination from metal components. Elastomer o-ring seal provides positive compression on tubing O.D. for pressure or vacuum applications.

Specifications:

Patented push-to-connect design
Assembly without the use of tools
Connections: 1/4" tube fitting x 1/4" NPT
Body Construction: Gray Acetal
O-ring Construction: EPDM
Collet Construction: Stainless Steel
Certifications: NSF 51/61 Compliant
Package Qty: 25
Box Qty: 600

Specifications

Product Details
Inlet Connection	1/4" NPT
Max Pressure (Psi)	250
Max Temp (°F)	180°F
Min Temp (°F)	-20°F
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	TrueSeal
Shape	Elbow
Size	1/4"
Color / Finish	Gray
Connection Type	Female (FPT)
Origin	U.S.A.
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.25 in.
Shipping Width	0.5 in.
Shipping Height	1.25 in.
Product Weight & Dimensions
Product Height	1.25 in.
Product Length	1.25 in.
Product Width	0.5 in.
Product Weight (lbs)	0.1

Product Details
Inlet Connection	1/4" NPT
Max Pressure (Psi)	250
Max Temp (°F)	180°F
Min Temp (°F)	-20°F
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	TrueSeal
Shape	Elbow
Size	1/4"
Color / Finish	Gray
Connection Type	Female (FPT)
Origin	U.S.A.
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1

Product Details
Inlet Connection	1/4" NPT
Max Pressure (Psi)	250
Max Temp (°F)	180°F
Min Temp (°F)	-20°F
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	TrueSeal
Shape	Elbow
Size	1/4"
Color / Finish	Gray
Connection Type	Female (FPT)
Origin	U.S.A.
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.5 in.
Shipping Width	2 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.4

Downloads

Parker A4ME4-MG TrueSeal Acetal Male Elbow 1/4

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

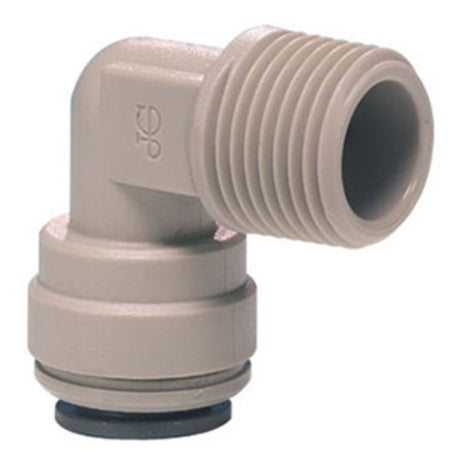

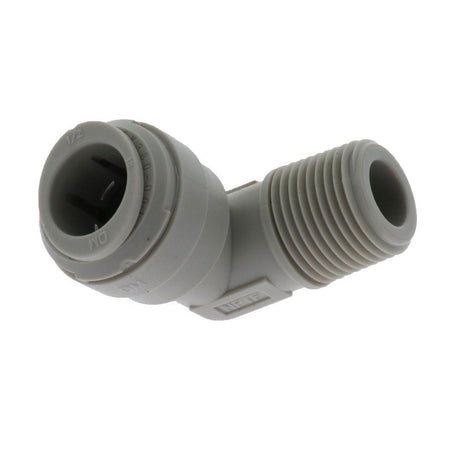

Facet	Parker Parker A4ME4-MG TrueSeal Acetal Male Elbow 1/4" QC x 1/4" NPT Regular price From $1.68 Part #: A4ME4-MG Save up to 5% with bulk pricing Current Product	John Guest John Guest Fixed Elbow NPTF - 1/4 x 1/4 NPTF Regular price From $2.02 Part #: PI480822S-US Save up to 12% with bulk pricing View details	DMFit DMfit Elbow Male Connector - 1/4" Push-In x 1/4" NPTF Regular price From $1.78 Very low stock Part #: AME0404 Save up to 18% with bulk pricing View details
