Parker

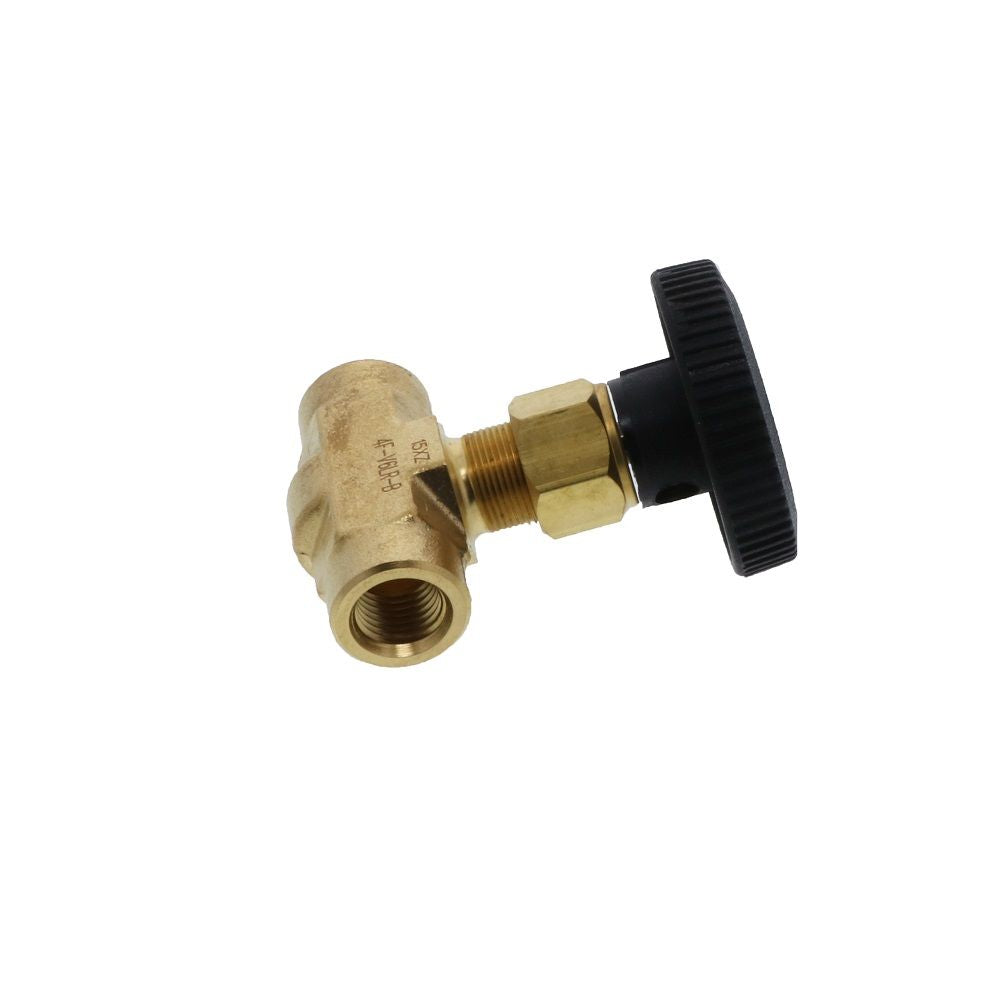

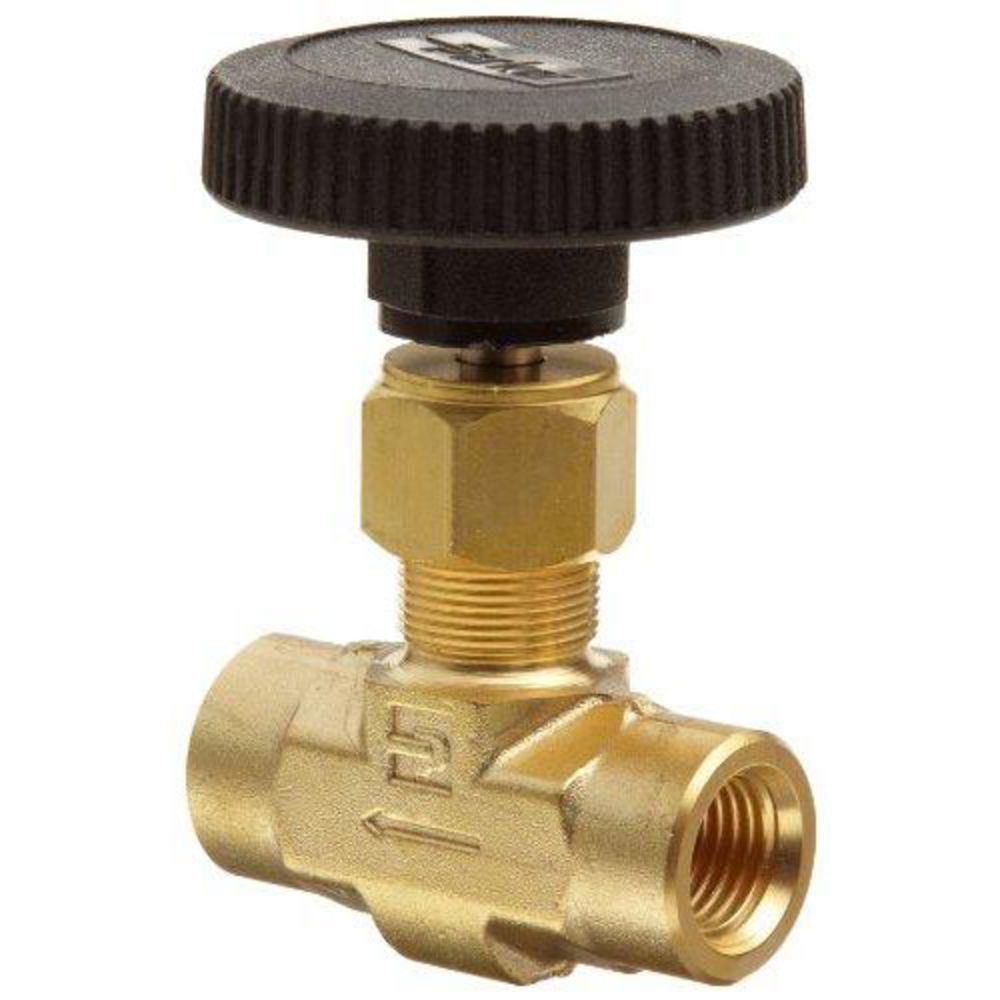

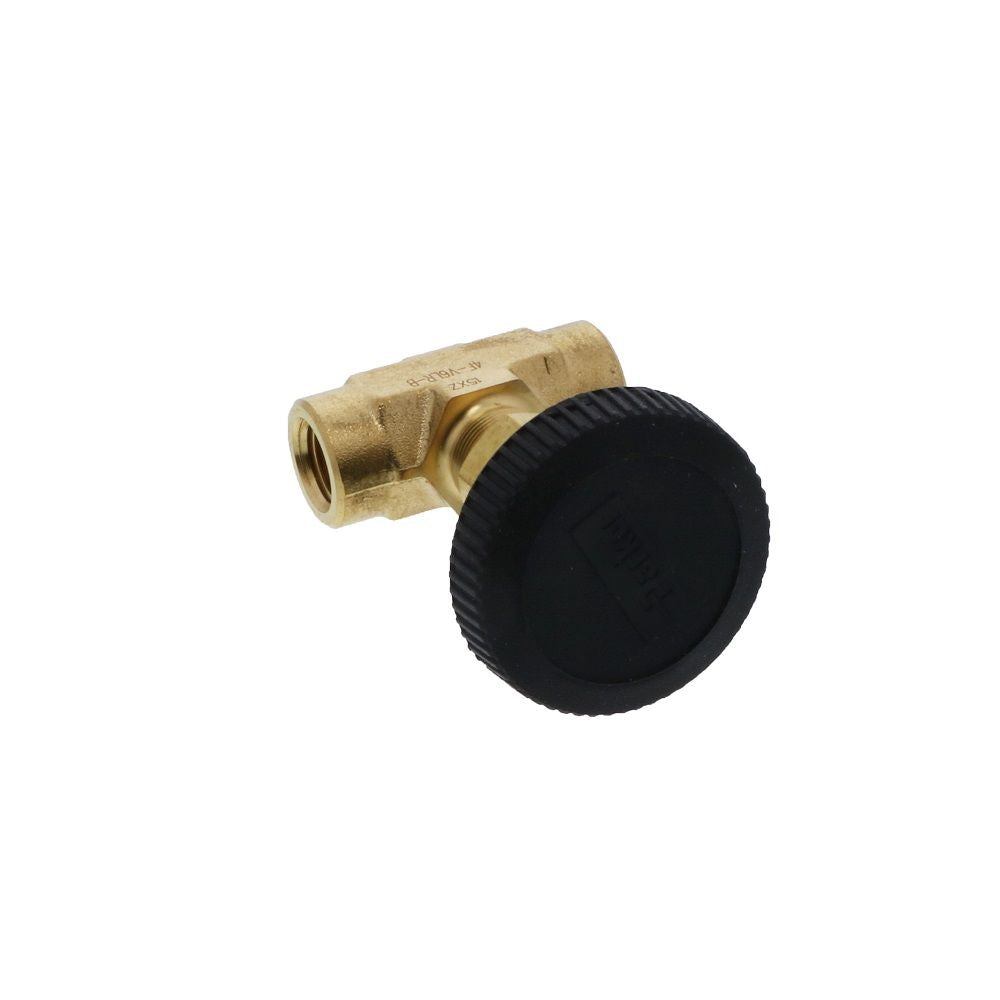

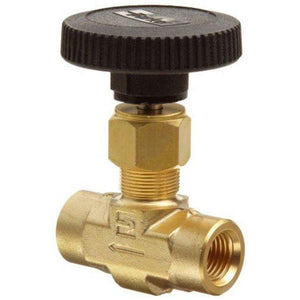

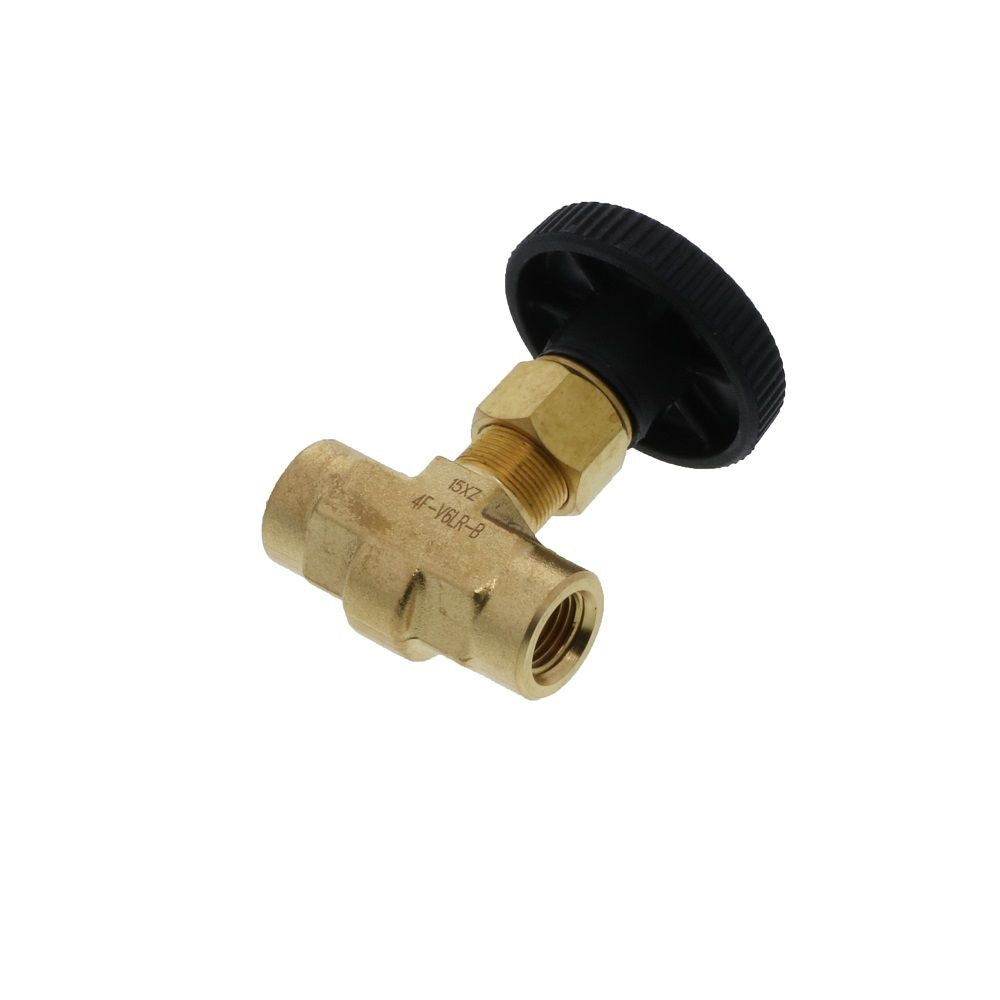

Parker 4F-V6LR-B V6 Series Inline Brass Needle Valve 1/4 FPT Blunt Stem with Hand Wheel

Part Number: 4F-V6LR-B

In Stock

out of stock

In Stock

$45.53


Parker 4F-V6LR-B brass needle valve is designed to allow the user to regulate the flow by raising and lowering the spindle. This inline general purpose needle valve has identical 1/4" FPT connections. The V6 Series by Parker uses a blunt needle that guarantees a leak-free tight seal.
Specifications:
  • Type: Needle Valve
  • Material: Brass
  • Valve Series: V6
  • Fitting Shape: Inline
  • Connections: 1/4" FPT
  • Stem Type: Blunt
  • Seal: PTFE
  • Handle Style: Hand Wheel
  • Handle Material: Nylon
  • Max Flow: 0.73 gpm
  • Max Pressure: 3,000 PSIG
  • Max Temperature: -65° to 450° F
Note: This brass valve is restricted in the USA for use with potable water applications. Please be sure not to use this valve for drinking water, cooking water, or any type of human consumption.


Details

Thread Connection

1/4" | NPT

Body Material

Brass

Color / Finish

Brass

Operating Pressure Range

3,000 PSIG

Operating Temperature Range

-65 to 450 Degrees Fahrenheit, Maximum: 450° F

Origin

USA

Size

1/4"


Parker





Parker 4F-V6LR-B brass needle valve is designed to allow the user to regulate the flow by raising and lowering the spindle. This inline general purpose needle valve has identical 1/4" FPT connections. The V6 Series by Parker uses a blunt needle that guarantees a leak-free tight seal.
Specifications:
  • Type: Needle Valve
  • Material: Brass
  • Valve Series: V6
  • Fitting Shape: Inline
  • Connections: 1/4" FPT
  • Stem Type: Blunt
  • Seal: PTFE
  • Handle Style: Hand Wheel
  • Handle Material: Nylon
  • Max Flow: 0.73 gpm
  • Max Pressure: 3,000 PSIG
  • Max Temperature: -65° to 450° F
Note: This brass valve is restricted in the USA for use with potable water applications. Please be sure not to use this valve for drinking water, cooking water, or any type of human consumption.

Details

Thread Connection

1/4" | NPT

Body Material

Brass

Color / Finish

Brass

Operating Pressure Range

3,000 PSIG

Operating Temperature Range

-65 to 450 Degrees Fahrenheit, Maximum: 450° F

Origin

USA

Size

1/4"

Documentation
