PA-E

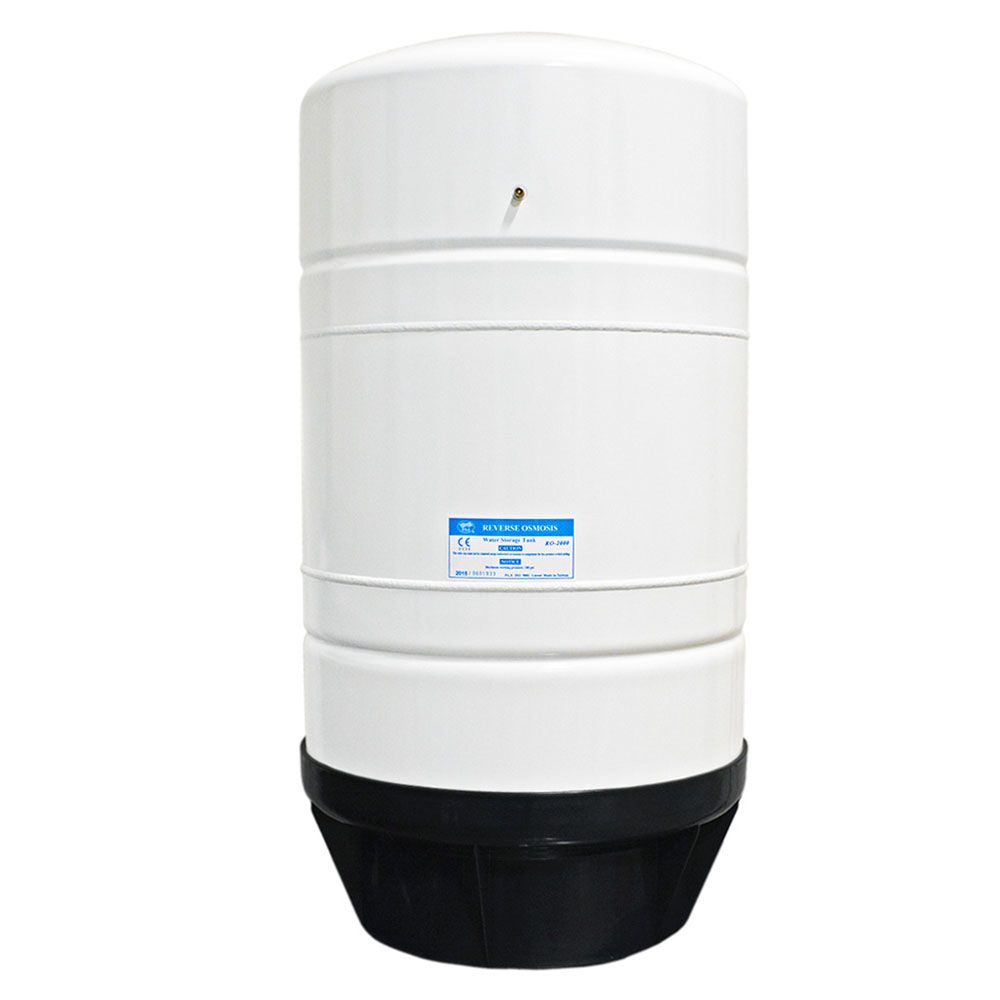

PAE ROT-20-10 Reverse Osmosis Storage Tank Powder Coated Steel 20 Gal

Part Number: ROT-20-10

Alt. Part Number: TKE-2000, RO-20, 144-120, 55984-07

In Stock

out of stock

In Stock

$89.34

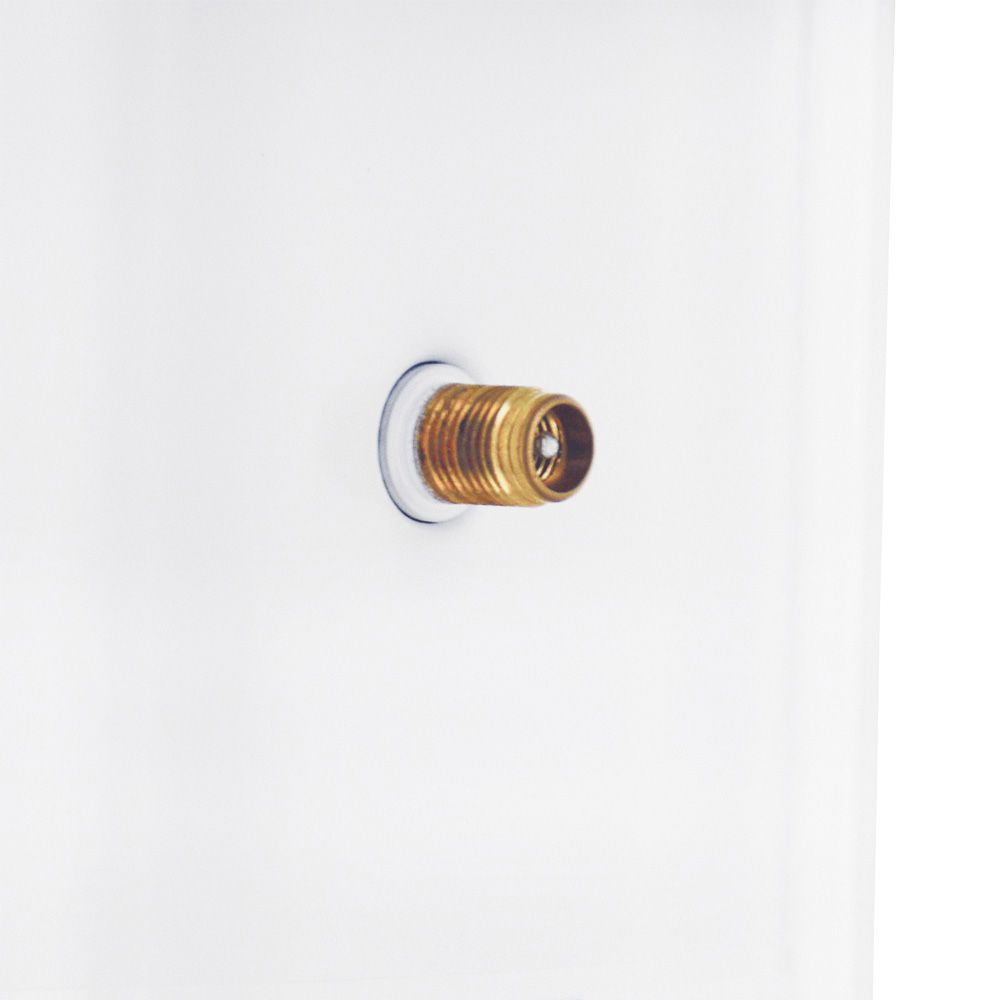

The PAE ROT-20-10 is built with FDA approved materials. The water storage chamber features a virgin polypropylene liner, high-grade chlorobutyl diaphragm and stainless steel 1" BSP water connection. The diaphragm is post-cured to ensure that your water is tasteless, odorless and contaminant free. The tank is built with a sealed brass air valve and o-ring sealed cap to ensure a leak-free air chamber.

Features:
  • Certification. The PAE RO-2000 is CE approved and certified to meet NSF standard 58. NSF standard 58 was specifically established to provide the minimum requirements for point-of-use (POU) reverse osmosis systems for public or private drinking water.
  • Construction. The PAE RO-2000 is coated steel water storage tank that features a two part epoxy primer and a polyurethane paint finish. This tank uses stainless steel water connections, a high-grade chlorobutyl diaphragm, and a virgin polypropylene liner.
  • Clean and Safe Water. The PAE RO-2000 diaphragm is post-cured to ensure that your water is tasteless, odorless and contaminant free.




Weight & Dimensions

Height W/ Stand

31.6"

Pallet Dimensions

48x40x84

Pallet Quantity

15

Pallet Weight

521 lbs

Height (inches)

32.88

Length (inches)

15.88

Weight (lbs)

32

Width (inches)

15.75

Details

Air Valve Stem Location

Side

Capacity

11 Gallons @ 40 psi

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Connection

1" BSP

Material Of Construction

Stainless Steel

Max Pressure (Psi)

100

Size

1"

Tank Pre-Charge

7 PSI

Volume

20 Gallons

Connection Type

BSP

Diameter

15-1/2"

Origin

Taiwan

Warranty & Certifications

Certifications

NSF Certified to Standard 58

Warranty

1 Year
