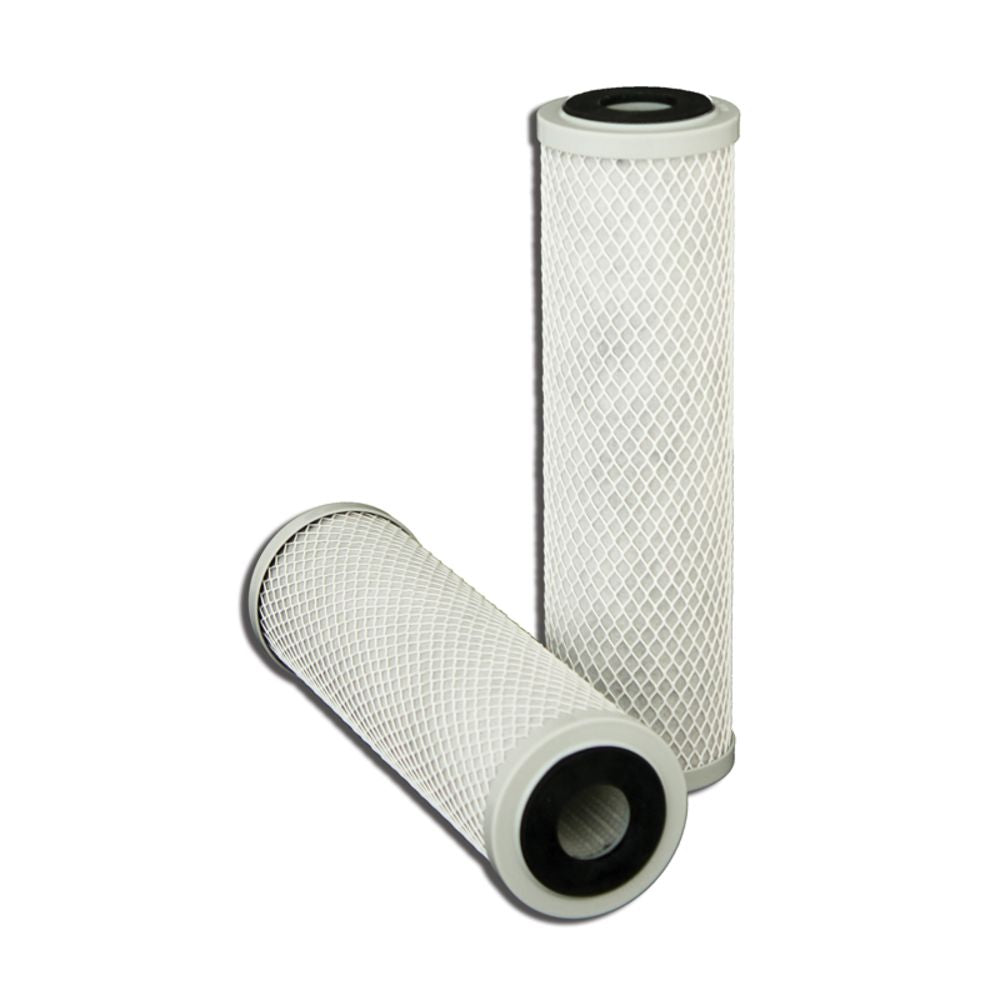

This Optipure 252-20110 CTO-10 Drop-In Cartridge 10" reduces sediment down to 0.5-microns and reduces chlorine, taste & odor at a flow rate of 1.5 gpm for 15,000-gallons.

Features:

• Improves the quality and consistency of cold and hot beverages.
• Reduces maintenance frequency and cost, and extends equipment life.
• Gradient-density depth filtration reduces dirt, rust, and other debris as small as 0.5-microns to assure clean, clear water and protect solenoids, valves and other fittings against wear and plugging.
• Activated carbon filtration makes water taste great and protects equipment against corrosive chlorine.
• High capacity cartridge extends filter system life reducing maintenance frequency.
• Generates less waste, only the drop-in cartridge is replaced. No discarding of metal or plastic quick change filters.
• Replacement cartridge cost per gallon is much less than proprietary quick-change filters.
• NSF Certified under Standard 42 as replacement cartridge in OptiPure FX series systems.

Specifications:

• Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
• Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
• Chlorine, Taste and Odor Reduction Capacity: 15,000 gals. (56,775 L)
• Service Flow Rate: 1.5 gpm (5.7 lpm)
• Sediment Reduction: 0.5 microns (nominal)

Installation Tips:

• Ensure cartridge is designed to replace the existing cartridge.
• Do not exceed cartridge specifications for temperature and pressure.
• Allow 3” clearance below system for filter cartridge removal and replacement.
• No activation procedure or flushing is required for cartridge to perform as specified.
• Feed-water connection to system should be COLD only.

NOTE: Drop-in style cartridge for OptiPure FX Systems. Can be used as a retrofit cartridge with most standard 10” drop-in style housings.
