Home / Water Filtration Systems / Food & Beverage Filtration Systems / Fountain Beverage Systems / Optipure 160-50010 FX-11 Single 10" System
Everpure Commercial

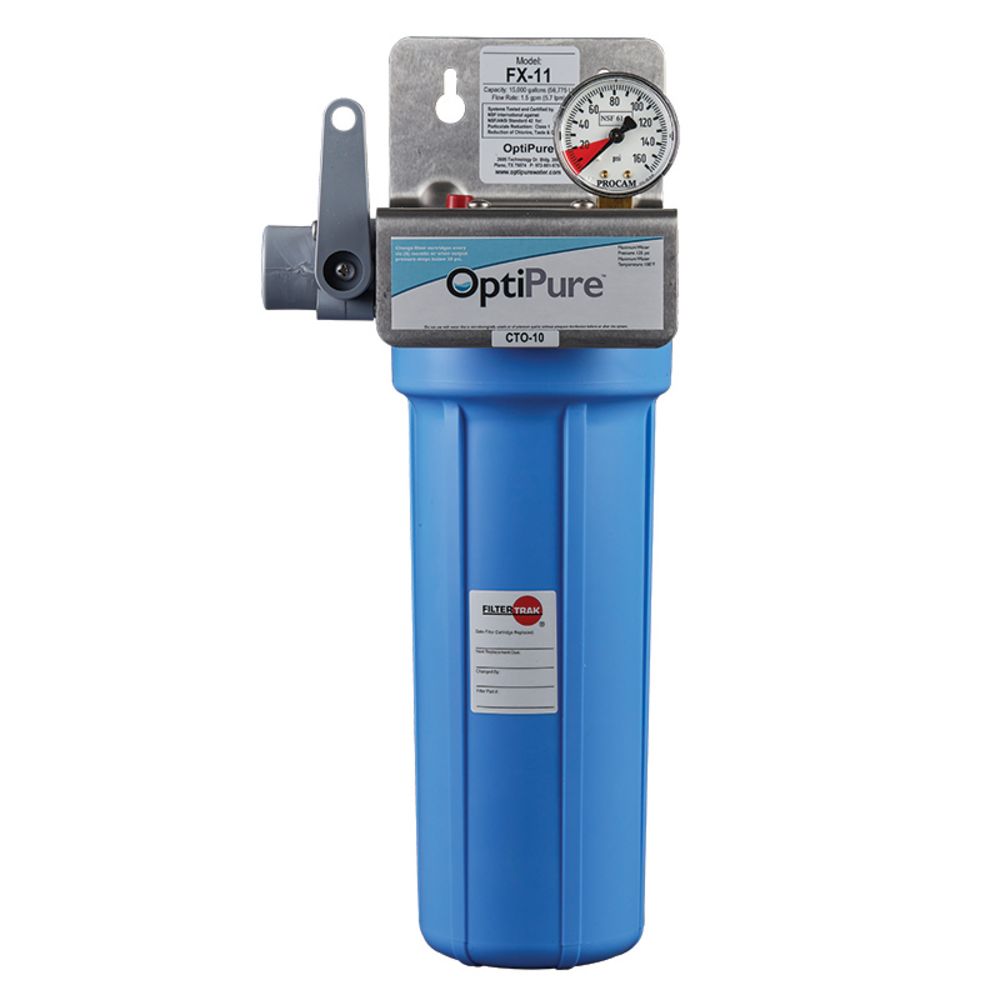

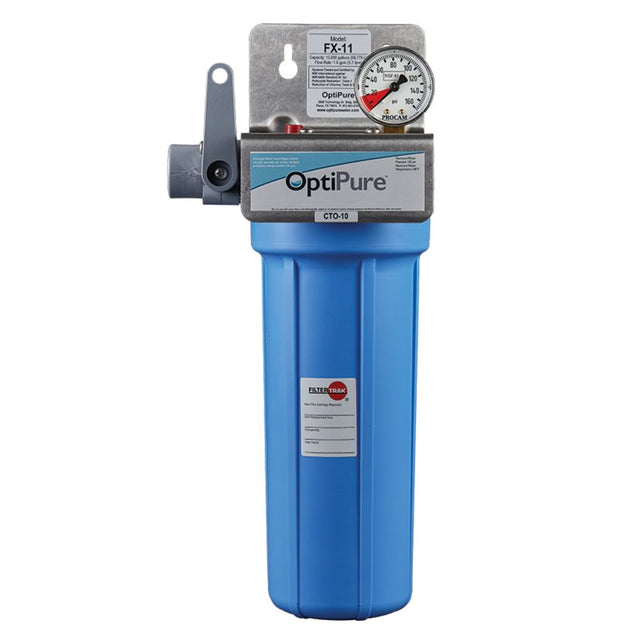

Optipure 160-50010 FX-11 Single 10" System

Part Number: 160-50010
Main Product Image
Product image 1
similar items
This Optipure 160-50010 FX-11 Single 10" System is a single-housing water treatment system with a drop-in 10” cartridge that reduces sediment down to 0.5-microns and reduces chlorine, taste & odor at a flow rate of 1.5 gpm for 15,000-gallons.

Features:
  • Improves quality and consistency of cold and hot beverages.
  • Reduces maintenance frequency and cost, and extends equipment life.
  • Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns.
  • High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.
  • Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
  • Built-in pressure gauge allows visual monitoring of when filters need to be changed.
  • Inlet shut-off and depressurization valves make filter replacement quick and simple.
  • Minimizes waste by only replacing drop-in cartridge and reusing filter sump.
  • NSF Certified under Standard 42.


Specifications:
  • Connection: Inlet & Outlet 1/2” FNPT
  • Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
  • Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
  • Service Flow Rate: 1.5 gpm (5.7 lpm)
  • Sediment Reduction: 0.5 microns (nominal)

      Installation Tips:
      • Feed-water connection to system should be COLD only.
      • Do not exceed system specifications for temperature and pressure.
      • Allow 3” clearance below system for filter housing removal and cartridge replacement.
      • Detailed installation, operation and maintenance manual included with each system.
      • No activation procedure or flushing required for system to perform as specified.
