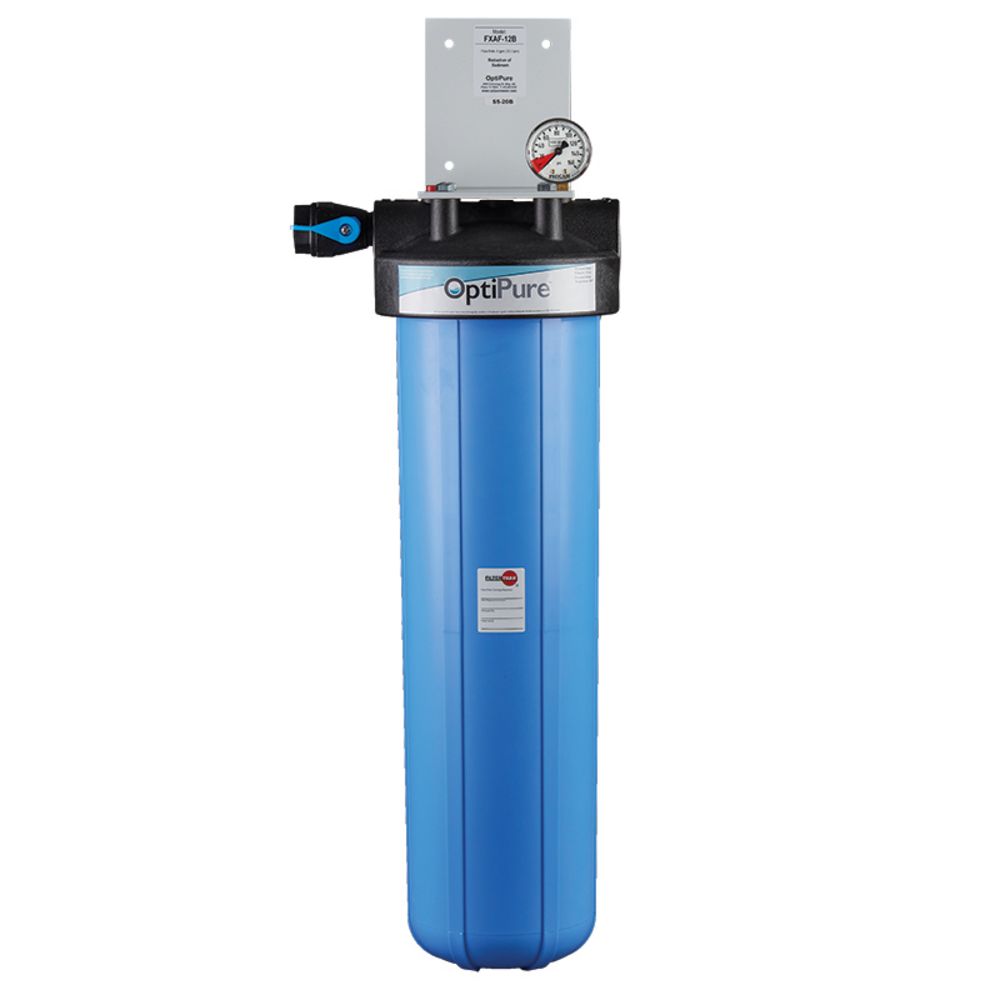

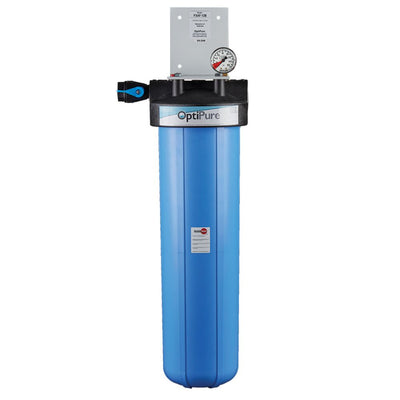

Optipure 160-50340 FXAF-12B Single 20" System
Part Number: 160-50340
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Gradient-density sediment filtration protects against dirt, rust and other debris down to 5-microns.
- Protects down-line filtration systems against premature plugging, reducing filter change frequency and associated cost.
- Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
- Built-in pressure gauge allows visual monitoring of when filters need to be changed.
- Inlet shut-off and depressurization valves make filter replacement quick and simple.
- Minimizes waste by only replacing drop-in cartridge and reusing filter sump.
Specifications:
- Connection: Inlet & Outlet 3/4” FNPT
- Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
- Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
- Service Flow Rate: 8.0 gpm (30.3 lpm)
- Sediment Reduction: 0.5 microns (nominal)
Installation Tips:
- Feed-water connection to system should be COLD only.
- Do not exceed system specifications for temperature and pressure.
- Allow 3” clearance below system for filter housing removal and cartridge replacement.
- Detailed installation, operation and maintenance manual included with each system.
- No activation procedure or flushing required for system to perform as specified.
Product Details | |
---|---|
Inlet Connection | 3/4" FNPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 0.5 |
Min Pressure (Psi) | 10 |
Min Temp (°F) | 35 |
Outlet Connection | 3/4" FNPT |
Flow Rate | 8.0 GPM |
Product Weight & Dimensions | |
Product Height | 5.1 |
Product Length | 24.5 |
Product Width | 9.8 |
Product Weight (lbs) | 18 |
Features:
- Gradient-density sediment filtration protects against dirt, rust and other debris down to 5-microns.
- Protects down-line filtration systems against premature plugging, reducing filter change frequency and associated cost.
- Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
- Built-in pressure gauge allows visual monitoring of when filters need to be changed.
- Inlet shut-off and depressurization valves make filter replacement quick and simple.
- Minimizes waste by only replacing drop-in cartridge and reusing filter sump.
Specifications:
- Connection: Inlet & Outlet 3/4” FNPT
- Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
- Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
- Service Flow Rate: 8.0 gpm (30.3 lpm)
- Sediment Reduction: 0.5 microns (nominal)
Installation Tips:
- Feed-water connection to system should be COLD only.
- Do not exceed system specifications for temperature and pressure.
- Allow 3” clearance below system for filter housing removal and cartridge replacement.
- Detailed installation, operation and maintenance manual included with each system.
- No activation procedure or flushing required for system to perform as specified.
Product Details | |
---|---|
Inlet Connection | 3/4" FNPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 0.5 |
Min Pressure (Psi) | 10 |
Min Temp (°F) | 35 |
Outlet Connection | 3/4" FNPT |
Flow Rate | 8.0 GPM |
Product Weight & Dimensions | |
Product Height | 5.1 |
Product Length | 24.5 |
Product Width | 9.8 |
Product Weight (lbs) | 18 |
