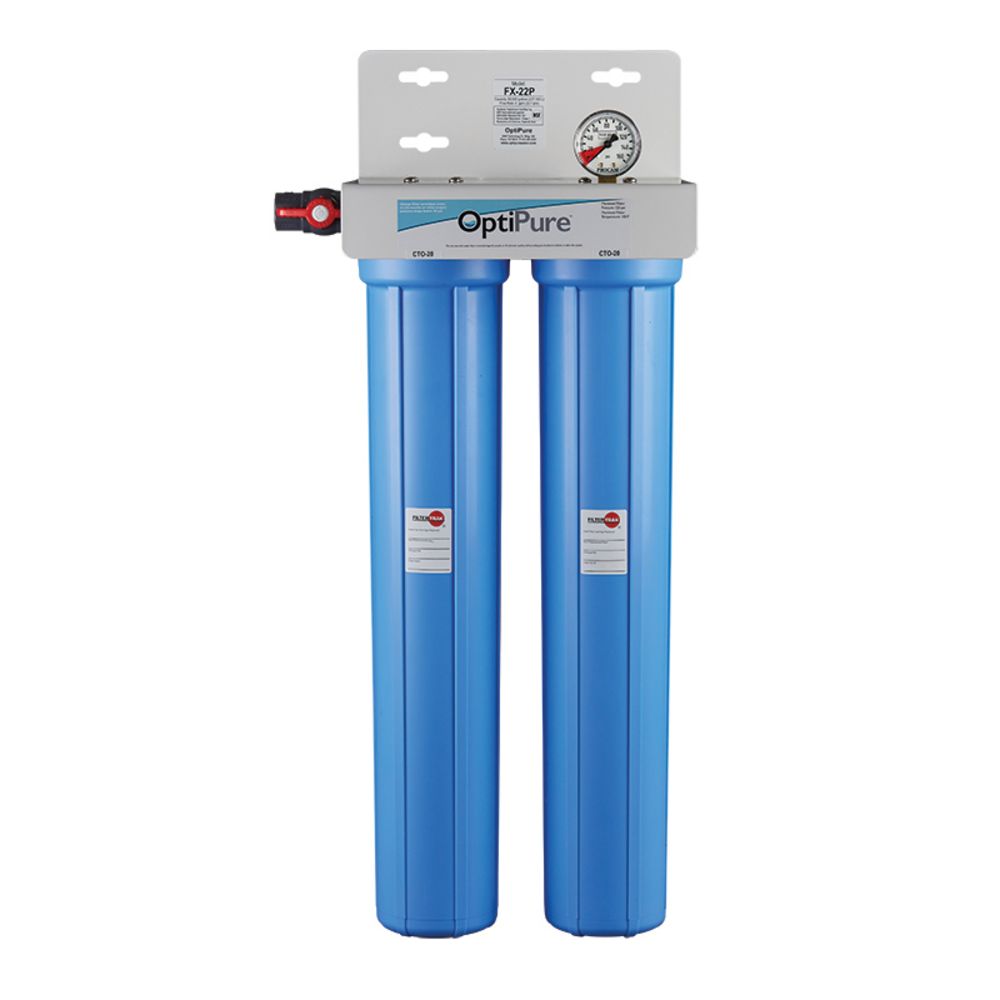

Optipure 160-50030 FX-22P Dual 20" System
This Optipure 160-50030 FX-22P Dual 20" System is a dual-housing water treatment system with drop-in 20” cartridges that reduces sediment down to 0.5-microns and reduces chlorine, taste & odor at a flow rate of 6.0 gpm for 60,000-gallons.
Features:
Specifications:
Installation Tips:
Features:
- Improves quality and consistency of cold and hot beverages.
- Reduces maintenance frequency and cost, and extends equipment life.
- Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns.
- High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.
- Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
- Built-in pressure gauge allows visual monitoring of when filters need to be changed.
- Inlet shut-off and depressurization valves make filter replacement quick and simple.
- Minimizes waste by only replacing drop-in cartridge and reusing filter sump.
- NSF Certified under Standard 42.
Specifications:
- Connection: Inlet & Outlet 1/2” FNPT
- Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
- Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
- Service Flow Rate: 6.0 gpm (22.7 lpm)
- Sediment Reduction: 0.5 microns (nominal)
Installation Tips:
- Feed-water connection to system should be COLD only.
- Do not exceed system specifications for temperature and pressure.
- Allow 3” clearance below system for filter housing removal and cartridge replacement.
- Detailed installation, operation and maintenance manual included with each system.
- No activation procedure or flushing required for system to perform as specified.
California residents Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause
cancer and birth defects or other reproductive harm.
www.p65warnings.ca.gov
