Oasis

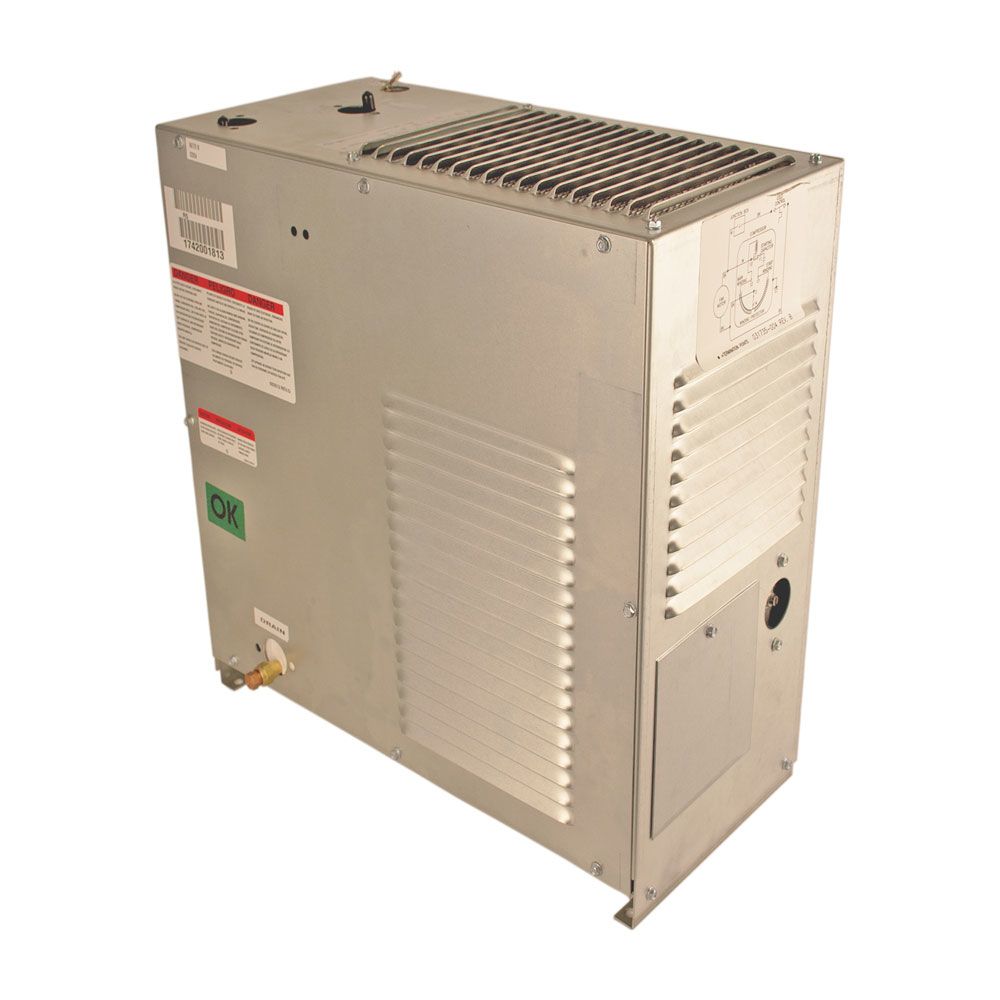

Oasis R5 Remote Water Chiller 5 GPH

Part Number: R5

Alt. Part Number: 502990, EV9318-40

In Stock

out of stock

In Stock

$525.15


The Oasis Remote Water Chiller Models R5 (formerly RLF5) delivers 5.0 gallons of Chilled Water per hour, respectively. Easy to install, and may be used to serve multiple drinking fountains.  Prior to roughing-in, consult local, state and federal codes for proper mounting height.

Comparable to the Elkay ER5, the R5 Remote Cooler replaces the discontinued R3 (formerly RLF3) remote chiller (07/01/07).

Specifications:
  • Waterways are Lead-Free in Materials and Construction
  • High-Efficiency Stainless Steel Cooling Tank
  • Made of Heavy-Gauge Steel
  • Refrigerant R-134a
  • 250 Rated Watts & 3.6 Amps
  • Optional Accessories (additional cost):  Shelf Support # 026929 for Remoter Coolers R3/R5/R8/R12
  • 5 Year Limited Warranty

Disclaimer: Elkay® is a registered trademark of Elkay, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc acknowledges and confirms that it has not been granted any license or authority from Elkay, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Elkay, Inc and Fresh Water Systems, Inc. of any nature whatsoever.


Weight & Dimensions

Approx Height (Inches)

16.25 Inches

Approx Width (Inches)

9 Inches

Approx Depth

16.5 Inches

Details

Refrigerant Type

R-134a

Application

Remote Chiller

Capacity

5 Gallons per Hour Gallons

Liquid Temperature

50 Degrees Fahrenheit

Material Of Construction

Modular Steel

Warranty & Certifications

Certifications

NSF Standard 61/Section 9

Warranty

5 Year Limited Warranty


Oasis





The Oasis Remote Water Chiller Models R5 (formerly RLF5) delivers 5.0 gallons of Chilled Water per hour, respectively. Easy to install, and may be used to serve multiple drinking fountains.  Prior to roughing-in, consult local, state and federal codes for proper mounting height.

Comparable to the Elkay ER5, the R5 Remote Cooler replaces the discontinued R3 (formerly RLF3) remote chiller (07/01/07).

Specifications:
  • Waterways are Lead-Free in Materials and Construction
  • High-Efficiency Stainless Steel Cooling Tank
  • Made of Heavy-Gauge Steel
  • Refrigerant R-134a
  • 250 Rated Watts & 3.6 Amps
  • Optional Accessories (additional cost):  Shelf Support # 026929 for Remoter Coolers R3/R5/R8/R12
  • 5 Year Limited Warranty

Disclaimer: Elkay® is a registered trademark of Elkay, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc acknowledges and confirms that it has not been granted any license or authority from Elkay, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Elkay, Inc and Fresh Water Systems, Inc. of any nature whatsoever.

Weight & Dimensions

Approx Height (Inches)

16.25 Inches

Approx Width (Inches)

9 Inches

Approx Depth

16.5 Inches

Details

Refrigerant Type

R-134a

Application

Remote Chiller

Capacity

5 Gallons per Hour Gallons

Liquid Temperature

50 Degrees Fahrenheit

Material Of Construction

Modular Steel

Warranty & Certifications

Certifications

NSF Standard 61/Section 9

Warranty

5 Year Limited Warranty
