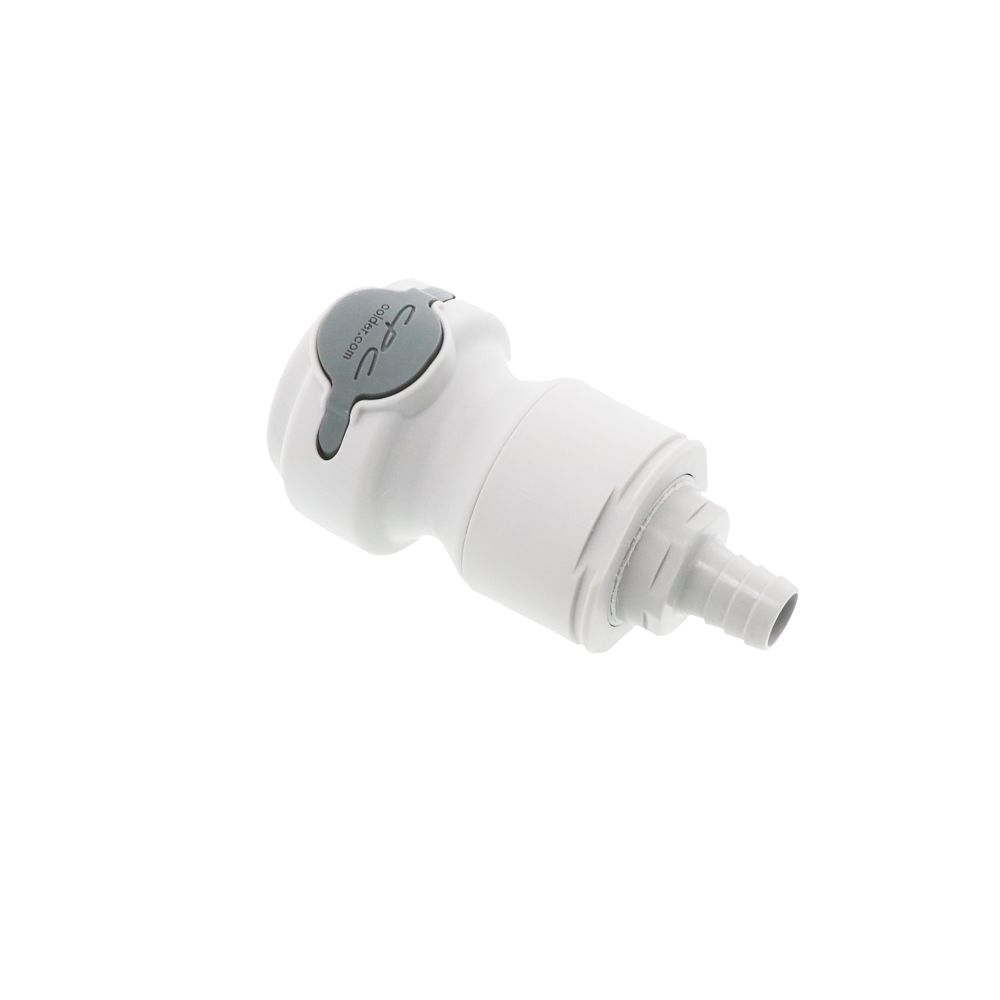

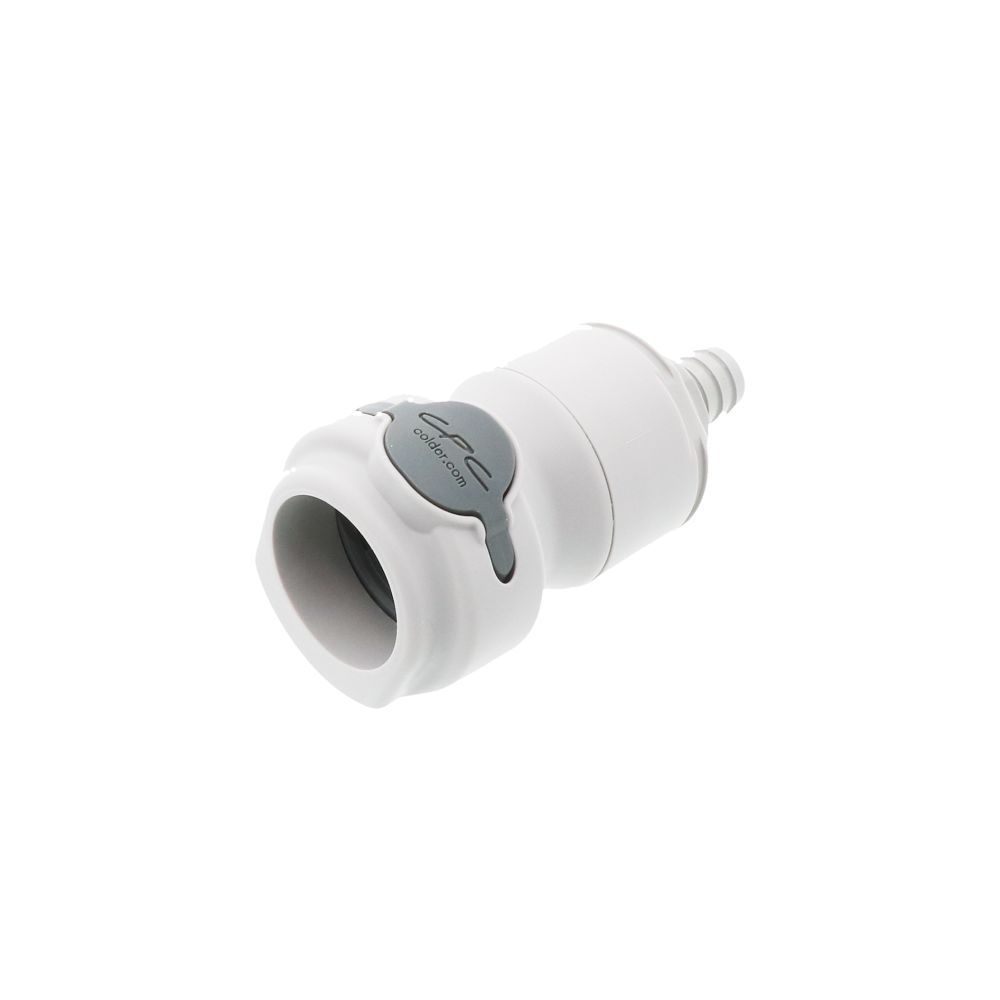

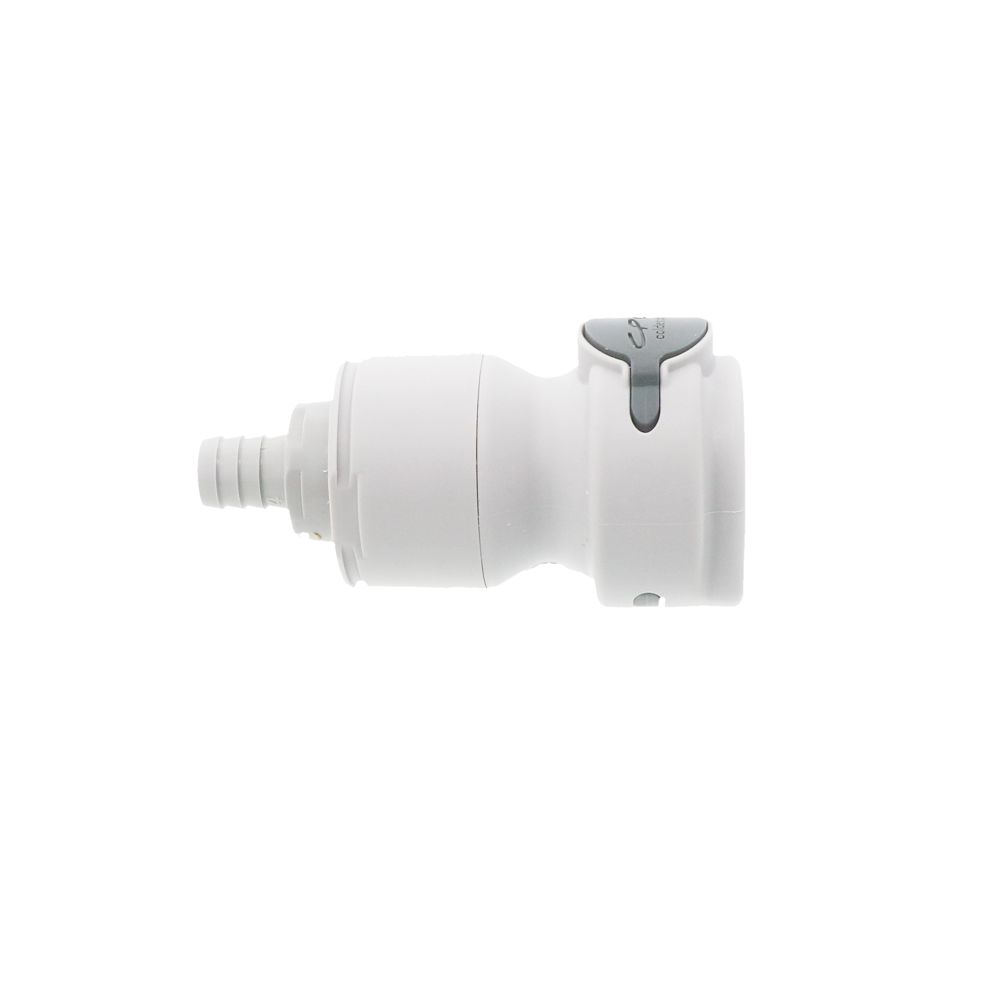

NSHD17008 Valved In-Line Hose Barb Coupling Body 1/2 ID

The NSH Series Couplings are constructed out of polypropylene and come with a non-spill design to protect users from chemicals and fumes. These couplings are economically priced, general purpose versions of the Colder ChemQuik CQG06 couplings. NSH Series couplings are resistant to a broad range of chemicals, provide a high flow capacity, and allow for a instant disconnections and reconnections, even under pressure.

Specifications:

Material: Polypropylene
Material Finish: Molded Gray
Color: Gray with dark gray accent
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Thread
Valve Option: Valved
Valve Spring: 360 Stainless Steel
Temperature Range: 32ºF to 120ºF
Seal Options: EPDM

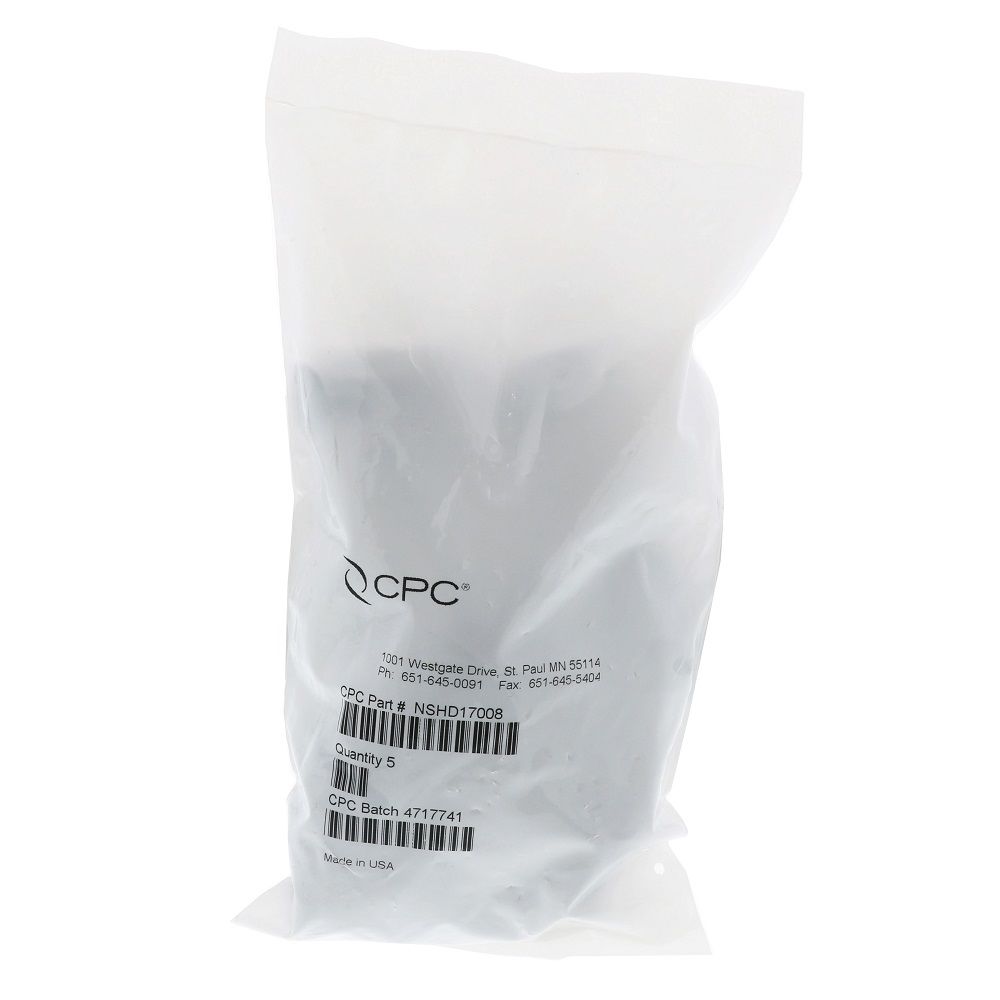

Available in Bags of 5 units

NOTE: This specialty item from Colder has a minimum quantity order of 25 fittings.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/2" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	120
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	NSH
Shape	Straight
Spring	360 Stainless Steel
Thumb Latch	Glass-filled polypropylene
Valve Type	Valved
Color / Finish	Gray
Type	Coupling
Shipping Dimensions
Shipping Length	3.125 in.
Shipping Width	1.375 in.
Shipping Height	1.375 in.
Product Weight & Dimensions
Product Weight (lbs)	0.074

Product Details
Application	Water
Barb Size	1/2" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	120
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	NSH
Shape	Straight
Spring	360 Stainless Steel
Thumb Latch	Glass-filled polypropylene
Valve Type	Valved
Color / Finish	Gray
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	1.5

Product Details
Application	Water
Barb Size	1/2" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	120
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	NSH
Shape	Straight
Spring	360 Stainless Steel
Thumb Latch	Glass-filled polypropylene
Valve Type	Valved
Color / Finish	Gray
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15
