Colder Products

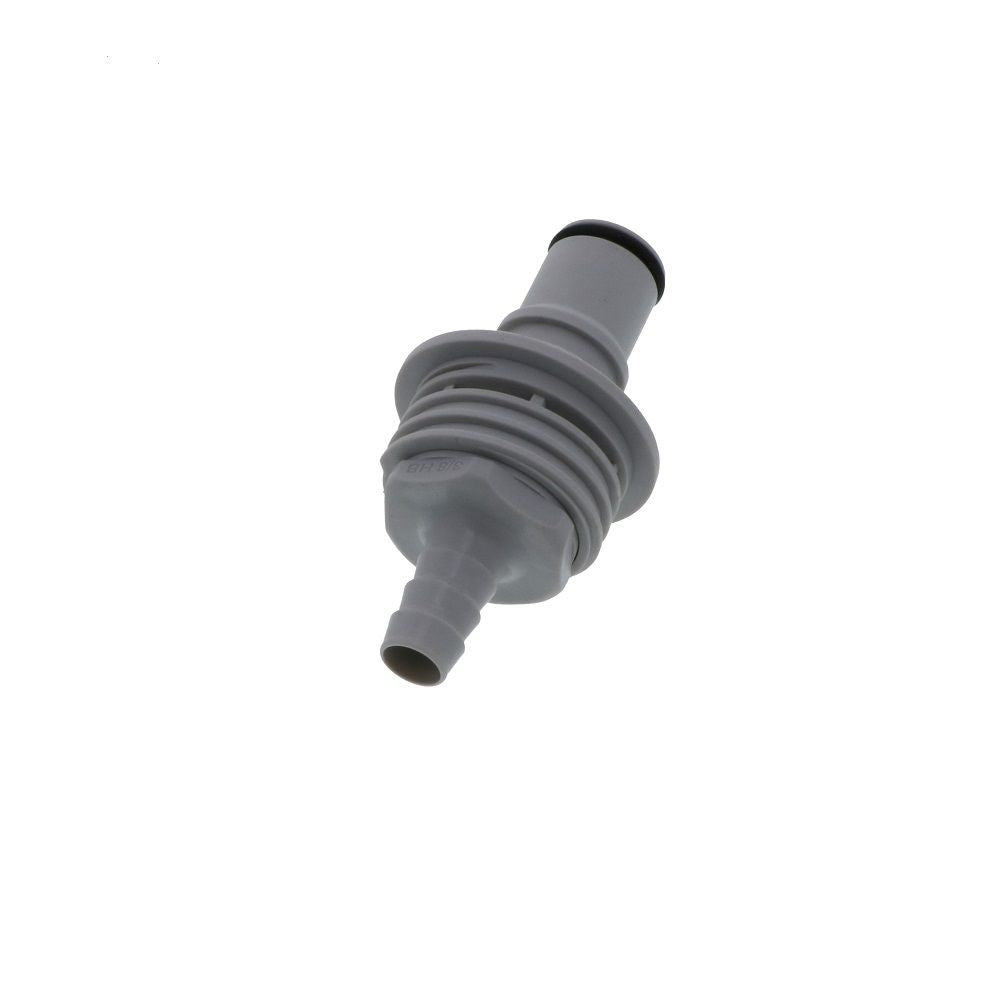

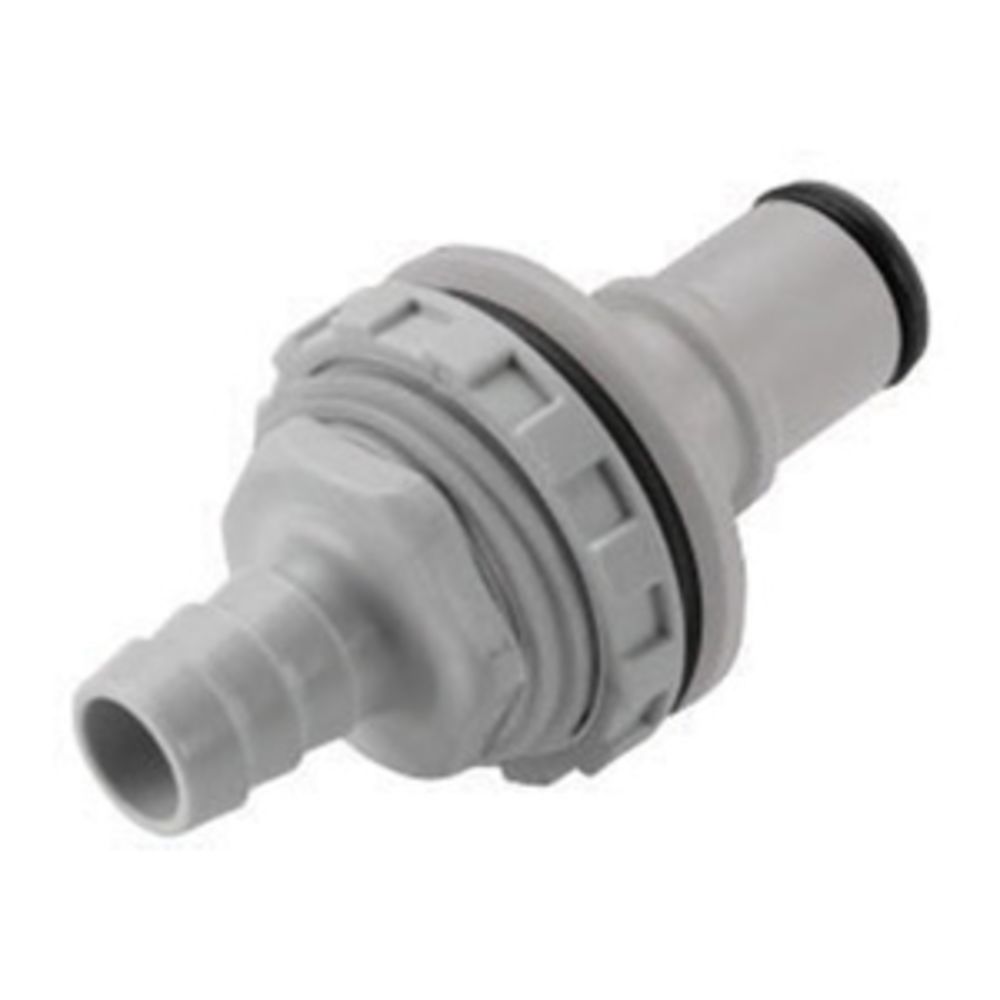

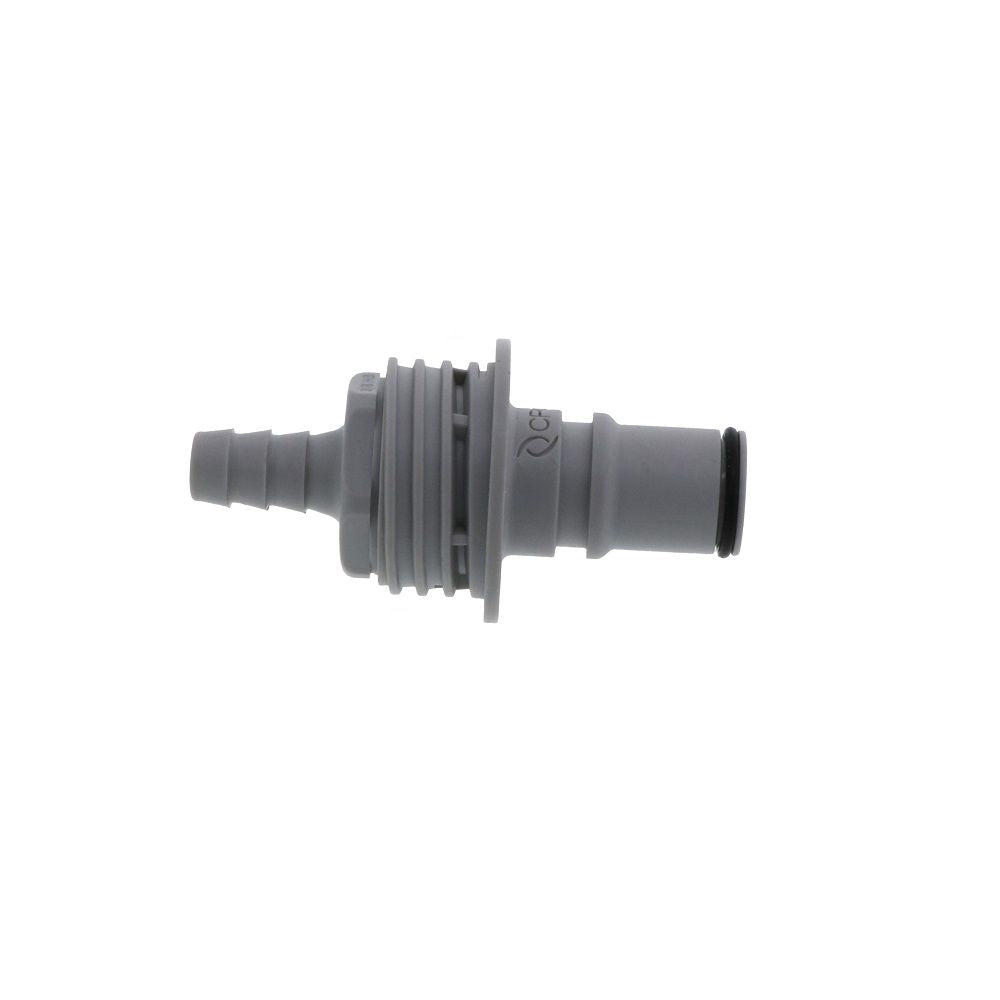

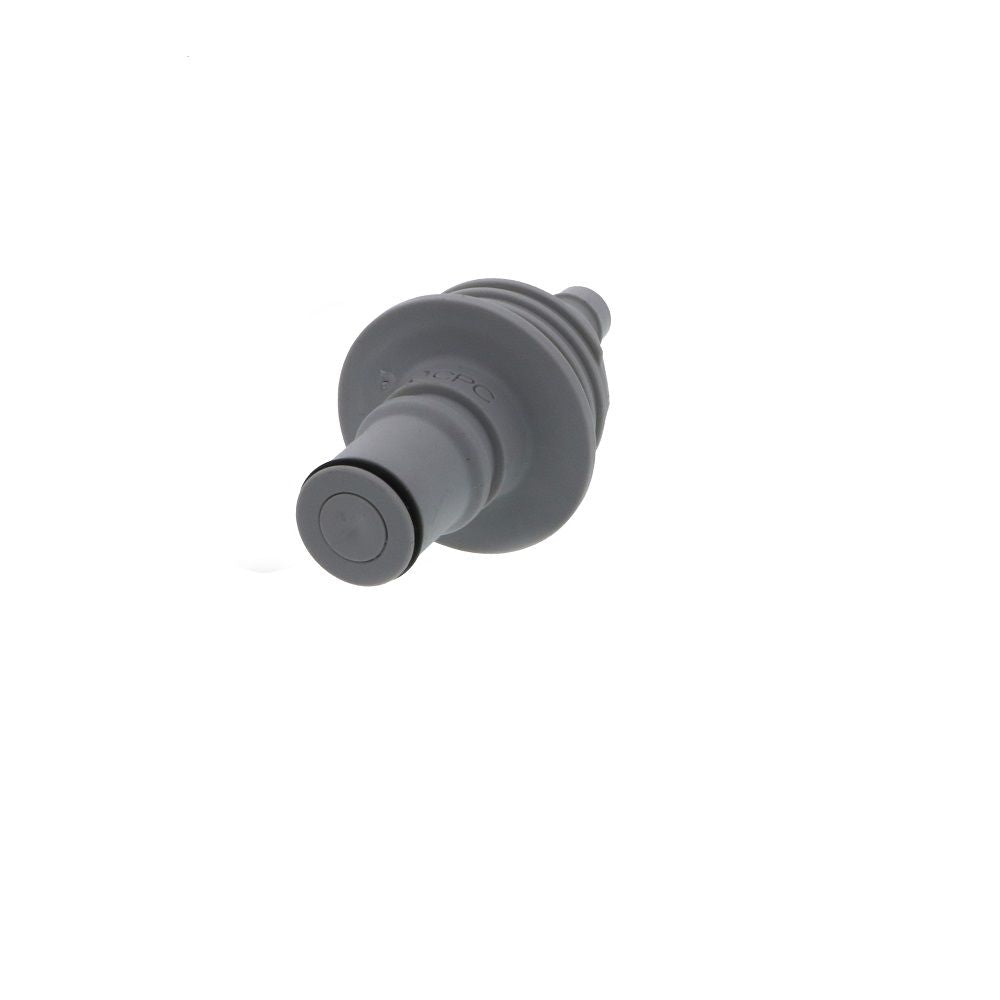

NS6D42006 Valved Panel Mount Hose Barb Coupling Insert 3/8 ID Barb

Part Number: NS6D42006

In Stock

out of stock

In Stock

$16.75


NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.

 Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units


Details

Series

NS6

Barb Size

3/8" ID

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Molded Grey

Max Operating Pressure

120 PSI

Mounting Options

Panel Mount

O Rings

EPDM

Operating Temperature Range

32-160 °F

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 Stainless Steel

Thumb Latch

Glass-filled polypropylene

Warranty & Certifications

Certifications

NSF 61


NS6D42006





NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.

 Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units

Details

Series

NS6

Barb Size

3/8" ID

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Molded Grey

Max Operating Pressure

120 PSI

Mounting Options

Panel Mount

O Rings

EPDM

Operating Temperature Range

32-160 °F

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 Stainless Steel

Thumb Latch

Glass-filled polypropylene

Warranty & Certifications

Certifications

NSF 61
