Colder Products

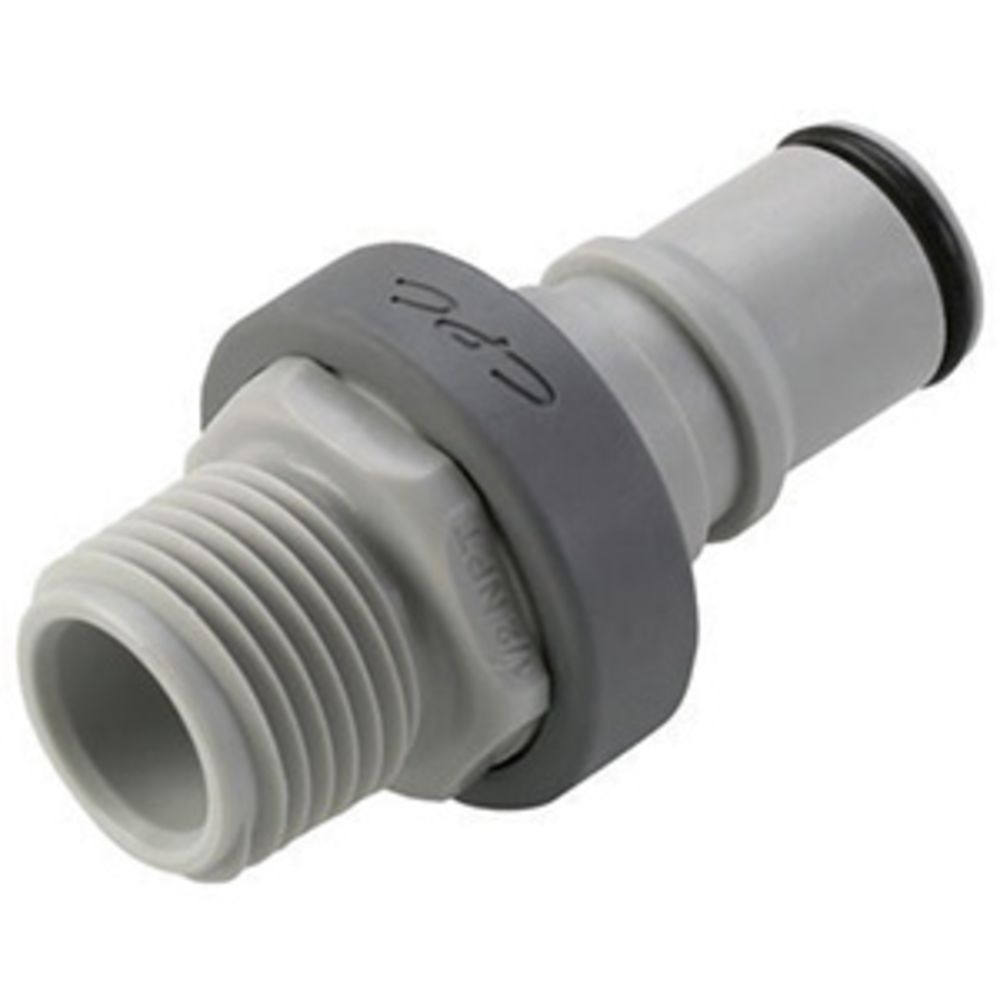

NS6D24008BSPT Valved Male Thread Coupling Insert 1/2 BSPT

Part Number: NS6D24008BSPT

In Stock

out of stock

In Stock

$12.56

NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.

 Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units




Weight & Dimensions

Weight (lbs)

0.05

Details

Series

NS6

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Glass-Filled Polypropylene

Color / Finish

Gray

Mounting Options

Thread

Seal Material

EPDM

Size

1/2"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 Stainless Steel

Thumb Latch

Glass-filled polypropylene

Inlet/Outlet Connection

1/2" BSP


NS6D24008BSPT




NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.

 Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units



Weight & Dimensions

Weight (lbs)

0.05

Details

Series

NS6

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Glass-Filled Polypropylene

Color / Finish

Gray

Mounting Options

Thread

Seal Material

EPDM

Size

1/2"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 Stainless Steel

Thumb Latch

Glass-filled polypropylene

Inlet/Outlet Connection

1/2" BSP

Documentation
NS6D24008BSPT
