Colder Products

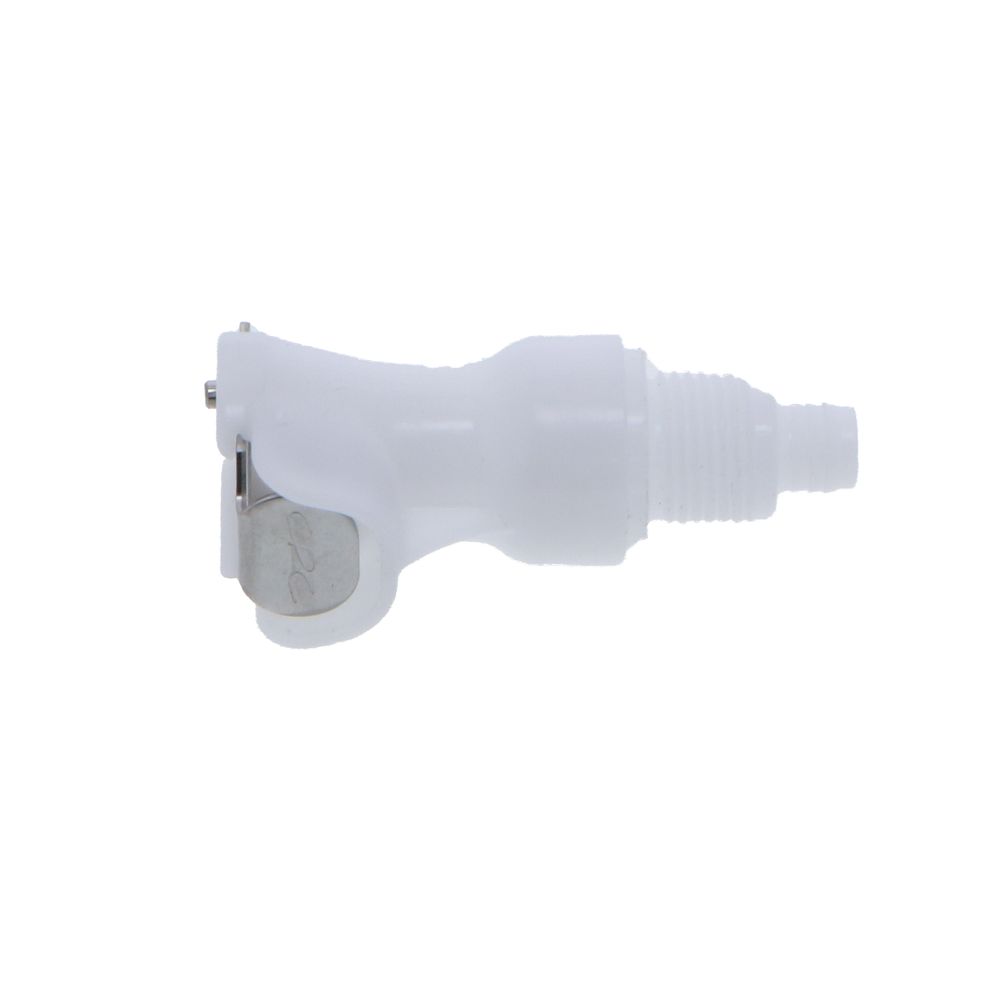

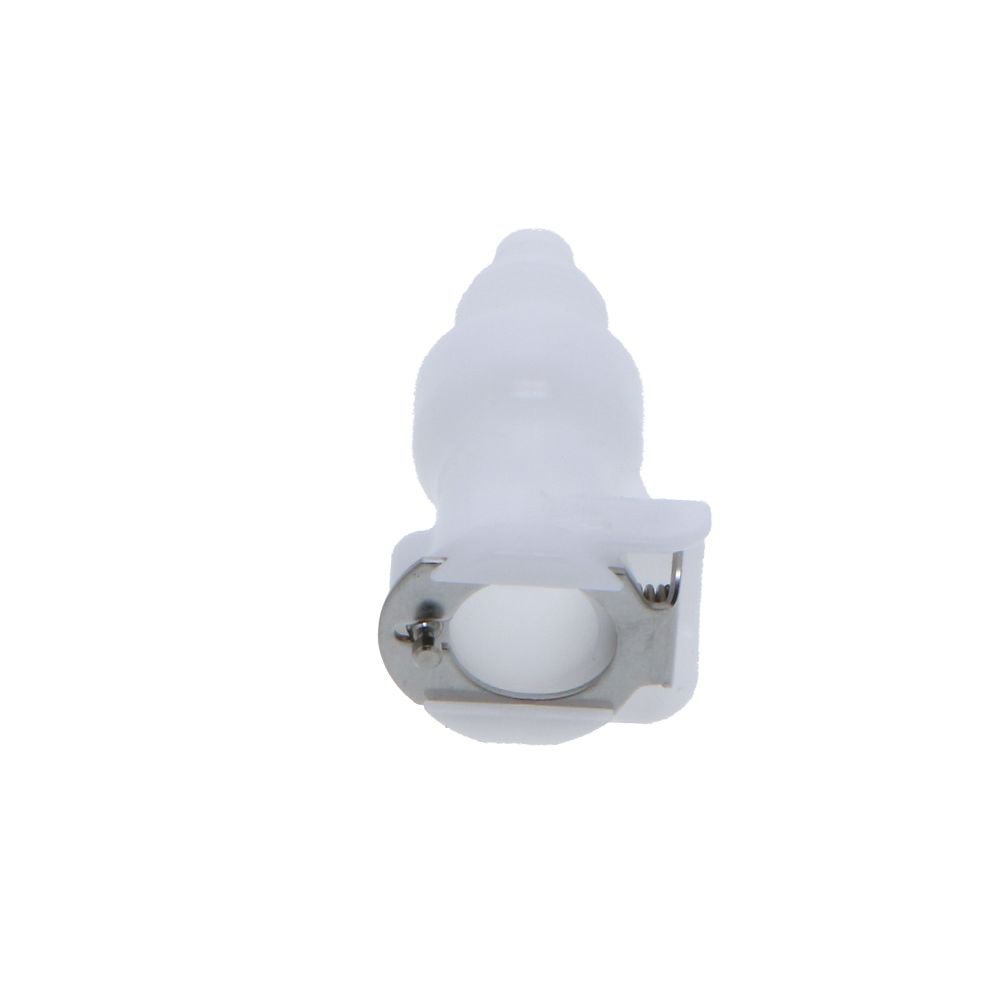

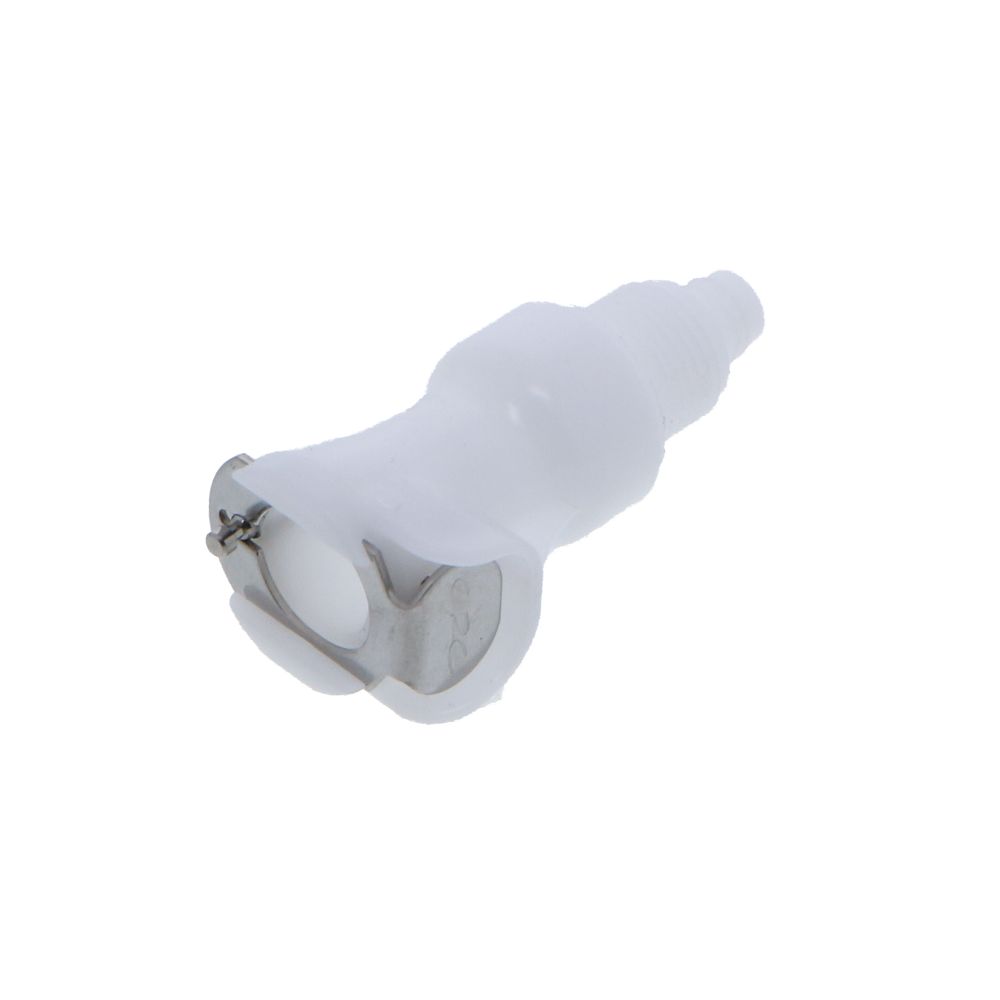

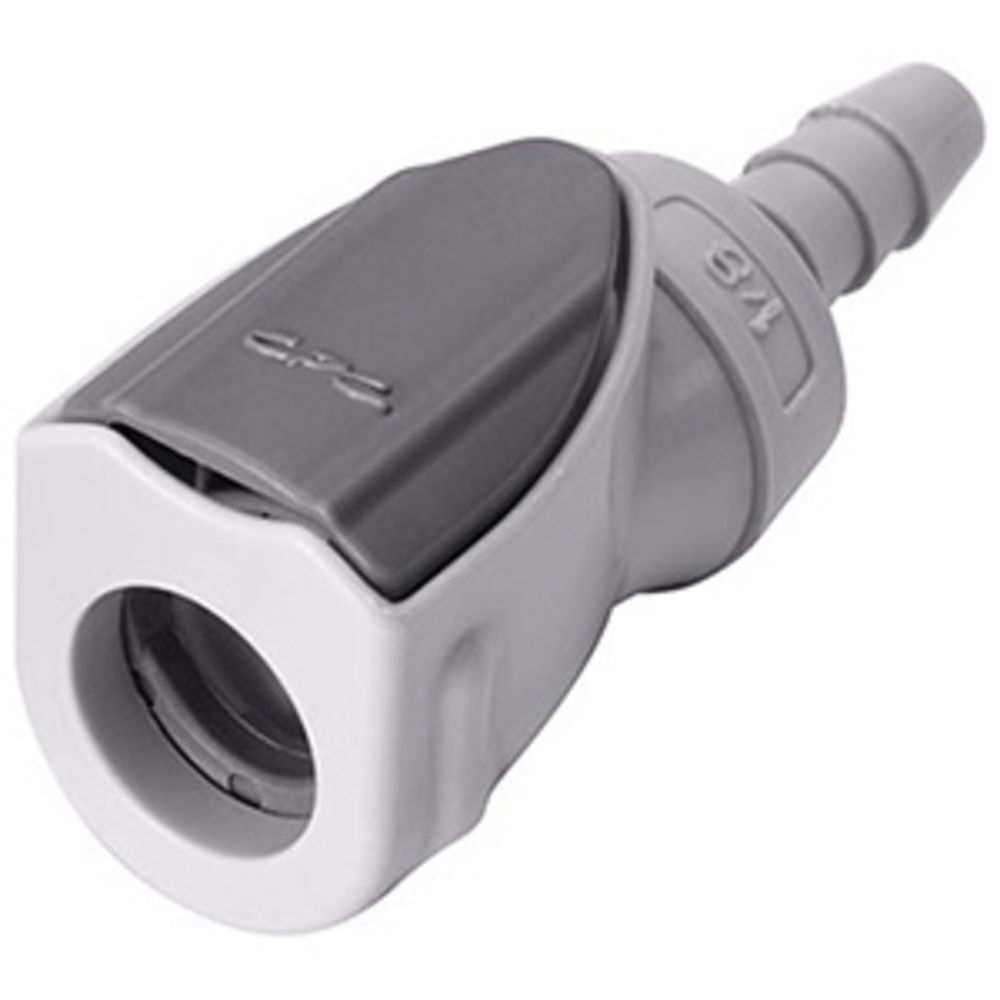

NS1D170212 Valved In-Line Hose Barb Coupling Body 1/8 ID Barb

Part Number: NS1D170212

In Stock

out of stock

In Stock

$15.10

NS Series couplings are the smallest plastic non-spill couplings on the market. This compact, closed-system design is packed full of features which includes non-spill shutoff valves that ensure drip-free disconnects, and eliminate the need to purge air from the system. NS1 is perfect for applications using tubing from microbore up to 1/8-inch. Its rotating design allows tubing to move freely without kinks making it ideal for applications that need to be connected and disconnected often.

Specifications:
  • Main Components and valves: Glass-Filled Polypropylene, PEEK®, Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 15 psi, 1.0 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: <0.02 cc per disconnect, 0.01cc per connect
  • Available in Bags of 25 units




Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.5

Weight (lbs)

0.0625

Width (inches)

0.5

Details

Application

Glass-Filled Polypropylene

Barb Size

1/8" ID

Body Material

Glass-Filled Polypropylene

Max Pressure (Psi)

15

Max Temp (°F)

120

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Seal Material

EPDM

Series

NS1

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Gray

Type

Coupling Body


NS1D170212
