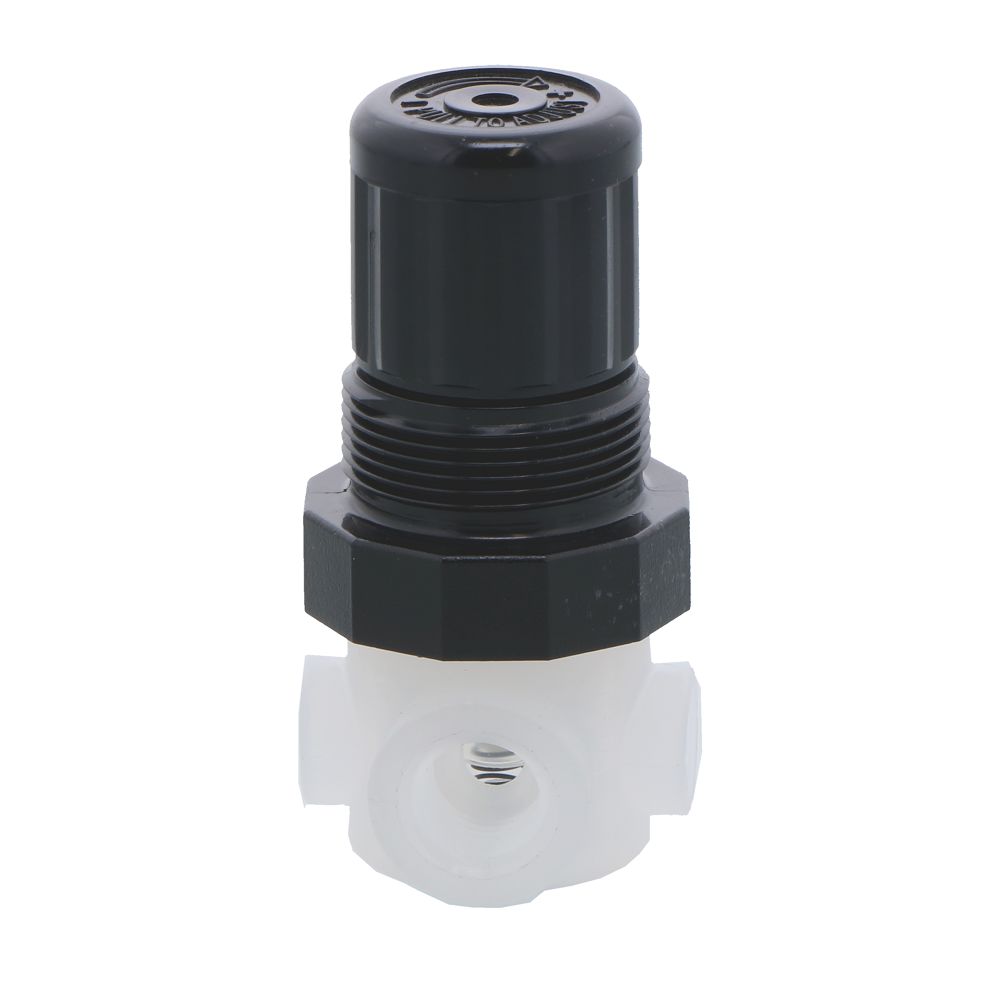

Norgren R91S200AA Non-Relieving Acid Dialysis Pressure Regulator 1/4 FPT
Part Number: R91S200AA
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- For use with acid dialysis applications
- Non-relieving four port USP Class 6 pressure regulator
- Santoprene diaphragm and valve
- Silicone valve o-ring
- Corrosion resistant construction
- Port size: 1/4" FPT
- Preset Pressure: 3 psi
- Pressure Range: 0 - 10 psi
- Max flow rate: 1.75 gpm
Product Details | |
---|---|
Body Material | Polypropylene |
Diaphragm Materials | Santoprene |
Max Inlet Pressure | 125 psi (8.6 Bar) |
Max Temp (°F) | 125 |
Min Temp (°F) | 35 |
Seat | Polypropylene |
Spring | Elgiloy |
Flow Rate | 1.75 GPM |
Port Size | 1/4" FNPT |
Shipping Dimensions | |
Shipping Length | 3 in. |
Shipping Width | 2 in. |
Shipping Height | 2 in. |
Product Weight & Dimensions | |
Product Height | 2 in. |
Product Length | 3 in. |
Product Width | 2 in. |
Product Weight (lbs) | 0.145 |
Product Details | |
---|---|
Body Material | Polypropylene |
Diaphragm Materials | Santoprene |
Max Inlet Pressure | 125 psi (8.6 Bar) |
Max Temp (°F) | 125 |
Min Temp (°F) | 35 |
Seat | Polypropylene |
Spring | Elgiloy |
Flow Rate | 1.75 GPM |
Port Size | 1/4" FNPT |
Shipping Dimensions | |
Shipping Length | 13 in. |
Shipping Width | 12 in. |
Shipping Height | 5 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 7.25 |
Features:
- For use with acid dialysis applications
- Non-relieving four port USP Class 6 pressure regulator
- Santoprene diaphragm and valve
- Silicone valve o-ring
- Corrosion resistant construction
- Port size: 1/4" FPT
- Preset Pressure: 3 psi
- Pressure Range: 0 - 10 psi
- Max flow rate: 1.75 gpm
Product Details | |
---|---|
Body Material | Polypropylene |
Diaphragm Materials | Santoprene |
Max Inlet Pressure | 125 psi (8.6 Bar) |
Max Temp (°F) | 125 |
Min Temp (°F) | 35 |
Seat | Polypropylene |
Spring | Elgiloy |
Flow Rate | 1.75 GPM |
Port Size | 1/4" FNPT |
Shipping Dimensions | |
Shipping Length | 3 in. |
Shipping Width | 2 in. |
Shipping Height | 2 in. |
Product Weight & Dimensions | |
Product Height | 2 in. |
Product Length | 3 in. |
Product Width | 2 in. |
Product Weight (lbs) | 0.145 |
Product Details | |
---|---|
Body Material | Polypropylene |
Diaphragm Materials | Santoprene |
Max Inlet Pressure | 125 psi (8.6 Bar) |
Max Temp (°F) | 125 |
Min Temp (°F) | 35 |
Seat | Polypropylene |
Spring | Elgiloy |
Flow Rate | 1.75 GPM |
Port Size | 1/4" FNPT |
Shipping Dimensions | |
Shipping Length | 13 in. |
Shipping Width | 12 in. |
Shipping Height | 5 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 7.25 |
