Norgren

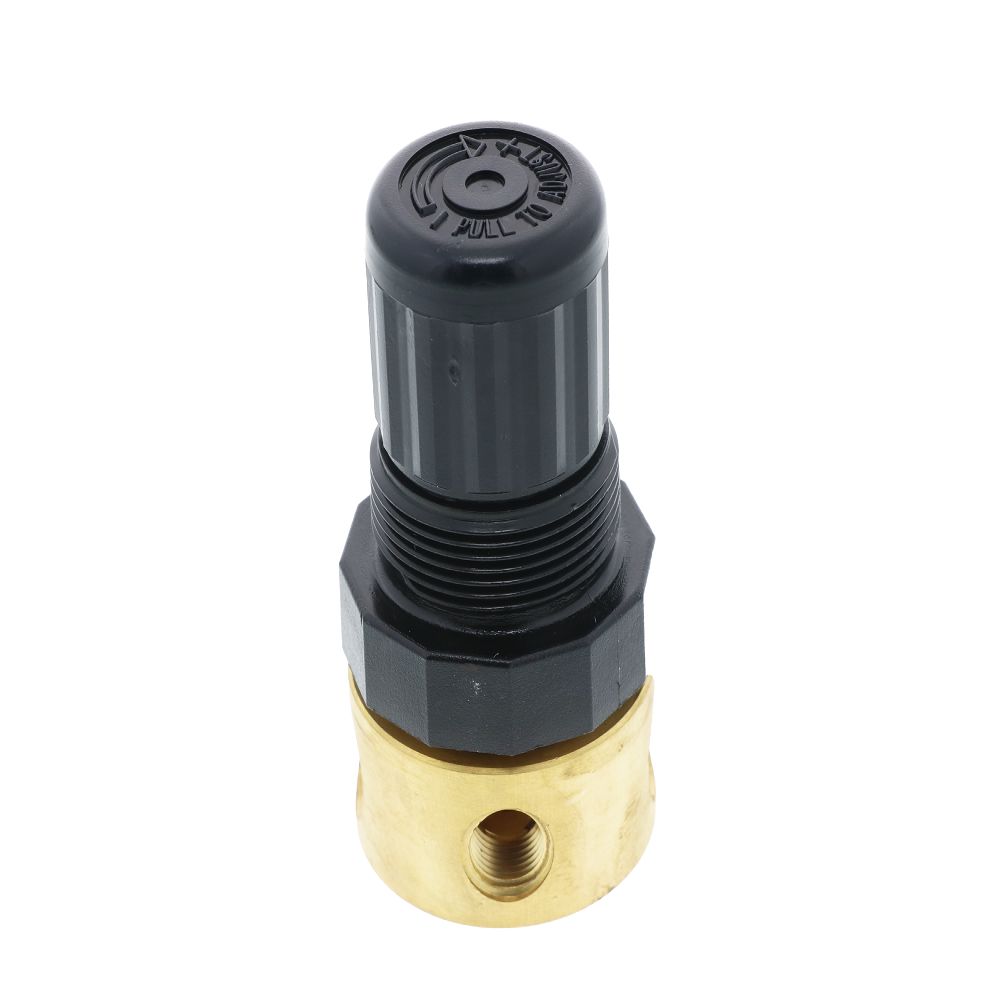

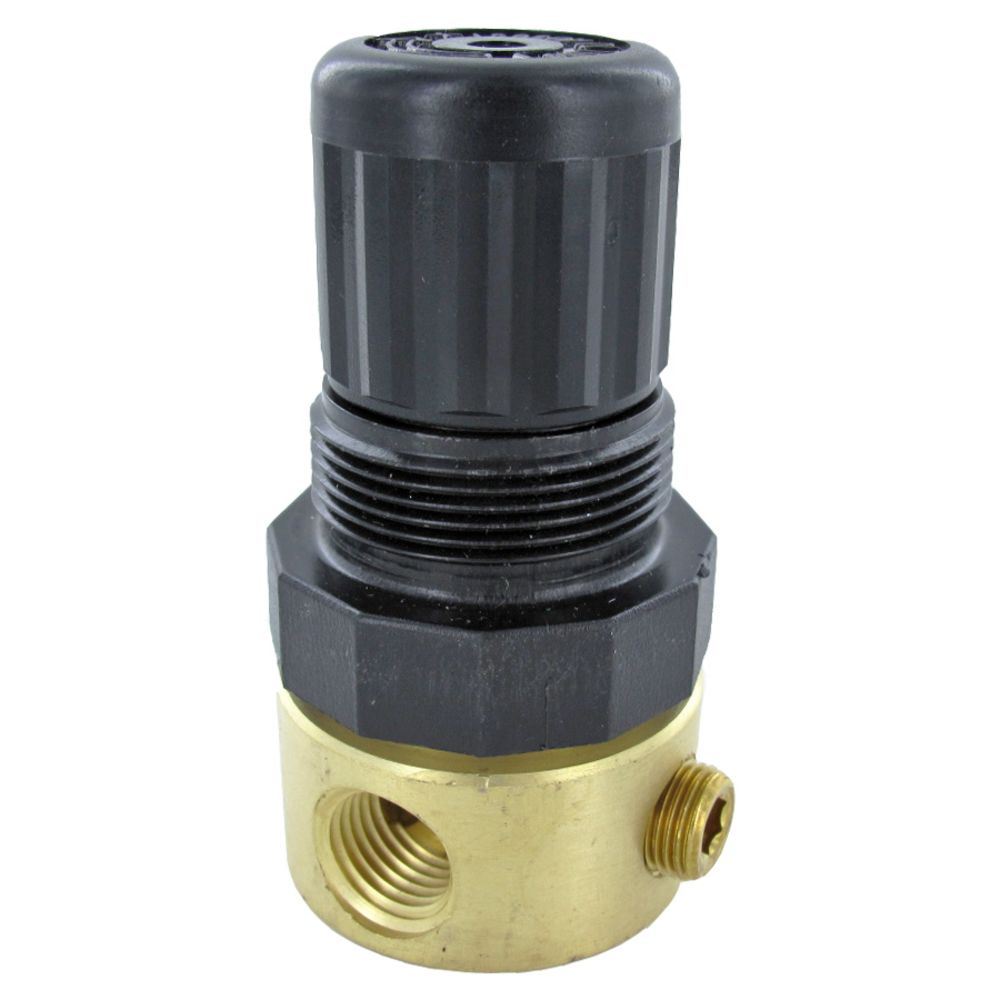

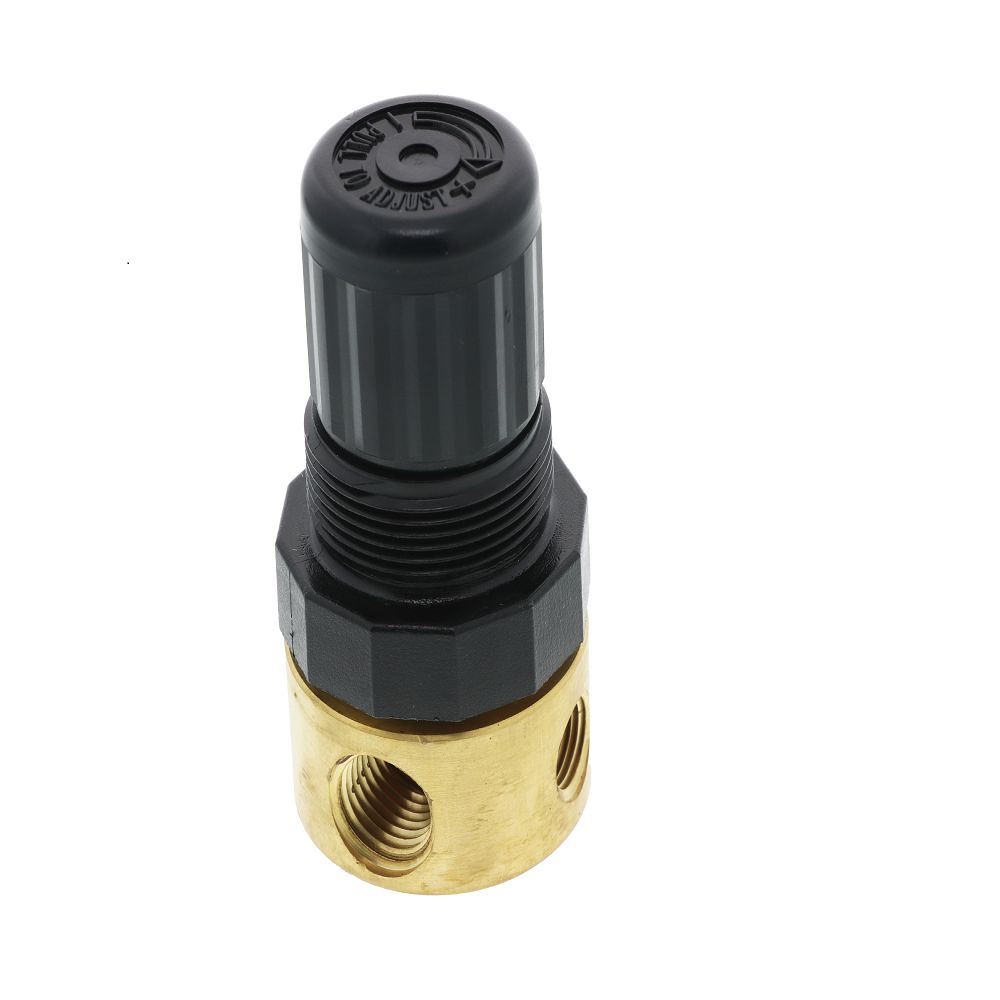

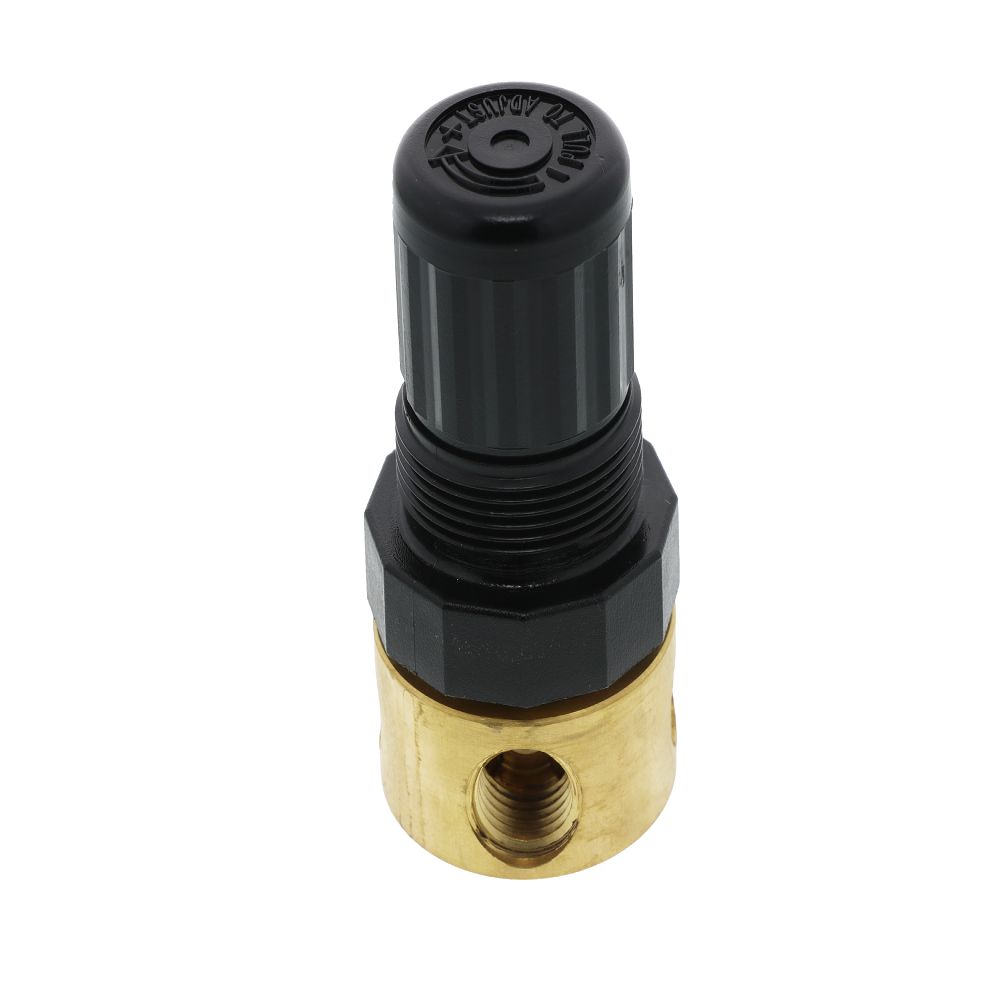

Norgren R06-221-NNKA Non-Relieving Water/Air Regulator 1/4 FPT

Part Number: R06221NNKA

Alt. Part Number: R06

In Stock

out of stock

In Stock

$32.89

The Norgren R06-221-NNKA water and air pressure regulator features a compact corrosion resistant design. The R06-221-NNKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is suitable for use on air or water service.

Specifications:
  • Compact design
  • Corrosion resistant construction
  • Brass body with plastic bonnet
  • Non-relieving model; designed for water and air service
  • For industrial applications only; not designed for use with deionized or potable water
  • Port size: 1/4" FPT
  • Max inlet pressure: 400 psig (28 Bar)
  • Max outlet pressure: 100 psig (6.9 Bar)
  • Outlet pressure adjustable from 5-100 psig (0.3-6.9 Bar)
  • Max flow rate (water): 1.3 gpm
  • Max flow rate (air): 12.0 SCFM
NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C).



Weight & Dimensions

Approx Height (Inches)

2.86"

Approx Length (Inches)

1.57"

Weight (lbs)

0.32

Details

Body Material

Brass

Flow Rate

1.3 GPM

Max Inlet Pressure

400 psi (28 Bar)

Max Outlet Pressure

100 PSIg (6.9 Bar)

Max Temp (°F)

150

Min Temp (°F)

Air: -30; Water: 35

Outlet Pressure

5-100 psig (0.3-6.9 Bar) PSI

Port Size

1/8" FPT"; 1/4" FNPT

Seat

Acetal Resin


Norgren

Norgren




The Norgren R06-221-NNKA water and air pressure regulator features a compact corrosion resistant design. The R06-221-NNKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is suitable for use on air or water service.

Specifications:
  • Compact design
  • Corrosion resistant construction
  • Brass body with plastic bonnet
  • Non-relieving model; designed for water and air service
  • For industrial applications only; not designed for use with deionized or potable water
  • Port size: 1/4" FPT
  • Max inlet pressure: 400 psig (28 Bar)
  • Max outlet pressure: 100 psig (6.9 Bar)
  • Outlet pressure adjustable from 5-100 psig (0.3-6.9 Bar)
  • Max flow rate (water): 1.3 gpm
  • Max flow rate (air): 12.0 SCFM
NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C).


Weight & Dimensions

Approx Height (Inches)

2.86"

Approx Length (Inches)

1.57"

Weight (lbs)

0.32

Details

Body Material

Brass

Flow Rate

1.3 GPM

Max Inlet Pressure

400 psi (28 Bar)

Max Outlet Pressure

100 PSIg (6.9 Bar)

Max Temp (°F)

150

Min Temp (°F)

Air: -30; Water: 35

Outlet Pressure

5-100 psig (0.3-6.9 Bar) PSI

Port Size

1/8" FPT"; 1/4" FNPT

Seat

Acetal Resin
