Norgren

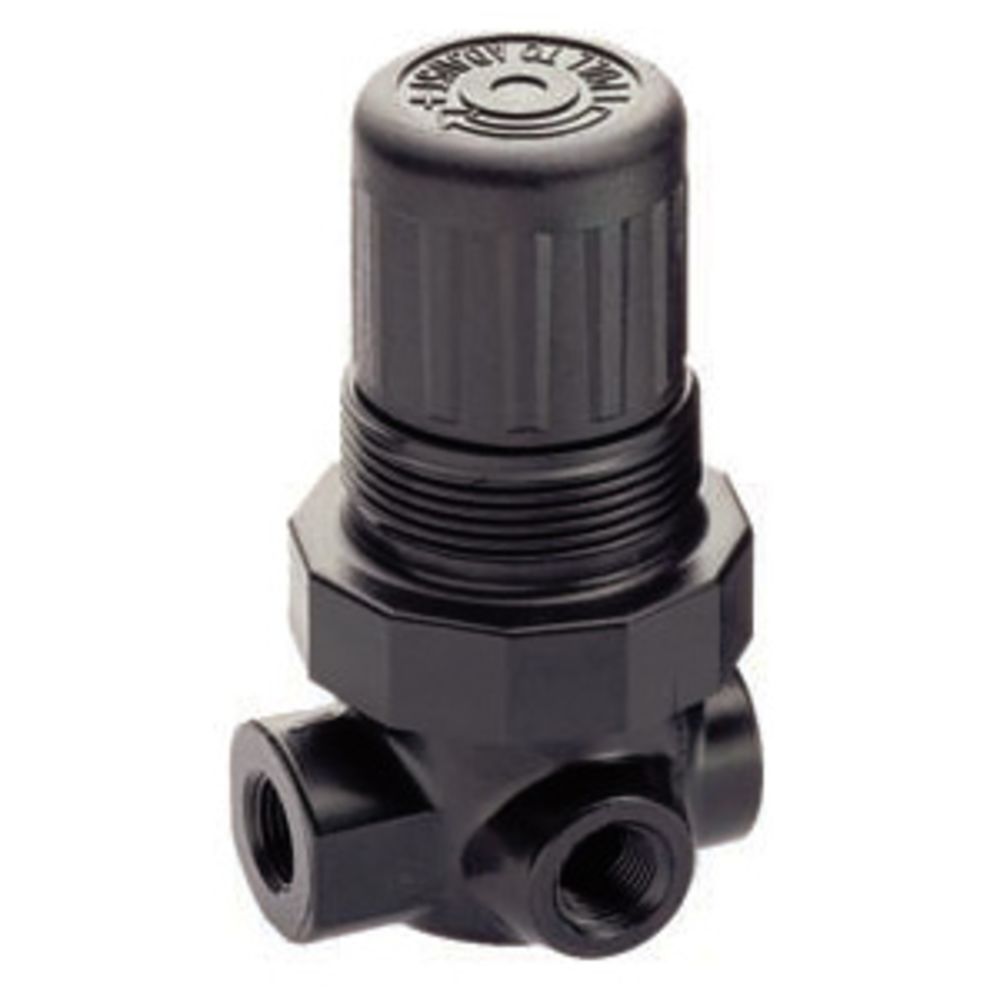

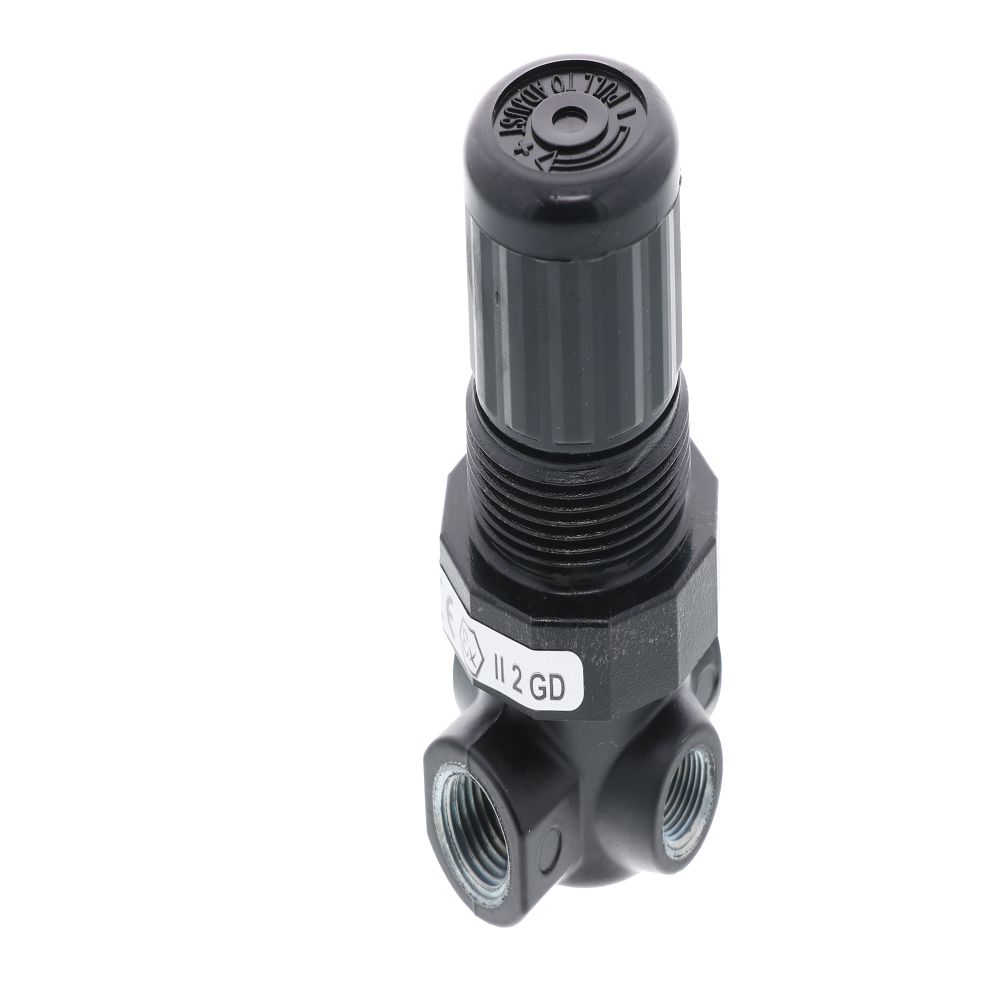

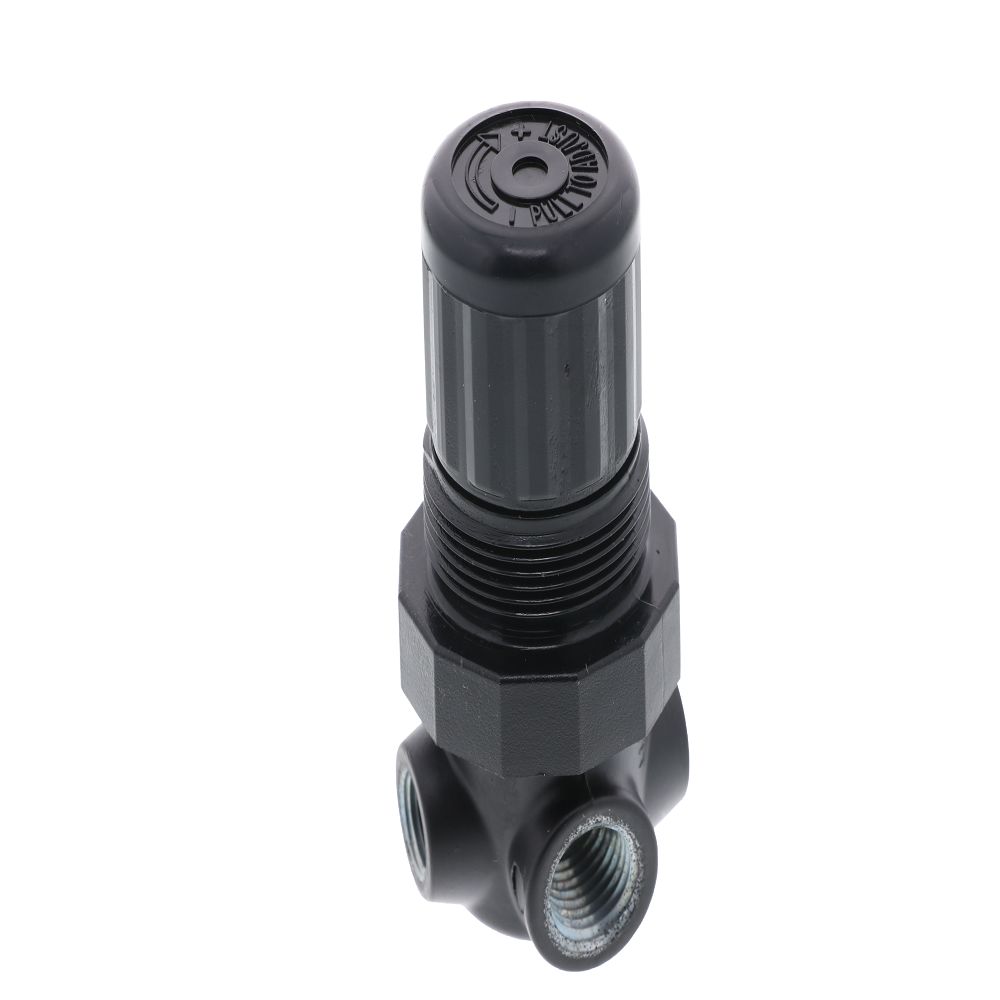

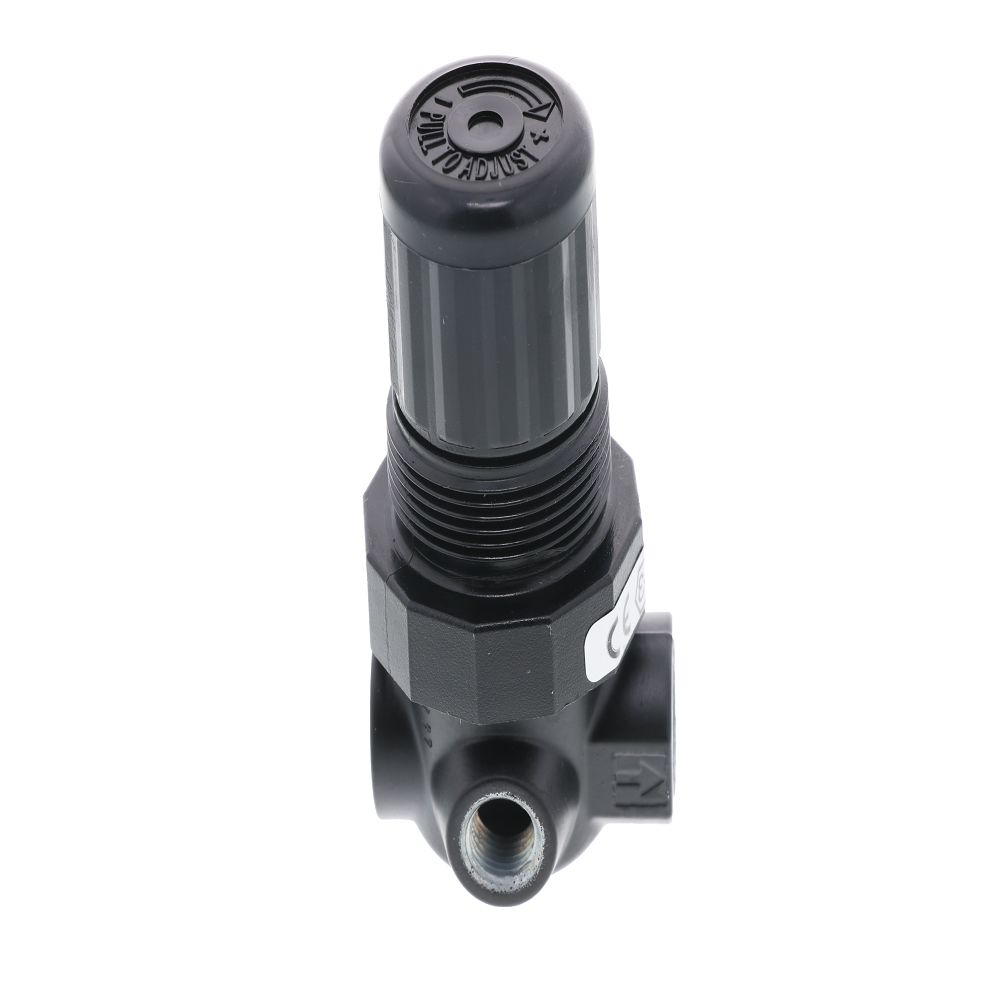

Norgren R07-200-RNKA Relieving Air Pressure Regulator 1/4 FPT

Part Number: R07200RNKA

Alt. Part Number: R07

In Stock

out of stock

In Stock

$27.13

Norgren R07-200-RNKA Relieving Air Pressure Regulator 1/4 FPT R07200RNKA. Norgren R07-200-RNKA Relieving Air Pressure Regulator 1/4 FPT Features: The Norgren R07-200-RNKA air pressure regulator features a compact corrosion resistant design. The R07-200-RNKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is suitable for use on compressed air and neutral gases. Compact design Corrosion resistant construction Zinc body with plastic bonnet Relieving model; allows reduction of outlet pressure even when system is dead-ended For industrial applications Port size: 1/4 FPT Max inlet pressure: 300 psig (28 Bar) Max outlet pressure: 100 psig (7 Bar) Outlet pressure adjustable from 5-100 psig (0.3-7 Bar) Max flow rate (air): 15.0 scfm Norgren R07 Relieving Air Regulator 1/4 FPT Specifications Norgren R07 Relieving Air Regulator 1/4 FPT Installation Instructions Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C) R07 Pressure Regulators


Weight & Dimensions

Approx Height (Inches)

2.91 Inches

Approx Length (Inches)

1.5 Inches

Details

Bonnet

Acetal

Body Material

Zinc

Flow Rate

15 scfm

Operating Temperature Range

-34 - 150 Degrees Fahrenheit

Elastomer Type

Nitrile

Port Size

1/8" FPT Inches, 1/4" FNPT

Seat

Acetal

Max Inlet Pressure

300 psig (20 Bar) PSI

Max Outlet Pressure

100 psig (7 Bar)

Outlet Pressure

5-100 psig (0.3-7 Bar) PSI


Norgren

Norgren




Norgren R07-200-RNKA Relieving Air Pressure Regulator 1/4 FPT R07200RNKA. Norgren R07-200-RNKA Relieving Air Pressure Regulator 1/4 FPT Features: The Norgren R07-200-RNKA air pressure regulator features a compact corrosion resistant design. The R07-200-RNKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is suitable for use on compressed air and neutral gases. Compact design Corrosion resistant construction Zinc body with plastic bonnet Relieving model; allows reduction of outlet pressure even when system is dead-ended For industrial applications Port size: 1/4 FPT Max inlet pressure: 300 psig (28 Bar) Max outlet pressure: 100 psig (7 Bar) Outlet pressure adjustable from 5-100 psig (0.3-7 Bar) Max flow rate (air): 15.0 scfm Norgren R07 Relieving Air Regulator 1/4 FPT Specifications Norgren R07 Relieving Air Regulator 1/4 FPT Installation Instructions Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C) R07 Pressure Regulators

Weight & Dimensions

Approx Height (Inches)

2.91 Inches

Approx Length (Inches)

1.5 Inches

Details

Bonnet

Acetal

Body Material

Zinc

Flow Rate

15 scfm

Operating Temperature Range

-34 - 150 Degrees Fahrenheit

Elastomer Type

Nitrile

Port Size

1/8" FPT Inches, 1/4" FNPT

Seat

Acetal

Max Inlet Pressure

300 psig (20 Bar) PSI

Max Outlet Pressure

100 psig (7 Bar)

Outlet Pressure

5-100 psig (0.3-7 Bar) PSI
