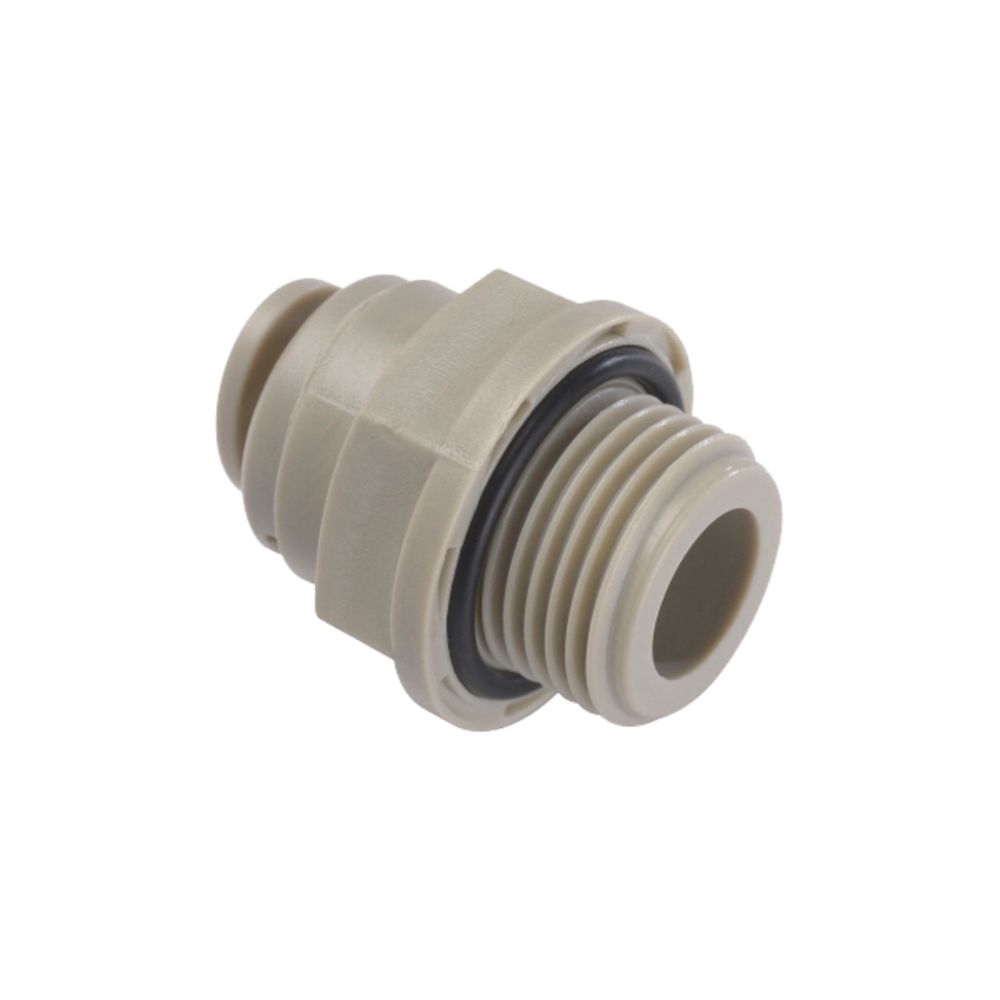

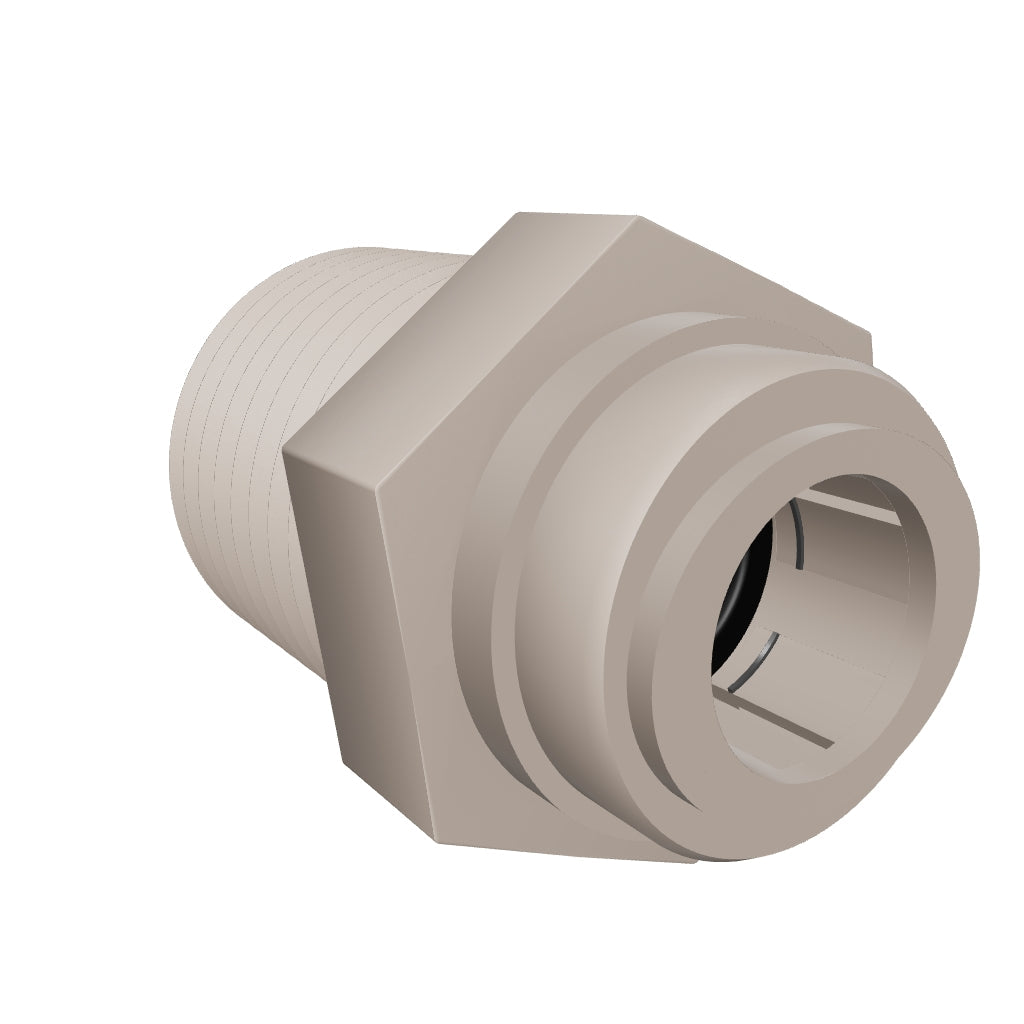

The NeoFit male connector are used to connect OD tubing sizes. Manufactured in acetal with food grade EDPM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
- Used to connect OD tubing sizes
- Compatible with plastic or copper OD sized tubing

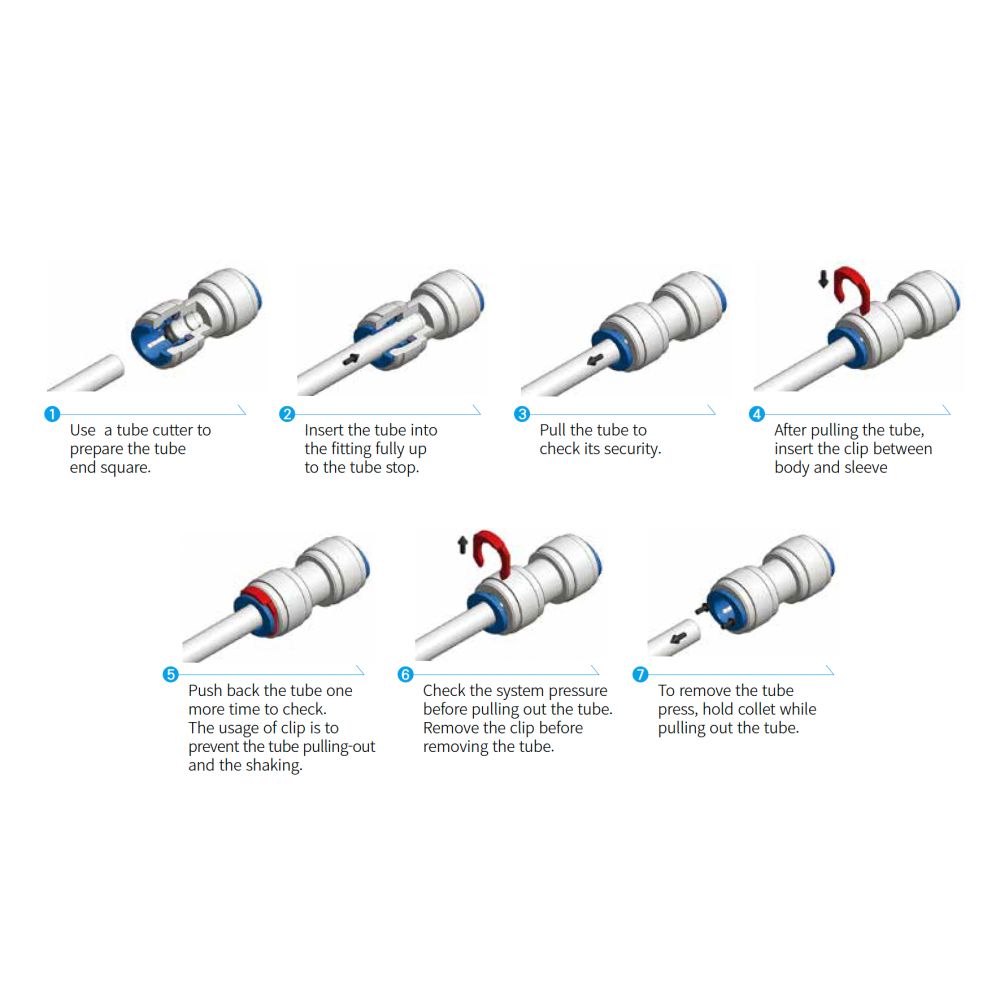

- Connect, disconnect, and reconnect quickly
- Food Quality and suitable for potable liquids and pure water applications
- Can be used for air/pneumatic & vacuum applications

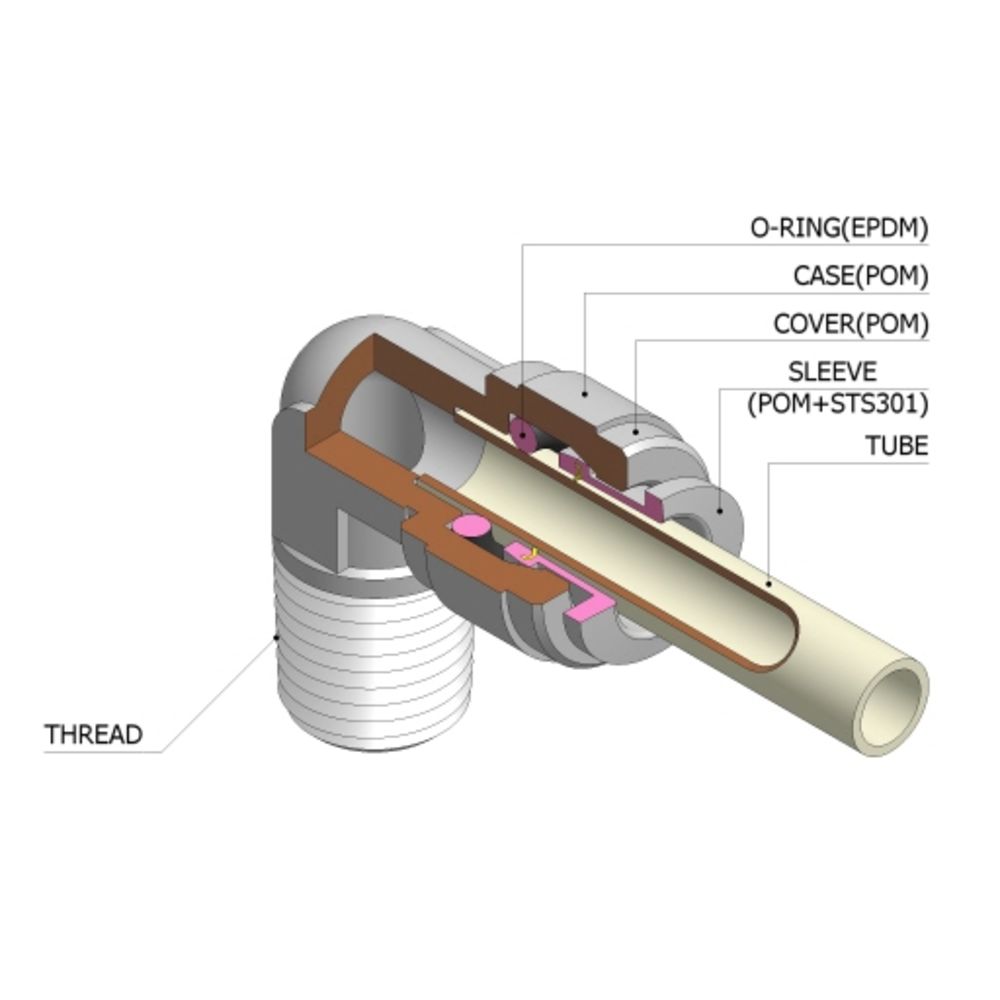

- Acetal body with food grade EDPM O-Ring
- NSF 51 Certified
Fittings Comparison: Acetal Gray
|
Size |
NEO: Working PSI @ Temp |
JG: Working PSI @ Temp |
|---|---|---|
|
1/4" |
290psi @ 68F/ 232psi @ 150F |
230psi @ 68F/ 150 psi at 150F |
|
3/8" |
232psi @ 68F/ 203psi @ 150F |
150psi @ 68F/ 100 psi at 150F |
|
1/2" |
203psi @ 68F/ 116psi @ 150F |
150psi @ 68F/ 100 psi at 150F |
|
Certifications |
NEO: NSF 51 & 61 Certified |
JG: NSF 51 & 61 Certified |
|
Size |
NEO: Max Torque |
JG: Max Torque |
|---|---|---|
|
1/4" |
1ft/lb (1.5nm) |
1ft/lb (1.5nm) |
|
3/8" |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
|
1/2" |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
WARNING!
