DMFit

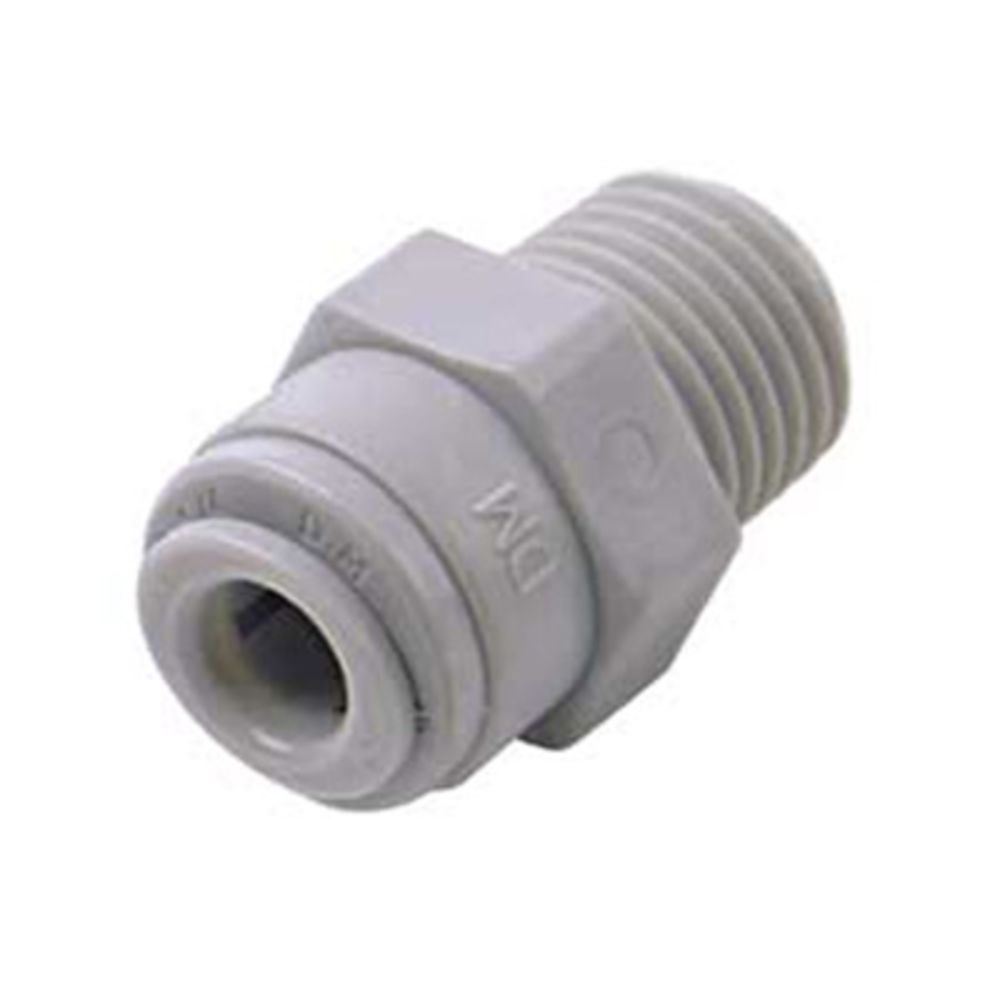

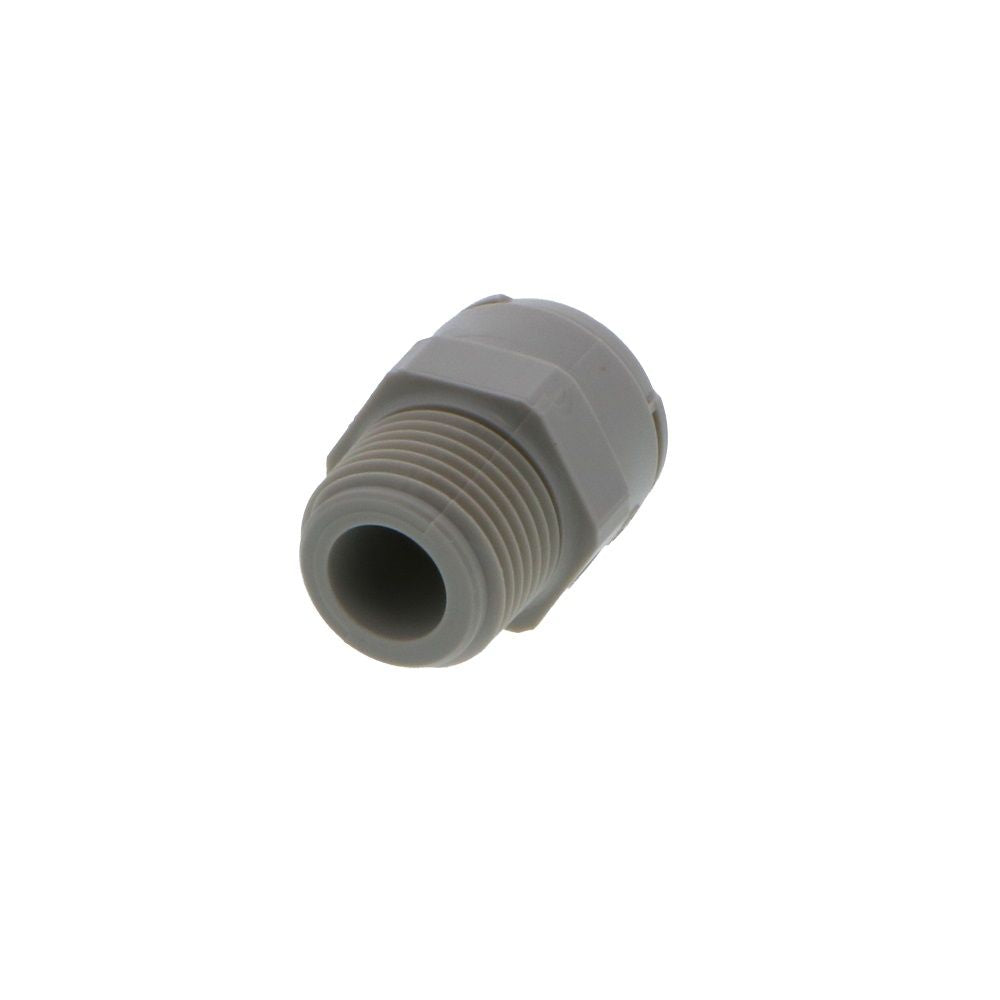

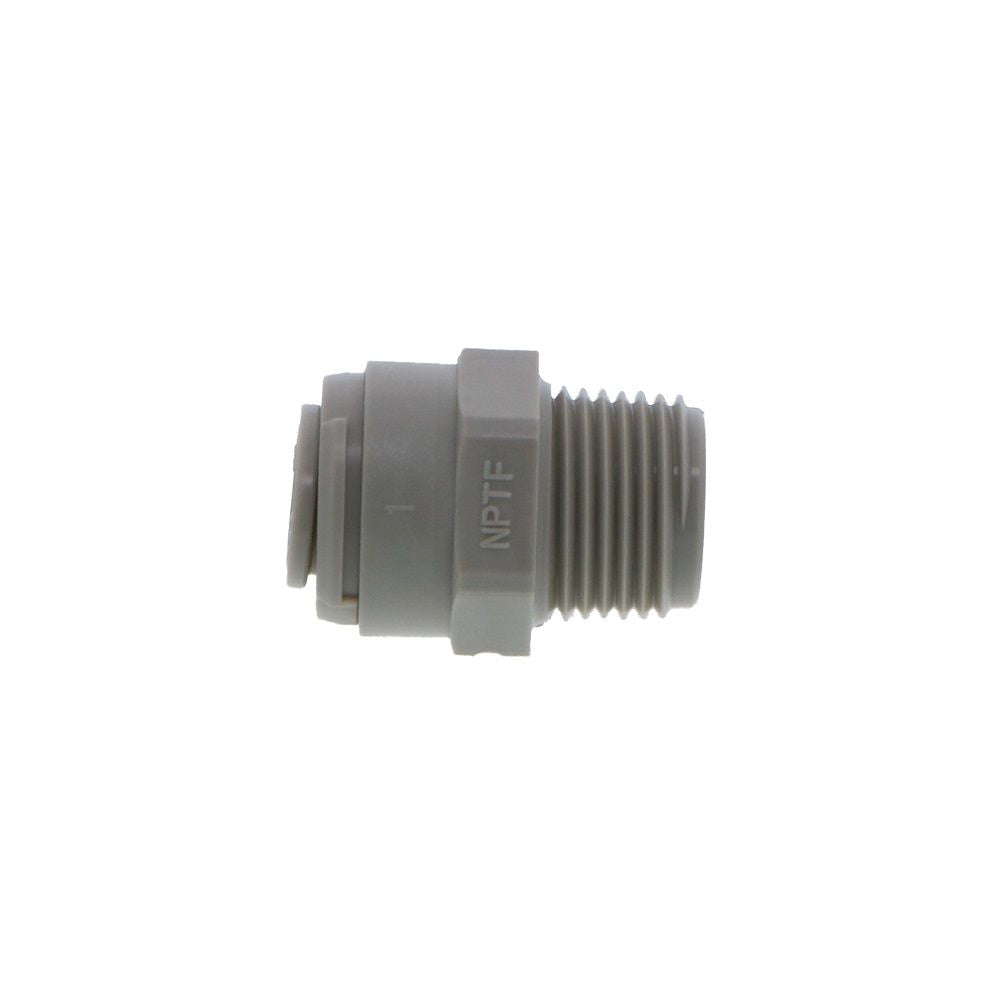

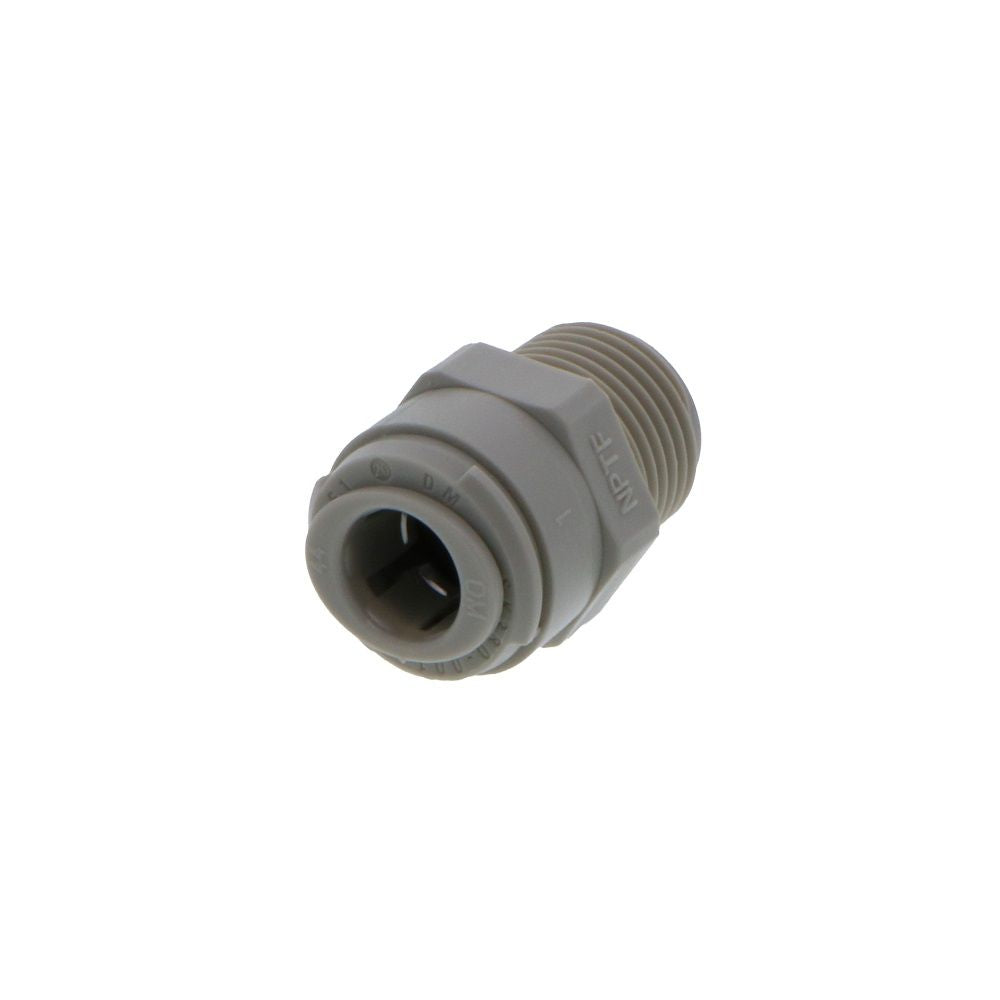

DMfit Straight MNPT Male - 3/8 Push-In x 3/8 MNPT

Part Number: AMC0606

In Stock

out of stock

In Stock

$15.82

Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gases, vacuum, & liquids
  • NSF Certified 51 & 62
  • Fittings may be gray or white based on availability




Weight & Dimensions

Bag Quantity

10

Box Dimensions

7.5x11x6.125

Box Quantity

250

Case Dimensions

12x15.5x13.5

Height (inches)

0.69

Length (inches)

1.06

Weight (lbs)

0.000625

Width (inches)

0.69

Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

170

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Thread

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

Acetal

Size

3/8"

Color / Finish

Gray, White

Connection Type

Male (MPT)

Sub-Type

Male Adapter

Type

Adapter

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved
