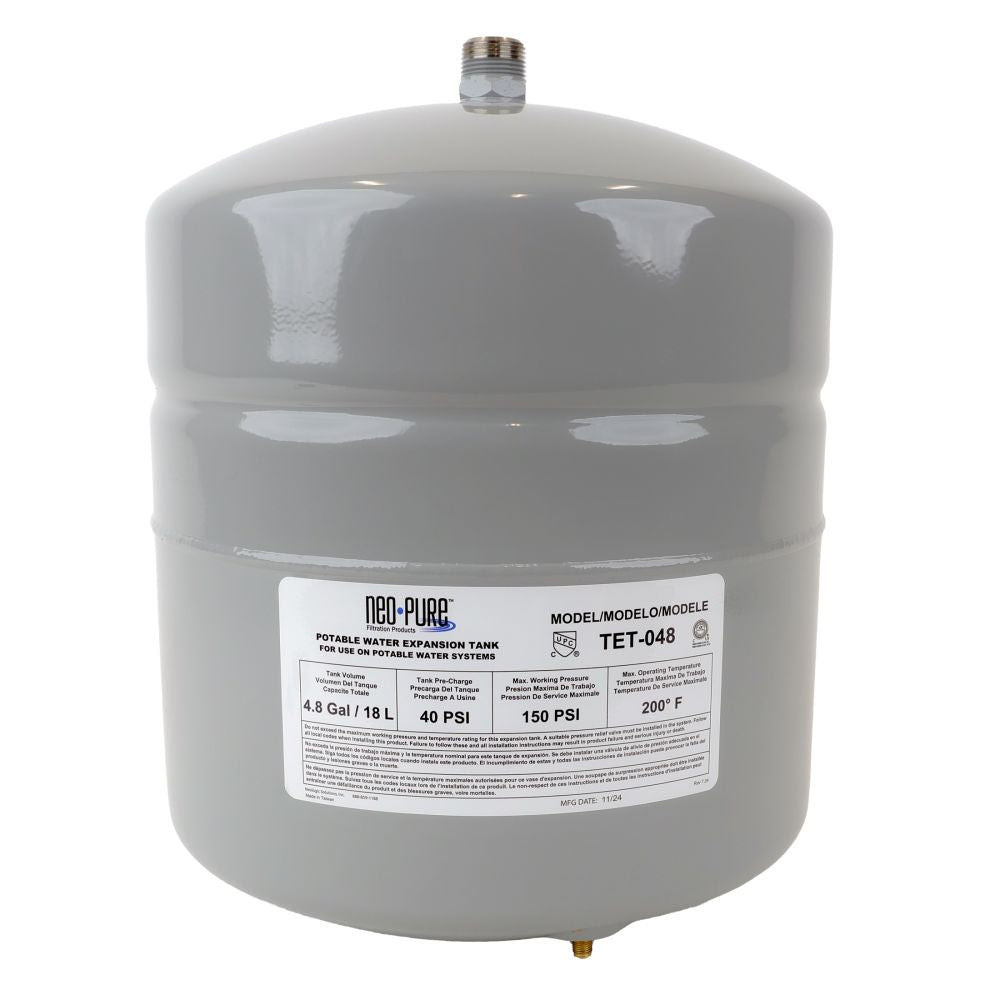

Neo-Pure Thermal Expansion Tank 4.8 gal 3/4 MNPT

Name: Neo-Pure Thermal Expansion Tank 4.8 gal 3/4 MNPT
Brand: Neo-Pure
SKU: TET-048
Price: 36.44 USD
Availability: InStock

Part Number: TET-048

1 4

Neo-Pure

Neo-Pure Thermal Expansion Tank 4.8 gal 3/4 MNPT

Part Number: TET-048

MSRP: $78.02

$36.44

Any Pressurized Tanks will be Depressurized if shipping Air

Product not eligible for free shipping

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

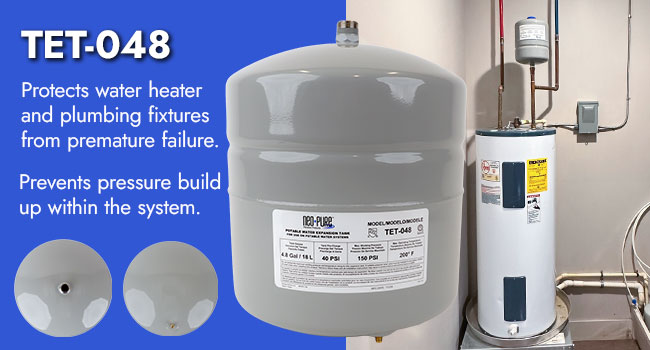

The Neo-Pure Thermal Expansion tanks are designed for residential water heater and hot water storage tank systems to manage the increased water volume caused by thermal expansion. By maintaining consistent pressure throughout the water supply system, these tanks help protect against over-pressure conditions and extend the life of the system. A durable internal membrane separates air and water, ensuring reliable performance over time. Thermal Expansion Tanks are the perfect solution for protecting your appliances, water heater, and fixtures.

Features

Protects the water heater and plumbing fixtures from premature failure

Prevents pressure build up within the system

QUICK SIZING CHART
Maximum Water Temperature
Water Heater Size/Volume	130º F	140º F	160º F	180º F
30 GALLONS	TET-021	TET-021	TET-021	TET-021
40 GALLONS	TET-021	TET-021	TET-021	TET-021
50 GALLONS	TET-021	TET-021	TET-021	TET-048
60 GALLONS	TET-021	TET-021	TET-021	TET-048
80 GALLONS	TET-021	TET-048	TET-048	TET-048
100 GALLONS	TET-048	TET-048	TET-048	TET-090
120 GALLONS	TET-048	TET-048	TET-048	TET-090
150 GALLONS	TET-048	TET-048	TET-090	TET-090
175 GALLONS	TET-048	TET-090	TET-090	TET-090

Sizing based on water heater recovery from 40F, water supply pressure of 60 PSIG, and relief valve set at 150 PSIG. Adjust tank precharge to equal incoming water pressure.

Specifications

Product Details
Application	Hot Water Water Heaters
Capacity	4.8 Gallons
Max Pressure (Psi)	150
Max Temp (°F)	200°F
Warranty & Certifications
Product Certification Standard	NSF/ANSI/CAN 61
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	12 in.
Shipping Height	18 in.
Product Weight & Dimensions
Product Height	15
Product Length	11
Product Width	11
Product Weight (lbs)	10

Downloads

Neo-Pure Thermal Expansion Tank 4.8 gal 3/4 MNPT Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

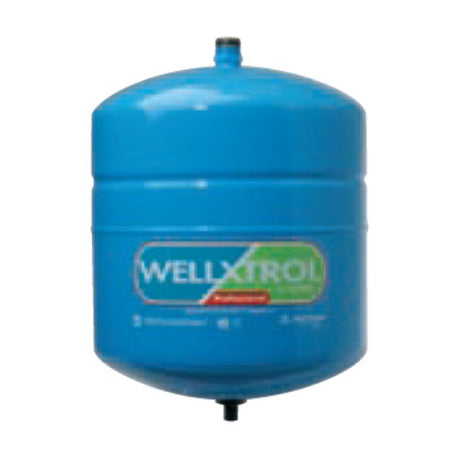

Facet	Neo-Pure Neo-Pure Thermal Expansion Tank 4.8 gal 3/4 MNPT Regular price $36.44 Part #: TET-048 Current Product	Sold Out Flexcon Industries Flexcon Flex 2 Pro Thermal Expansion Tank 4.8 Gallon Regular price $77.08 Sold out Part #: PH12 View details	Sold Out Amtrol Amtrol Well-X-Trol WX-102 In-Line Well Pressure Tank 4.4 gal Regular price $171.01 Sold out Part #: WX-102 View details
