Amtrol

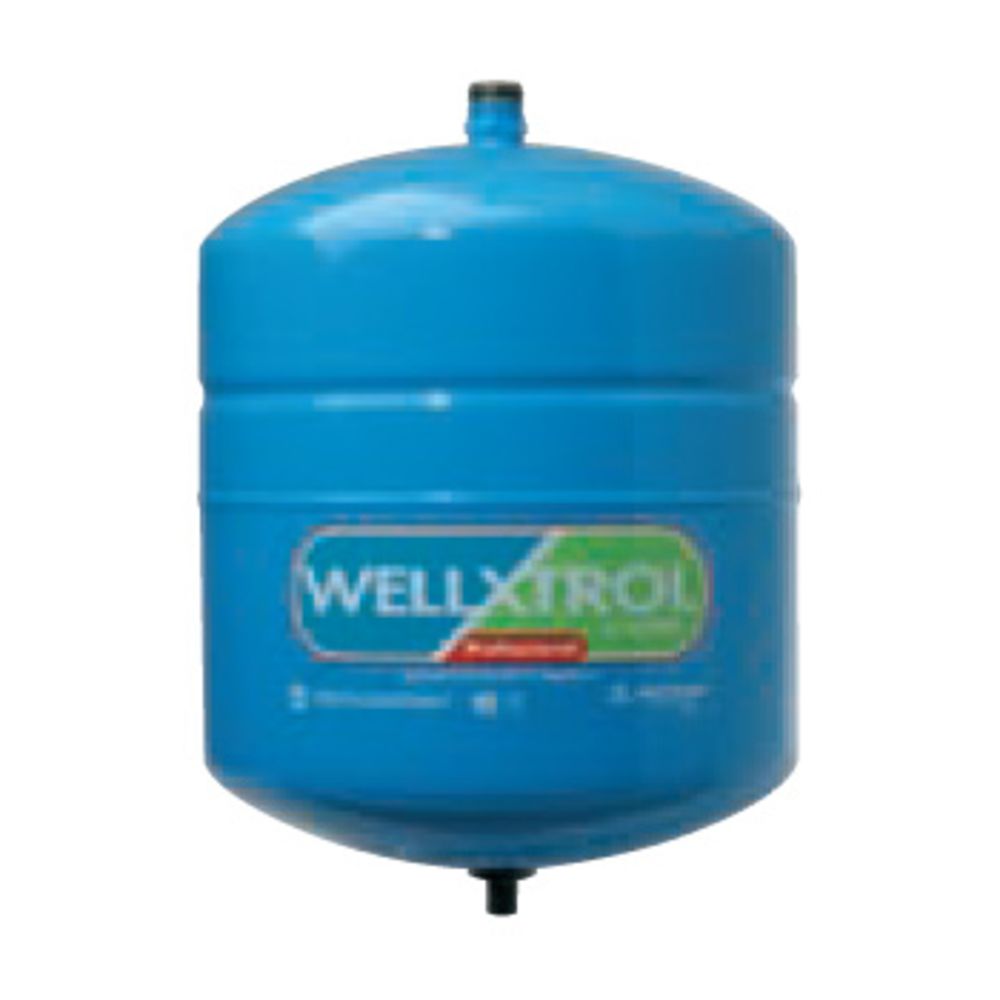

Amtrol Well-X-Trol WX-102 In-Line Well Pressure Tank 4.4 gal

Part Number: WX-102

In Stock

out of stock

In Stock

$125.90

The Well-X-Trol WX-102 in-line well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-102 now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Specifications:
  • In-Line design
  • Heavy duty butyl diaphragm
  • Stainless steel airstem
  • Virgin polypropylene liner
  • Drawdown 20/40 Setting: 1.8 gallons
  • Drawdown 30/50 Setting: 1.5 gallons
  • Drawdown 40/60 Setting: 1.3 gallons
  • 7 Year Warranty
  • NSF Standard 61 listed




Weight & Dimensions

Height W/O Stand

15"

Weight (lbs)

9

Details

Air Valve Stem Location

Top

Application

Pressure Pump Tank

Diaphragm Materials

Butyl Rubber

Drawdown Volume

1.8 Gallons @ 20/40 Setting, 1.5 Gallons @ 30/50 Setting, 1.3 Gallons @ 40/60 Setting

Inlet/Outlet Connection

3/4" MPT

Inlet/Outlet Location

Bottom

Material Of Construction

Stainless Steel

Max Pressure (Psi)

150

Max Temp (°F)

200

Size

3/4"

Tank Pre-Charge

38 PSI

Volume

4.4 Gallons

Connection Type

Male (MPT)

Diameter

11"

Origin

USA

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years


Amtrol

Amtrol
