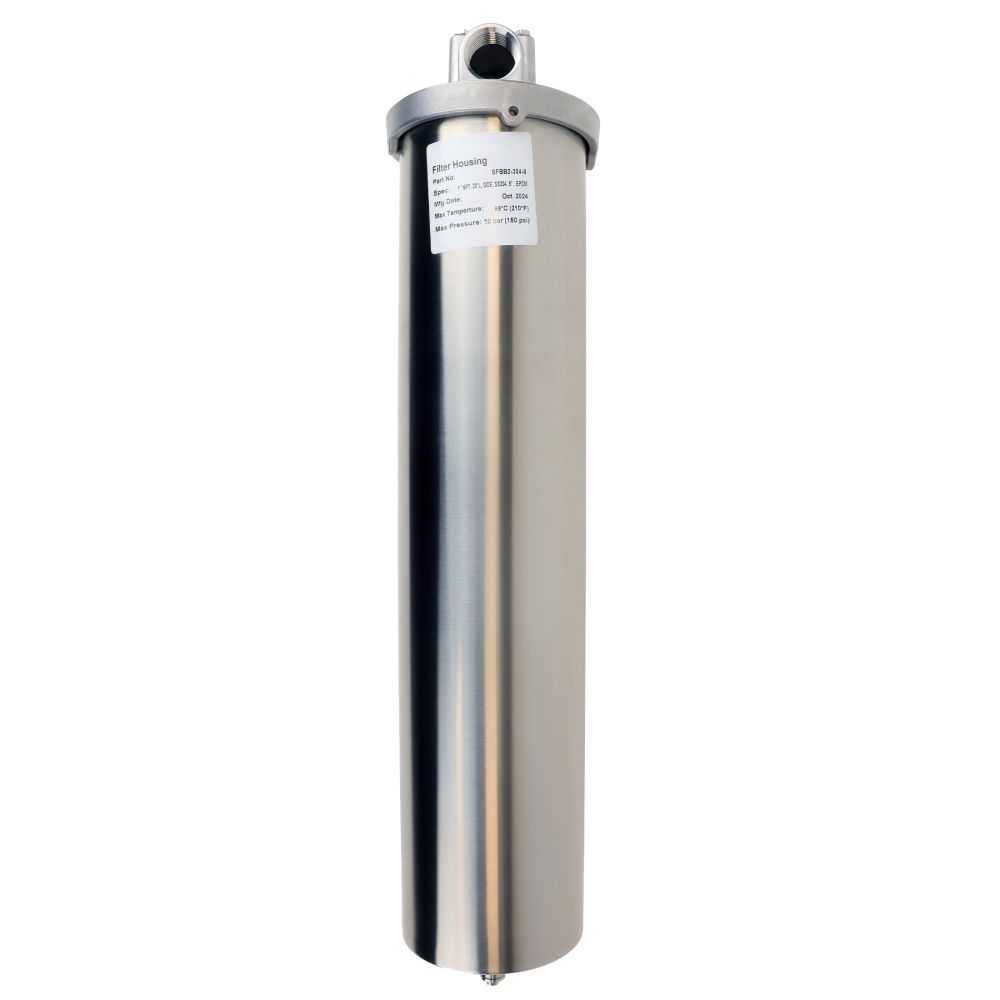

Neo-Pure Stainless Steel Single Filter Big Blue Housings provide superior filtration with either a string-wound, pleated or meltblown filter cartridge. The ring nut closure offers quick access to the interior for easy filter change-outs.
Applications:
- Chemicals
- Potable Water
- Desalination Prefiltration
- Electronics
- Food and Beverage
- Wastewater
- Photographic Solutions
- Paints, Inks, and Coatings
- Plating Solutions
- Coolants
Features:
- Neo-Pure SBJ170 Replacement Filters
- Uses 20" BB double open-ended cartridges (DOE)
- Heavy-duty 304L stainless steel construction for maximum durability
- Ring nut closure for quick, easy change-outs and secure sealing
- Protective poly-coat finish

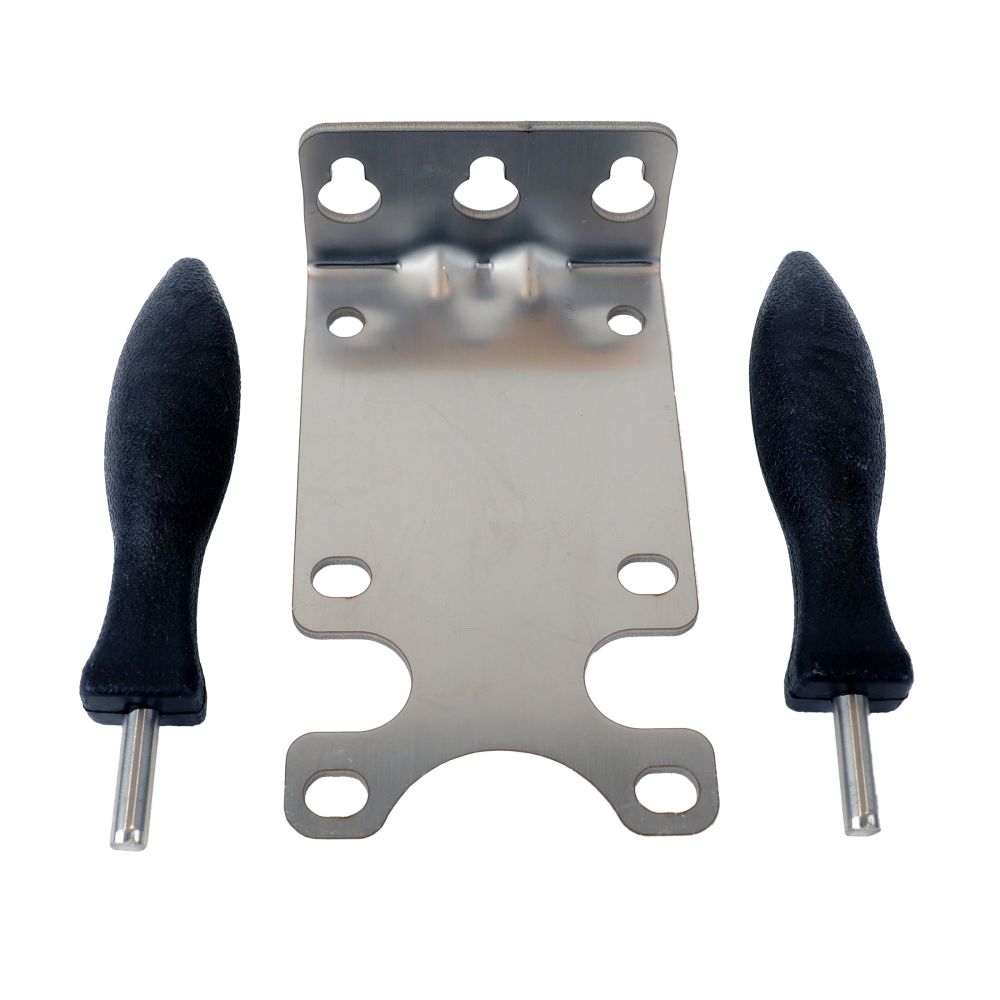

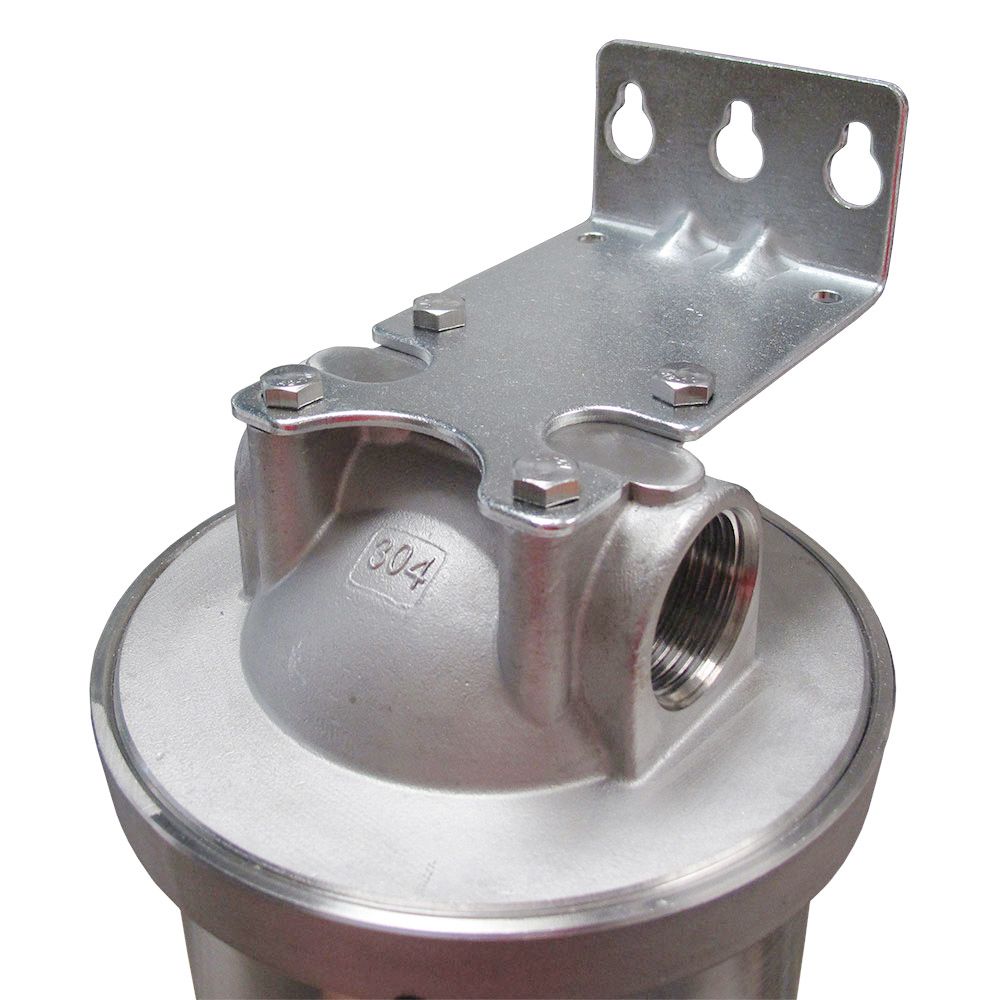

- Mounting bracket kit included
- Flow rates up to 25 gallons per minute
- Inlet/Outlet: 1" FNPT
- FDA Grade Buna-N Gaskets
- Neo-Pure SFB Series Single BB Filter Housing Specifications
Compatible with: Shelco | FLD-80
Weight & Dimensions
Approx Height (Inches) | 25 Inches |
Approx Length (Inches) | 20" |
Details
Cap Color | Stainless Steel |
Cap Material | 304 Stainless Steel |
Closure Type | Ring Nut Closure - Stainless Steel |
Color / Finish | Stainless Steel |
Drain Size | 1/4" |
Features | Includes Mounting Bracket Kit |
Gaskets | Buna N (FDA grade) |
Housing Material | 304 Stainless Steel |
Material Of Construction | 304 Stainless Steel |
Max Flow Rate | 25 Gallons Per Minute |
Max Operating Pressure | 150 psig @ 200°F PSI |
Origin | China |
Size | 1" |
Inlet/Outlet Connection | 1" | FPT |
