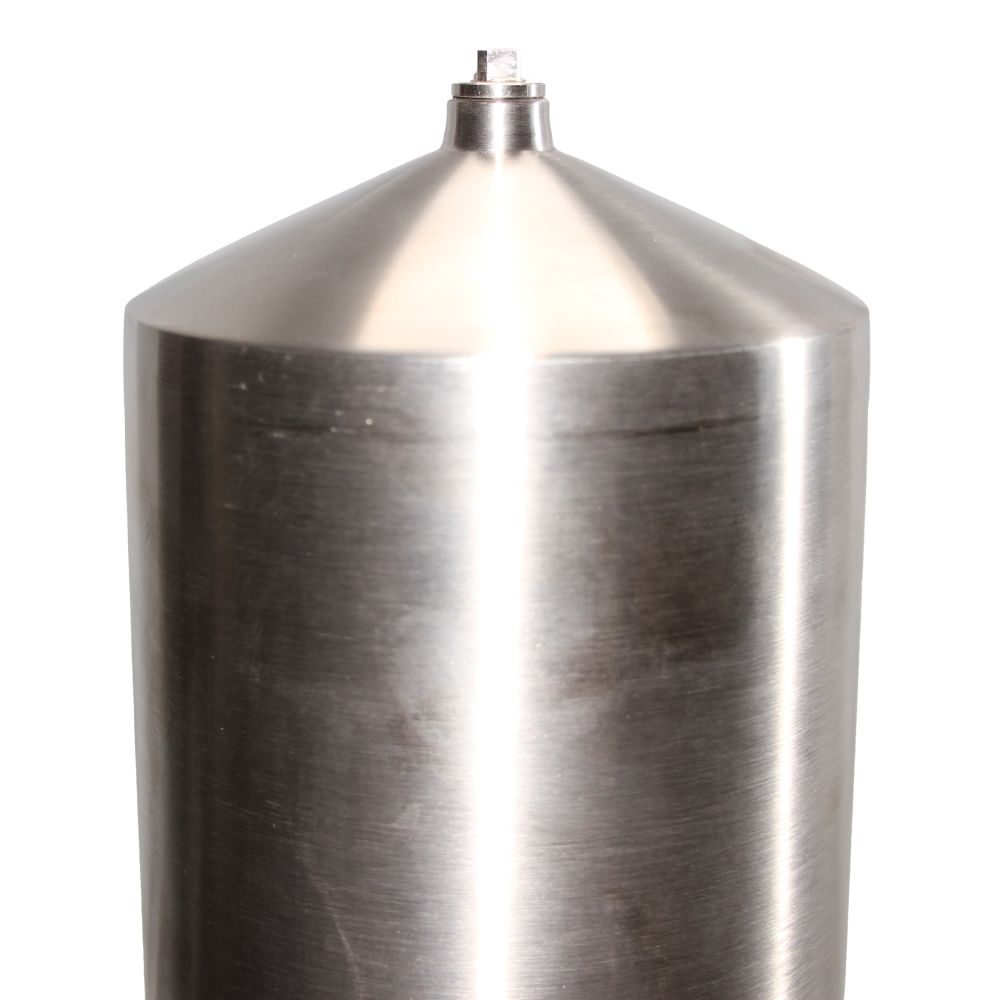

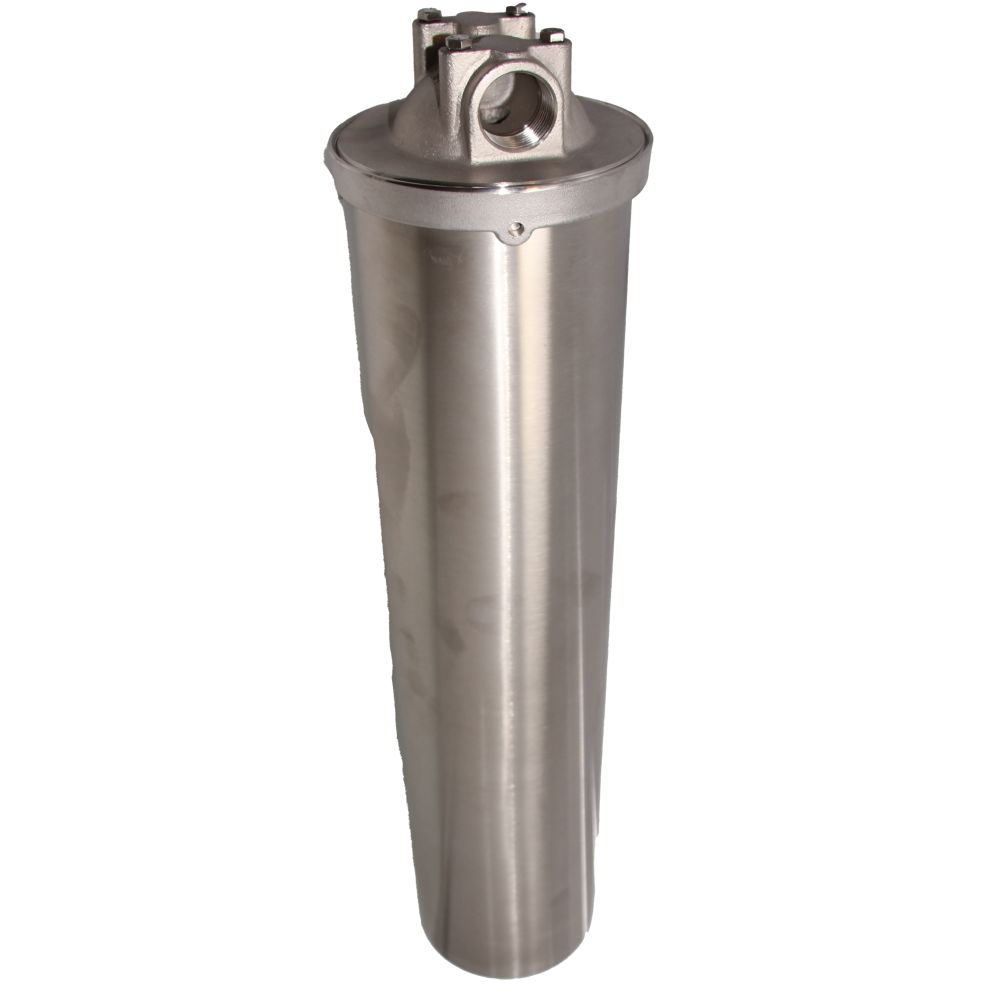

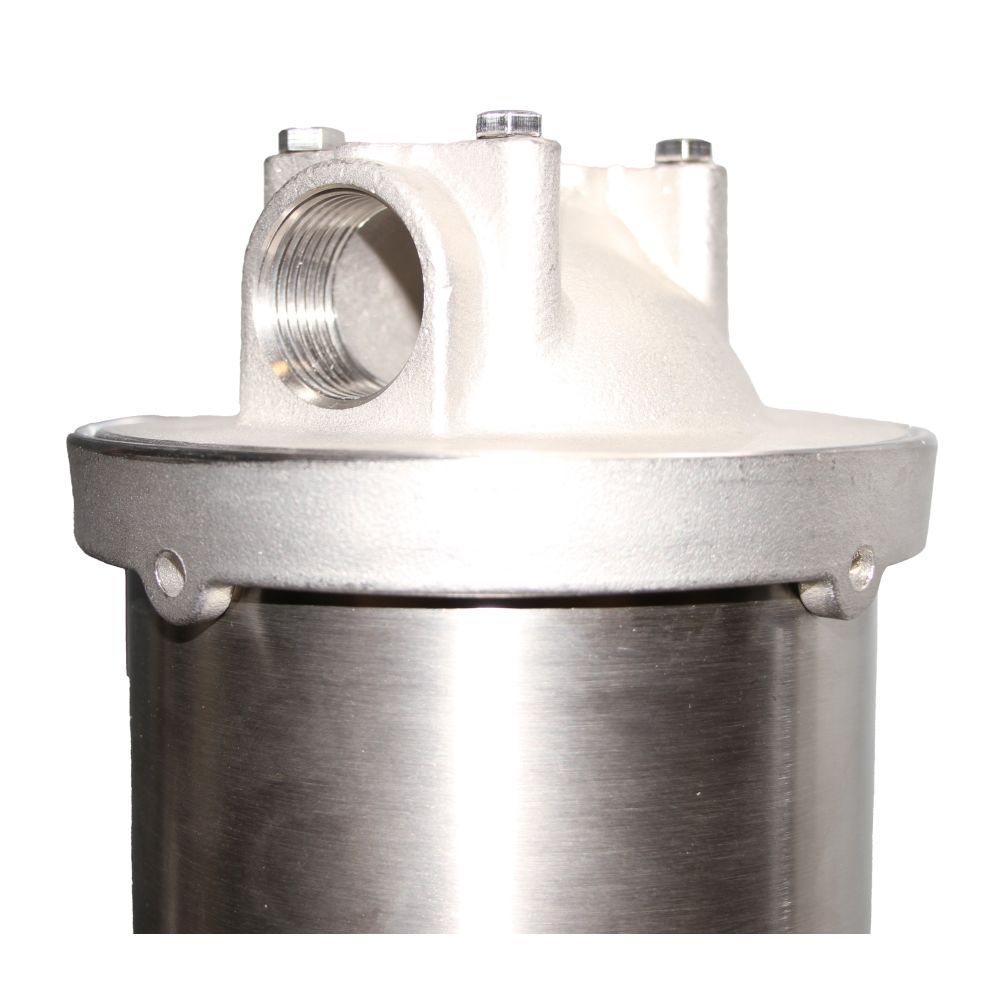

HydroScientific™ 20” Single Filter Housing, accepts 4.5” x 20” Filter Cartridge
Part Number: HF4520SS-10
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Spring loaded Knife Edge Seal
- Commercial and Industrial Filter Application
- Ring Nut Closure for Quick Cartridge Change Outs
- High Temperature and High-Pressure Applications
- Heavy Duty 304 Stainless Steel Construction
- Accepts 4 1/2” diameter (Big Blue style) Double Open-End (DOE) cartridges
- 1/4” FNPT Drain Port Standard
Specifications:
- Body: 304 stainless steel
- Head: 304 stainless steel
- O-Ring: EPDM
- Max. Working Pressure: 300 psi (20.68 bar)
- Max. Operating Temperature: 200° F (93° C)
Product Details | |
---|---|
Body Material | 304 Stainless Steel |
Drain Size | 1/4” FNPT |
Max Pressure (Psi) | 300 |
Max Temp (°F) | 200 |
O-Rings | EPDM |
Product Weight & Dimensions | |
Product Height | 4.89” |
Product Length | 28.62” |
Product Width | 4.89” |
Product Weight (lbs) | 20 |
Features:
- Spring loaded Knife Edge Seal
- Commercial and Industrial Filter Application
- Ring Nut Closure for Quick Cartridge Change Outs
- High Temperature and High-Pressure Applications
- Heavy Duty 304 Stainless Steel Construction
- Accepts 4 1/2” diameter (Big Blue style) Double Open-End (DOE) cartridges
- 1/4” FNPT Drain Port Standard
Specifications:
- Body: 304 stainless steel
- Head: 304 stainless steel
- O-Ring: EPDM
- Max. Working Pressure: 300 psi (20.68 bar)
- Max. Operating Temperature: 200° F (93° C)
Product Details | |
---|---|
Body Material | 304 Stainless Steel |
Drain Size | 1/4” FNPT |
Max Pressure (Psi) | 300 |
Max Temp (°F) | 200 |
O-Rings | EPDM |
Product Weight & Dimensions | |
Product Height | 4.89” |
Product Length | 28.62” |
Product Width | 4.89” |
Product Weight (lbs) | 20 |
