Neo-Pure

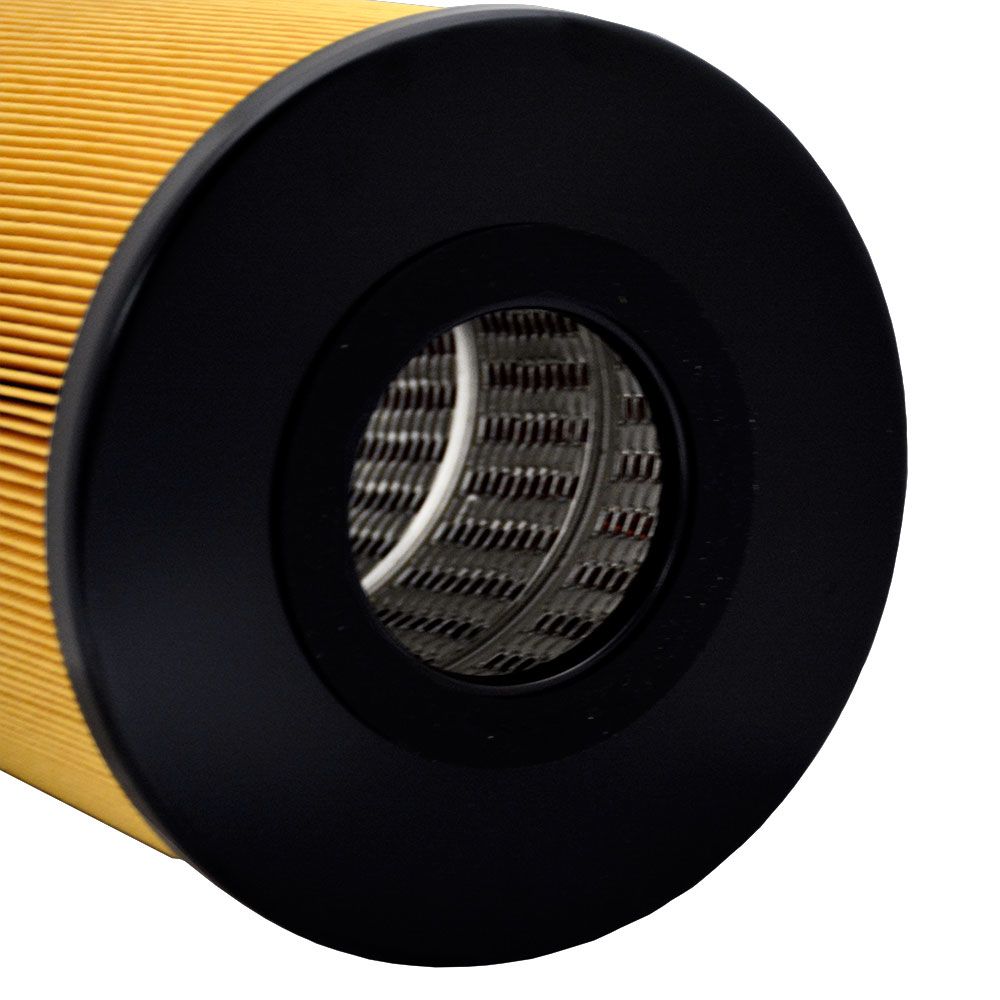

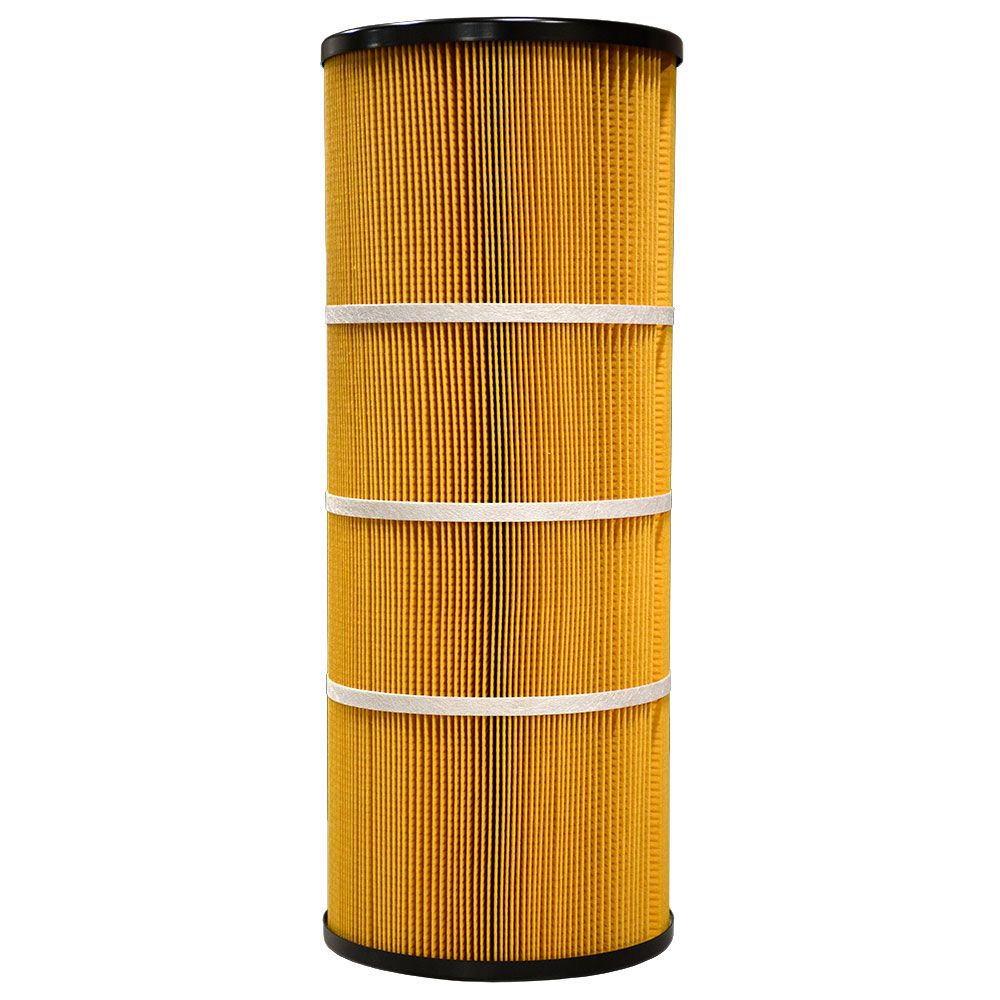

Neo-Pure PSJ-90-05M Pleated High Temp Jumbo Cartridge 5 micron

Part Number: PSJ-90-05M

In Stock

out of stock

In Stock

$111.25

The Neo-Pure PSJ-90-05M Pleated High Temperature Jumbo Cartridge is manufactured in the USA and designed to be used in applications where temperatures may range up to 250°F. Neo-Pure High Temperature Cartridges are constructed out of pleated phenolic impregnated cellulose media and come with Buna-N gaskets. The pleated surface area increases filter life, loading capacity, and particle removal.

Specifications:
  • Pleated design for increased surface area, dirt holding capacity and increased particle removal
  • Fewer cartridges to change results in lower maintenance costs
  • Media: Pleated phenolic impregnated cellulose
  • Epoxy coated center core
  • Gaskets: Buna-N
  • Filter Dimensions: 19-1/2" x 7-5/8"
  • Max Temperature: 250°F
  • Made in the USA
Applications:
  • High Temperature Industrial Water
  • Filtration
  • Lubricating Oil
  • Cutting Fluids
  • Solvents
  • Distillate Fuel
  • Fuel Oil
  • Hydraulic Fluids
Compatible with the American Filtration 820-5B and Watts FMPIC-90-5-HT.


Compatible with:
American Filtration Technologies820-5B
WattsFMPIC-90-5-HT

Weight & Dimensions

Weight (lbs)

6

Approx Length (Inches)

19 1/2" (49.5 cm)

Case Dimensions

9x9x21

Details

Max Temp (°F)

250

Max Pressure (Psi)

75

Cap Material

Electro Plated Tin

Capacity

As Needed

Cartridge Style

Drop-In

Filter Application

Sediment/Dirt/Rust

Gaskets

Buna-N

Media Type

Phenolic Impregnated Cellulose

Micron Rating (Nominal)

5 µm

Origin

USA

Outer Diameter

7-5/8"

Surface Area

Approximately 90 Square Feet


Neo-Pure




The Neo-Pure PSJ-90-05M Pleated High Temperature Jumbo Cartridge is manufactured in the USA and designed to be used in applications where temperatures may range up to 250°F. Neo-Pure High Temperature Cartridges are constructed out of pleated phenolic impregnated cellulose media and come with Buna-N gaskets. The pleated surface area increases filter life, loading capacity, and particle removal.

Specifications:
  • Pleated design for increased surface area, dirt holding capacity and increased particle removal
  • Fewer cartridges to change results in lower maintenance costs
  • Media: Pleated phenolic impregnated cellulose
  • Epoxy coated center core
  • Gaskets: Buna-N
  • Filter Dimensions: 19-1/2" x 7-5/8"
  • Max Temperature: 250°F
  • Made in the USA
Applications:
  • High Temperature Industrial Water
  • Filtration
  • Lubricating Oil
  • Cutting Fluids
  • Solvents
  • Distillate Fuel
  • Fuel Oil
  • Hydraulic Fluids
Compatible with the American Filtration 820-5B and Watts FMPIC-90-5-HT.


Compatible with:
American Filtration Technologies820-5B
WattsFMPIC-90-5-HT

Weight & Dimensions

Weight (lbs)

6

Approx Length (Inches)

19 1/2" (49.5 cm)

Case Dimensions

9x9x21

Details

Max Temp (°F)

250

Max Pressure (Psi)

75

Cap Material

Electro Plated Tin

Capacity

As Needed

Cartridge Style

Drop-In

Filter Application

Sediment/Dirt/Rust

Gaskets

Buna-N

Media Type

Phenolic Impregnated Cellulose

Micron Rating (Nominal)

5 µm

Origin

USA

Outer Diameter

7-5/8"

Surface Area

Approximately 90 Square Feet
