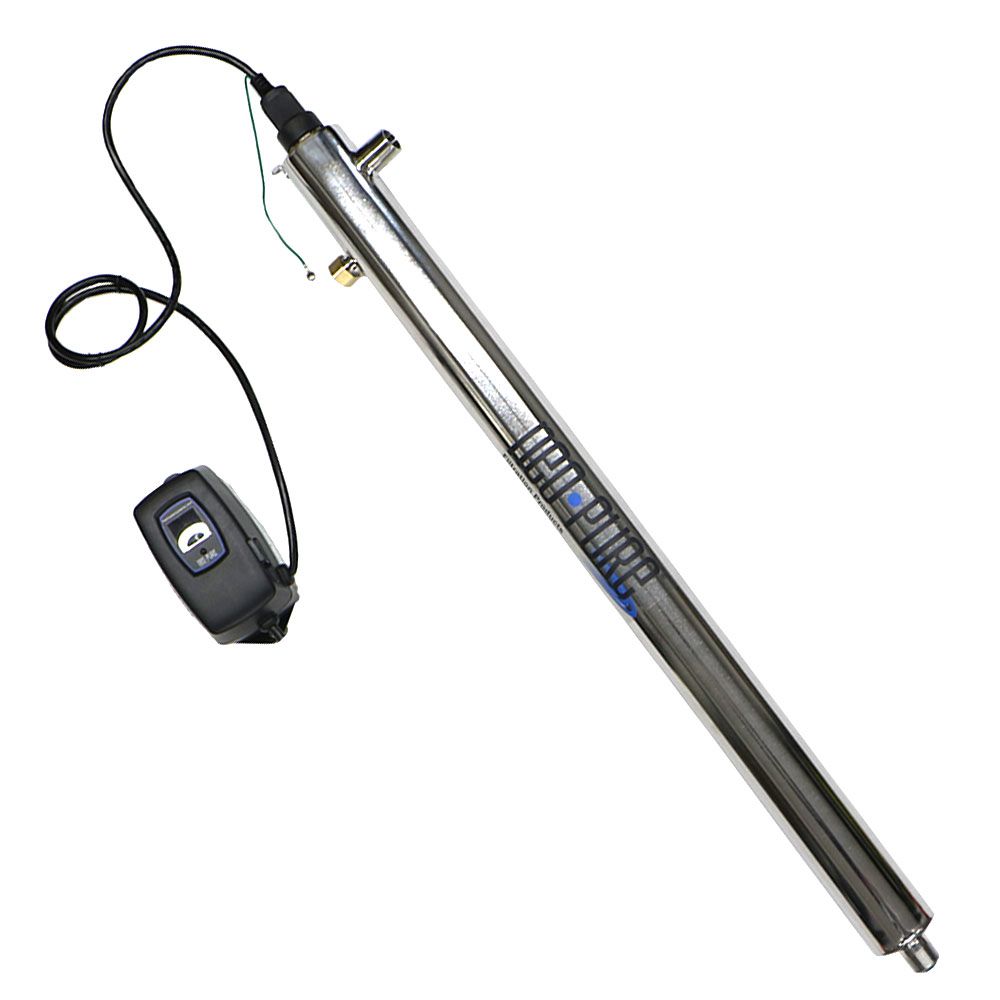

Neo-Pure NP5-11 UV Disinfection System - 11 GPM
Part Number: NP5-11
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
System Features:
- Axial Flow 304 Stainless Steel Reactor

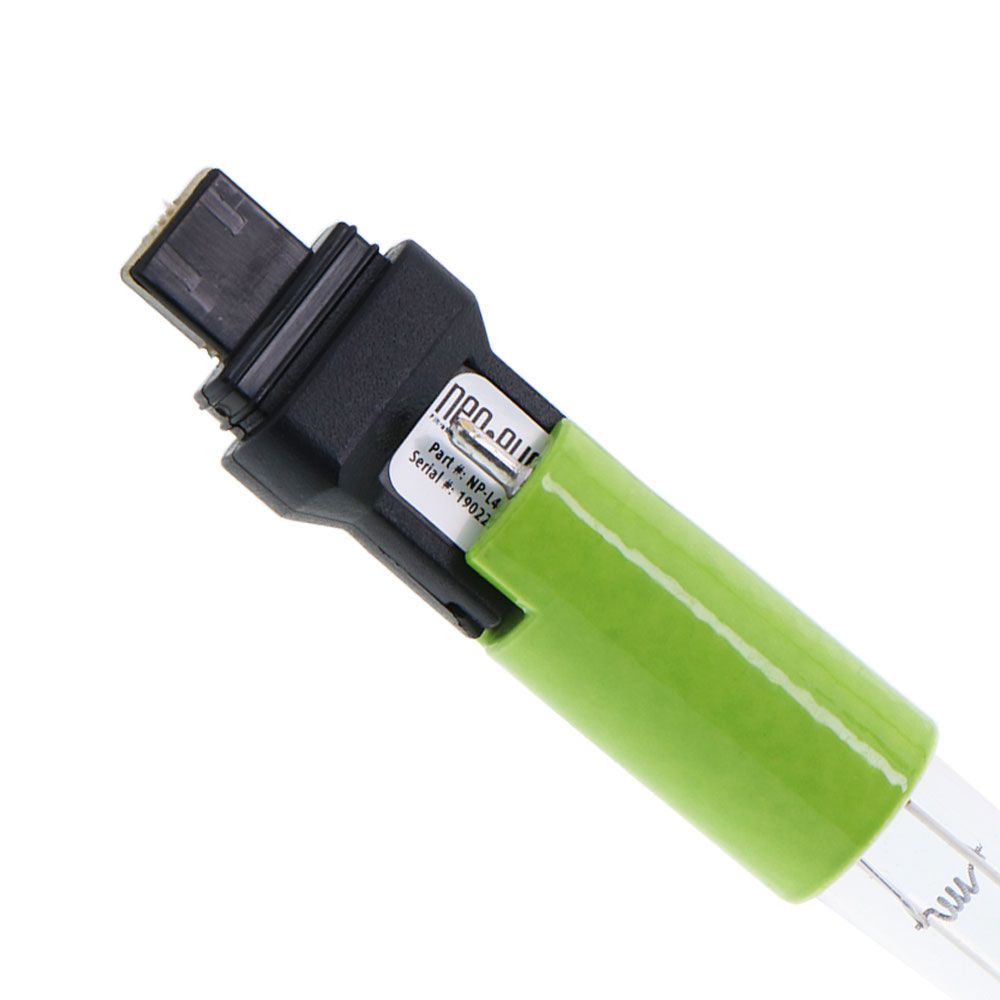

- 1/4 Turn Lamp Connector for easy maintenance

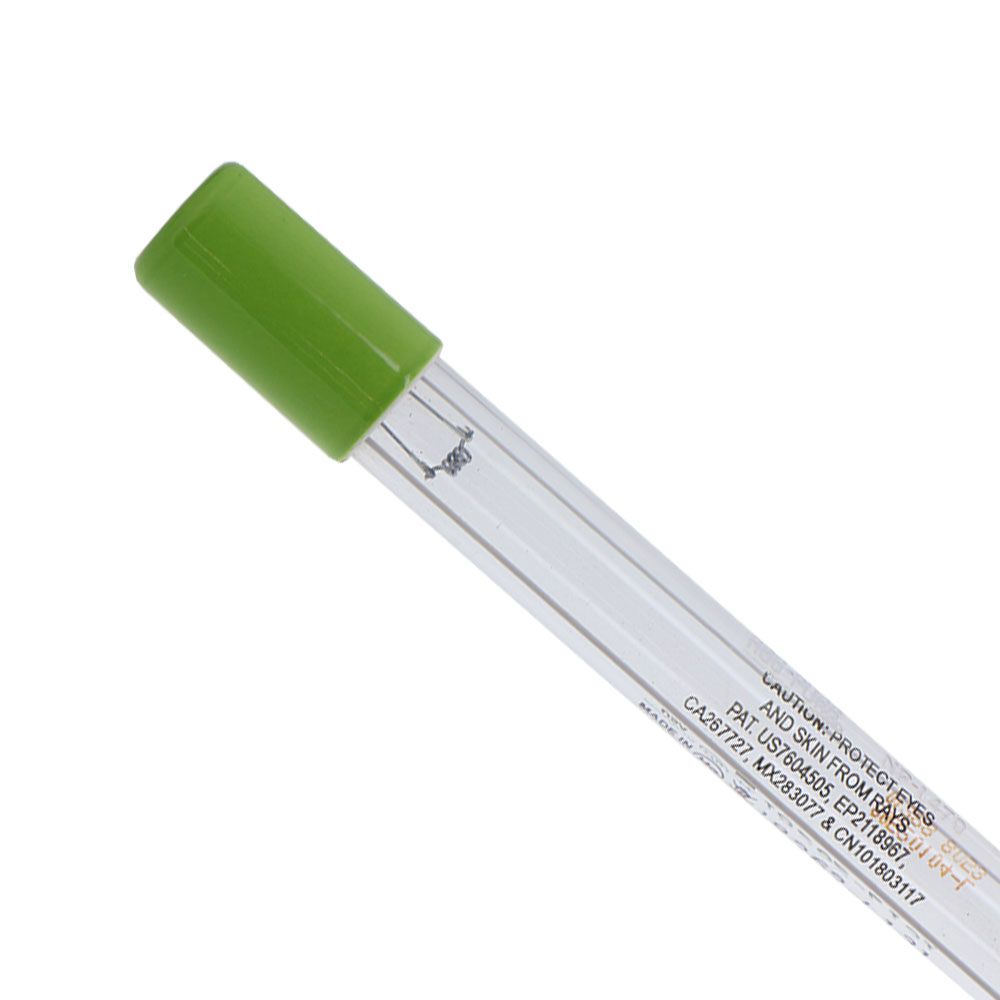

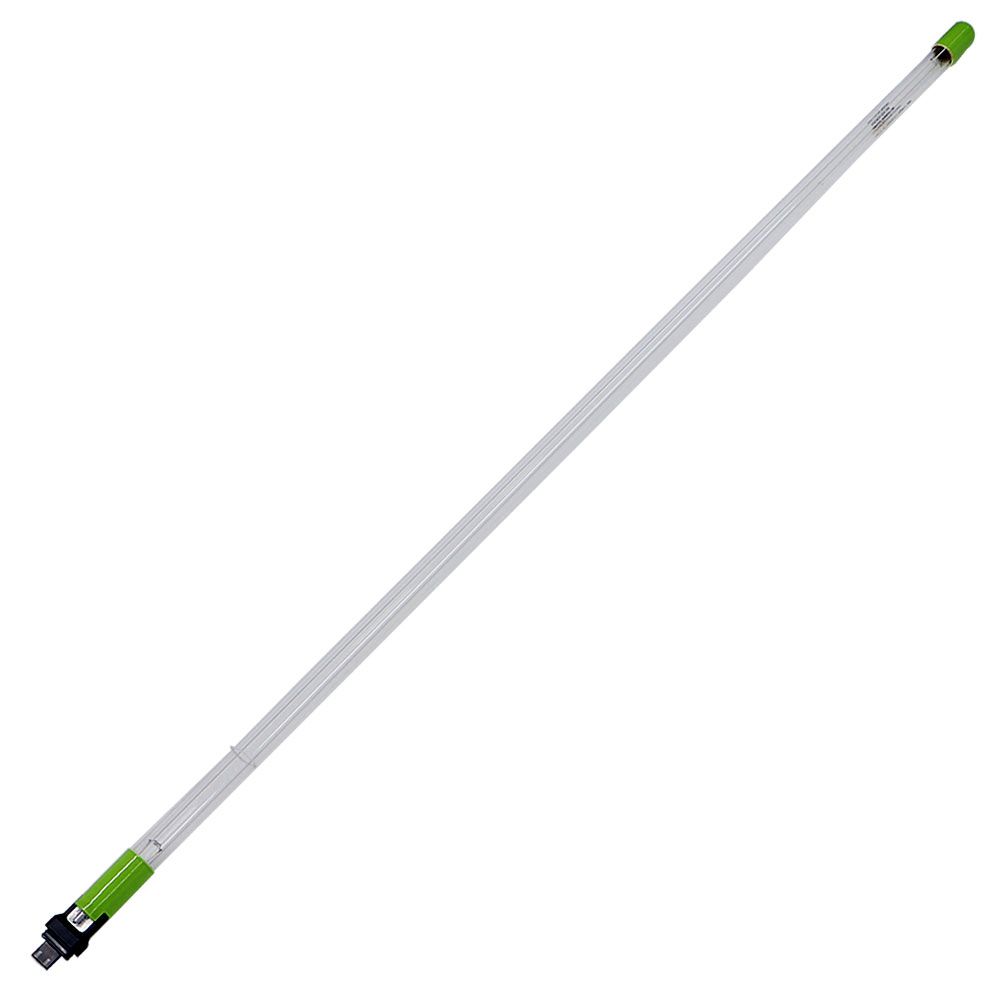

- Industry Proven Low Pressure Coated UV Lamp for Long Lamp Life

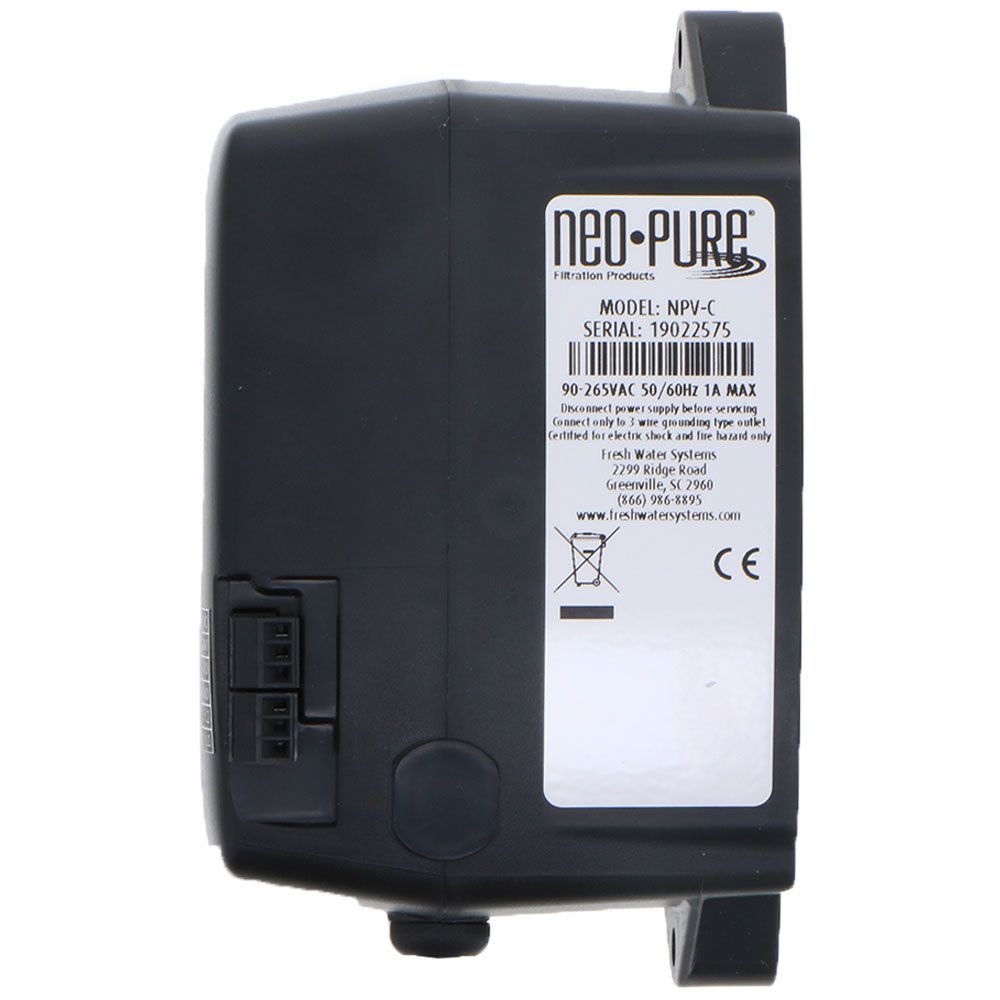

- Constant Current Electronic Controller with Splash Proof Casings
- 11 GPM LP System with Monitoring

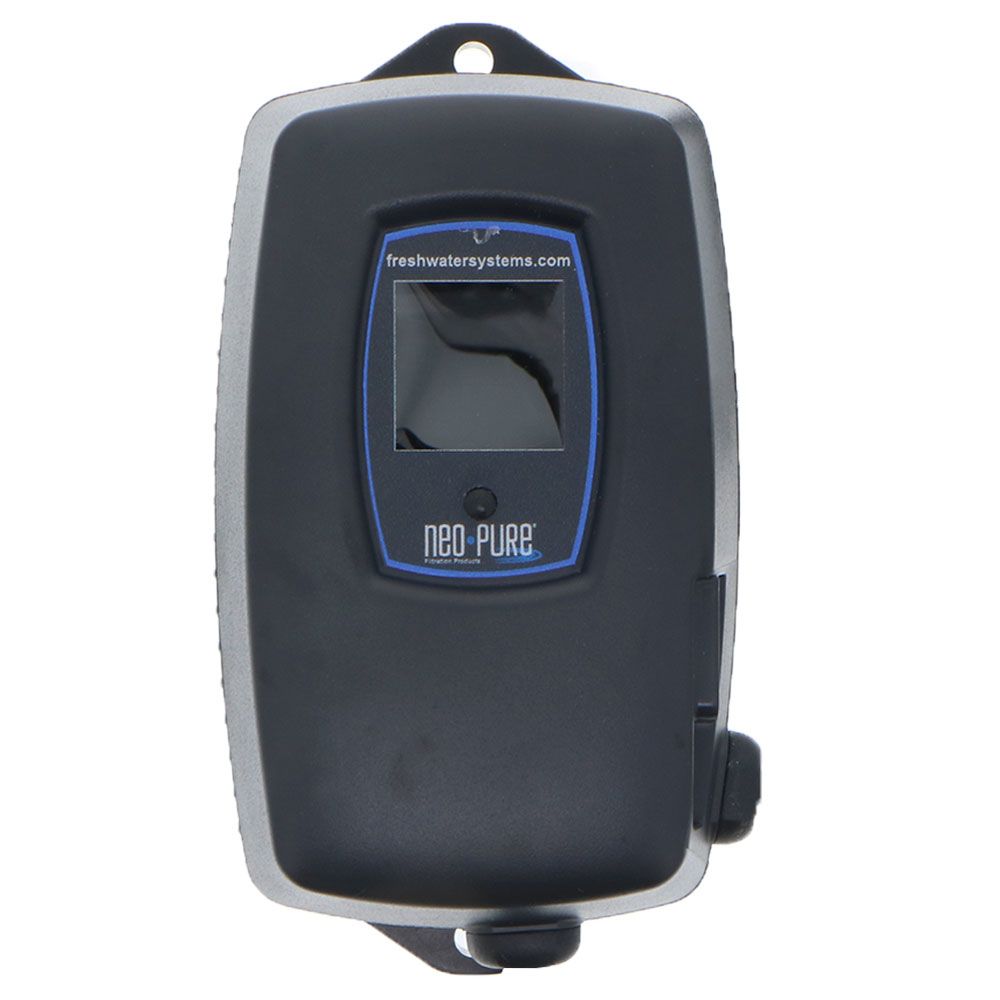

The Neo-Pure NP5-11 unit receives our Premium LED controller standard. This premium controller features new technology designed to eliminate the guesswork out of UV system maintenance. Older systems require a manual reset that, if performed incorrectly, would lead to UV lamp failure without the user’s knowledge. The Neo-Pure UV System uses a state-of-the-art encrypted lamp key which is required for the system to run. When the UV Bulb reaches its limit the unit will shut down, and the LED display will notify the user that the UV lamp needs to be replaced. The new lamp comes with a new encrypted key that brings the unit safely back online and ensures safe drinking water for your home. The controller has many other helpful screens to keep the user posted on on-going maintenance and parts replacement.
Monitor Features:
- Lamp Life Remaining Screen
- Lamp Expiration Screen
- QR Code Screen for Immediate Information
- Lamp Failure Monitor
- Incorrect Lamp Usage Indicator
- Maintenance Parts Guide for Correct Replacement Ordering
- Missing Port Key or Invalid Key Indicator
- Fresh Water Systems Contact Information
Product Details | |
---|---|
Amps | 1 Amps |
Body Material | 304 Stainless Steel |
Inlet Connection | 3/4" MPT |
Max Pressure (Psi) | 150 |
Min Pressure (Psi) | 10 |
Outlet Connection | 3/4" MPT |
Power | 49 Watts |
Size | 3/4" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Flow Rate | 11 GPM (30mJ/cm2 @ 95% UVT) 8.3 GPM (40mJ/cm2 @ 95% UVT) 20 GPM (16mJ/cm2 @ 95% UVT) |
Type | Single UV System |
Shipping Dimensions | |
Shipping Length | 37 in. |
Shipping Width | 12 in. |
Shipping Height | 6 in. |
Product Weight & Dimensions | |
Dimensions | 2.5” D x 35.2” L (6.4 x 89.5cm) |
Product Weight (lbs) | 13.6 |
System Features:
- Axial Flow 304 Stainless Steel Reactor
- 1/4 Turn Lamp Connector for easy maintenance
- Industry Proven Low Pressure Coated UV Lamp for Long Lamp Life
- Constant Current Electronic Controller with Splash Proof Casings
- 11 GPM LP System with Monitoring
The Neo-Pure NP5-11 unit receives our Premium LED controller standard. This premium controller features new technology designed to eliminate the guesswork out of UV system maintenance. Older systems require a manual reset that, if performed incorrectly, would lead to UV lamp failure without the user’s knowledge. The Neo-Pure UV System uses a state-of-the-art encrypted lamp key which is required for the system to run. When the UV Bulb reaches its limit the unit will shut down, and the LED display will notify the user that the UV lamp needs to be replaced. The new lamp comes with a new encrypted key that brings the unit safely back online and ensures safe drinking water for your home. The controller has many other helpful screens to keep the user posted on on-going maintenance and parts replacement.
Monitor Features:
- Lamp Life Remaining Screen
- Lamp Expiration Screen
- QR Code Screen for Immediate Information
- Lamp Failure Monitor
- Incorrect Lamp Usage Indicator
- Maintenance Parts Guide for Correct Replacement Ordering
- Missing Port Key or Invalid Key Indicator
- Fresh Water Systems Contact Information
Product Details | |
---|---|
Amps | 1 Amps |
Body Material | 304 Stainless Steel |
Inlet Connection | 3/4" MPT |
Max Pressure (Psi) | 150 |
Min Pressure (Psi) | 10 |
Outlet Connection | 3/4" MPT |
Power | 49 Watts |
Size | 3/4" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Flow Rate | 11 GPM (30mJ/cm2 @ 95% UVT) 8.3 GPM (40mJ/cm2 @ 95% UVT) 20 GPM (16mJ/cm2 @ 95% UVT) |
Type | Single UV System |
Shipping Dimensions | |
Shipping Length | 37 in. |
Shipping Width | 12 in. |
Shipping Height | 6 in. |
Product Weight & Dimensions | |
Dimensions | 2.5” D x 35.2” L (6.4 x 89.5cm) |
Product Weight (lbs) | 13.6 |
