Neo-Pure

Neo-Pure MB-25300-20 30" Polypropylene Sediment Depth Filter 20 mic

Part Number: MB-25300-20

In Stock

out of stock

In Stock

$8.26

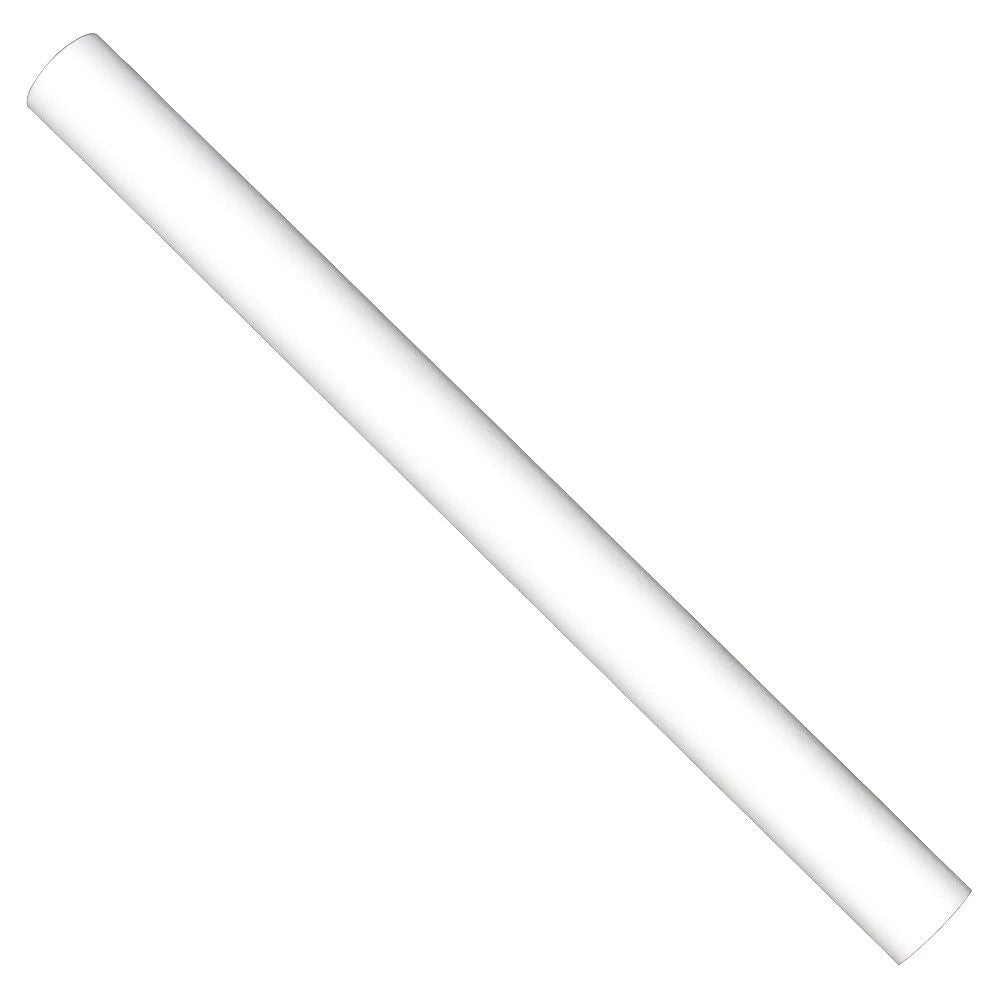

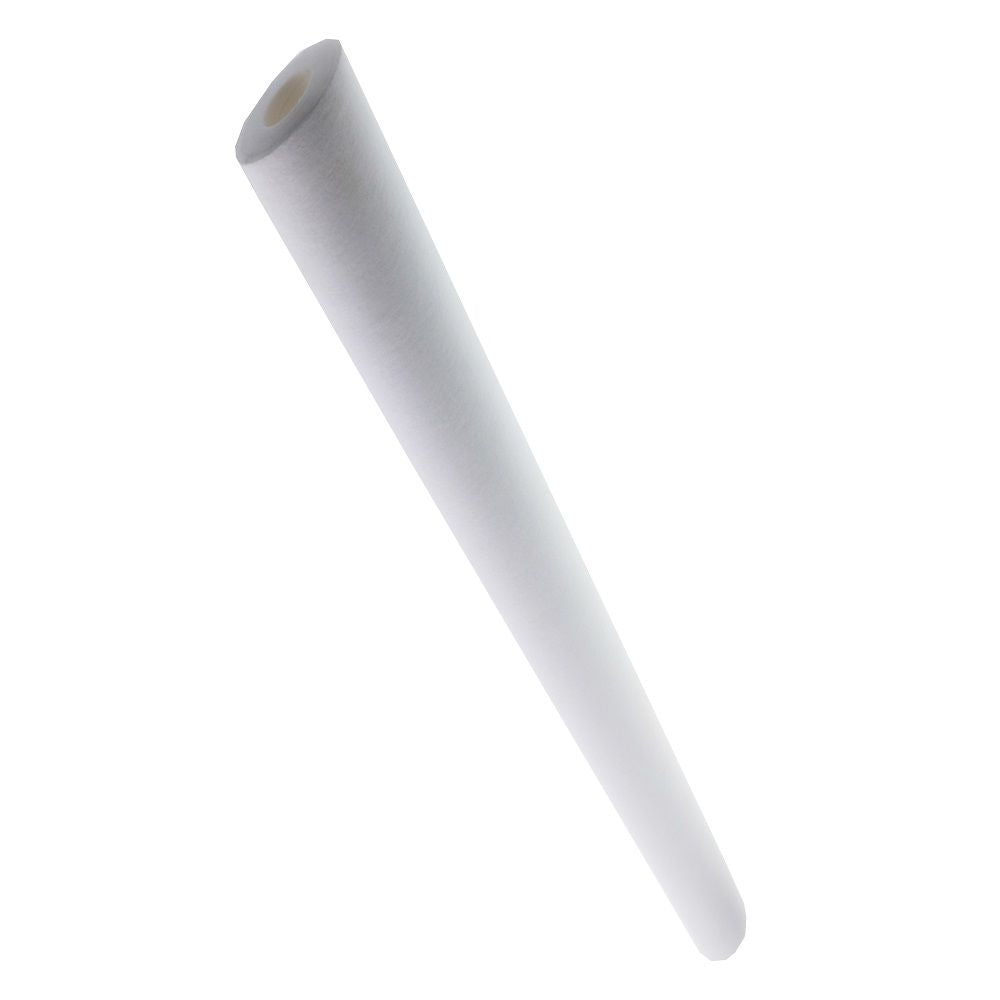

Neo-Pure MB-25300-20 is a High Efficiency 30" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 30" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-25300-20 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Features:
  • Long filter life
  • 100% pure polypropylene
  • Exceptional dirt-holding capacity
  • FDA approved materials
  • Fits in most water filter housings that use 30" x 2.5" filters
  • Tested and certified by NSF to NSF/ANSI Standard 42
Applications:
  • Aqueous Solutions
  • Component Wash Fluids
  • Coolants
  • Cutting Fluids
  • Fuels
  • Light Oil
  • Lubricants
  • Mineral and Synthetic Oils
  • Solvents
  • Water
  • Water Glycols



Compatible with:
GE Water93057, 1193057, PX20-30
Graver TechnologiesSTC20-30NN
HydronixSDC-25-3025

Weight & Dimensions

Approx Length (Inches)

30" (76.2 cm)

Case Dimensions

31x14x14

Case Quantity

25

Height (inches)

2.5

Length (inches)

30

Weight (lbs)

0.059375

Width (inches)

2.5

Details

Capacity

As Needed

Efficiency

0.8

Initial Pressure Drop

<1 psi typical PSI Differential

Max Temp (°F)

175

Micron Rating (Nominal)

20 µm

Min Temp (°F)

40

Psid@Flow Rate

< 1 psi typical

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Media Type

Polypropylene

Micron Rating

20 µm

Product Length

30"

Warranty & Certifications

Certifications

NSF/ANSI 42; FDA CFR-21
