Features:
- Long filter life
- 100% pure polypropylene
- Exceptional dirt-holding capacity
- FDA approved materials
- Fits in most water filter housings that use 30" x 2.5" filters
- Tested and certified by NSF to NSF/ANSI Standard 42
- Aqueous Solutions
- Component Wash Fluids
- Coolants
- Cutting Fluids
- Fuels
- Light Oil
- Lubricants
- Mineral and Synthetic Oils
- Solvents
- Water
- Water Glycols
Compatible with:
| GE Water | 93059, 1193059, PX05-30 |
| Graver Technologies | STC5-30NN |
| Hydronix | SDC-25-3005 |
| Liquatec | SDF-25-3005 |
| Pentek | P5-30, 155228-43 |
| Watts | FPMB5-30 |
Weight & Dimensions
Weight (lbs) | 2.4 |
Approx Length (Inches) | 30" (76.2 cm) |
Case Dimensions | 31x14x14 |
Details
Capacity | As Needed |
Efficiency | 0.8 |
Initial Pressure Drop | <1 psi typical PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 5 µm |
Product Length | 30" |
Warranty & Certifications
Certifications | NSF/ANSI 42; FDA CFR-21 |

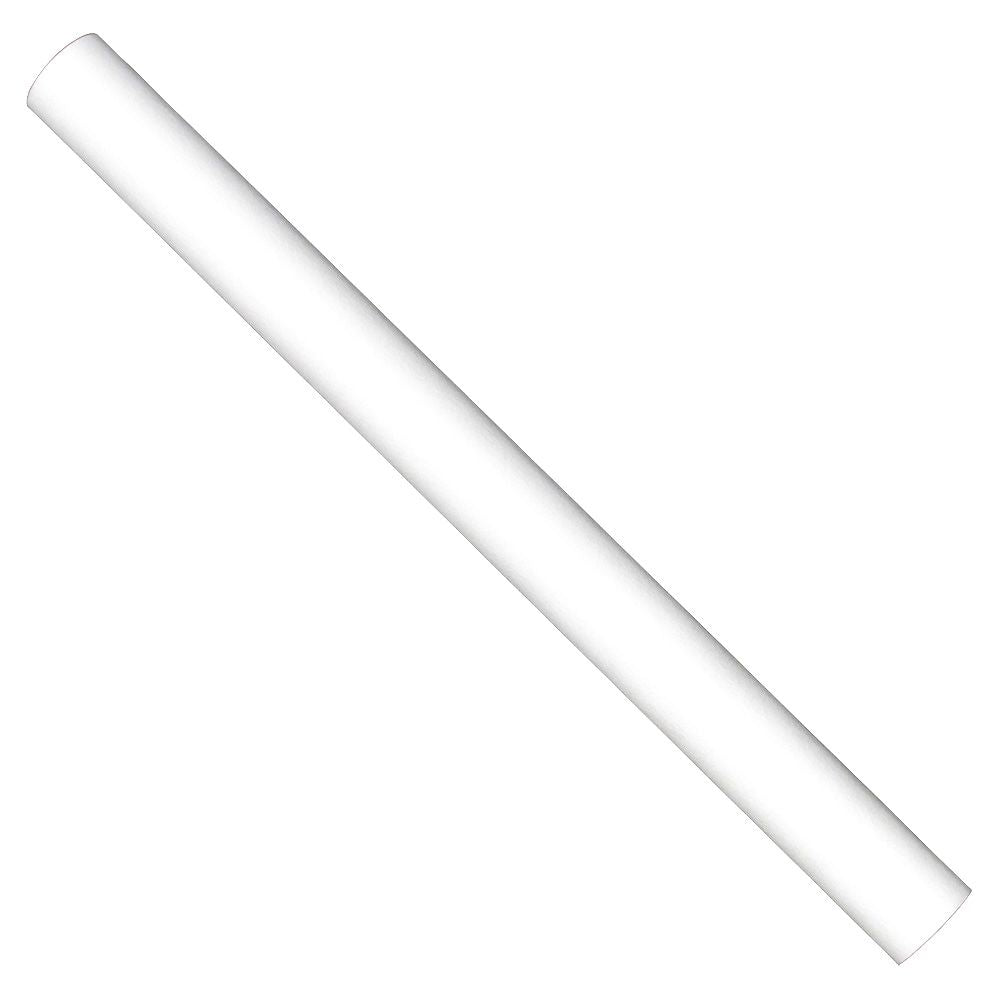

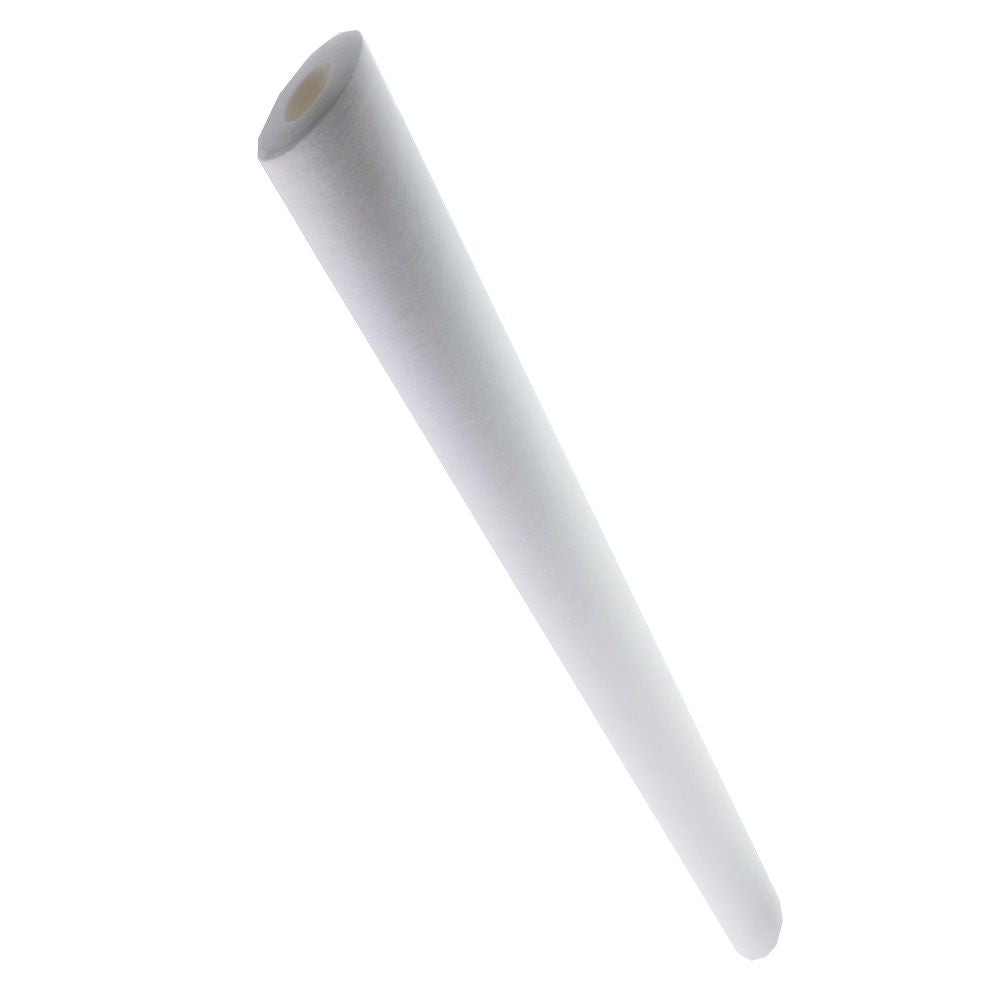

Neo-Pure MB-25300-05 is a High Efficiency 30" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 30" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-25300-05 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.
Features:
- Long filter life
- 100% pure polypropylene
- Exceptional dirt-holding capacity
- FDA approved materials
- Fits in most water filter housings that use 30" x 2.5" filters
- Tested and certified by NSF to NSF/ANSI Standard 42
- Aqueous Solutions
- Component Wash Fluids
- Coolants
- Cutting Fluids
- Fuels
- Light Oil
- Lubricants
- Mineral and Synthetic Oils
- Solvents
- Water
- Water Glycols
Compatible with:
| GE Water | 93059, 1193059, PX05-30 |
| Graver Technologies | STC5-30NN |
| Hydronix | SDC-25-3005 |
| Liquatec | SDF-25-3005 |
| Pentek | P5-30, 155228-43 |
| Watts | FPMB5-30 |
Weight & Dimensions
Weight (lbs) | 2.4 |
Approx Length (Inches) | 30" (76.2 cm) |
Case Dimensions | 31x14x14 |
Details
Capacity | As Needed |
Efficiency | 0.8 |
Initial Pressure Drop | <1 psi typical PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 5 µm |
Product Length | 30" |
Warranty & Certifications
Certifications | NSF/ANSI 42; FDA CFR-21 |
