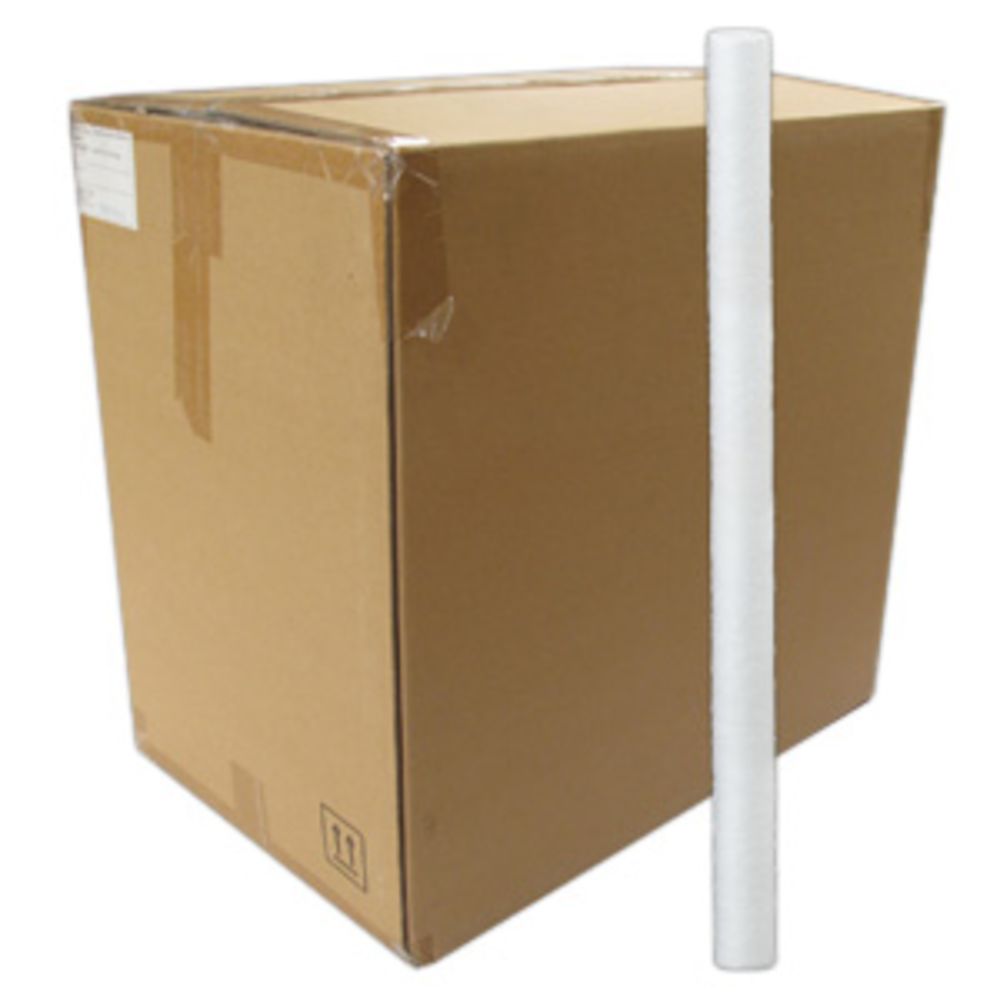

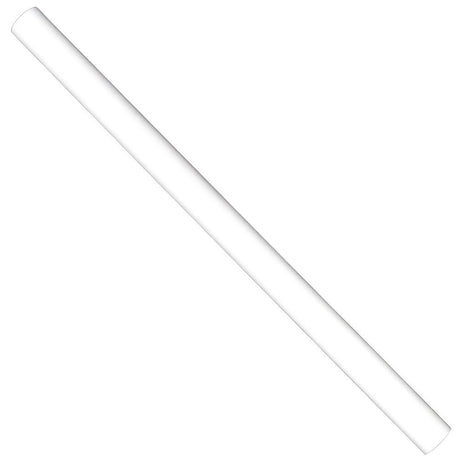

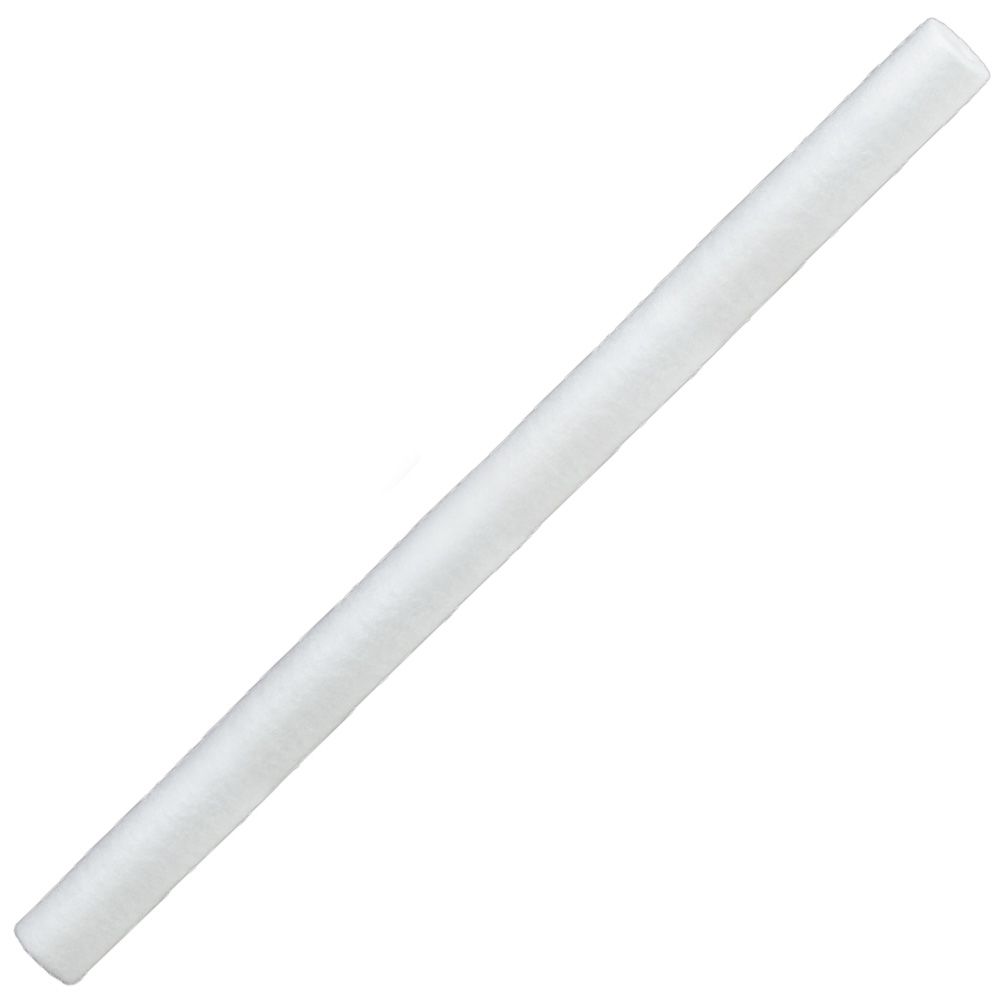

Neo-Pure HMB-25400-05 40" High Efficiency Meltblown Filter 5 micron

Part Number: HMB-25400-05

In Stock

out of stock

In Stock

$15.98

The Neo-Pure HMB-25400-05 40" Meltblown 5 mic. 100% polypropylene filters offer economical and efficient filtration for commercial and industrial liquid applications. Ideal applications range from, SDI (service deionization) systems, and CDI (continuous deionization) systems, to reverse osmosis systems. These cartridges are manufactured in the USA with high efficiency polypropylene ensuring reduction of sediment, dirt, and rust particles. Neo-Pure HMB-25400-05 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Specifications:
  • Length: 40"
  • Diameter: 2-1/2"
  • Micron Rating: 5.0 micron
  • Filter Media: 100% polypropylene
  • Double open ended for easy change out
Applications:
  • Chemicals
  • Food and Beverage
  • Microelectronics
  • Photo Solutions
  • Bottled Water
  • Plating Processes
  • Reverse Osmosis Prefiltration
  • Water and Wastewater



Fin Style
(222, 226, or SOE)

Dual O-ring Style
(222)

Spring Style
(222, 226, or SOE)

Dual O-ring Style
(226)

Gasket Style
(222 or 226)

Compatible with:
GE WaterGX05-40, 94084, 1194084
Graver TechnologiesSTA5-40NN

Weight & Dimensions

Approx Length (Inches)

40" (101.6 cm)

Box Dimensions

13x13.125x40.5

Case Quantity

25

Height (inches)

2.38

Length (inches)

39.88

Weight (lbs)

1.021875

Width (inches)

2.38

Details

Efficiency

0.9

Initial Pressure Drop

<1 psid typical PSI Differential

Max Temp (°F)

175

Micron Rating (Nominal)

5 µm

Outer Diameter

2-1/2"

Psid@Flow Rate

< 1 psi typical

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Media Type

Polypropylene

Micron Rating

5 µm

Origin

USA

Product Length

40"

Warranty & Certifications

Certifications

FDA CFR-21


Neo-Pure




The Neo-Pure HMB-25400-05 40" Meltblown 5 mic. 100% polypropylene filters offer economical and efficient filtration for commercial and industrial liquid applications. Ideal applications range from, SDI (service deionization) systems, and CDI (continuous deionization) systems, to reverse osmosis systems. These cartridges are manufactured in the USA with high efficiency polypropylene ensuring reduction of sediment, dirt, and rust particles. Neo-Pure HMB-25400-05 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Specifications:
  • Length: 40"
  • Diameter: 2-1/2"
  • Micron Rating: 5.0 micron
  • Filter Media: 100% polypropylene
  • Double open ended for easy change out
Applications:
  • Chemicals
  • Food and Beverage
  • Microelectronics
  • Photo Solutions
  • Bottled Water
  • Plating Processes
  • Reverse Osmosis Prefiltration
  • Water and Wastewater



Fin Style
(222, 226, or SOE)

Dual O-ring Style
(222)

Spring Style
(222, 226, or SOE)

Dual O-ring Style
(226)

Gasket Style
(222 or 226)

Compatible with:
GE WaterGX05-40, 94084, 1194084
Graver TechnologiesSTA5-40NN

Weight & Dimensions

Approx Length (Inches)

40" (101.6 cm)

Box Dimensions

13x13.125x40.5

Case Quantity

25

Height (inches)

2.38

Length (inches)

39.88

Weight (lbs)

1.021875

Width (inches)

2.38

Details

Efficiency

0.9

Initial Pressure Drop

<1 psid typical PSI Differential

Max Temp (°F)

175

Micron Rating (Nominal)

5 µm

Outer Diameter

2-1/2"

Psid@Flow Rate

< 1 psi typical

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Media Type

Polypropylene

Micron Rating

5 µm

Origin

USA

Product Length

40"

Warranty & Certifications

Certifications

FDA CFR-21
