Features:
- 100% Polypropylene. The Neo-Pure MB-25400-05 is constructed of 100% pure polypropylene which has exceptional dirt holding capacity.
- FDA Approved Materials. The Neo-Pure MB-25400-05 is constructed with materials that are FDA approved for water that is filtered to a level that is safe and clean for cooking, bathing, and drinking.
- NSF Certified. The Neo-Pure MB-25400-05 has been tested and certified by NSF to the NSF/ANSI Standard 42.
- Aqueous Solutions
- Component Wash Fluids
- Coolants
- Cutting Fluids
- Fuels
- Light Oil
- Lubricants
- Mineral and Synthetic Oils
- Solvents
- Water
- Water Glycols
Compatible with:
| GE Water | 93063, PX05-40, 1193063 |
| Hydronix | SDC-25-4005 |
| Liquatec | SDF-25-4005 |
| Pentek | P5-40, 155422-43 |
| Watts | FPMB5-40 |

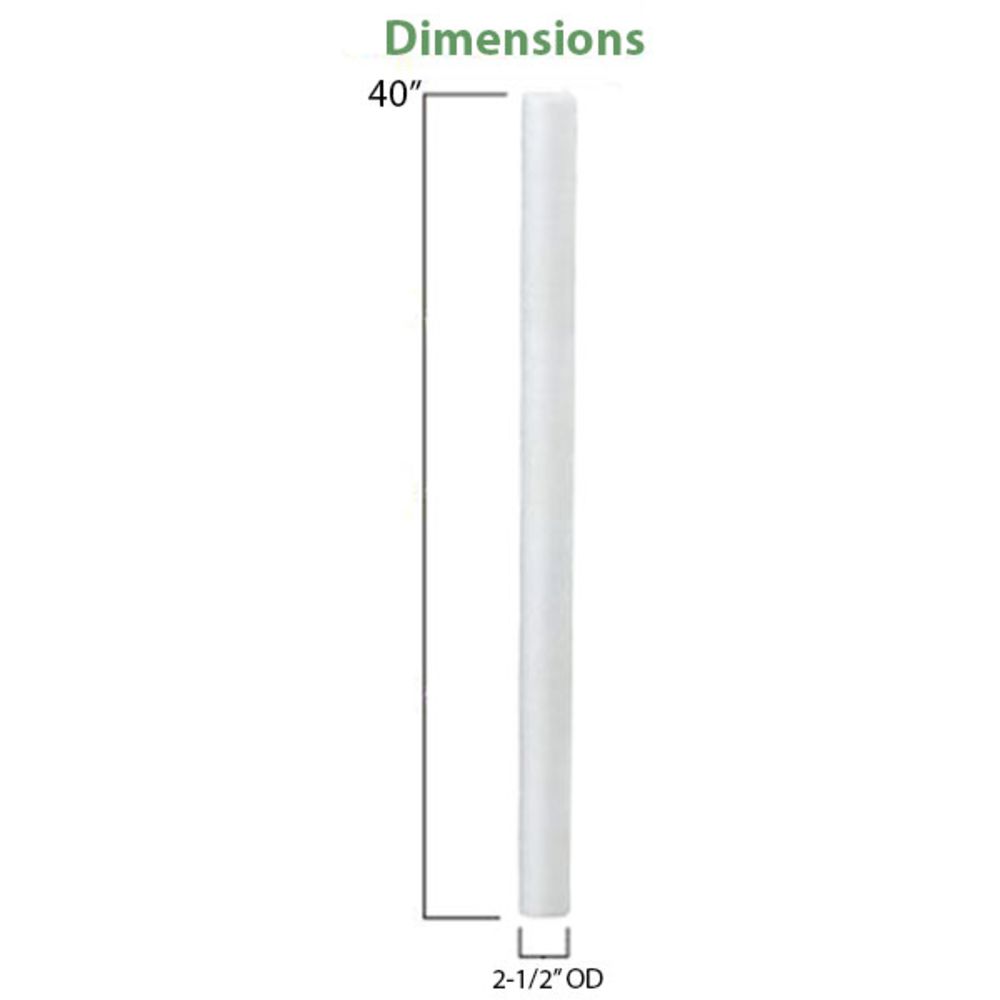

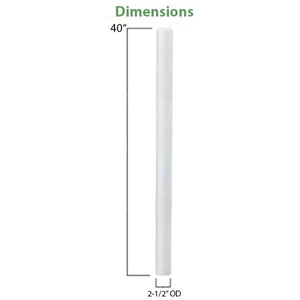

Weight & Dimensions
Case Dimensions | 41x14x14 |
Case Quantity | 25 |
Height (inches) | 2.5 |
Length (inches) | 40 |
Weight (lbs) | 0.0125 |
Width (inches) | 2.5 |
Details
Efficiency | 0.8 |
Initial Pressure Drop | <1 typical PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Outer Diameter | 2-1/2" |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 5 µm |
Product Length | 40" |
Warranty & Certifications
Certifications | NSF/ANSI 42; FDA CFR-21 |

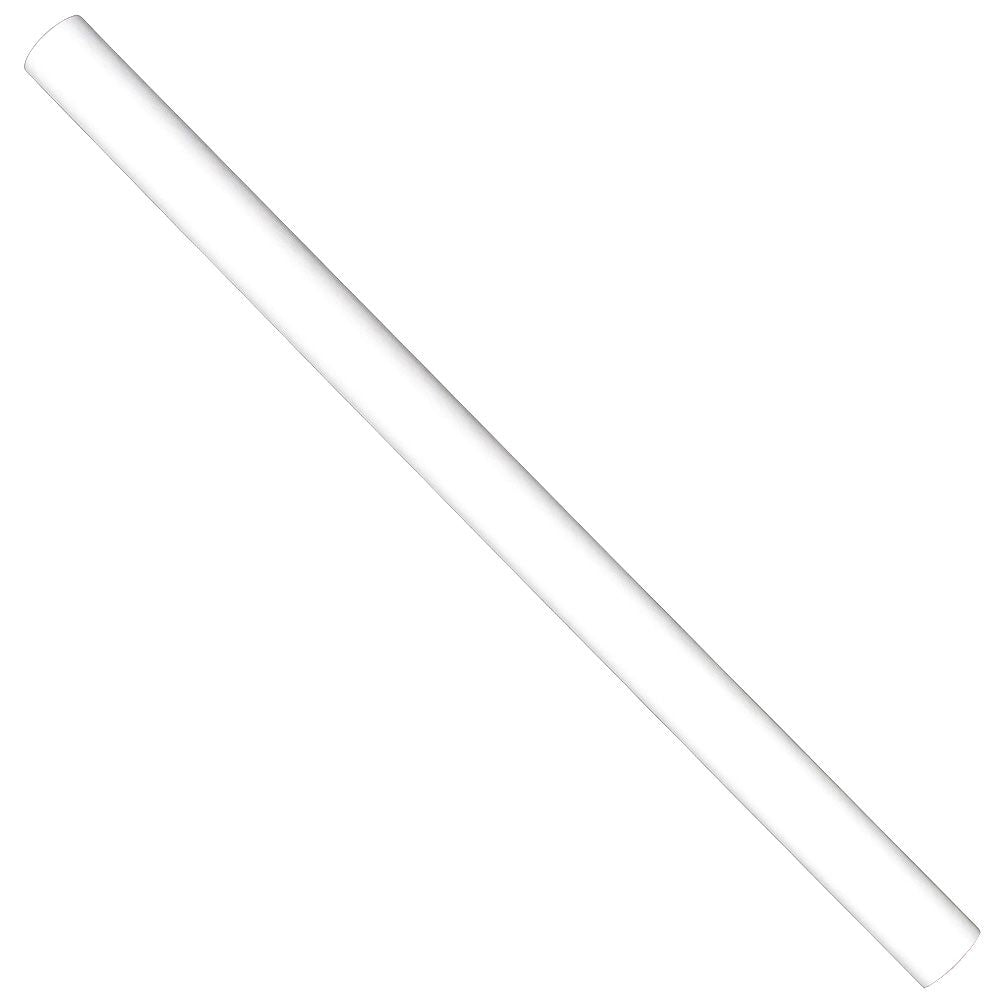

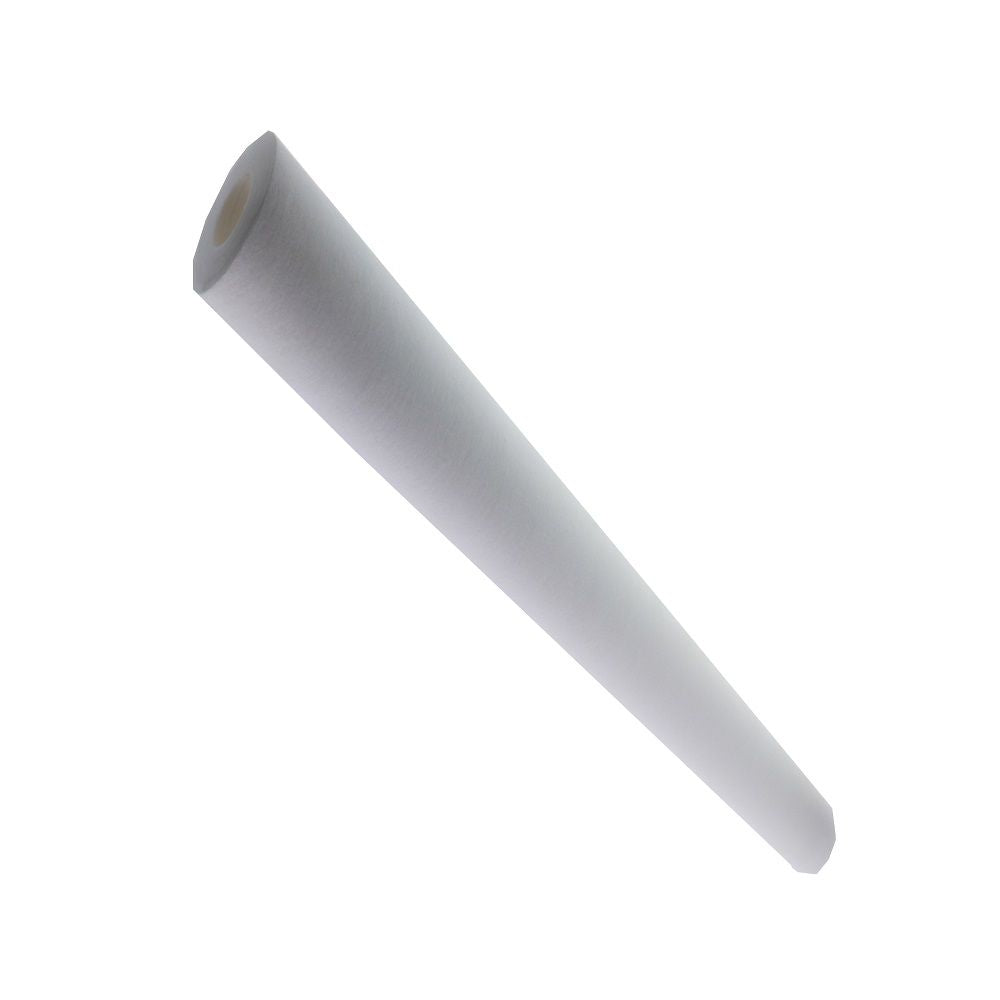

Neo-Pure MB-25400-05 is a High Efficiency 40" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 40" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-25400-05 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.
Features:
- 100% Polypropylene. The Neo-Pure MB-25400-05 is constructed of 100% pure polypropylene which has exceptional dirt holding capacity.
- FDA Approved Materials. The Neo-Pure MB-25400-05 is constructed with materials that are FDA approved for water that is filtered to a level that is safe and clean for cooking, bathing, and drinking.
- NSF Certified. The Neo-Pure MB-25400-05 has been tested and certified by NSF to the NSF/ANSI Standard 42.
- Aqueous Solutions
- Component Wash Fluids
- Coolants
- Cutting Fluids
- Fuels
- Light Oil
- Lubricants
- Mineral and Synthetic Oils
- Solvents
- Water
- Water Glycols
Compatible with:
| GE Water | 93063, PX05-40, 1193063 |
| Hydronix | SDC-25-4005 |
| Liquatec | SDF-25-4005 |
| Pentek | P5-40, 155422-43 |
| Watts | FPMB5-40 |
Weight & Dimensions
Case Dimensions | 41x14x14 |
Case Quantity | 25 |
Height (inches) | 2.5 |
Length (inches) | 40 |
Weight (lbs) | 0.0125 |
Width (inches) | 2.5 |
Details
Efficiency | 0.8 |
Initial Pressure Drop | <1 typical PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Outer Diameter | 2-1/2" |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 5 µm |
Product Length | 40" |
Warranty & Certifications
Certifications | NSF/ANSI 42; FDA CFR-21 |
Documentation
