Neo-Pure

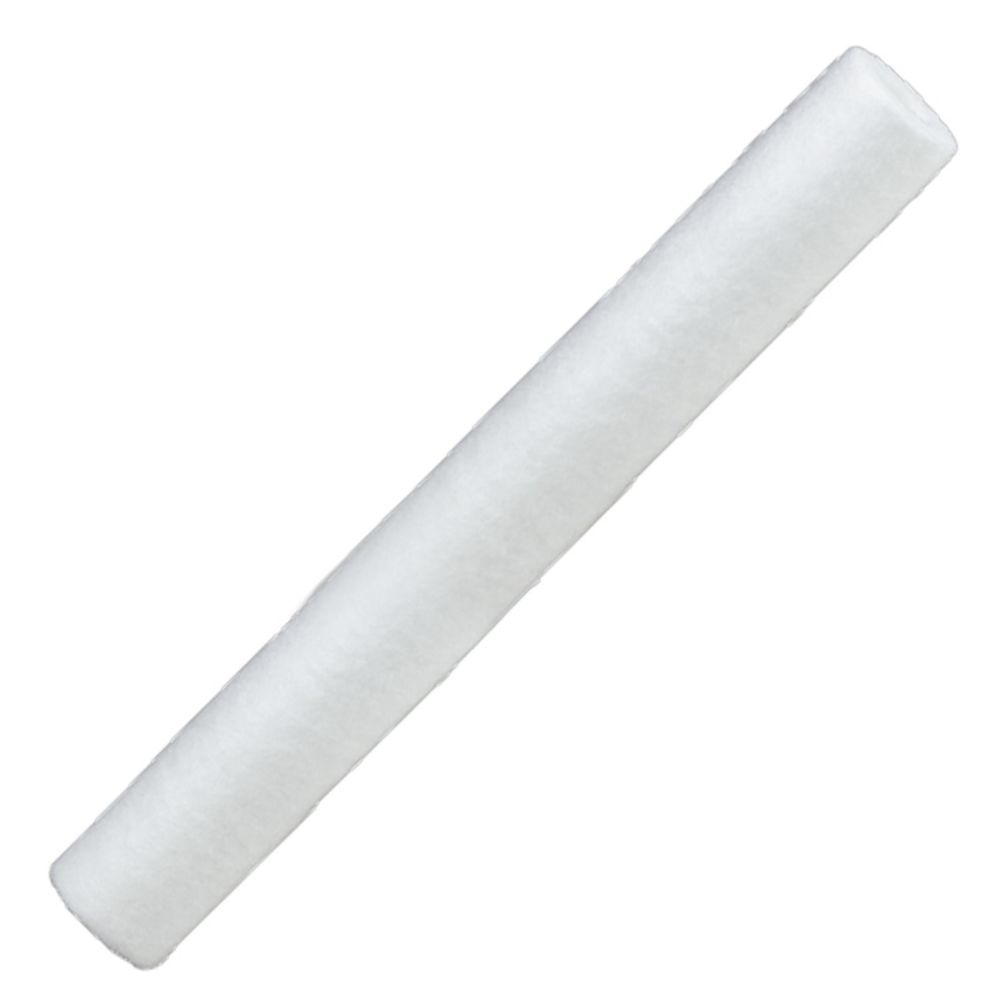

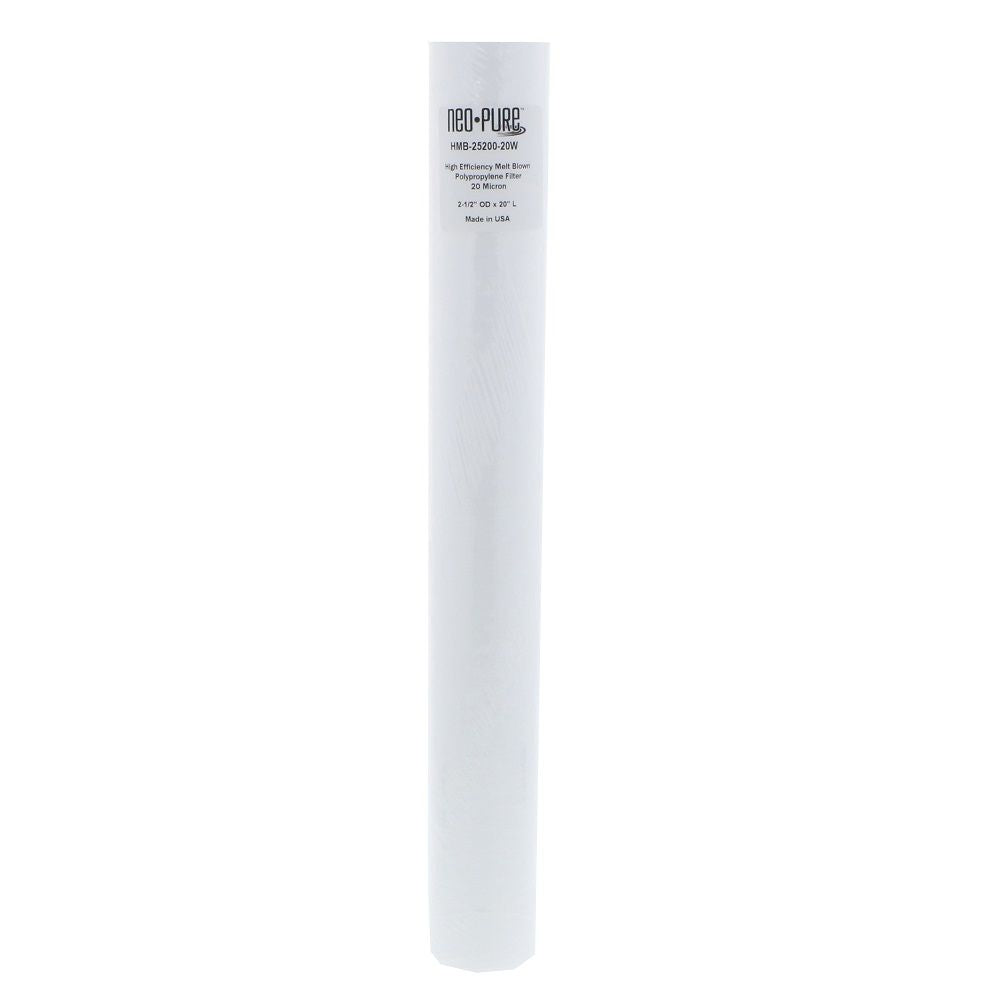

Neo-Pure HMB-25200-20W 20" High Efficiency Meltblown Filter 20 micron

Part Number: HMB-25200-20W

In Stock

out of stock

In Stock

$8.05

Neo-Pure HMB-25200-20W 20" Meltblown 20 mic. 100% polypropylene filters offer economical and efficient filtration for commercial and industrial liquid applications. Ideal applications range from, SDI (service deionization) systems, and CDI (continuous deionization) systems, to reverse osmosis systems. These cartridges are manufactured in the USA with high efficiency polypropylene ensuring reduction of sediment, dirt, and rust particles. Neo-Pure HMB-25200-20W filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Applications
  • Chemicals
  • Food and Beverage
  • Microelectronics
  • Photo Solutions
  • Bottled Water
  • Plating Processes
  • Reverse Osmosis Prefiltration
  • Water and Wastewater
Features:
  • High dirt holding capacity
  • Double open-ended for quick change-out
  • Reduces sediment, dirt, and rust particles
  • Filter Media: 100% polypropylene
  • High efficiency operating at 90% efficiency
  • FDA CFR Title 21 Approved Material
  • Certified by WQA to NSF/ANSI Standard 61
  • Certified by WQA to NSF/ANSI Standard 42



Fin Style
(222, 226, or SOE)

Dual O-ring Style
(222)

Spring Style
(222, 226, or SOE)

Dual O-ring Style
(226)

Gasket Style
(222 or 226)

Compatible with:
GE WaterGX20-20, 94222, 1194222
General ElectricSTA20-20NN

Weight & Dimensions

Box Dimensions

13x13.125x23.25

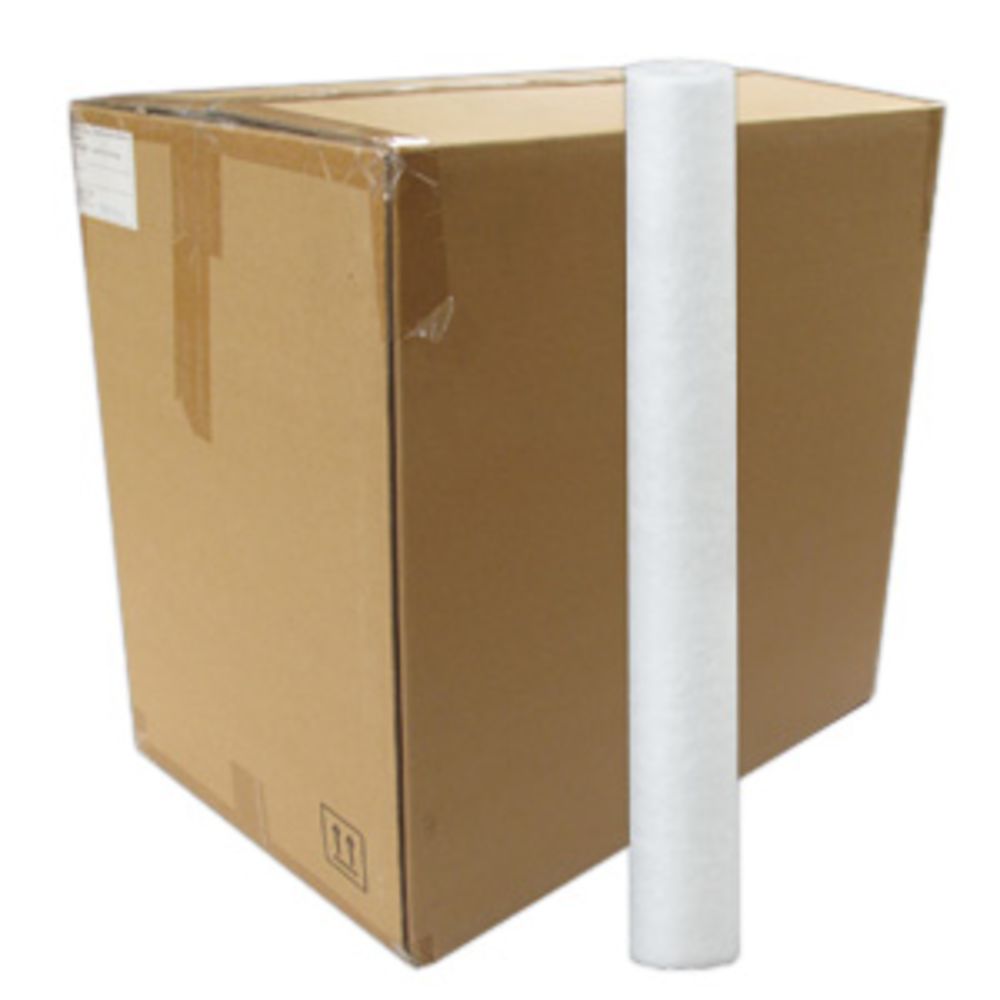

Case Quantity

25

Height (inches)

2.5

Length (inches)

20

Weight (lbs)

0.04375

Width (inches)

2.5

Details

Efficiency

0.9

Initial Pressure Drop

<1 psi typical PSI Differential

Max Temp (°F)

175

Micron Rating (Nominal)

20 µm

Outer Diameter

2-1/2"

Psid@Flow Rate

< 1 psi typical

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Media Type

Polypropylene

Micron Rating

20 µm

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

FDA CFR-21


Neo-Pure
