Neo-Pure

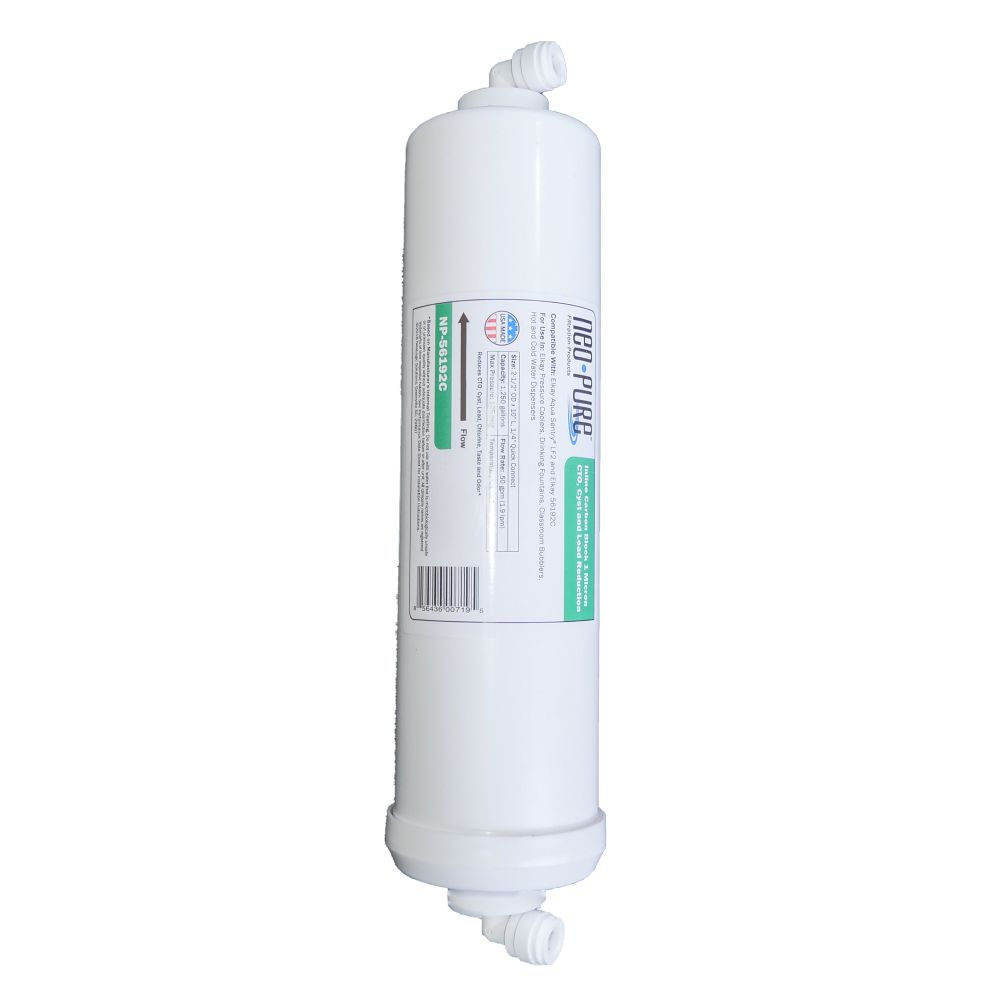

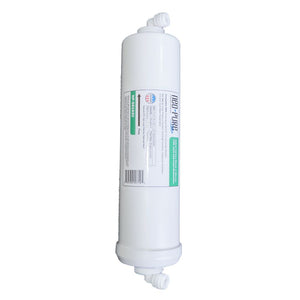

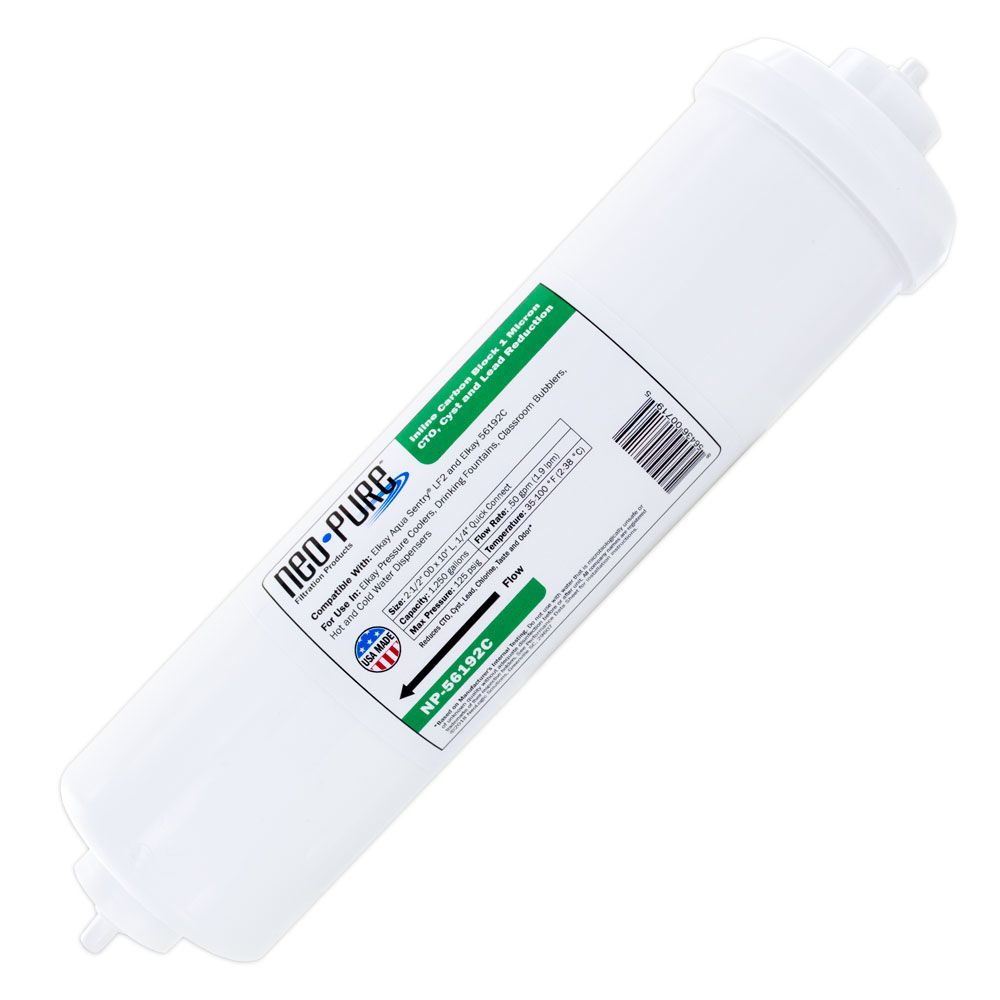

Neo-Pure Elkay LF2 Aqua Sentry® Compatible Filter Kit (1250 gal)

Part Number: NP-LF2

In Stock

out of stock

In Stock

$53.06


The NeoPure Aqua Sentry® LF2 Compatible Filter (1250 gal) is a perfect compatible to the Elkay LF2 Aqua Sentry® LF2 Replacement Filter System. This filter is designed to fit into Elkay water coolers, drinking fountains, classroom bubblers and instant hot and cold water dispensers. This filter kit is uniquely designed to effectively remove lead and dangerous cysts like giardia and cryptosporidium from your water. The Neo-Pure NP-LF2 also removes bad taste, odor, and chlorine. It features a wider diameter, which creates a larger surface area for the activated carbon media to fully treat the water. The Neo-Pure NP-LF2 dispenser filter will continue to assist in removing harmful contaminants from the water supply at your residents, school, or business.

Features:
  • Made in the USA All Neo-Pure NP-LF2 Filters are made in the USA to ensure material safety, and reduction claims.
  • Quality Assurance The NP-LF2 is warranted to be free from defects in material and workmanship for a period of one year from date of installation. Warranty is limited to repair or replacement of defective component.

Installation Instructions:
  1. Install in cold water applications only
  2. Shut off water supply
  3. Note the flow direction on the filter
  4. For Quick Connect® fittings push scratch free tube end into the fitting until it feels tight. Pull back on the tubing to confirm that is it tight.bottom.
  5. After installing new filter, open water supply valve and check for leaks.
  6. Reconnect electrical power supply.
  7. Flush system sufficiently (approximately 3 minutes) to effectively remove small residue of carbon fines
Features & Specifications:
  • Size: 2-1/2" OD x 10" L
  • Water Inlet Connection: 1/4" QC OD tube
  • Water Outlet Connection: 1/4" QC OD tube
  • Filter Capacity: 1250 gallons/annually
  • Maximum Flow Rate: 0.50 GPM
  • Water Temperature: 35 - 100°F
  • Maximum Line Pressure: 125 PSI
  • Change Frequency: 12 months
  • Filter Media: Activated Carbon
  • One year limited warranty
  • Tested according to NSF Standard 42 for aesthetic effects and Standard 53 for health effects
NOTE: A water shutoff valve should be installed on the incoming water line to aid in future servicing of filter.

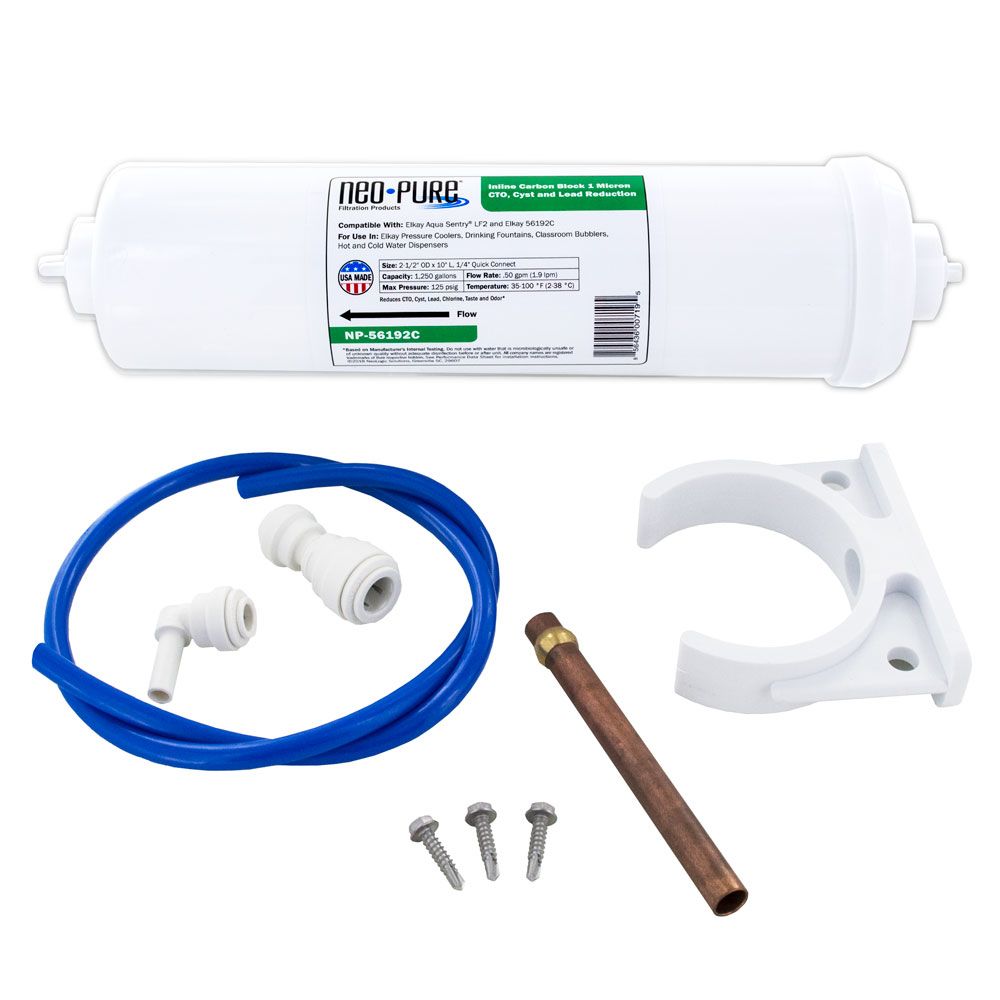

Items
NP-LF2
Tubing
Reducing Union
Stem Elbow Connector
Rigid Copper Tube
Mounting Clip
Screws

Compatible with: Elkay® | 56192C, Halsey Taylor | HWF142, Neo-Pure | NP-56192C


Weight & Dimensions

Approx Length (Inches)

10" (25.4 cm)

Details

Capacity

6 to 12 Months; 1,250 Gallons

Cartridge Style

Inline

Case Quantity

25

Connections

1/4" QC

Filter Application

Sediment/Dirt/Rust; Chlorine/Taste/Odor; Lead; Particulates

Flow Rate

0.50 Gallons Per Minute

Media Type

Coconut Shell GAC

Micron Rating (Nominal)

1 Micron

Operating Pressure Range

125 PSI

Operating Temperature Range

35 - 100 Degrees Fahrenheit

Outer Diameter

2.5"

Warranty & Certifications

Certifications

WQA Gold Seal; Tested and certified by WQA according to NSF/ANSI Standard 42; Tested and certified by WQA according to NSF/ANSI Standards 42 and 53; USA and HTS Code: 8421.21.0000
